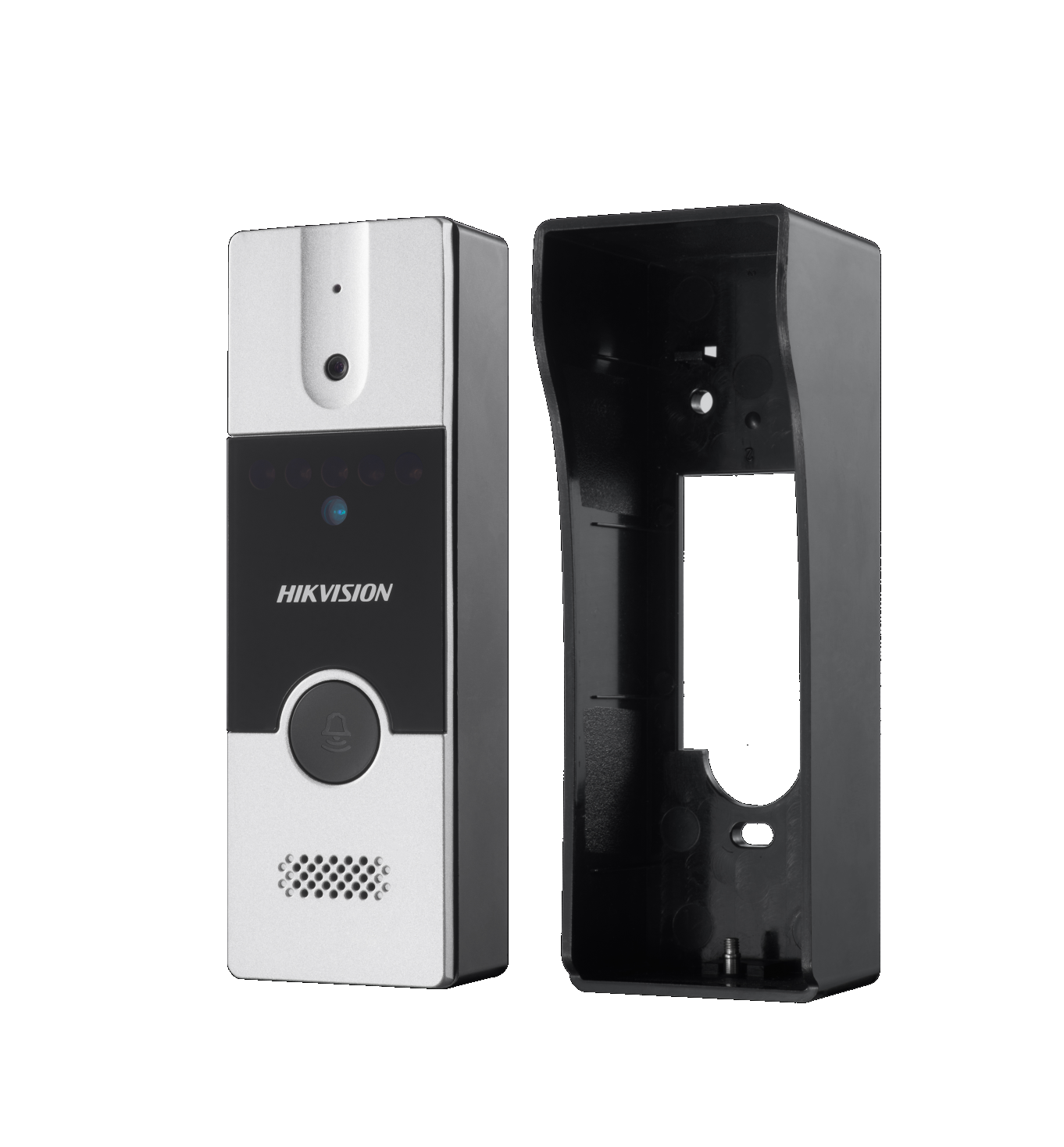

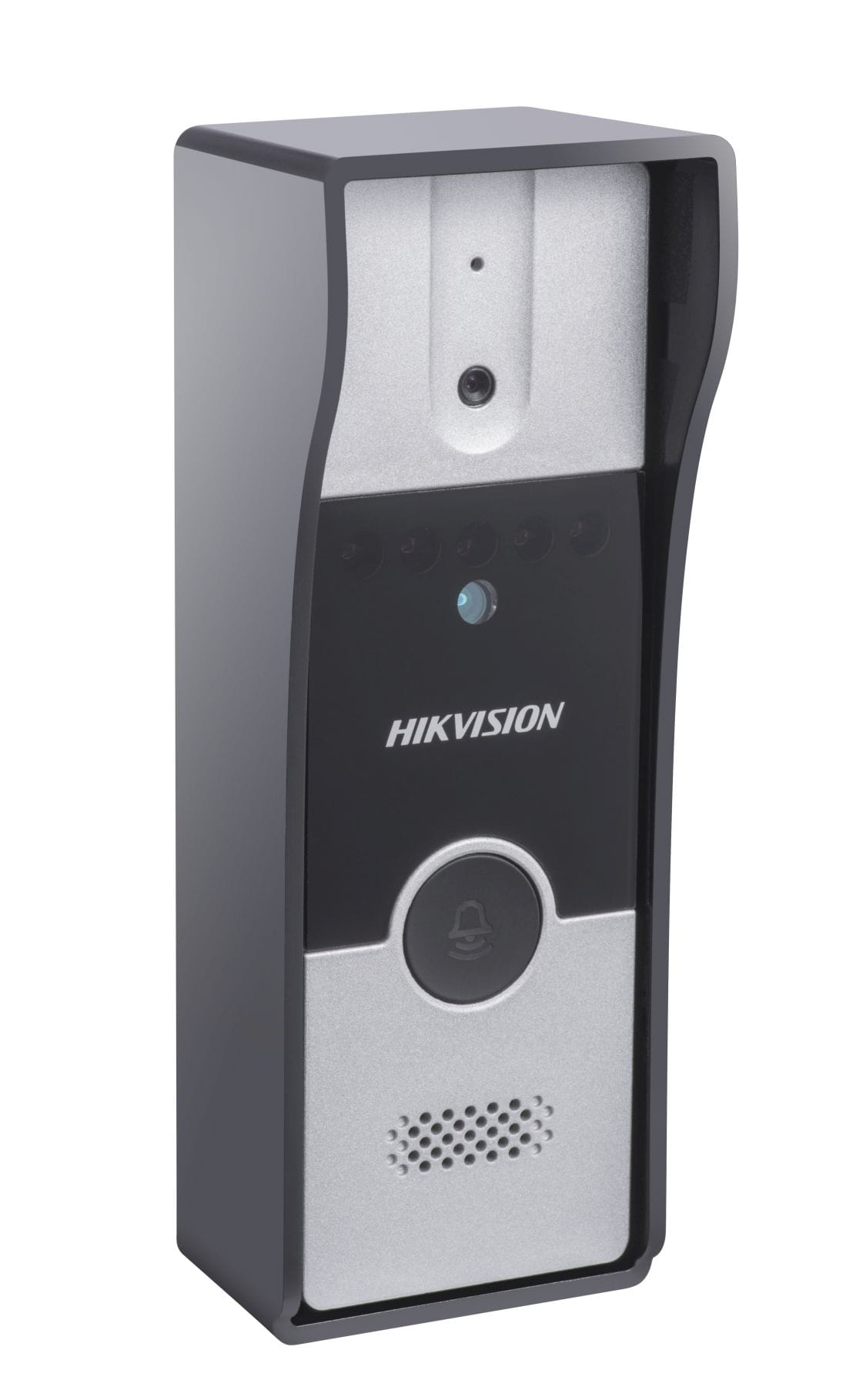

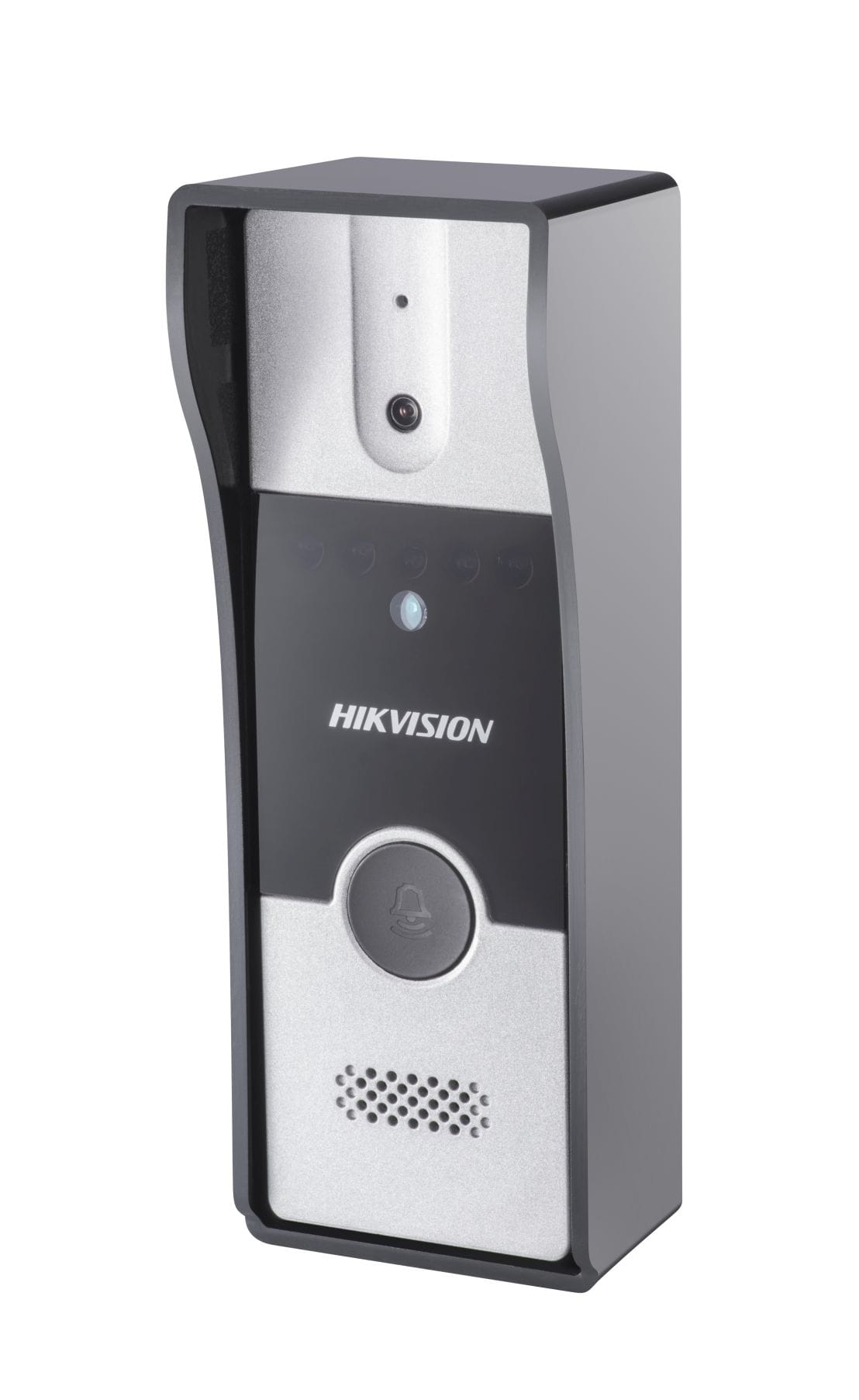

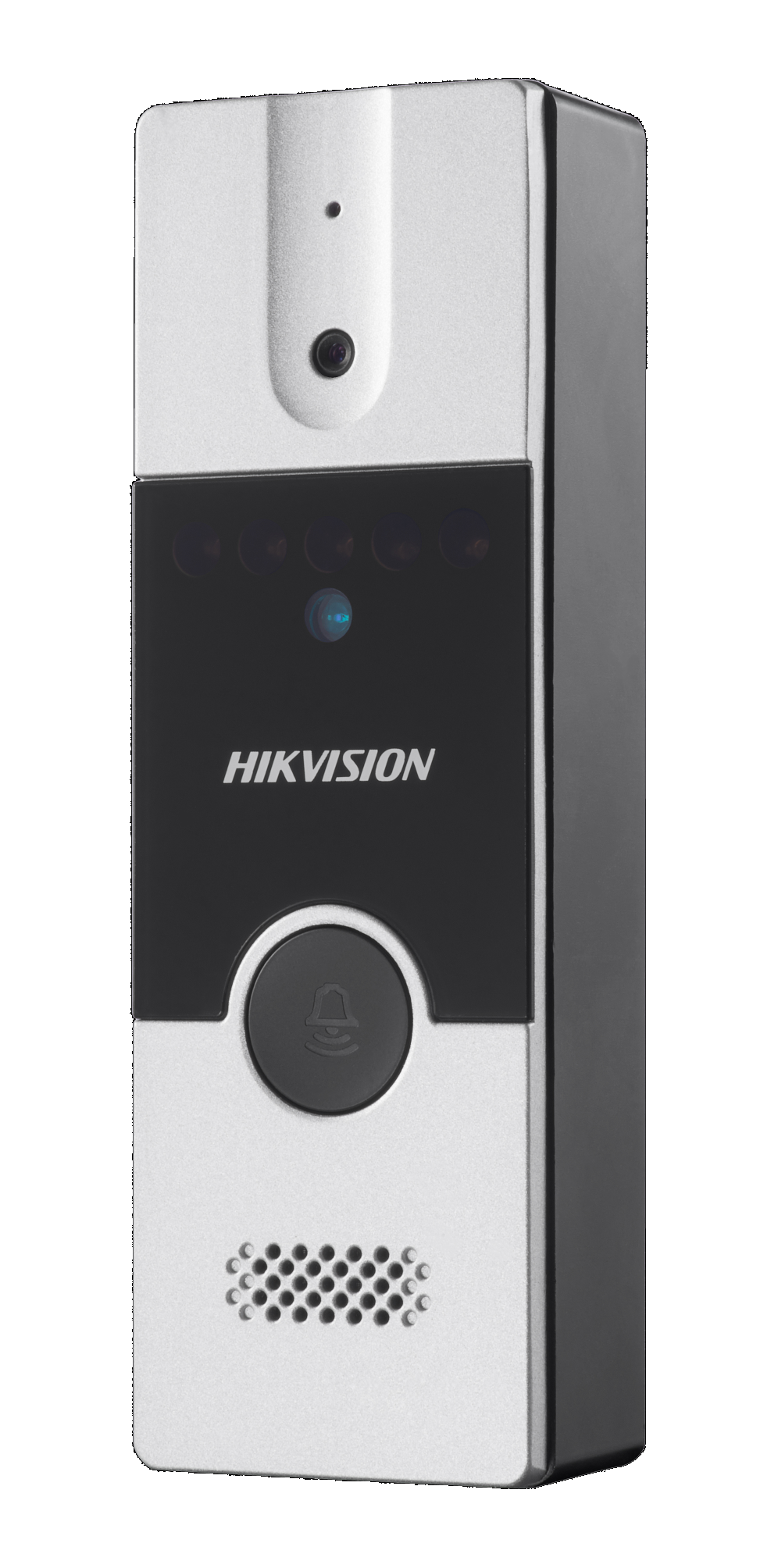

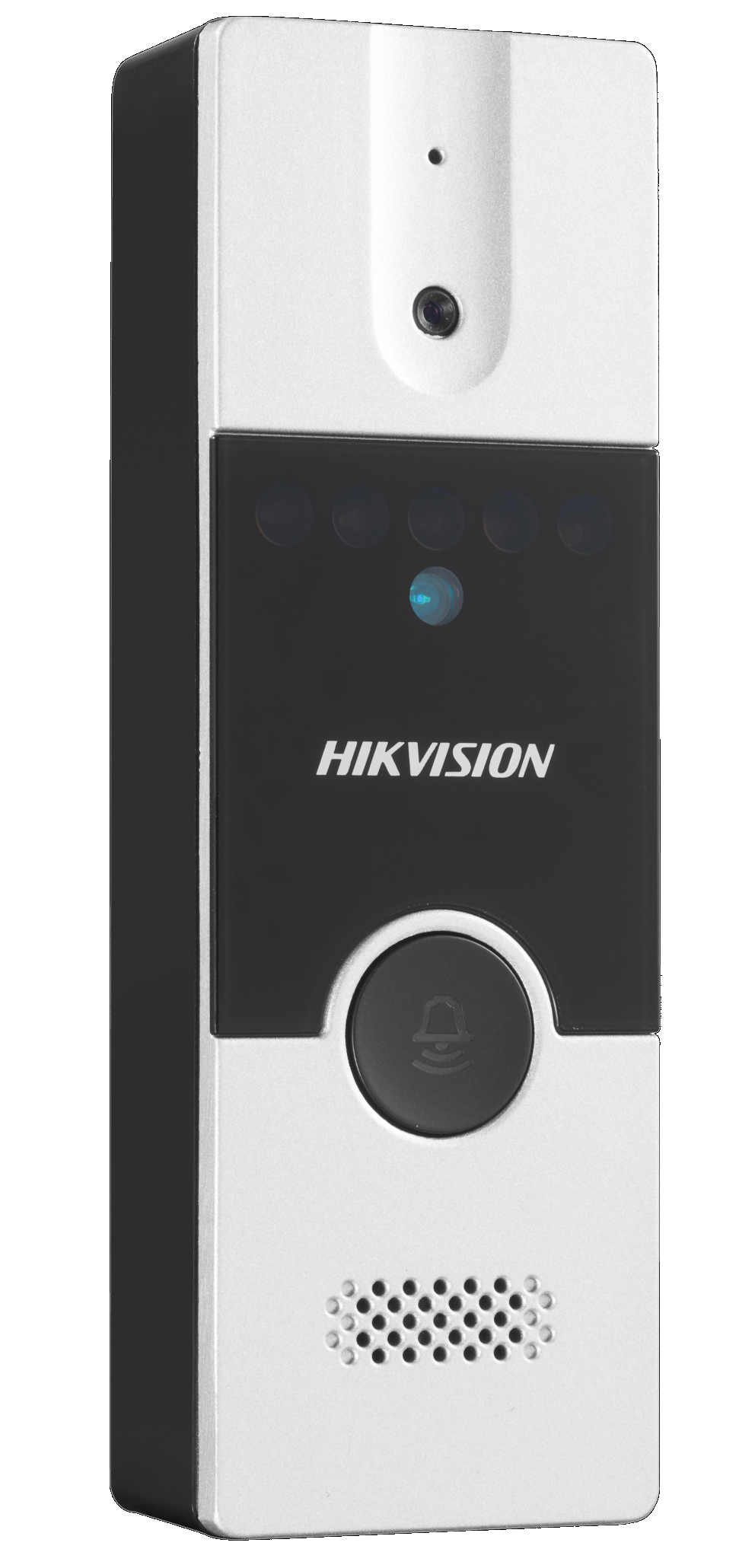

DS-KB2411-IM
Video Intercom Door Station

Key Features
 Hands-free video intercom communication
 Supports two door stations in the intercom system
 Self-adaptive IR supplement (with photoresistor)
 One-touch calling
 Pinhole camera with 720 x 576 @ 25 fps
 Unlock controlling
 Anti-oxidant aluminium alloy
 Wall mounting supported
 Convenient installation with/without the junction box
Typical Application



Door Station
Indoor Station 2
Indoor Station 3
Indoor Station 1
Analog Camera 3
Analog Camera 2
Analog Camera 1

Electric Lock
Four-Core Cable

Block to BNC Cable
Electric Lock
Connection Cable








Model DS-KB2411-IM
Video
parameters
Camera 1/4" CMOS
Resolution 720 x 576
Video frame rate PAL: 25 fps
Audio
parameters
Audio input Built-in Omnidirectional Microphone
Audio output Built-in Loudspeaker
Audio quality Noise Suppression and Echo Cancellation
Light
supplement
Light supplement
mode
Photosensitive IR Supplement, IR Range: 2 Meters
Device
interfaces
Four-wire interface
1 Four-Wire Interface (1-ch Video Input, 1-ch Audio
Input/Output, 1-ch Power Supply, 1-ch Grounding)
I/O output 1 Relay Output
General
Material Aluminum Alloy
Power
consumption
Max. 3W
Working
temperature
-30° C to +60° C (-22° F to 140° F)
Working humidity 10% to 90%
Dimensions
(L x W x H)
128 mm x 42 mm x 24.8 mm (5.0" x 1.7" x 0.9")
Specifications







Index Description
1 Microphone
2 Built-in Camera
3 Supplement Light
4 Photoresistor
5 Call Button
6 Loudspeaker

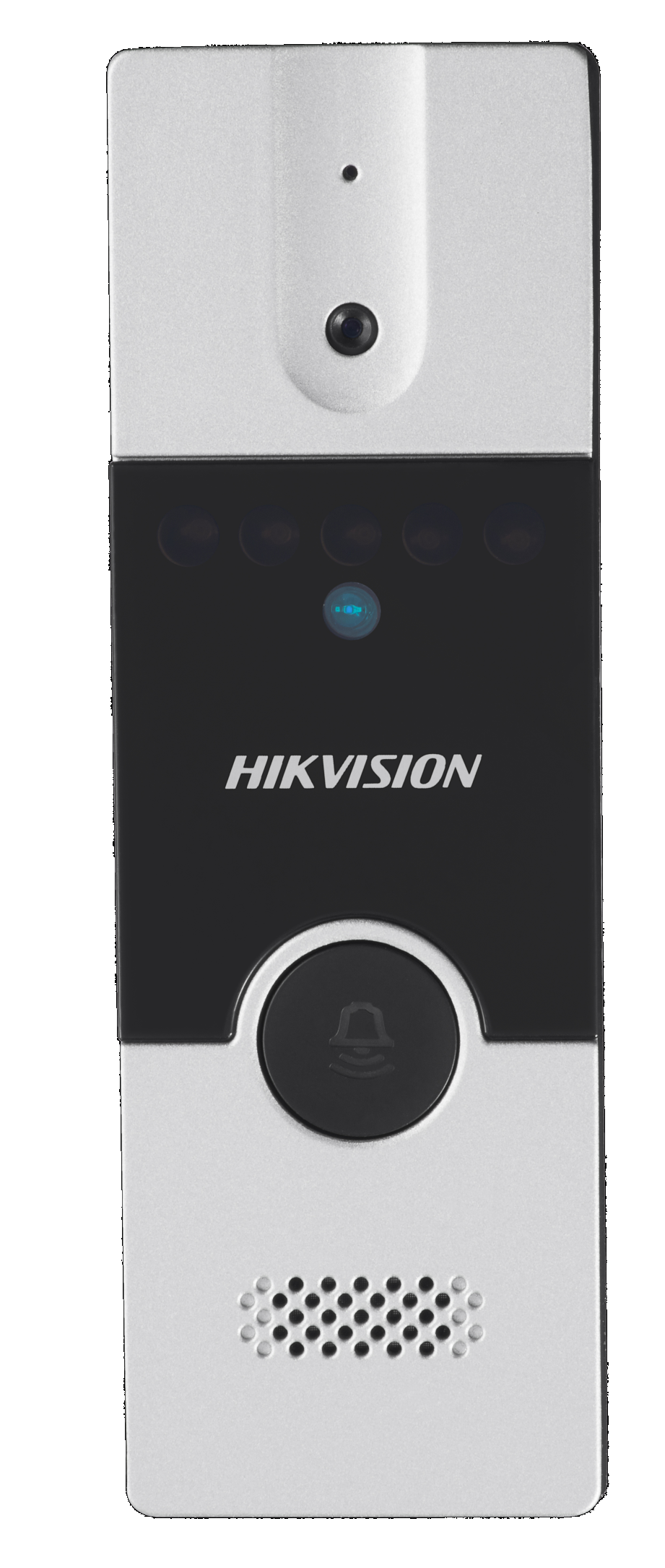

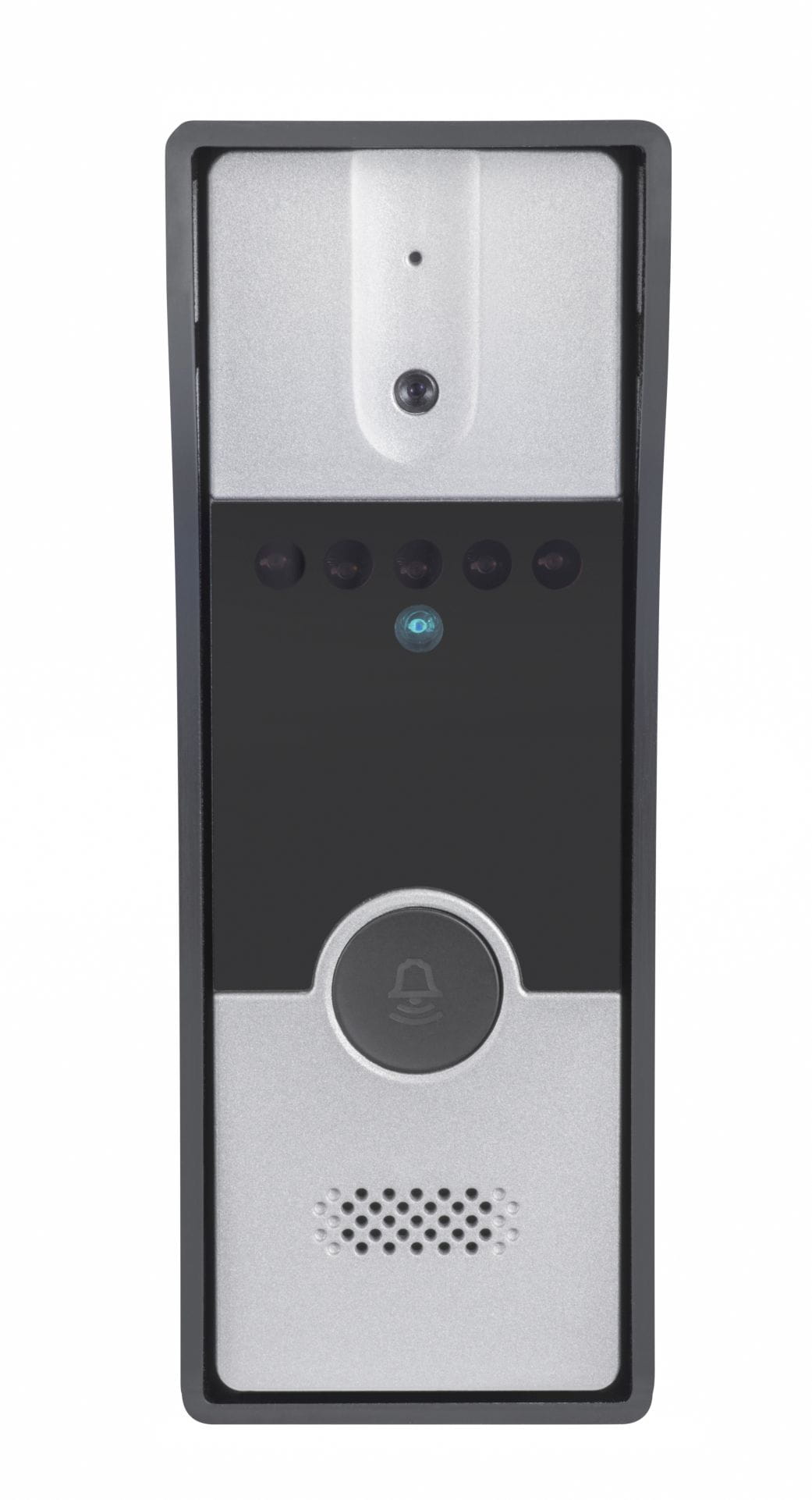

Appearance and Interfaces

20160112
Available Model
DS-KB2411-IM
