DS-2CE56D1T-IR3Z
DS-2CE56D1T-IR3Z HD1080P Motorized Vari-focal IR Turret Camera * 2 Megapixel high-performance CMOS * Analog HD output, up to 1080P resolution * 2.8 – 12mm motorized vari-focal lens * True Day/Night, Smart IR * Up to 40m IR distance * IP66 weatherproof * OSD menu * Up the Coax(HIKVISION-C protocol) Key Features Specifications Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1930(H)*1088(V) Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000s Lens Motorized VF lens; 2.8 - 12 mm @ F1.4 Angle of view: 114.5°- 35.1° Lens Mount φ14 Day & Night ICR Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° Synchronization Internal synchronization Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S/N Ratio ＞62dB Menu Camera ID On/off (0-255) AGC Support D/N Mode Color/BW/Auto/EXT White Balance Auto/User/Push/8000K/6000K/4200K/3000K Privacy Mask On/Off, maximum 2 zones Motion Detection On/Off, maximum 4 zones BLC Support Ant...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D1T-IRM(2.8mm)
©2006 – 2014 by HIKVISION. All rights reserved. 1 DS -2CE56D1T-IRM Key Features 2 Megapixel high -performance CMOS Turbo HD output, up to 1080P resolution True Day/Night, Smart IR Up to 20m IR distance IP66 weatherproof OSD menu controlled via UTC Specification Model Parameter DS -2CE56D1T-IRM Turbo HD1080p IR Turret Camera Camera Image Sensor 1/2.7" Progressive Scan CMOS 1/3" Progressive Scan CMOS(only 2.8mm) Signal System PAL/NTSC Effective Pixels 19 30(H)*1088(V) Min. Illumination 0.1 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 2.8mm, 3.6mm, 6mm optional Angle of View: 115.6°(2.8mm), 90°(3.6mm), 55.4 °(6mm) Lens Mount M12 Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° Day & Night ICR Synchronization Internal synchronization Video Frame Rate 1080p@25fps /1080p@30fps HD Video Output 1 turbo HD output S/N Ratio More than ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-2CE56D1T-IRM(3.6mm)
©2006 – 2014 by HIKVISION. All rights reserved. 1 DS -2CE56D1T-IRM Key Features 2 Megapixel high -performance CMOS Turbo HD output, up to 1080P resolution True Day/Night, Smart IR Up to 20m IR distance IP66 weatherproof OSD menu controlled via UTC Specification Model Parameter DS -2CE56D1T-IRM Turbo HD1080p IR Turret Camera Camera Image Sensor 1/2.7" Progressive Scan CMOS 1/3" Progressive Scan CMOS(only 2.8mm) Signal System PAL/NTSC Effective Pixels 19 30(H)*1088(V) Min. Illumination 0.1 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 2.8mm, 3.6mm, 6mm optional Angle of View: 115.6°(2.8mm), 90°(3.6mm), 55.4 °(6mm) Lens Mount M12 Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° Day & Night ICR Synchronization Internal synchronization Video Frame Rate 1080p@25fps /1080p@30fps HD Video Output 1 turbo HD output S/N Ratio More than ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D1T-IRMM(2.8mm)(B)
DS-2CE56D1T-IRMM HD1080P Indoor IR Dome Camera * 2 Megapixel high-performance CMOS * Analog HD output, up to 1080P resolution * True Day/Night, Smart IR * Up to 20m IR distance * OSD menu * Up the Coax(HIKVISION-C protocol) Key Features Specifications Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1930(H)*1088(V) Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000s Lens 3.6mm, 6mm optional Angle of View: 91.3°(3.6mm), 59.9°(6mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0 - 350°, Tilt: 0 - 70°, Rotation: 0 - 350° Synchronization Internal synchronization Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S/N Ratio ＞62dB Menu Camera ID On/off (0-255) AGC Support D/N Mode Color/BW/Auto/EXT White Balance Auto/User/Push/8000K/6000K/4200K/3000K Privacy Mask On/Off, maximum 2 zones Motion Detection On/Off, maximum 4 zones BLC Support Anti-flicker On/Off Language English/Chinese Functions Digital noise reduction, Mirro...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D1T-IT3(2.8mm)
www.hikvision.com DS-2CE56D1T-IT1/IT3 HD1080P EXIR Turret Camera t HD1080P Video Output t Adopt HDTVI Technology t True Day/Night, Smart IR t EXIR technology, 20/40m IR distance t IP66 weatherproof t OSD menu controlled via UTC DS-2CE56D1T-IT1DS-2CE56D1T-IT3 Camera Image Sensor2 MP CMOS Image Sensor Signal SystemPAL / NTSC Effective Pixels1930(H)*1088(V) Min. Illumination0.01 Lux @(F1.2,AGC ON), 0 Lux with IR Shutter speed1/25(1/30) s to 1/50,000 s Lens 3.6mm (6mm, 8mm, 12mm, 16mm optional) Angle of View: 84.3°(3.6mm), 55.4°(6mm), 38.7°(8mm), 24.8°(12mm), 19.2°(16mm) Lens MountM12 Angle AdjustmentPan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° Day & NightICR SynchronizationInternal synchronization Video Frame Rate1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S / N RatioMore than 52dB Menu AGCSupport D/N ModeColor/ BW/ EXT White BalanceAuto/ Manual BLCSupport LanguageEnglish/Chinese FunctionDigital noise reduction, Mirror General Working Temperature / Humidity -40 °C 60 °C (-40 °F 140 °F) Humidity 90% or less (non-condensing) Power Supply12 VDC Power ConsumptionMax. 2.5W Weather Proof RatingsIP66...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D1T-IT3(3.6mm)(B)
www.hikvision.com DS-2CE56D1T-IT1/IT3 HD1080P EXIR Turret Camera t HD1080P Video Output t Adopt HDTVI Technology t True Day/Night, Smart IR t EXIR technology, 20/40m IR distance t IP66 weatherproof t OSD menu controlled via UTC DS-2CE56D1T-IT1DS-2CE56D1T-IT3 Camera Image Sensor2 MP CMOS Image Sensor Signal SystemPAL / NTSC Effective Pixels1930(H)*1088(V) Min. Illumination0.01 Lux @(F1.2,AGC ON), 0 Lux with IR Shutter speed1/25(1/30) s to 1/50,000 s Lens 3.6mm (6mm, 8mm, 12mm, 16mm optional) Angle of View: 84.3°(3.6mm), 55.4°(6mm), 38.7°(8mm), 24.8°(12mm), 19.2°(16mm) Lens MountM12 Angle AdjustmentPan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° Day & NightICR SynchronizationInternal synchronization Video Frame Rate1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S / N RatioMore than 52dB Menu AGCSupport D/N ModeColor/ BW/ EXT White BalanceAuto/ Manual BLCSupport LanguageEnglish/Chinese FunctionDigital noise reduction, Mirror General Working Temperature / Humidity -40 °C 60 °C (-40 °F 140 °F) Humidity 90% or less (non-condensing) Power Supply12 VDC Power ConsumptionMax. 2.5W Weather Proof RatingsIP66...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D1T-VFIR3(2.8-12mm)
©2006 – 2015 by HIKVISION. All rights reserved. 1 DS-2CE56D1T-VFIR3 Key Features 2 Megapixel high-performance CMOS Turbo HD output, up to 1080P resolution 2.8 – 12mm vari-focal lens True Day/Night, Smart IR Up to 40m IR distance IP66 weatherproof OSD menu controlled via UTC Specification Model Parameter DS-2CE56D1T-VFIR3 Turbo HD1080p Vari-focal IR Turret Camera Camera Image Sensor Progressive Scan CMOS Signal System PAL/NTSC Effective Pixels 1930(H)*1088(V) Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25(1/30) s to 1/50,000 s Lens 2.8 - 12 mm @ F1.4 Angle of view: 105.2° - 32.8° Lens Mount φ14 Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° Day & Night ICR Synchronization Internal synchronization Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Turbo HD output S/N Ratio More than 52dB ©2006 – 2015 by HIKVISION. All rights res...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D1T-VFIR3F(2.8-12mm)
DS-2CE56D1T-VFIR3F HD1080P Vari-focal IR Turret Camera * 2 Megapixel high -performance CMOS * Analog HD output, up to 1080P resolution * 2.8 – 12mm vari-focal lens * True Day/Night, Smart IR * Up to 40m IR distance * IP66 weatherproof * OSD menu * Up the Coax(HIKVISION -C protocol) Key Features * Switchable TVI/AHD/CVI/CVBS Specifications Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 19 30(H)*10 88(V) Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000 s Lens 2.8 - 12 mm @ F1.4 Angle of view: 114.5 °- 35.1 ° Lens Mount φ14 Day & Night ICR Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° Synchronization Internal synchronization Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S/N Ratio ＞62dB Menu Camera ID On/off (0 -255) AGC Support D/N Mode Color/BW/Auto/EXT White Balance Auto/User/Push/8000K/6000K/4200K/3000K Privacy Mask On/Off, maximum 2 zones Motion Detection...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D1T-VFIRF(2.8-12mm)
DS-2CE56D1T-VFIRF 2MP CMOS Vari-focal IR Dome Camera * 2 Megapixel high -performance CMOS * Analog HD output, up to 1080P resolution * 2.8 – 12mm vari-focal lens * True Day/Night, Smart IR * Up to 30m IR distance * OSD menu * Switchable TVI/AHD/CVI/CVBS * Up the Coax(HIKVISION-C protocol) Key Features Specifications Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 19 30(H)*10 88(V) Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000 s Lens 2.8 - 12 mm @ F1.4 Angle of view: 114.5 ° - 35.1 ° Lens Mount φ14 Day & Night ICR Angle Adjustment Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355° Synchronization Internal synchronization Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S/N Ratio ＞62dB Menu Camera ID On/off (0 -255) AGC Support D/N Mode Color/BW/Auto/EXT White Balance Auto/User/Push/8000K/6000K/4200K/3000K Privacy Mask On/Off, maximum 2 zones Motion Detection On/Off, maximum 4 zones ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D1T-VPIR(2.8mm)(B)
www.hikvision.com DS-2CE56D1T-VPIR HD1080P Vandal Proof IR Dome Camera t HD1080P Video Output t Adopt HDTVI Technology t True Day/Night, Smart IR t Up to 20m IR distance t Vandal proof t OSD menu controlled via UTC DS-2CE56D1T-VPIR Camera Image Sensor2 MP CMOS Image Sensor Signal SystemPAL / NTSC Effective Pixels1930(H)*1088(V) Min. Illumination0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter speed1/25(1/30) s to 1/50,000 s Lens Lens Mountφ14 Angle AdjustmentPan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° Day & NightICR SynchronizationInternal synchronization Video Frame Rate1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S / N RatioMore than 52dB Menu AGCSupport D/N ModeColor/ BW/ EXT White BalanceAuto/ Manual BLCSupport LanguageEnglish/ Chinese FunctionDigital noise reduction, Mirror General Working Temperature / Humidity -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) Power Supply12V DC Power ConsumptionMax. 3W IR RangeUp to 20m Impact ProtectionIK10 Communication Up the coax Protocol: HIKVISION-C(Coaxitron) Dimensions 111 x 82.4 mm ( 4.37” x 3.24”) Weight550g (1.2...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D1T-VPIR3(2.8-12mm)
www.hikvision.com DS-2CE56D1T-(A)VPIR3 HD1080P Outdoor Vandal Proof IR Dome Camera t HD1080P Video Output t Adopt HDTVI Technology t True Day/Night, Smart IR t 2.8 - 12mm vari-focal lens t Up to 40m IR distance t IP66 weatherproof & Vandal Proof t OSD menu controlled via UTC t Dual voltage (DS-2CE56D1T-AVPIR3) DS-2CE56D1T-AVPIR3 DS-2CE56D1T-VPIR3 DS-2CE56D1T-(A)VPIR3 Camera Image Sensor2 MP CMOS Image Sensor Signal SystemPAL / NTSC Effective Pixels1930(H)*1088(V) Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR Shutter speed1/25(1/30) s to 1/50,000 s Lens 2.8-12mm @ F1.4 Angle of view: 105.2° - 32.8° Lens Mountφ14 Angle AdjustmentPan: 0 - 355°, Tilt: 0 - 90°, Rotation: 0-355° Day & NightICR SynchronizationInternal synchronization Video Frame Rate1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S / N RatioMore than 52dB Menu AGCSupport D/N ModeColor/ BW/ EXT White BalanceAuto/ Manual BLCSupport LanguageEnglish/ Chinese FunctionDigital noise reduction, Mirror General Working Temperature / Humidity -40 °C 60 °C (-40 °F 140 °F) Humidity 90% or ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D1T-VPIR3Z(2.8-12mm)
2MP CMOS Motorized Vandal-proof IR Dome Camera Ÿ 2 Megapixel high-performance CMOS Ÿ Analog HD output, up to 1080P resoluon Ÿ 2.8 – 12mm motorized vari-focal lens Ÿ True Day/Night, Smart IR Ÿ Up to 40m IR distance Ÿ IP66 weatherproof & vandal proof Ÿ OSD menu Ÿ Ÿ Up the Coax(HIKVISION-C protocol) Key Features DS-2CE56D1T-VPIR3Z 12V DC Specificaons Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effecve Pixels 1930(H)*1088(V) Min. illuminaon 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shuer Time 1/25(1/30)s to 1/50,000s Lens Motorized VF lens; 2.8 - 12 mm @ F1.4 Angle of view: 114.5° - 35.1° Lens Mount φ14 Day & Night ICR Angle Adjustment Pan: 0 - 355°, Tilt: 0 - 75°, Rotaon: 0 - 355° Synchronizaon Internal synchronizaon Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S/N Rao ＞62dB Menu Camera ID On/off (0-255) AGC Support D/N Mode Color/BW/Auto/EXT White Balance Auto/User/Push/8000K/6000K/4200K/3000K Privacy Mask On/Off, maximum 2 zones Moon Detecon On/Off, maximum 4 zones BLC Support An-flicker On/Off...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0

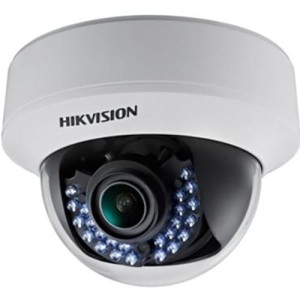

DS-2CE56D5T-AIRZ(2.8-12mm)
DS-2CE56D5T-AIRZ HD1080P WDR Indoor Motorized VF IR Dome Camera * 2 Megapixel high-performance CMOS * Analog HD output, up to 1080P resolution * 2.8 – 12mm motorized vari-focal lens * True Day/Night * OSD menu, 3D DNR, Smart IR * Up to 30m IR distance * Up the Coax(HIKVISION-C, Pelco-C protocol) * 24V AC/ 12V DC Key Features Specifications Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1944(H)*1092(V) Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR; 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000s Lens Motorized VF lens; 2.8 - 12 mm @ F1.4 Angle of view: 103°- 32.1° Lens Mount φ14 Day & Night ICR Angle Adjustment Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355° Synchronization Internal synchronization WDR 120dB Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output CVBS Output 1Vp-p Composite Output(75Ω/BNC) S/N Ratio ＞62dB Menu Scene Indoor, Outdoor, Indoor1, LOW-LIGHT Camera ID On/off (15 characters, position programmable) AGC Support ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D5T-AVFIR(2.8-12mm)
www.hikvision.com DS-2CE56D5T-(A)VFIR HD1080P Turbo HD Indoor Vari-focal IR Camera • HD1080P Video Output • Adopt HDTVI Technology • True Day/Night • 2.8 - 12mm vari-focal lens • OSD menu, 3D DNR, Smart IR • Up to 30m IR distance • Up the Coax(via coaxial cable) • 120 dB Wide Dynamic Range DS-2CE56D5T-VFIR DS-2CE56D5T-AVFIR 1/3” CMOS OS D IC R Scan BL C DS-2CE56D5T-(A)VFIR Camera Image Sensor 1 / 3" Progressive Scan CMOS Signal System PAL / NTSC Effective Pixels 1920(H)*1080(V) Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR Shutter speed 1/25(1/30) s to 1/50,000 s Lens 2...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0

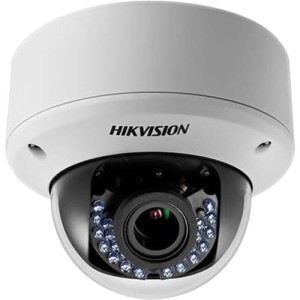

DS-2CE56D5T-AVPIR3(2.8-12mm)
www.hikvision.com DS-2CE56D5T-(A)VPIR3 HD1080P Turbo HD Outdoor Vandal Proof IR Dome Camera t HD1080P Video Output t Adopt HDTVI Technology t True Day/Night t 2.8 - 12mm vari-focal lens t OSD menu, 3D DNR, Smart IR t Up to 40m IR distance t IP66 weatherproof & Vandal Proof t Up the Coax(via coaxial cable) t 120 dB Wide Dynamic Range DS-2CE56D5T-AVPIR3 DS-2CE56D5T-VPIR3 1/3 CMOS OSD ICR Scan BLC DS-2CE56D5T-(A)VPIR3 Camera Image Sensor1 / 3" Progressive Scan CMOS Signal SystemPAL / NTSC Effective Pixels1920(H)*1080(V) Min. Illumination 0.01 Lux @ (zF1.2,AzGC ON),0 Lux with IR 0.014 Lux @ (zF1.4,AzGC ON),0 Lux with IR Shutter speed1/25(1/30) s to 1/50,000 s Lens 2.8-12mm @ F1.4 Angle of view: 92° - 32° Lens Mountφ14 Angle AdjustmentPan: 0 - 355°, Tilt: 0 - 80°, Rotation: ± 90° Day & NightICR Wide dynamic range120 dB SynchronizationInternal synchronization Video Frame Rate1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output CVBS Output 1Vp-p Composite Output(75 / BNC) S / N RatioMore than 52dB Menu SceneIndoor, Outdoor, Indoor1, LOW-LIGHT Camera IDOn/off (15 characters, ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D5T-AVPIR3Z(2.8-12mm)
DS-2CE56D5T-AVPIR3Z(H) 2MP CMOS Motorized Vandal-proof IR Dome Camera * 2 Megapixel high-performance CMOS * Analog HD output, up to 1080P resolution * 2.8 – 12mm motorized vari-focal lens * True Day/Night * OSD menu, 3D DNR, Smart IR * True WDR, up to 120dB * Up to 40m IR distance * Built-in heater(-H) * IP66 weatherproof & vandal proof * Up the Coax(HIKVISION-C, Pelco-C protocol) * 24V AC/ 12V DC * Key Features Specifications Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1944(H)*1092(V) Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR; 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000s Lens Motorized VF lens; 2.8 - 12 mm @ F1.4 Angle of view: 103°° °φ14 p Composite Output(75Ω/BNC) ＞ Menu Scene Indoor, Outdoor, Indoor1, LOW-LIGHT Camera ID On/off (15 characters, position programmable) AGC Support D/N Mode Color/BW/EXT White Balance ATW, AWC-SET, Indoor, Outdoor, Manual Privacy Mask On/Off, maximum 8 zones Motion Detection On/Off, maximum 4 zones BLC S...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D5T-AVPIR3ZH(2.8-12mm)
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com © 2015-2016 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 103116NA DS-2CE56D5T-AVPIR3ZH HD1080p Outdoor Motorized Varifocal IR Dome • 2 Megapixel High-Performance CMOS • TurboHD Output, U p to 1080p Resolution • 2.8 mm to 12 mm Motorized Varifocal Lens • True Day/Night • OSD Menu, 3D DNR, Smart IR •True WDR, Up to 120 dB •IR Range 40 Meters (~130 Feet) • Built-In Heater •IP66 and IK10 Protection •UTC Control •24 VAC/12 VDC DS-2CE56D5T-AVPIR3ZH Camera Image Sensor 2 MP CMOS i mage s ensor Signal System NTSC Effective Pixels 1 920 x 1080 Minimum Illumination0 .014 l ux @ ( ƒ/1.4, AGC on), 0 lux with IR Shutter Speed1/30 s to 1/50,000 s Lens ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE56D5T-IRM(2.8mm)
www.hikvision.com t HD1080P Video Output t Adopt HDTVI Technology t True Day/Night t OSD menu, 3D DNR, Smart IR t 20m IR distance t IP66 weatherproof t Up the Coax(via coaxial cable) t 120 dB Wide Dynamic Range DS-2CE56D5T-IRM Camera Image Sensor1 / 3" Progressive Scan CMOS Signal SystemPAL / NTSC Effective Pixels1920(H)*1080(V) Min. Illumination0.01 Lux @(zF1.2,AzGC ON), 0 Lux with IR Shutter Time1 / 25(1 / 30) s to 1 / 50,000 s Lens 3.6mm (2.8mm, 6mm optional) Angle of View: 80.9°(3.6mm), 103.5°(2.8mm), 54.3°(6mm) Lens MountM12 Angle AdjustmentPan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° Day & NightICR Wide dynamic range120 dB SynchronizationInternal synchronization Video Frame Rate1080p@25fps / 1080p@30fps HD Video Output 1 Analog HD output CVBS Output 1Vp-p Composite Output(75 / BNC) S / N RatioMore than 52dB Menu SceneIndoor, Outdoor, Indoor1, LOW-LIGHT Camera IDOn / off (15 characters, position programmable) AGCSupport D / N ModeColor / BW / EXT White BalanceATW, AWC-SET, Indoor, Outdoor, Manual Privacy MaskOn / Off, maximum 8 zones Motion DetectionOn / Off, maximum 4 zones BLCSupport Anti-ickerOn / off Langu...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
