DS-2CE56D1T-IR3Z

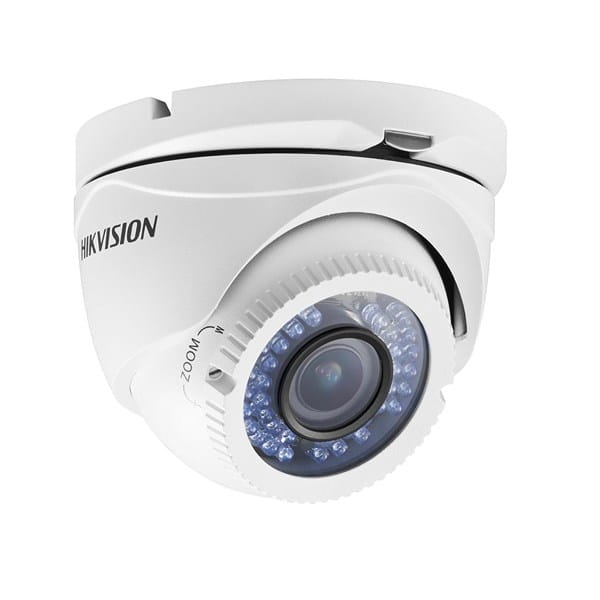

HD1080P Motorized Vari-focal IR Turret Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* 2.8 – 12mm motorized vari-focal lens
* True Day/Night, Smart IR
* Up to 40m IR distance
* IP66 weatherproof
* OSD menu
* Up the Coax(HIKVISION-C protocol)

Key Features








Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1930(H)*1088(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
Motorized VF lens; 2.8 - 12 mm @ F1.4
Angle of view: 114.5°- 35.1°
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
Camera ID On/off (0-255)
AGC Support
D/N Mode Color/BW/Auto/EXT
White Balance Auto/User/Push/8000K/6000K/4200K/3000K
Privacy Mask On/Off, maximum 2 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/Off
Language English/Chinese
Functions Digital noise reduction, Mirror
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 5W
Protection Level IP66
IR Range Up to 40m
Communication Up the coax, Protocol: HIKVISION-C(TVI output)
Dimensions Φ130.54 x 102.4mm (Φ5.1” x 4”)
Weight 710 g
Order Models
DS-2CE56D1T-IR3Z





Dimensions

20150918
Accessories
3-4.5(0.2")
112.4(4.4")
130.54(5.1")
102.4(4")


DS-1273ZJ-130-TRS DS-1275ZJ DS-1276ZJ DS-1H18
Wall Mounting Vertical Pole Mounting Corner Mounting Video Balun



X41T DS-1281ZJ-M DS-1280ZJ-M
Camera Tester Inclined ceiling mounting Junction Box
