DS-2CE56D5T-AIRZ(2.8-12mm)

DS-2CE56D5T-AIRZ  HD1080P WDR Indoor Motorized VF IR Dome Camera    * 2 Megapixel high-performance CMOS  * Analog HD output, up to 1080P resolution  * 2.8 – 12mm motorized vari-focal lens  * True Day/Night  * OSD menu, 3D DNR, Smart IR  * Up to 30m IR distance  * Up the Coax(HIKVISION-C, Pelco-C protocol)  * 24V AC/ 12V DC    Key Features                    Specifications          Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1944(H)*1092(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR; 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  Motorized VF lens; 2.8 - 12 mm @ F1.4  Angle of view: 103°- 32.1°  Lens Mount φ14  Day & Night ICR  Angle Adjustment Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°  Synchronization Internal synchronization  WDR 120dB  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  CVBS Output 1Vp-p Composite Output(75Ω/BNC)  S/N Ratio ＞62dB  Menu  Scene Indoor, Outdoor, Indoor1, LOW-LIGHT  Camera ID On/off (15 characters, position programmable)  AGC Support ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CE56D5T-AIRZ

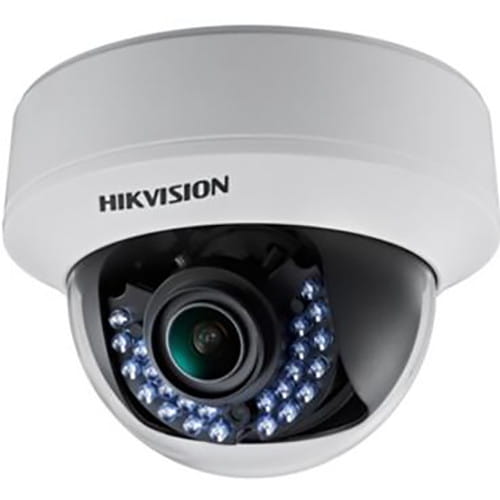

HD1080P WDR Indoor Motorized VF IR Dome Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* 2.8 – 12mm motorized vari-focal lens
* True Day/Night
* OSD menu, 3D DNR, Smart IR
* Up to 30m IR distance
* Up the Coax(HIKVISION-C, Pelco-C protocol)
* 24V AC/ 12V DC

Key Features









Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1944(H)*1092(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR; 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
Motorized VF lens; 2.8 - 12 mm @ F1.4
Angle of view: 103°- 32.1°
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°
Synchronization Internal synchronization
WDR 120dB
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
CVBS Output 1Vp-p Composite Output(75Ω/BNC)
S/N Ratio ＞62dB
Menu
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On/off (15 characters, position programmable)
AGC Support
D/N Mode Color/BW/EXT
White Balance ATW, AWC-SET, Manual
Privacy Mask On/Off, maximum 8 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/Off
Language
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese,
Dutch, Turkish, Hebrew and Arabic
Functions
HSBLC, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction,
SMART D-ZOOM
General
Operating Conditions -20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%, 24 VAC±15%
Power Consumption Max. 6W
IR Range Up to 30m
Communication Up the coax, Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimensions Φ 136 x 101 mm (Φ 5.35” x 3. 98”)
Weight 560 g




Dimensions

20150918
Accessories
Order Models
DS-2CE56D5T-AIRZ




Unit: mm


DS-1273ZJ-130 DS-1275ZJ DS-1271ZJ-130 DS-1273ZJ-130B
Wall Mounting Vertical Pole Mounting Pendant Mounting Wall Mounting



DS-1249ZJ DS-1276ZJ DS-1H18 X41T
In-ceiling Mounting Corner Mounting Video Balun Camera Tester
