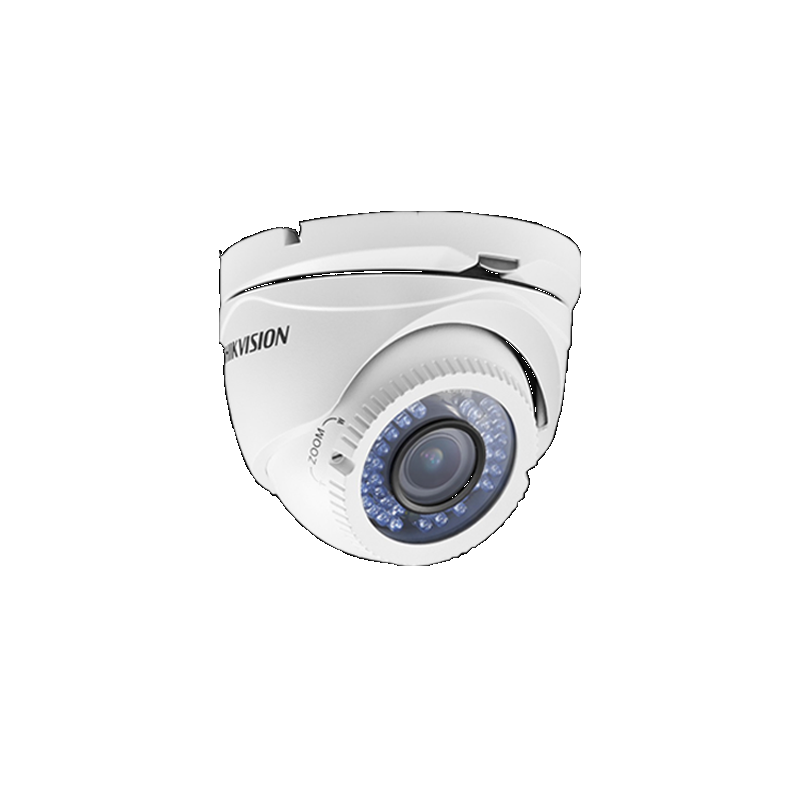

DS-2CE56D1T-VFIR3(2.8-12mm)

©2006 – 2015 by HIKVISION. All rights reserved.  1  DS-2CE56D1T-VFIR3      Key Features   2 Megapixel high-performance CMOS   Turbo HD output, up to 1080P resolution   2.8 – 12mm vari-focal lens   True Day/Night, Smart IR   Up to 40m IR distance   IP66 weatherproof   OSD menu controlled via UTC  Specification   Model  Parameter  DS-2CE56D1T-VFIR3  Turbo HD1080p Vari-focal IR Turret Camera  Camera  Image Sensor Progressive Scan CMOS  Signal System PAL/NTSC  Effective Pixels 1930(H)*1088(V)  Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30) s to 1/50,000 s  Lens  2.8 - 12 mm @ F1.4  Angle of view: 105.2° - 32.8°  Lens Mount φ14  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°  Day & Night ICR  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Turbo HD output  S/N Ratio More than 52dB        ©2006 – 2015 by HIKVISION. All rights res...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

©2006 – 2015 by HIKVISION. All rights reserved.
1
DS-2CE56D1T-VFIR3


Key Features
 2 Megapixel high-performance CMOS
 Turbo HD output, up to 1080P resolution
 2.8 – 12mm vari-focal lens
 True Day/Night, Smart IR
 Up to 40m IR distance
 IP66 weatherproof
 OSD menu controlled via UTC
Specification
Model
Parameter
DS-2CE56D1T-VFIR3
Turbo HD1080p Vari-focal IR Turret Camera
Camera
Image Sensor Progressive Scan CMOS
Signal System PAL/NTSC
Effective Pixels 1930(H)*1088(V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens
2.8 - 12 mm @ F1.4
Angle of view: 105.2° - 32.8°
Lens Mount φ14
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Turbo HD output
S/N Ratio More than 52dB



©2006 – 2015 by HIKVISION. All rights reserved.
2
Menu
AGC Support
D/N Mode Color/BW/EXT
White Balance Auto/Manual
BLC Support
Language English/Chinese
Functions Digital noise reduction, Mirror
General
Working
Temperature/Humidity
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 3.5W
Weather Proof Ratings IP66
IR Range Up to 40m
Communication
Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension Φ130.54 x 102.4mm (Φ5.1” x 4”)
Weight 410 g (0.90 lb)
Order Model
DS-2CE56D1T-VFIR3
Dimension
3-4.5(0.2")
112.4(4.4")
130.54(5.1")
102.4(4")
