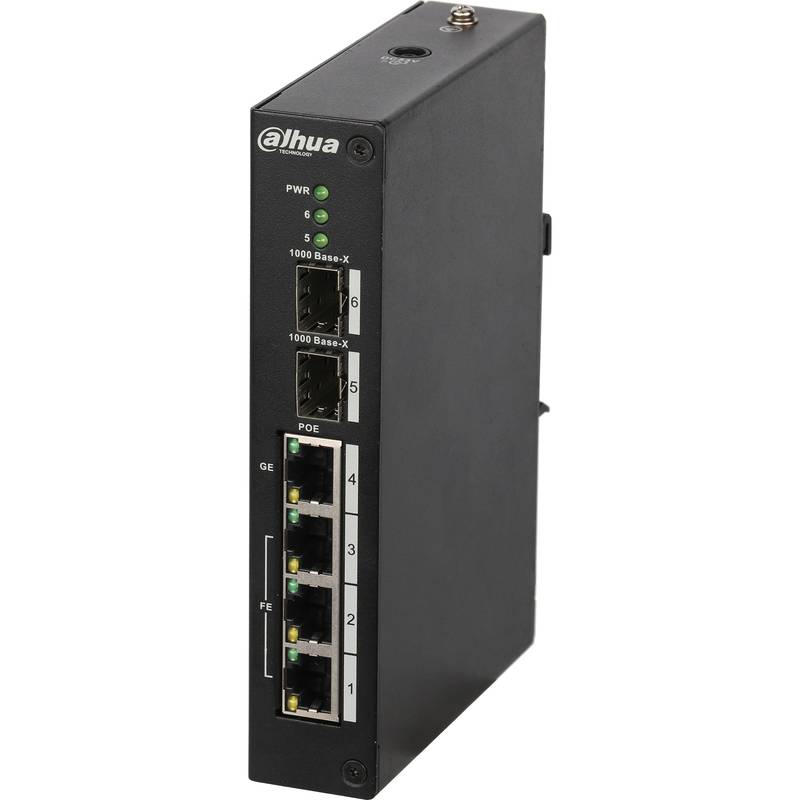

PFS3206-4P-96

DH-PFS3206-4P-96    www.dahuasecurity.com   Features  · Two-layer unmanaged PoE switch  · Cascade can be realized via SFP fiber port  · MAC auto study and aging, MAC address list capacity is 8K  · Support IEEE802.3af, IEEE802.3at, Hi-PoE standard  · Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and  IEEE802.3X standards  · Industrial wide temperature design  DH-PFS3206-4P-96  4-Port PoE Switch (Unmanaged)    Technical Specification  ModelDH-PFS3206-4P-96  Ethernet Port  2*1000 Base-X  1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE)  3*10/100 Base-T (PoE+/PoE)  PoE Power Consumption  Port1, 2, 3 ≤30W  Port4≤60W  Total≤96W  PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE  Switching Capacity6.8G  Packet Forwarding Rate4.91Mpps  Packet Buffer Memory1Mb  MAC Table Size8K  Flow ControlEnable by default  Application Humidity10%~90%  PowerDC48~57V  Lightning Protection  Common Mode 4KV  Differential Mode 2KV  Working Temperature-30°C~65°C  Weight480g  Dimension(WxDxH)150mmx100mmx30mm      Accessories  Model  PFT39501.25G 850nm,500m,LC, Multi-mode  PFT39601.25G 1310/1550nm,20km,LC, Single-mode  PFT39701.25G 1550/1310nm,20km,LC, Single-mode...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-PFS3206-4P-96

www.dahuasecurity.com
Features
· Two-layer unmanaged PoE switch
· Cascade can be realized via SFP fiber port
· MAC auto study and aging, MAC address list capacity is 8K
· Support IEEE802.3af, IEEE802.3at, Hi-PoE standard
· Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
· Industrial wide temperature design
DH-PFS3206-4P-96
4-Port PoE Switch (Unmanaged)

Technical Specification
ModelDH-PFS3206-4P-96
Ethernet Port
2*1000 Base-X
1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE)
3*10/100 Base-T (PoE+/PoE)
PoE Power Consumption
Port1, 2, 3 ≤30W
Port4≤60W
Total≤96W
PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity6.8G
Packet Forwarding Rate4.91Mpps
Packet Buffer Memory1Mb
MAC Table Size8K
Flow ControlEnable by default
Application Humidity10%~90%
PowerDC48~57V
Lightning Protection
Common Mode 4KV
Differential Mode 2KV
Working Temperature-30°C~65°C
Weight480g
Dimension(WxDxH)150mmx100mmx30mm


Accessories
Model
PFT39501.25G 850nm,500m,LC, Multi-mode
PFT39601.25G 1310/1550nm,20km,LC, Single-mode
PFT39701.25G 1550/1310nm,20km,LC, Single-mode
