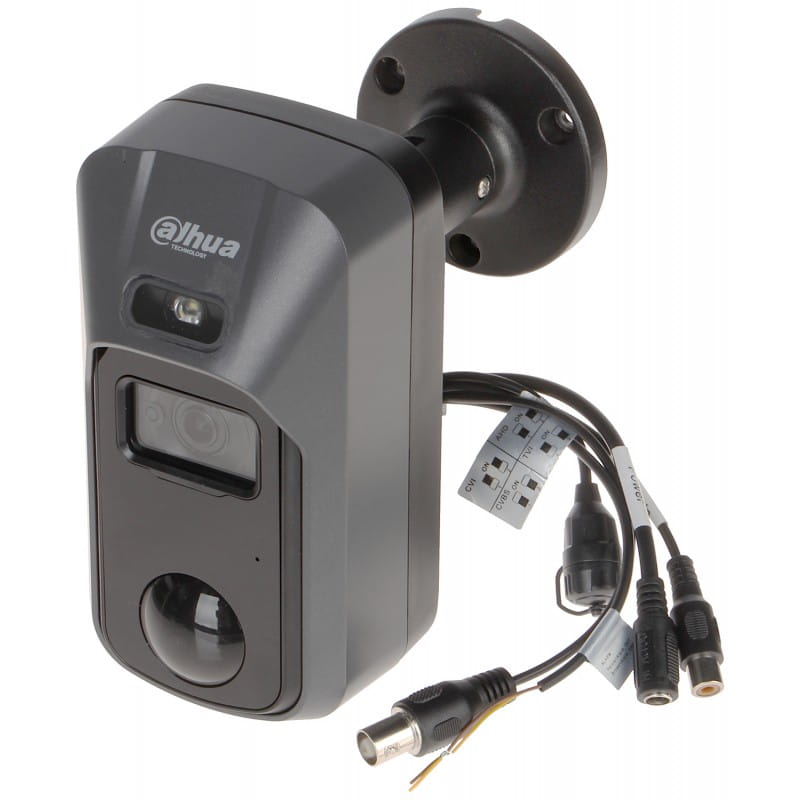

HAC-ME2241C-0280B

Availability: 0
Price: €148.69 148.69
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: DAHUA
Product code: HAC-ME2241C-0280B

Description

PIR Series | DH-HAC-ME2241C-W     System Overview  This PIR model is an indoor/outdoor dual detection camera which uses  both video and infrared sensor to achieve accurate motion detection  functionality. It also supports active deterrence feature which warns off  intruders with white light and siren even before users are aware of the  incident. This camera is an ideal choice for applications which require  intrusion protect and video verification , such as courtyards, offices,  warehouses, stores, etc.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at long distance  without any loss. It supports up to 700m transmission for 5MP HD video  via coaxial cable, and up to 300m via UTP cable.*  *Actual results verified by real-sc...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

PIR Series | DH-HAC-ME2241C-W

System Overview
This PIR model is an indoor/outdoor dual detection camera which uses
both video and infrared sensor to achieve accurate motion detection
functionality. It also supports active deterrence feature which warns off
intruders with white light and siren even before users are aware of the
incident. This camera is an ideal choice for applications which require
intrusion protect and video verification , such as courtyards, offices,
warehouses, stores, etc.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 700m transmission for 5MP HD video
via coaxial cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional ana-
log system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Dual Detection
The detection accuracy is well guaranteed with both motion detection
and PIR detection, which can eliminate the number of false alarms you
receive. With the advantage of dual detection technology, your HDD will
now last longer and not be recorded with false alarms. Gone are the days
of alarms caused by heavy wind or rain. Instead, only true threats will
instantly trigger an alarm and allow you to protect your loved ones.
Active Deterrence
Active deterrence is to warn off intruders actively with white light and siren
even before users are aware of the incidence. Once an intursion is detected,
the white light will turn on and the siren will buzzer to alert the intruder.
The white light can be set to Normally on or Flash, the content of siren is
configurable.
Starlight
With the adoption of large sized high performance sensor, the camera is
able to provide incomparable performance even under extreme lowlight
environment. The starlight feature allows more details to be captured and
accurate color to be recognized at night or in scenes with limited illumination.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance
applications. The HDCVI camera supports audio signal transmission over
coaxial cable. In addition, it adopts unique audio processing and transmission
technology that best restores source audio and eliminates noise,
guaranteeing the quality and effectiveness of collected audio information.
Wireless Gateway
The camera is integrated with a built-in Airfly transceiver to connect to
multiple wireless alarm devices such as smoke detectors or door contacts.
Once a paired sensor is triggered, the gateway camera can receive alarms
wirelessly through Airfly protocol and push the alarm to the recorder along
with video. The camera can also trigger actuators such as wireless sirens.
The gateway camera supports up to 32 wirelessly connected channels and
its maximum range reaches 100 meters in open space.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67, making it suitable
for indoor or outdoor environments.
With PIR working temperature range of -20 °C to +60 °C (-4 °F to +140 °F), the
MotionEye is designed for extreme temperature environments.
Supporting ±30% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protection against the camera and its structure from the effects of lightning.
www.dahuasecurity.com
· Starlight
· Max 30fps@1080P
· HD and SD output switchable
· 2.8mm fixed lens (3.6mm optional)
· Max. IR length 20m, Smart IR
· Built-in PIR, 15m/110°detecting range/angle
· Active deterrence with white light & siren
· Built-in Airfly transceiver, up to 32 wireless
devices connection
· Built-in mic
· IP67, DC12V
DH-HAC-ME2241C-W
2MP HDCVI Active Deterrence Camera

DC 12V

1080p

PIR
IP67

20m IR

Starlight


www.dahuasecurity.com
PIR Series | DH-HAC-ME2241C-W

Technical Specification
Camera
Image Sensor1/2.8" CMOS
Effective Pixels
1920(H)x1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/4s~1/100,000s
NTSC: 1/3s~1/100,000s
Minimum Illumination0.004Lux/F1.6, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 20m (66feet)
IR On/Off ControlAuto / Manual
IR LEDs1
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length2.8mm (3.6mm Optional)
Max ApertureF1.6
Angle of View
H: 110° (86.9°)
V: 60° (46.3°)
Focus ControlN/A
Close Focus Distance
500mm(1200mm)
19.7''(47.2'')
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m
(8px/ft)
2.8mm: 39m(128ft)
3.6mm: 55m(180ft)
Observe
63px/m
(19px/ft)
2.8mm: 15m(49ft)
3.6mm: 22m(72ft)
Recognize
125px/m
(38px/ft)
2.8mm: 8m(26ft)
3.6mm: 11m(36ft)
Identify
250ppm
(76px/ft)
2.8mm: 4m(13ft)
3.6mm: 6m(20ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution1080P (1920x1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output / CVBS
video output (DIP switch)
Day/NightAuto (ICR) / Manual


OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D/3D
White BalanceAuto / Manual
Smart IRAuto / Manual
PIR
DetectionPassive infrared
Detection RangeMax. 15m, 110°
Alarm promptWhitelight & Siren
Installation heightDefualt bracket, wall mount, 2.2-2.5m
IoT Features
Wireless Frequency433/868/915Mhz
Wireless ProtocolAirfly
Device ConnectionUp to 32 wireless devices connection
Wireless Transmission DistanceUp to 100m (open space/ no interference)
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio InterfaceBuilt-in mic & 1 ch audio in interface
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax 5.5W (12V DC, IR on)
Environmental
Operating Conditions
-20°C ~ +60°C (-4°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -20°C (-4°F)
Storage Conditions-20°C ~ +60°C (-4°F ~ +140°F) / Less than 95% RH
Ingress Protection &Vandal
Resistance
IP67
Construction
CasingPlastic (Body) + Aluminium (Bracket)
Dimensions144.7mmx76.7mmx146.4mm (5.70"x3.02"x5.76")
Net Weight0.41kg (0.90lb)
Gross Weight0.55kg (1.21lb)

PIR Series | DH-HAC-ME2241C-W
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
2MP Camera
DH-HAC-ME2241CP-W 2.8mm
(433/868/915)
2MP HDCVI Active Deterrence
Camera, PAL
DH-HAC-ME2241CP-W 3.6mm
(433/868/915)
DH-HAC-ME2241CN-W 2.8mm
(433/868/915)
2MP HDCVI Active Deterrence
Camera, NTSC
DH-HAC-ME2241CN-W 3.6mm
(433/868/915)
Accessories
PFA134
Junction box (For use alone or with
PFA152-E pole mount)
PFA152-E
Pole mount (For use with PFA134
junction box)
PFM800-E Passive HDCVI Balun
PFM800-4K Passive Video Balun
PFM800B-4K Passive Video Balun
PFM321 12V 1A Power Adapter
PFM320D-015 12V 1.5A Power Adapter
PFM300 12V 2A Power Adapter

Dimensions (mm/inch)
Accessories
Optional:
Optional:

tPo t
PF A134 + PF A152-E
PF A134

PFA134
Junction box
PFA152-E
Pole mount

PFM800-E
Passive HDCVI Balun

PFM321
12V 1A Power
Adapter

PFM800-4K
Passive Video Balun
PFM800B-4K
Passive Video Balun
PFM320D-015
Power Adapter

PFM300
Power Adapter
