HIKVISION

DS-2CD2383G0-I  8 MP IR Fixed Turret Network Camera  * BLC/3D DNR/ROI  * IP67  * Built-in micro SD/SDHC/SDXC card slot,  up to 128 GB    * 1/2.5" Progressive Scan CMOS  * 3840 x 2160 @15 fps  * 2.8/4/6/8 mm fixed lens  * Color: 0.01 lux @(F1.2, AGC ON), 0.028  lux @(F2.0, AGC ON), 0 lux with IR  * H.265+, H.265, H.264+, H.264  * 2 Behavior analyses  * 120dB WDR      Key Features        Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Focal Length 2.8/4/6/8 mm  Aperture F2.0  Focus Auto  FOV  2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°  4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°  6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59°  8 mm, horizontal FOV: 40°, vertical FOV: 25°, diagonal FOV: 53°  Lens Mount M12  IR  IR Range Up to 30 m <...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2383G0-IU(4mm)

Replacement product code: 311309480

Warranty: 36 mon.

Datasheet

DS-2CD2555FWD-I(W)(S)  5 MP EXIR Fixed Mini Dome Network Camera  * 2944 x 1656@20fps  * IR: Up to 10 m  * H.265+. H.265  * 120dB WDR  * Built-in Micro SD/SDHC/SDXC slot, up to 128G  * PoE  * EXIR  * Wi-Fi (Optional)      Key Features        Specifications  Camera  Image Sensor 1/2.9" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Focal length 2.8, 4, 6 mm  Aperture F2.0  FOV  2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113°  4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 92°  6 mm: Horizontal field of view: 60°, Vertical field of view: 33°, Diagonal field of view: 71°  Lens Mount M12  IR  IR Range Up to 10 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  Third strea...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key features  Dimensions  • 1.3MP/2MP high resolution  • HD real-time video  • IR LEDs: up to 30m  • DWDR & 3D DNR & BLC  • Onboard storage (up to 64GB)  • (-S) Audio I/O, Alarm I/O  • IP66  • Vandal-proof    DS-2CD2710F-I (S) DS-2CD2720F-I (S)  Camera  Image sensor1/3” progressive scan CMOS  Min. illumination  0.01 lux @F1.2, AGC ON,  0.014 lux @F1.4, AGC ON, 0 lux with IR  0.07 lux @F1.2, AGC ON,  0.1 lux @F1.4, AGC ON, 0 lux with IR  Shutter time1/3s ~ 1/100,100s  Lens  2.8 ~ 12 mm @F1.4, angle of view:  105.2°~31.9°  2.8 ~ 12 mm @F1.4, angle of view:  91.2°~28.3°  Lens mountΦ14  Auto irisDC drive  Day & nightICR  Digital noise reduction3D DNR  Wide dynamic rangeDigital WDR  Backlight compensationYes, zone configurable  Angle adjustmentPan: 0° ~ 355°, tile: 0° ~ 75°, rotation: 0° ~ 355°  Compression Standard  Video compression ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CD2610F-I(S)      Key Features   Up to 1.3 megapixel (1280 x 960) resolution   Standard video compression with high compression ratio, ROI (region of interest) encoding   Progressive scan CMOS, capture motion video without incised margin   Support dual stream, and the sub-stream for mobile surveillance   High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range   Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB   IR cut filter with auto switch   PoE (Power over Ethernet)   3D DNR   DWDR   Ingress Protection level: IP67   Auto-iris, electronic shutter for different surveillance environments   Other functions: reset, heartbeat, mirror, etc.   3-axis adjustment   Support intrusion detection and line crossing detection   Support VCA, which is compatible with NVR for the second time of video searching and analysing  Specification   Model  Parameter  DS-2CD2610F-I(S)  1.3 Megapixel Bullet Network Camera  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination  0.01 Lux @(F1.2,AGC ON), 0 Lux with IR  0.014 Lux @(F1.4,AGC ON), 0 Lux wi...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CD1H43G0-IZ  4 MP Varifocal Turret Network Camera                   High quality imaging with 4 MP resolution   Efficient H.265+ compression technology   Clear imaging even with strong back lighting due to 120 dB  WDR     Up to 256 GB SD card slot for storage   2.8 to 12 mm motorized varifocal lens for easy installation  and monitoring     Water and dust resistant (IP67)   EXIR 2.0: advanced infrared technology with long IR range                     Specification  Camera  Image Sensor 1/3" Progressive Scan CMOS  Max. Resolution 2560 x 1440  Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Wide Dynamic Range 120 dB  Day & Night IR Cut Filter  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°  Lens  Lens Type Varifocal Lens, motoried lens, 2.8 to 12 mm  Focal Length & FOV  2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to  35°  Lens Mount Ø14  Iris Type Fixed  Aperture F1.6  Illuminator  IR Wavelength 850 nm  IR Range Up to 30 m  Video  M...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1H43G2-IZ(2.8-12mm)

Replacement product code: 311320889

Warranty: 36 mon.

Datasheet

DS-2CD2542FWD-I (W)(S)  4MP WDR Mini Dome Network Camera     Up to 4 megapixel high resolution   Full HD1080p video   Dual video streams   2.8mm/4mm/6mm fixed lens   120dB Wide Dynamic Range   3D Digital Noise Reduction   3-axis adjustment   Support on-board storage, up to 64GB     DC12V & PoE   Up to 10m IR range   IP66 weather-proof protection   IK08 vandal-proof protection   -S: Built-in microphone, Audio Output, Alarm IO   -W: Built-in Wi-Fi   Mobile Monitoring via EZVIZ P2P or iVMS-4500      Camera Accessories    Wall mount  DS-1272ZJ-120  Wall mount + Junction Box  DS-1272ZJ-120B  Pendant mount  DS-1271ZJ-120  Corner mount  DS-1276ZJ  Vertical Pole mount  DS-1275ZJ  Rain-proof Cap  DS-1250ZJ            Specification  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR  0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/10,000 s  Lens 2.8mm, 4mm, 6mm @ F2.0  Lens Mount M12  Day &Night IR cut filter with auto switch  DNR 3D DNR  Wide Dynamic Range 120dB  Angle of adjustment Pan: -30° ~ 30°, Tilt: 0...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Features   8.29 MP high performance CMOS   Auto focus   3840 x 2160 resolution   2.7 mm to 13.5 mm motorized vari-focal lens   EXIR 2.0, smart IR, up to 60 m IR distance   OSD menu, 3D DNR, 130 dB true WDR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67, IK10   Up the coax (HIKVISION-C)    DS-2CE5AU7T-AVPIT3ZF  8 MP Dome Camera              Camera  Image Sensor 8.29 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,  2MP@30fps  CVI: 8MP@12.5fps, 8MP@15fps  AHD: 8MP@12.5fps, 8MP@15fps  CVBS: 960H P/N  Resolution 3840 (H) x 2160 (V)  Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/50, 000 s  NTSC: 1/15 s to 1/50, 000 s  Lens 2.7 mm to 13.5 mm motorized vari-focal lens  Horizontal Field of View 108.1° to 45.6°  Lens Mount Φ14  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) ≥ 130 dB  Menu  AGC Yes  D/N Mode Auto/Color/BW (Black and White) ...

Warranty: 36 mon.

Datasheet

HV3816D-8MPIR  Features  DC -iris vari -focal eight megapixel IR lens （aspherical）    Specification    Lens Parameters  Focal Length: 3.8~16mm  Aperture Range: F1.5 - C  Lens Mount: CS  Format:  Φ9mm（1/1.8" )  Horizontal Angle of View:  1/1.8" :103.1°~28.0°  1/2" :100.7°~27.3°  Min.Working Distance: 0. 1 m  Iris Control: DC  Weight: 237g  Dimension: Φ55*75mm      2002 -2014©Hikvision Digital Technology Co., Ltd. All Rights Reserved....

Warranty: 36 mon.

Datasheet

DS-2CD2T45FWD-I5/I8  4 MP IR Fixed Bullet Network Camera  * BLC/3D DNR/ROI/HLC  * IP67  * Built-in microSD/SDHC/SDXC card slot, up  to 128 GB  * Color: 0.008 lux @(F1.2, AGC ON), 0.014  lux @(F1.6, AGC ON), 0 lux with IR    * 1/2.5" Progressive Scan CMOS  * 2688 x 1520 @30 fps  * 2.8, 4, 6, 8, 12 mm fixed lens  * H.265+, H.265, H.264+, H.264  * 4 Behavior analyses  * 120dB WDR  * Powered by Darkfighter  * IR range: 50 m, 80 m, optional      Key Features          Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°  Lens  Focal Length 2.8, 4, 6, 8, 12 mm  Aperture F1.6  Focus Fixed  FOV  2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°  4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°  6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°  8 mm, horizontal ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key features    www.hikvision.com    DS-7604/08/16NI-SE/P      Embedded Plug&Play NVR    INPUT  Network Speed Dome  Remote ControlUSB Mouse  Door Contact  Alarm  MicrophoneUSB Device  DS-7600NI-SE/P  Network Dome Cameras  Network Box Cameras  VGA / HDMISpeaker  Cell Phone  Router  PC Client  OUTPUT  control  ACCESSIES    LAN Network Interface  RS-485 Interface  100~240VAC Power Input  Power Switch  USB Interface  GND  HDMI Interface  VGA Output  Audio In  Audio Out  Network Interfaces with PoE function  1.  2.  3.  4.  5.  6.  7.  8.  9.  10.  11.  Rear Panel of DS-7600NI-SE/P  t Third-party network cameras supported  t Up to 5 Megapixels resolution recording  t HDMI and VGA output at up to 1920x1080P resolution  t HDD quota and group management  t 4/8 independent PoE network interfaces are provide    DS-7604NI-SE/PDS-7608NI-SE/P/8DS-7616NI-SE/P  Video/Audio input  IP video input4-ch8-ch16-ch  Two-way audio input1-ch, RCA (2.0 Vp-p, 1k)  Network  Incoming bandwidth20Mbps40Mbps80Mbps  Output bandwidth40Mbps  Remote connection128  Video/Audio output  Decoding resolution5MP / 3MP / 1080p ...

Warranty: 36 mon.

Datasheet

Key Features  DS-7200HGHI-SH Series  TurboHD DVR  • H.264 Dual Stream Compression  • HD-TVI/Analog/Network Camera Tribrid  •Auto-Detect/Configure HD-TVI/Analog Input  • Full Channel @ 720p Resolution Real-Time Recording  •Synchronized HDMI and VGA Output at Up to  1920 x 1080p Resolution  • Long Transmission Distance Over Coax Cable  • Supports Up to 16-ch Synchronous Playback at  1080p Resolution    DS-7204HGHI-SH DS-7208HGHI-SH DS-7216HGHI-SH  Video/Audio Input  Video Compression H.264  Analog and HD-TVI  Video Input  4-ch 8-ch 16-ch  BNC interface (1.0 V p-p, 75Ω)  Supported Camera  Types  720p25, 720p30, 720p50, 720 p60, 1080p25, 1080p30, CVBS  IP Video Input ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

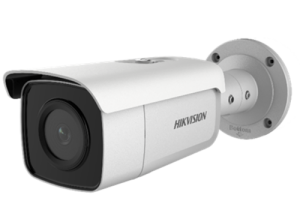

DS-2CD2T26G1-2I/4I  2 MP IR Fixed Bullet Network Camera  Key Features   Max. 1920 x 1080 @ 25fps   2.8 mm/4 mm/6 mm/8 mm fixed lens   H.265, H.264   120dB WDR   False alarm filter by target classification     12 VDC & PoE (802.3at, class 4)   IR range: Up to 50 m, 80 m, optional   Support on-board storage, up to 128 GB   IP67   BLC/3D DNR/ROI   Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @  (F1.6, AGC ON)          Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Focal length 2.8/4/6/8 mm  Focus Fixed  Aperture F1.6  FOV  2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 128°  4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 103°  6 mm, horizontal FOV: 52°, vertical FOV: 29°, diagonal FOV: 60°  8 mm, horizontal FOV: 41°, vertical FOV: 22°, diagonal FOV: 47°  Lens Mount M12  Auto-Iris No  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Compression Standard...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2T26G2-2I(2.8mm)(????)

Replacement product code: 311311634

Warranty: 36 mon.

Datasheet

DS-2CD2T65FWD-I5/I8  6 MP IR Fixed Bullet Network Camera    Key Features   Up to 6 megapixel high resolution   Max. 3072 x 2048 @20fps   2.8 mm/4 mm/6 mm fixed lens, optional   H.265, H.265+, H.264+, H.264   120dB WDR   Powered by Darkfighter     12 VDC & PoE (802.3af, class 3)   Support on-board storage, up to 128 GB   IP67   BLC/3D DNR/ROI   Color: 0.009 Lux @ (F1.2, AGC ON), 0.016 Lux  @(F1.6, AGC ON)            Specification  Camera  Image Sensor 1/2.4" Progressive Scan CMOS  Min. Illumination Color: 0.009 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.6, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Focal length 2.8/4/6 mm  Focus Fixed  Lens  2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°  4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101°  6 mm, horizontal FOV: 60°, vertical FOV: 38°  Lens Mount M12  Aperture F1.6  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  T...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

* 1/2.5" Progressive Scan CMOS  * 2688 x 1520@30 fps  * 2.8, 4, 6 mm fixed lens  * H.265+, H.265, H.264+, H.264  * 120dB WDR  * Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 lux @(F1.6, AGC  ON), 0 lux with IR  * BLC/3D DNR/ROI/HLC  * IP66  * Built-in microSD/SDHC/SDXC card slot, up to 128 GB  * Wi-Fi connection (Optional)    DS-2CD2545FWD-I(W)(S)  4 MP IR Fixed Mini Dome Network Camera    Key Features        Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  Axis Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Focal Length 2.8, 4, 6 mm  Aperture F1.6  Focus Fixed  FOV  2.8 mm: Horizontal field of view: 109°, Vertical field of view: 60°, Diagonal field of view: 131°  4 mm: Horizontal field of view: 88°, Vertical field of view: 46°, Diagonal field of view: 105°  6 mm: Horizontal field of view: 53°, Vertical field of view: 30°, Diagonal field of view: 61°  Lens Mount M1...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
