DS-2CE79U7T-AIT3ZF(2.7-13.5mm)

Key Feature   8.29 MP, 3840 x 2160 resolution   Ultra-low light   130 dB true WDR, 3D DNR   2.7 mm to 13.5 mm varifocal lens, auto focus   Smart IR, up to 60 m IR distance   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67    DS-2CE79U7T-AIT3ZF  8 MP Ultra-Low Light Camera          Camera  Image Sensor 8.29 MP CMOS  Signal System PAL/NTSC  Frame Rate  TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps,  1080P@30fps  AHD: 8MP@12.5fps, 8MP@15fps  CVI: 8MP@12.5fps, 8MP@15fps  CVBS: P/N  Resolution 3840 (H) x 2160 (V)  Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5s to 1/50, 000 s  NTSC: 1/15 s to 1/50, 000 s  Lens 2.7 mm to 13.5 mm motorized varifocal lens  Horizontal Field of View 108.1° to 45.6°  Lens Mount Φ 14  Day & Night ICR  WDR (Wide Dynamic Range) ≥130 dB  Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°  Menu  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode Global/BLC/HLC/WDR  Noise Reduction 3D DNR  Language English  Function ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Feature
 8.29 MP, 3840 x 2160 resolution
 Ultra-low light
 130 dB true WDR, 3D DNR
 2.7 mm to 13.5 mm varifocal lens, auto focus
 Smart IR, up to 60 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67

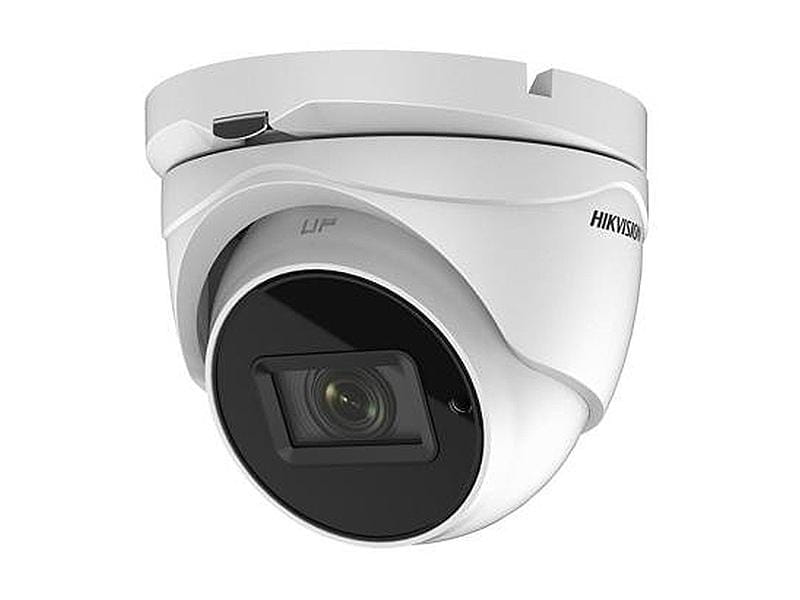

DS-2CE79U7T-AIT3ZF
8 MP Ultra-Low Light Camera




Camera
Image Sensor 8.29 MP CMOS
Signal System PAL/NTSC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps,
1080P@30fps
AHD: 8MP@12.5fps, 8MP@15fps
CVI: 8MP@12.5fps, 8MP@15fps
CVBS: P/N
Resolution 3840 (H) x 2160 (V)
Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5s to 1/50, 000 s
NTSC: 1/15 s to 1/50, 000 s
Lens 2.7 mm to 13.5 mm motorized varifocal lens
Horizontal Field of View 108.1° to 45.6°
Lens Mount Φ 14
Day & Night ICR
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode Global/BLC/HLC/WDR
Noise Reduction 3D DNR
Language English
Function Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 20%, 24 VAC ± 20%
Power Consumption Max. 11 W
Protection Level IP67
Material Metal
IR Range Up to 60 m
Communication HIKVISION-C
Dimensions 134.3 mm x 123.86 mm x 110.24 mm (5.29" x 4.88" x 4.34")
Weight Approx. 620 g (1.37 lb.)
Specification


Order Model
DS-2CE79U7T-AIT3ZF
Dimension
Φ 90 mm (3.54" )
3-Φ4.5 (0.18'')
134
.3
mm
(
5
.29
" )
123.86 mm (4.88" )
110
.24
mm
(
4
.34
" )
123.86 mm
(4.88" )
120°






Accessory













DS-1273ZJ-130-TRL
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-M
Junction Box






DS-1281ZJ-M
Inclined Ceiling Mount
