DS-2CD2T65FWD-I5(2.8mm)

Availability: 0
Price: €270.78 270.78
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311308164

Description

DS-2CD2T65FWD-I5/I8  6 MP IR Fixed Bullet Network Camera    Key Features   Up to 6 megapixel high resolution   Max. 3072 x 2048 @20fps   2.8 mm/4 mm/6 mm fixed lens, optional   H.265, H.265+, H.264+, H.264   120dB WDR   Powered by Darkfighter     12 VDC & PoE (802.3af, class 3)   Support on-board storage, up to 128 GB   IP67   BLC/3D DNR/ROI   Color: 0.009 Lux @ (F1.2, AGC ON), 0.016 Lux  @(F1.6, AGC ON)            Specification  Camera  Image Sensor 1/2.4" Progressive Scan CMOS  Min. Illumination Color: 0.009 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.6, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Focal length 2.8/4/6 mm  Focus Fixed  Lens  2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°  4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101°  6 mm, horizontal FOV: 60°, vertical FOV: 38°  Lens Mount M12  Aperture F1.6  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  T...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

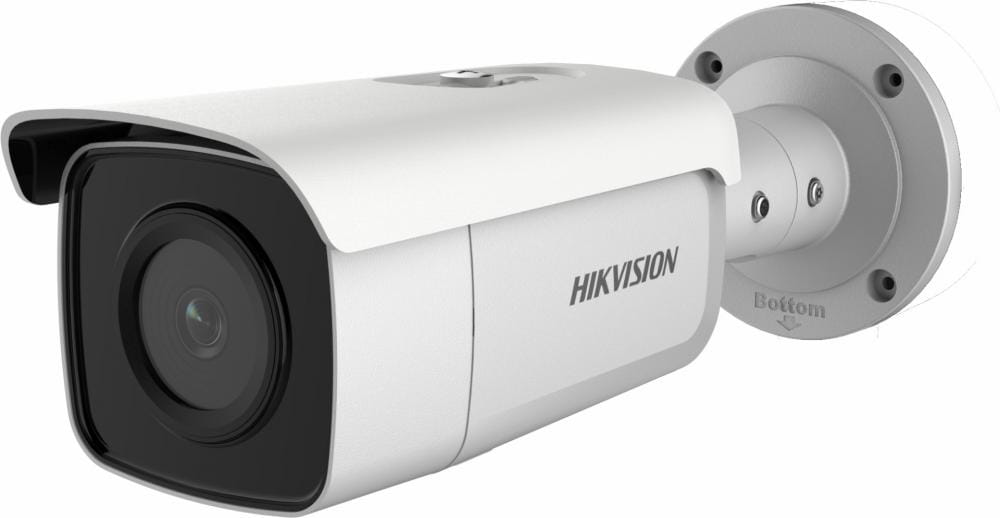

DS-2CD2T65FWD-I5/I8
6 MP IR Fixed Bullet Network Camera

Key Features
 Up to 6 megapixel high resolution
 Max. 3072 x 2048 @20fps
 2.8 mm/4 mm/6 mm fixed lens, optional
 H.265, H.265+, H.264+, H.264
 120dB WDR
 Powered by Darkfighter

 12 VDC & PoE (802.3af, class 3)
 Support on-board storage, up to 128 GB
 IP67
 BLC/3D DNR/ROI
 Color: 0.009 Lux @ (F1.2, AGC ON), 0.016 Lux
@(F1.6, AGC ON)





Specification
Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Min. Illumination Color: 0.009 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Focal length 2.8/4/6 mm
Focus Fixed
Lens
2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°
4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101°
6 mm, horizontal FOV: 60°, vertical FOV: 38°
Lens Mount M12
Aperture F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 3072 x 2048
Main Stream
50Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x
720)
60Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 30 fps (2560 x 1440, 1920 x 1080, 1280 x
720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Rotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser
and client software
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule
* Note: When the main stream resolution is 3072 x 2048 and above, max frame rate is 20 fps for all streams.
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD
full, HDD error











Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.61
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
SVC H.265 encoding and H.264 encoding support
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Exception Detection Scene change detection
Face Detection Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption
-I5:
12 VDC, 0.5 A, max: 8 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.1 A, max: 9.5 W
-I8:
12 VDC, 1.0 A, max: 11 W
PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.1 A, max: 12.9 W
IR Range
-I5: Up to 50 m
-I8: Up to 80 m
Wavelength 850 nm
Protection Level IP67
Material Front cover: Metal, back cover: Metal
Dimensions Camera: Φ105 x 289.5 mm (4.1″ x 11.4″)
Weight
Camera: 1000 g (2.2 lb.)
With package: 1500 g (3.3 lb.)
Available Model
DS-2CD2T65G1-I5 (2.8/4/6 mm), DS-2CD2T65G1-I8 (2.8/4/6 mm)










4-Ø4.2(0.2")
62
.6
(2
.5
")

62.6(2.5")
90
.4
(3
.5
")

289.5(11.4")
270.2(10.6")
Ø105(4.1")
93.5(3.7")


Unit: mm






Dimensions








Rubber Sleeve
Rubber sleeve with weather proof
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount



DS-1280ZJ-S
Junction Box
DS-1260ZJ
Junction Box


Accessories
