HIKVISION

DS-2CD2645FWD-IZS  4 MP IR Varifocal Bullet Network Camera  * BLC/3D DNR/ROI/HLC  * IP67, IK10  * Built-in microSD/SDHC/SDXC card slot, up  to 128 GB  * Color: 0.008 lux @(F1.2, AGC ON), 0.011  lux @(F1.4, AGC ON), 0 lux with IR    * 1/2.5" Progressive Scan CMOS  * 2688 x 1520 @30 fps  * 2.8 to 12 mm motorized varifocal lens  * H.265+, H.265, H.264+, H.264  * 4 Behavior analyses  * 120dB WDR  * Powered by Darkfighter  * IR range: up to 50 m      Key Features          Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Lens  Focal Length 2.8 to 12 mm  Lens Type Motorized  Aperture F1.4  Focus Auto  FOV 2.8 mm to 12 mm, horizontal FOV: 114° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 141° to 36.5°  Lens Mount Φ14  IR  IR Range Up to 50 m  Wavelength 850nm  Compression Standard    V...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CD2646G1-IZ(S)  4 MP IR Varifocal Bullet Network Camera    Key Features   Max. 2688 x 1520 @ 30fps   H.265, H.264   120dB WDR   Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux  @ (F1.4, AGC ON), 0 Lux with IR       12 VDC & PoE (802.3at, class 4)   IR range: Up to 50 m   Support on-board storage, up to 128 GB   IP67, IK10   BLC/3D DNR/ROI      Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment (with bracket) Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°  Lens  Focal length 2.8 mm to 12 mm  Aperture F1.4  Focus Auto  FOV Horizontal FOV: 101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34°  Lens Mount Φ14  IR  IR Range Up to 50 m  Wavelength 850 nm  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  H.264 Type Main Profile/High Profile  H.265 Type Main Profile ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2646G2-IZS(2.8-12mm)(????)

Replacement product code: 311311198

Warranty: 36 mon.

Datasheet

DS-2CD2745FWD-IZS  4 MP IR VF Dome Network Camera  * BLC/3D DNR/ROI  * IP67, IK10  * Built-in microSD/SDHC/SDXC card slot, up  to 128 GB    * 1/2.5" Progressive Scan CMOS  * 2560 x 1440@30 fps  * 2.8 to 12 mm motorized varifocal lens  * Color: 0.009 lux @(F1.2, AGC ON), 0.016  lux @(F1.6, AGC ON), 0 lux with IR  * H.265+, H.265, H.264+, H.264  * 4 Behavior analyses  * 120dB WDR      Key Features          Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.009 lux @(F1.2, AGC ON), 0.016 lux @(F1.6, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Focal Length 2.8 to 12 mm  Aperture F1.2  Focus Auto  FOV 2.8 mm to 12 mm, horizontal FOV: 114° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 141° to 36.5°  Lens Mount Φ14  IR  IR Range Up to 30 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub-stream: H.265/H.264/MJPEG  Third str...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CD2746G1-IZ(S)  4 MP IR Varifocal Dome Network Camera  Key Features   Max. 2688 x 1520 @ 30fps   H.265, H.264   120dB WDR   Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux  @ (F1.4, AGC ON), 0 Lux with IR       12 VDC & PoE (802.3af, class 3)   IR range: Up to 30 m   Support on-board storage, up to 128 GB   IP67, IK10   BLC/3D DNR/ROI        Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment (with bracket) Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Focal length 2.8 mm to 12 mm  Aperture F1.4  Focus Auto  FOV Horizontal FOV: 101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34°  Lens Mount Φ14  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  H.264 Type Main Profile/High Profile  H.265 Type Main Profile

Warning! Product withdrawn from production!

Replacement product: DS-2CD2746G2-IZS(2.8-12mm)(????)

Replacement product code: 311311195

Warranty: 36 mon.

Datasheet

DS-D5032FC  32” Monitor  key Features  •Support 8bit/10bit 2-ch LVDS(1920x1080) HD  display  •Adopt 3-D digital comb filter  •True color OSD and user-friendly operation menu  •1 channel HDMI 1.3 input interface, support HDCP  1.2  •Adopt 3D noise reduction technology  •Programmable 12-bit RGB gamma correction  technology  •Support software spread-spectrum technology to  reduce EMI radiation  •Adopt MstarACE-5 auto color and image  enhancement engine, improve image contrast,  detail and edge  •High reliable component for 7x24 h working  •Green energy: Supporting set standby mode while  no signal input,set the sleep time  Model  DS-D5032FC  Interfaces  NO.Description  1HDMI:DigitalSignal Input  2VGA : Analog Signal Input  3S-VIDEO  4BNC IN  5BNC OUT  6AUDIO IN: Audio Input  7AUDIO OUT: Audio Output  8Power        DS-D5032FC  32” Monitor  ModelDS-D5032FC  Display TypeTFT-LED Backlight  Screen Size 32”  Dot Pitch (HxV)0.36375 mm x0.36375 mm  Resolution1920 x 1080  Brightness300 cd/㎡  Contrast3000 : 1  Response Time3.5 ms  Color16.7 M  Viewable Area (HxV)698.40 mm x 392.85 mm  Viewing AngleHorizontal 178°, Vertical 178°  Interfaces ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

©2006 – 2013 by HIKVISION. All rights reserved.  1    DS-2AE4023 series  E series Mini PTZ Dome Analog Camera    Key features  System function:   High performance CCD   ±0.1° Preset Accuracy   Self-adaptive to HIKVISION, Pelco-P/D protocol   3D intelligent positioning function   Power-off memory function: restore PTZ & Lens status after reboot   Built-in temperature sensor, with display of internal temperature   RS-485 communication diagnosis capability   Manchester code communication diagnosis capability   Scheduled PTZ movement   Password protection   Camera title programmable   Zone Scanning   IP66 standard (outdoor dome)   3D DNR  Camera function:   Auto focus, auto white balance, backlight compensation and auto/manual day & night switch   Privacy masks programmable   3D DNR, digital zoom   Digital WDR  PTZ function:   360° endless pan range and -5°-90° tilt range   160°/s Pan Preset Speed and 120°/s Tilt Preset Speed   0.1°-160°/s Manual Pan Speed and 0.1°-120°/s Manual Tilt Speed   256 presets programmable; preset image freezing capability   8 patrols, up to 32 presets per patrol   4 patterns, wit...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

©2006 – 2013 by HIKVISION. All rights reserved.  1    DS-2AE4023 series  E series Mini PTZ Dome Analog Camera    Key features  System function:   High performance CCD   ±0.1° Preset Accuracy   Self-adaptive to HIKVISION, Pelco-P/D protocol   3D intelligent positioning function   Power-off memory function: restore PTZ & Lens status after reboot   Built-in temperature sensor, with display of internal temperature   RS-485 communication diagnosis capability   Manchester code communication diagnosis capability   Scheduled PTZ movement   Password protection   Camera title programmable   Zone Scanning   IP66 standard (outdoor dome)   3D DNR  Camera function:   Auto focus, auto white balance, backlight compensation and auto/manual day & night switch   Privacy masks programmable   3D DNR, digital zoom   Digital WDR  PTZ function:   360° endless pan range and -5°-90° tilt range   160°/s Pan Preset Speed and 120°/s Tilt Preset Speed   0.1°-160°/s Manual Pan Speed and 0.1°-120°/s Manual Tilt Speed   256 presets programmable; preset image freezing capability   8 patrols, up to 32 presets per patrol   4 patterns, wit...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

iDS-7200HUHI-K2/4S SERIES TURBO ACUSENSE  DVR    VCA Detection   Deep learning-based analysis: re-recognition of the human body or vehicle target in behavior detection to filter false  alarm, supports 4-ch detection  Video Input and Transmission   Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input   When enhanced IP mode enabled, up to 8-ch 8 MP IP cameras input for iDS-7204HUHI-K2/4S; 16-ch 8 MP IP cameras  input for iDS-7208HUHI-K2/4S   8 MP/5 MP/4 MP HDTVI video input and live view for iDS-7208HUHI-K2/4S, and 5 MP/4 MP for iDS-7204HUHI-K2/4S   Defogging function enabled for the supported analog cameras   Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal  Compression and Recording   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of  analog cameras   Connectable to H.265+/H.265/H.264+/H.264 IP cameras   H.265 Pro+/H.265 Procan be enabled to improve encoding efficiency and reduce data storage costs   Full channel recording at up to 5 MP resolution for iDS-7204HUHI-K2/4S and 8 MP for iDS-7208HUHI-K2/4S  Video Output   Simultaneous HDMI/VGA output   HDMI output at ...

Warning! Product withdrawn from production!

Replacement product: iDS-7208HUHI-M2/S/A

Replacement product code: 300224955

Warranty: 36 mon.

Datasheet

DS-2CD2H45FWD-IZS  4 MP IR Vari-focal Network Turret Camera  * BLC/3D DNR/ROI/HLC  * IP67, IK10  * IR range: up to 30 m  * Built-in microSD/SDHC/SDXC card slot, up  to 128 GB  * Color: 0.008 lux @(F1.2, AGC ON), 0.011  lux @(F1.4, AGC ON), 0 lux with IR  * 1/2.5" Progressive Scan CMOS  * 2688 x 1520@30 fps  * 2.8 to 12 mm motorized vari-focal lens  * H.265+, H.265, H.264+, H.264  * 4 Behavior analyses  * 120dB WDR  * Powered by Darkfighter    Key Features        Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Focal Length 2.8 to 12 mm  Aperture F1.4  Focus Auto  FOV  Horizontal field of view: 114° to 32°  Vertical field of view: 59° to 18°  Diagonal field of view: 141° to 36.5°  Lens Mount Φ14  IR  IR Range Up to 30 m  Wavelength 850nm  Compression Standard    Video Compressi...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

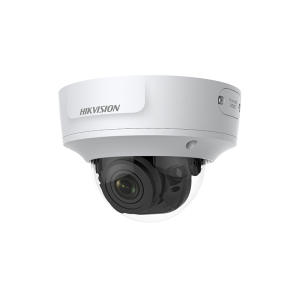

DS-2CD2763G1-IZ(S)  6 MP IR Varifocal Dome Network Camera  * BLC/3D DNR/ROI/HLC  * IP67, IK10  * Built-in micro SD/SDHC/SDXC card slot,  up to 128 GB    * 1/2.9" Progressive Scan CMOS  * 3072 x 2048@20 fps  * 2.8 to 12 mm varifocal lens  * Color: 0.01 Lux @ (F1.2, AGC ON), 0.018  Lux @ (F1.6, AGC ON), 0 Lux with IR  * H.265+, H.265, H.264+, H.264  * 120dB WDR    Key Features          Specifications  Camera  Image Sensor 1/2.9" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON),0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Focal Length 2.8 to 12 mm  Lens Type Motorized  Aperture F1.6  Focus Auto  FOV  Horizontal field of view: 88° to 27°  Vertical field of view: 56° to 18°  Diagonal field of view: 110° to 33°  Lens Mount Φ14  IR  IR Range Up to 30 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/ H.264  Sub-stream: H.265/H.264/MJPEG  Third...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

* BLC/3D DNR/ROI/HLC  * IP67  * Built-in micro SD/SDHC/SDXC card slot,  up to 128 GB  *  DS-2CD2663G1-IZ(S)  6 MP IR Varifocal Bullet Network Camera    * 1/2.9" Progressive Scan CMOS  * 3072 x 2048@20 fps  * 2.8 to 12 mm varifocal lens  * Color: 0.01 Lux @ (F1.2, AGC ON), 0.018  Lux @ (F1.6, AGC ON), 0 Lux with IR  * H.265+, H.265, H.264+, H.264  * 2 Behavior analyses  * 120dB WDR    Key Features          Specifications  Camera  Image Sensor 1/2.9" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°  Lens  Focal Length 2.8 to 12 mm  Lens Type Motorized  Aperture F1.6  Focus Auto  FOV  Horizontal field of view: 88° to 27°  Vertical field of view: 56° to 18°  Diagonal field of view: 110° to 33°  Lens Mount Φ14  IR  IR Range Up to 50 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub-stream...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CD2646G2-IZSU/SL  AcuSense 4 MP IR Varifocal Bullet Network Camera                                     High quality imaging with 4 MP resolution   Excellent low-light performance with  powered-by-DarkFighter technology     Clear imaging against strong back light due to 120 dB true  WDR technology     Efficient H.265+ compression technology   False alarm reduction through human and vehicle target  classification based on deep learning     Active strobe light and audio alarm to warn intruders off   Provides real-time security via built-in two-way audio   Water and dust resistant (IP66) and vandal resistant (IK10)    AcuSense  Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms  to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or  vehicles, vastly improving alarm efficiency and effectiveness.                 Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON)  Shutter Speed 1/...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2646G2-IZSU/SL(2.8-12mm)(C)

Replacement product code: 311315191

Warranty: 36 mon.

Datasheet

Hikvision DS-2AE4215T-D(D) Turbo 4-Inch Speed Dome is  able to capture high quality images in poor light  environment. The embedded CMOS chip makes WDR,  and real-time 1920 x 1080 resolution possible. With the  help of the 15x optical zoom, and IR cut filter, the camera  offers more details over an expansive area.    * 1/2.8" HD progressive scan CMOS  * 1920 x 1080  * 15x optical zoom, 16x digital zoom  * 120 dB true WDR (Wide Dynamic Range)  * 3D intelligent positioning  * Switchable TVI/AHD/CVI/CVBS video output        DS-2AE4215T-D(D)  2 MP Turbo 4-Inch Speed Dome          Specification  Camera  Model DS-2AE4215T-D(D)  Image Sensor 1/2.8" progressive scan CMOS  Max. Image Resolution 1920 x 1080  Frame Rate  50Hz: 25fps @(1920 x 1080)  60Hz: 30fps @(1920 x 1080)  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR  AGC AUTO/MANUAL  DNR 3D DNR  WDR ≥ 120 dB  Shutter Time  PAL: 1/1 s to 1/10,000 s  NTSC: 1/1 s to 1/10,000 s  Day & Night IR cut filter  Digital Zoom 16x  Privacy Mask 8 programmable privacy masks  BLC (Backlight Com...

Warranty: 36 mon.

Datasheet

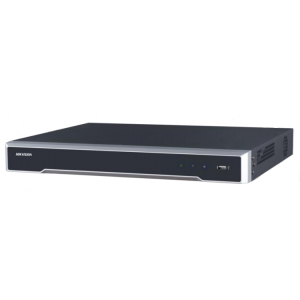

DS-7608NI-E2/8P/A    The DS-7608NI-E2/8P/A is Hikvisions latest edition to the fantastically popular DS-76 range of NVRs, this updated version for 2015 has  all the great features of the original DS-76 series NVR but now supports PoE+ devices with a total of 120W available via its 8 built-in PoE  plug and play ports. The series now sports a new updated record rate allowing for up to 200Mbts recording (DS-7632NI/E2) and lastly  now has 4CIF live view and 8 channel playback.  FEATURES:  ŸThird-party network cameras supported  ŸUp to 5 Megapixels resolution recording  ŸHDMI and VGA output at up to 1920x1080P   resolution  Ÿ8-ch network cameras can be connected with   80mbps incoming bandwidth  ŸUp to 2 SATA interfaces  ŸPlug & Play with up to 8 independent PoE network   interfaces  ŸSupport network detection, including network delay,   packet loss, etc  Ÿ4 alarm inputs, 1 alarm outputs  Dimensions Unit: mm (inch)  VIDEO / AUDIO INPUT  IP Video Input 8-ch  Two-Way Audio Input 1-ch, RCA (2.0 Vp-p, 1kΩ)  Incoming Bandwidth 80Mbps  Outgoing Bandwidth 80Mbps  Remote Connection 128  VIDEO/ AUDIO OUTPUT  Recording Resolution 5MP/4MP/3MP/10...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

www.hikvision.com  Key features  Dimensions  Accessories      DS-2CD854F-E(W)    3MP Network Box Camera  • Up to 3 megapixel resolution  • Full HD 1080P real-time video  • H.264 / MPEG4 / MJPEG video compression  • 1/2.5’’ progressive scan CMOS  • True day / night  • Wi-Fi optional    DS-2CD854F-E(W)  Camera  Image sensor 1/2.5” progressive scan CMOS  Min. illumination Color: 0.6 lux@F1.2, AGC on B/W: 0.08 lux@F1.2, AGC on  Shutter time 1/25s ~ 1/100,000s  Lens mount C/CS mount  Auto iris DC drive  Day & night IR cut filter with auto switch  Compression standard  Video compression H.264 / MPEG4 / MJPEG  Bit rate ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
