DS-2CD2645FWD-IZS(2.8-12mm)(BLACK)

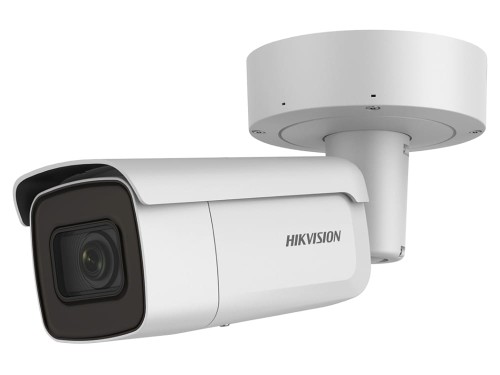

DS-2CD2645FWD-IZS  4 MP IR Varifocal Bullet Network Camera  * BLC/3D DNR/ROI/HLC  * IP67, IK10  * Built-in microSD/SDHC/SDXC card slot, up  to 128 GB  * Color: 0.008 lux @(F1.2, AGC ON), 0.011  lux @(F1.4, AGC ON), 0 lux with IR    * 1/2.5" Progressive Scan CMOS  * 2688 x 1520 @30 fps  * 2.8 to 12 mm motorized varifocal lens  * H.265+, H.265, H.264+, H.264  * 4 Behavior analyses  * 120dB WDR  * Powered by Darkfighter  * IR range: up to 50 m      Key Features          Specifications  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Lens  Focal Length 2.8 to 12 mm  Lens Type Motorized  Aperture F1.4  Focus Auto  FOV 2.8 mm to 12 mm, horizontal FOV: 114° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 141° to 36.5°  Lens Mount Φ14  IR  IR Range Up to 50 m  Wavelength 850nm  Compression Standard    V...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2645FWD-IZS
4 MP IR Varifocal Bullet Network Camera
* BLC/3D DNR/ROI/HLC
* IP67, IK10
* Built-in microSD/SDHC/SDXC card slot, up
to 128 GB
* Color: 0.008 lux @(F1.2, AGC ON), 0.011
lux @(F1.4, AGC ON), 0 lux with IR

* 1/2.5" Progressive Scan CMOS
* 2688 x 1520 @30 fps
* 2.8 to 12 mm motorized varifocal lens
* H.265+, H.265, H.264+, H.264
* 4 Behavior analyses
* 120dB WDR
* Powered by Darkfighter
* IR range: up to 50 m


Key Features




Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length 2.8 to 12 mm
Lens Type Motorized
Aperture F1.4
Focus Auto
FOV 2.8 mm to 12 mm, horizontal FOV: 114° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 141° to 36.5°
Lens Mount Φ14
IR
IR Range Up to 50 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, object removal detection, unattended baggage
detection
Exception Detection Scene change detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25 fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
60Hz: 30 fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
Sub-Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream 50Hz: 25 fps (1280 x 720, 640 x 360, 352 x 288)








60Hz: 30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client
software or web browser
SVC H.264 and H.265 encoding support
Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in
Network
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.80
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output 1Vp-p Composite Output(75Ω) (For adjustment only)
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, terminal block for DC input
PoE(802.3at, class 4)
Power Consumption and
Current
12 VDC, 1.2 A, max. 14.4 W
PoE (802.3at, 42.5V to 57V), 0.5 A to 0.3 A, max. 18 W
Protection Level IP67, IK10
Material Metal
Dimensions Φ144.1 x 332.7 mm (Φ5. 7"x 13.1")
Weight Camera: approx. 1893 g (4.2 lb.)
Available Model:
DS-2CD2645FWD-IZS (2.8 to 12 mm)




46
mm
(1
.8
")
332.7 mm (13.1")
185.2 mm (7.3")
174.3 mm (6.9")
83.5 mm (3.3")
Unit: mm(inch)








DS-1475ZJ-SUS
Vertical Pole Mount
DS-1476ZJ-SUS
Corner Mount
DS-1475ZJ-SUS(Black)
Vertical pole mount
DS-1275ZJ-S-SUS
Vertical Pole Mount




Accessories
Dimensions
