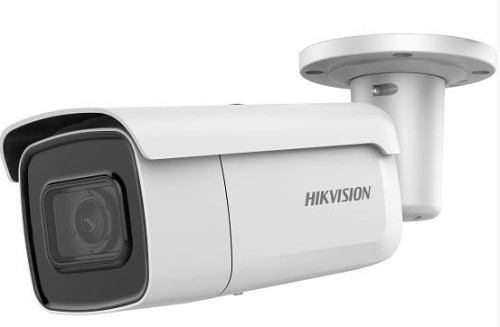

DS-2CD2646G1-IZS(2.8-12mm)

DS-2CD2646G1-IZ(S)  4 MP IR Varifocal Bullet Network Camera    Key Features   Max. 2688 x 1520 @ 30fps   H.265, H.264   120dB WDR   Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux  @ (F1.4, AGC ON), 0 Lux with IR       12 VDC & PoE (802.3at, class 4)   IR range: Up to 50 m   Support on-board storage, up to 128 GB   IP67, IK10   BLC/3D DNR/ROI      Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment (with bracket) Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°  Lens  Focal length 2.8 mm to 12 mm  Aperture F1.4  Focus Auto  FOV Horizontal FOV: 101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34°  Lens Mount Φ14  IR  IR Range Up to 50 m  Wavelength 850 nm  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  H.264 Type Main Profile/High Profile  H.265 Type Main Profile ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2646G2-IZS(2.8-12mm)(????)

Replacement product code: 311311198

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2646G1-IZ(S)
4 MP IR Varifocal Bullet Network Camera

Key Features
 Max. 2688 x 1520 @ 30fps
 H.265, H.264
 120dB WDR
 Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux
@ (F1.4, AGC ON), 0 Lux with IR


 12 VDC & PoE (802.3at, class 4)
 IR range: Up to 50 m
 Support on-board storage, up to 128 GB
 IP67, IK10
 BLC/3D DNR/ROI


Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment (with bracket) Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal length 2.8 mm to 12 mm
Aperture F1.4
Focus Auto
FOV Horizontal FOV: 101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34°
Lens Mount Φ14
IR
IR Range Up to 50 m
Wavelength 850 nm
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection, region entrance detection, region exit detection
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60Hz: 30fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In(-S)
Audio (-S)
Environment Noise Filtering Yes
Sampling Rate 8kHz/16kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)







Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filtering
Firmware Version V5.5.63
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view:
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Plug-in free live view:
Chrome 45.0+, Firefox 52.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.265 encoding and H.264 encoding support
Reset Button Yes
Audio (-S) 1 audio input (line in), 1 audio output (line out), mono sound
Alarm (-S) 1 alarm input, 1 alarm output
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3at, class 4)
Power Consumption and
Current
12 VDC, 1.3 A, max. 15.5 W
PoE: (802.3at, 42.5 VDC to 57 VDC), 0.5 A to 0.3 A, max. 19 W
Protection Level IP67, IK10
Material Front cover & back cover: metal
Dimensions Camera: Φ 105 x 297.5 mm (Φ 4.1" x 11.7")
Weight
Camera: 1400 g (3.1 lb.)
With package: 1750 g (3.9 lb.)
Available Model
DS-2CD2646G1-IZ (2.8 mm to 12 mm), DS-2CD2646G1-IZS (2.8 mm to 12 mm)





Φ105(4.1")
297.5(11.7")
288.2(11.3")
93
(
3
.
7
")
62
.
6
(
2
.
5
")
62.6(2.5")
4-Φ4.2(0.2")


Unit: mm(inch)







DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1260ZJ
Junction Box
DS-1280ZJ-S
Junction Box


05056320181019
Accessory

Dimension
