HIKVISION

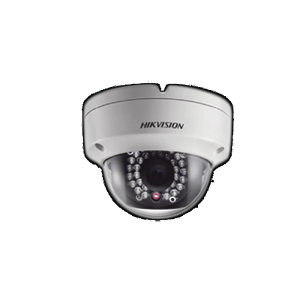

2.8 mm Fixed Lens Non 2.8 mm Fixed Lens          Key Features   1/4" progressive scan CMOS   Up to 1.0 megapixel   2.8 mm/4 mm/6 mm fixed lens   Up to 30 m IR range   Dual stream   Digital Wide Dynamic Range   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet) optional   IP67, IK10   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1101-I  1.0 MP CMOS Network Dome Camera        Camera  Image Sensor 1/4" progressive scan CMOS  Min. Illumination  Color: 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR;  B/W: 0.0036Lux @(F2.0,AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s, support slow shutter  2.8 mm (4 mm/6 mm), 2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.0, horizontal field of view 83.6°  6 mm @F2.0, horizontal field of view 55°  Lens Mount M12  Day &Night IR cut filter with auto switch  3-Axis Adjustment Pan: 0° to 355°; Tilt: 0° to 70°; Rotation: 0° to 355°  DNR (Digital Noise Reduction) 3D DNR  Wide Dynamic Range Digital WDR  Compression Standard    Video Compression  Main stream: H.264  Sub stream: H.264/MJPEG  H.264 Type Baseline Profile/Main Profile  Video Bit Rate 32 K...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

2.8 mm Fixed Lens Non 2.8 mm Fixed Lens          Key Features   1/4" progressive scan CMOS   Up to 1.0 megapixel   2.8 mm/4 mm/6 mm fixed lens   Up to 30 m IR range   Dual stream   Digital Wide Dynamic Range   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet) optional   IP67, IK10   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1101-I  1.0 MP CMOS Network Dome Camera        Camera  Image Sensor 1/4" progressive scan CMOS  Min. Illumination  Color: 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR;  B/W: 0.0036Lux @(F2.0,AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s, support slow shutter  2.8 mm (4 mm/6 mm), 2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.0, horizontal field of view 83.6°  6 mm @F2.0, horizontal field of view 55°  Lens Mount M12  Day &Night IR cut filter with auto switch  3-Axis Adjustment Pan: 0° to 355°; Tilt: 0° to 70°; Rotation: 0° to 355°  DNR (Digital Noise Reduction) 3D DNR  Wide Dynamic Range Digital WDR  Compression Standard    Video Compression  Main stream: H.264  Sub stream: H.264/MJPEG  H.264 Type Baseline Profile/Main Profile  Video Bit Rate 32 K...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

2.8 mm Fixed Focal Lens Non 2.8 mm FixedFocal Lens          Key Features   1/ 2. 8 " progressive scan CMOS   Up to 2.0 megapixel   2.8mm/4 mm/6mm fixed focal lens   Up to 30 m IR range   Dual stream   Digital WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP 67, IK10   Mobile monitoring via Hik -Connect or iVMS -4500    DS-2CD1121-I  2.0 MP CMOS Network Dome Camera        Camera  Image Sensor 1/ 2. 8" progressive scan CMOS  Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

2.8 mm Fixed Focal Lens Non 2.8 mm Fixed Focal Lens        Key Features   1/2.8" progressive scan CMOS   Up to 2.0 megapixel   2.8 mm/4 mm/6 mm fixed focal lens   Up to 30 m IR range   Dual stream   Digital WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP67, IK10   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1121-I  2.0 MP CMOS Network Dome Camera        Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter  Lens  2.8 mm @F2.0, horizontal field of view 105°, 4 mm @F2.2, horizontal field of view 84°  6 mm @F2.0, horizontal field of view 55°  Lens Mount M12  Day &Night IR cut filter with auto switch  2-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 70°  DNR (Digital Noise Reduction) 3D DNR  WDR (Wide Dynamic Range) Digital WDR  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Baseline profile/Main profile  Video Bit Rate ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1121-I(2.8mm)(E)

Replacement product code: 311308673

Warranty: 36 mon.

Datasheet

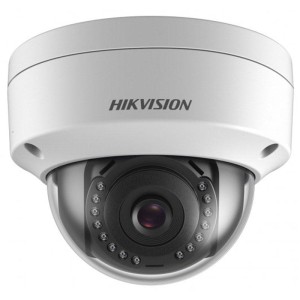

DS-2CD1121-I (E)  2.0 MP IR Fixed Network Dome Camera        Non 2.8 mm Fixed Lens 2.8 mm Fixed Lens                ● 1/2.7" progressive scan CMOS  ● 1920 x 1080 @30fps  ● 2.8 mm/4 mm fixed lens  ● H264+, H264    ● 3D DNR  ● Up to 30 m IR range  ● IP67, IK10              Specification    Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  WDR Digital WDR  Angle Adjustment (Bracket) Pan: 0° to 355°, tilt: 0° to 70°  Lens  Focal length 2.8, 4 mm  Aperture F2.0  FOV  2.8 mm @F2.0, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV: 135.5°  4 mm @F2.0, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV: 102.5°  Lens Mount M12  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard  Video Compression  Main stream: H.264+, H264  Sub stream: H.264/MJPEG  H.264 Type Baseline Profile/Main Profile/High Profile  Video Bit Rate...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1121-I(2.8mm)(F)

Replacement product code: 311316025

Warranty: 36 mon.

Datasheet

2.8 mm Fixed Focal Lens Non 2.8 mm Fixed Focal Lens        Key Features   1/2.8" progressive scan CMOS   Up to 2.0 megapixel   2.8 mm/4 mm/6 mm fixed focal lens   Up to 30 m IR range   Dual stream   Digital WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP67, IK10   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1121-I  2.0 MP CMOS Network Dome Camera        Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter  Lens  2.8 mm @F2.0, horizontal field of view 105°, 4 mm @F2.2, horizontal field of view 84°  6 mm @F2.0, horizontal field of view 55°  Lens Mount M12  Day &Night IR cut filter with auto switch  2-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 70°  DNR (Digital Noise Reduction) 3D DNR  WDR (Wide Dynamic Range) Digital WDR  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Baseline profile/Main profile  Video Bit Rate ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

2.8 mm Fixed Focal Lens Non 2.8 mm Fixed Focal Lens        Key Features   1/2.8" progressive scan CMOS   Up to 2.0 megapixel   2.8 mm/4 mm/6 mm fixed focal lens   Up to 30 m IR range   Dual stream   Digital WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP67, IK10   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1121-I  2.0 MP CMOS Network Dome Camera        Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter  Lens  2.8 mm @F2.0, horizontal field of view 105°, 4 mm @F2.2, horizontal field of view 84°  6 mm @F2.0, horizontal field of view 55°  Lens Mount M12  Day &Night IR cut filter with auto switch  2-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 70°  DNR (Digital Noise Reduction) 3D DNR  WDR (Wide Dynamic Range) Digital WDR  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Baseline profile/Main profile  Video Bit Rate ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1121-I(4mm)(E)

Replacement product code: 311308674

Warranty: 36 mon.

Datasheet

DS-2CD1121-I (E)  2.0 MP IR Fixed Network Dome Camera        Non 2.8 mm Fixed Lens 2.8 mm Fixed Lens                ● 1/2.7" progressive scan CMOS  ● 1920 x 1080 @30fps  ● 2.8 mm/4 mm fixed lens  ● H264+, H264    ● 3D DNR  ● Up to 30 m IR range  ● IP67, IK10              Specification    Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  WDR Digital WDR  Angle Adjustment (Bracket) Pan: 0° to 355°, tilt: 0° to 70°  Lens  Focal length 2.8, 4 mm  Aperture F2.0  FOV  2.8 mm @F2.0, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV: 135.5°  4 mm @F2.0, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV: 102.5°  Lens Mount M12  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard  Video Compression  Main stream: H.264+, H264  Sub stream: H.264/MJPEG  H.264 Type Baseline Profile/Main Profile/High Profile  Video Bit Rate...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1121-I(4mm)(F)

Replacement product code: 311316026

Warranty: 36 mon.

Datasheet

DS-2CD1121-I (E)  2.0 MP IR Fixed Network Dome Camera        Non 2.8 mm Fixed Lens 2.8 mm Fixed Lens                ● 1/2.7" progressive scan CMOS  ● 1920 x 1080 @30fps  ● 2.8 mm/4 mm fixed lens  ● H264+, H264    ● 3D DNR  ● Up to 30 m IR range  ● IP67, IK10              Specification    Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  WDR Digital WDR  Angle Adjustment (Bracket) Pan: 0° to 355°, tilt: 0° to 70°  Lens  Focal length 2.8, 4 mm  Aperture F2.0  FOV  2.8 mm @F2.0, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV: 135.5°  4 mm @F2.0, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV: 102.5°  Lens Mount M12  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard  Video Compression  Main stream: H.264+, H264  Sub stream: H.264/MJPEG  H.264 Type Baseline Profile/Main Profile/High Profile  Video Bit Rate 32 Kbps to 8 Mbps  Image

Warranty: 36 mon.

Datasheet

2.8 mm Fixed Lens Non 2.8 mm Fixed Lens              Key Features    * 1/2.8" progressive scan CMOS * 3D DNR (Digital Noise Reduction)  * 1920 x 1080@30fps * Up to 30 m IR range  * 2.8 mm/4 mm/6 mm fixed lens * PoE (Power over Ethernet)  * H.265+, H.265, H.264+, H.264 * IP67, IK10  * Dual stream  * Digital WDR (Wide Dynamic Range)        DS-2CD1123G0-I  2.0 MP IR Network Dome Camera        Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)  Shutter Speed 1/3 s to 1/100, 000 s  Slow Shutter Yes  Auto-Iris No  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  WDR Digital WDR  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°  Lens  Focal length 2.8 mm, 4 mm, 6 mm  Aperture F2.0  Focus No  FOV  2.8 mm, horizontal FOV 114°, vertical FOV 62°, diagonal FOV 135°  4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°  6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°  Lens Mount M12  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard    Video Compression  Main stream: H.265/...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1123G0E-I(2.8mm)

Replacement product code: 311305195

Warranty: 36 mon.

Datasheet

2.8 mm Fixed Lens Non 2.8 mm Fixed Lens              Key Features    * 1/2.8" progressive scan CMOS * 3D DNR (Digital Noise Reduction)  * 1920 x 1080@30fps * Up to 30 m IR range  * 2.8 mm/4 mm/6 mm fixed lens * PoE (Power over Ethernet)  * H.265+, H.265, H.264+, H.264 * IP67, IK10  * Dual stream  * Digital WDR (Wide Dynamic Range)        DS-2CD1123G0-I  2.0 MP IR Network Dome Camera        Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)  Shutter Speed 1/3 s to 1/100, 000 s  Slow Shutter Yes  Auto-Iris No  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  WDR Digital WDR  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°  Lens  Focal length 2.8 mm, 4 mm, 6 mm  Aperture F2.0  Focus No  FOV  2.8 mm, horizontal FOV 114°, vertical FOV 62°, diagonal FOV 135°  4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°  6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°  Lens Mount M12  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard    Video Compression  Main stream: H.265/...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1123G0E-I(4mm)

Replacement product code: 311305711

Warranty: 36 mon.

Datasheet

2.8 mm Fixed Lens 4 mm Fixed Lens                    Key Features    * 1/2.8" progressive scan CMOS * 3D DNR  * 1920 x 1080@30fps * Up to 30 m IR range  * 2.8 mm/4 mm fixed lens * IP67, IK10              DS-2CD1123G0E-I  2 MP IR Fixed Network Dome Camera        Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)  Shutter Speed 1/3 s to 1/100, 000 s  Slow Shutter Yes  Auto-Iris No  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  WDR DWDR  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°  Lens  Focal length 2.8 mm, 4 mm  Aperture F2.0  Focus Fixed  FOV  2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°  4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°  Lens Mount M12  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  H.264 Type Main Profile/High Profile/Baseline Profile  H.265 Type Main Profile  Video Bit Rate 32 Kbps to 8 Mb...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1123G0E-I(4mm)(C)

Replacement product code: 311315936

Warranty: 36 mon.

Datasheet

DS-2CD1123G0E-I  2 MP Fixed Dome Network Camera                  ◼ High quality imaging with 2 MP resolution  ◼ Efficient H.265+ compression technology  ◼ Clear imaging against strong back light due to DWDR technology  ◼ Water and dust resistant (IP67) and vandal resistant (IK10)  ◼ EXIR 2.0: advanced infrared technology with long IR range                ◼ Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s  Slow Shutter Yes  Wide Dynamic Range Digital WDR  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°  Lens  Focal Length & FOV  2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°  4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°  Lens Mount M12  Focus Fixed  Aperture F2.0  Illuminator  IR Wavelength 850 nm  IR Range Up to 30 m  Video  Max. Resolution 1920 x 1080  Main Stream  50 Hz: 25 fps (1920 x 1080, 1280 x 720)  60 Hz: 30 fps (1920 x 1080, 1280 x 720)  Sub-Stream  50 Hz: 25 fps (640 x 480, 640 ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1123G2-I(4mm)

Replacement product code: 311320703

Warranty: 36 mon.

Datasheet

2.8 mm Fixed Lens Non 2.8 mm Fixed Lens          Key Features   1/3" progressive scan CMOS   Up to 3.0 megapixel high resolution   2.8 mm/4 mm/6 mm fixed lens   Up to 30 m IR range   Dual stream   Digital wide dynamic range   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet) optional   IP67, Ik10   Mobile Monitoring via Hik-Connect or iVMS-4500    DS-2CD1131-I  3.0 MP CMOS Network Dome Camera        Camera  Image Sensor 1/3" progressive scan CMOS  Min. Illumination Color: 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR, B/W: 0.0036Lux @(F2.0,AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s, support slow shutter  Lens  2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.0, horizontal field of view 83.6°  6 mm @F2.0, horizontal field of view 55°  Lens Mount M12  Day &Night IR cut filter with auto switch  3-Axis Adjustment Pan: 0° to 355°; Tilt: 0° to 70°; Rotation: 0° to 355°  DNR 3D DNR (Digital Noise Reduction)  Wide Dynamic Range Digital WDR  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Main Profile  Video Bit Rate 256 Kbps to 16 Mbps ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

2.8 mm Fixed Focal Lens Non 2.8 mm Fixed Focal Lens        Key Features   1/3" progressive scan CMOS   Up to 3.0 megapixel   2.8 mm/4 mm/6 mm fixed focal lens   Up to 30 m IR range   Dual stream   Digital WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP67, Ik10   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1131-I  3.0 MP CMOS Network Dome Camera        Camera  Image Sensor 1/3" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter  Lens  2.8 mm @F2.0, horizontal field of view 105°, 4 mm @F2.0, horizontal field of view 84°  6 mm @F2.2, horizontal field of view 55°  Lens Mount M12  Day &Night IR cut filter with auto switch  2-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 70°  DNR (Digital Noise Reduction) 3D DNR  WDR (Wide Dynamic Range) Digital WDR  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Main profile/High profile  Video Bit Rate 32 Kbps to 16 Mbps  Image  Max. ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
