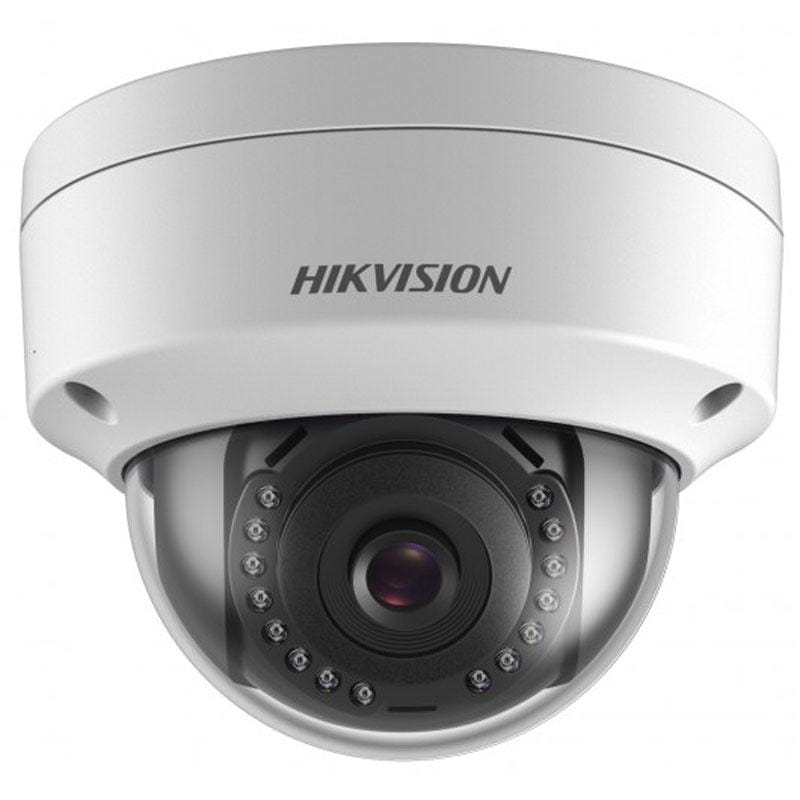

DS-2CD1121-I(4mm)(E)

Availability: 0
Price: €101.05 101.05
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311308674

Description

DS-2CD1121-I (E)  2.0 MP IR Fixed Network Dome Camera        Non 2.8 mm Fixed Lens 2.8 mm Fixed Lens                ● 1/2.7" progressive scan CMOS  ● 1920 x 1080 @30fps  ● 2.8 mm/4 mm fixed lens  ● H264+, H264    ● 3D DNR  ● Up to 30 m IR range  ● IP67, IK10              Specification    Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  WDR Digital WDR  Angle Adjustment (Bracket) Pan: 0° to 355°, tilt: 0° to 70°  Lens  Focal length 2.8, 4 mm  Aperture F2.0  FOV  2.8 mm @F2.0, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV: 135.5°  4 mm @F2.0, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV: 102.5°  Lens Mount M12  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard  Video Compression  Main stream: H.264+, H264  Sub stream: H.264/MJPEG  H.264 Type Baseline Profile/Main Profile/High Profile  Video Bit Rate...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1121-I(4mm)(F)

Replacement product code: 311316026

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2CD1121-I (E)
2.0 MP IR Fixed Network Dome Camera



Non 2.8 mm Fixed Lens 2.8 mm Fixed Lens







● 1/2.7" progressive scan CMOS
● 1920 x 1080 @30fps
● 2.8 mm/4 mm fixed lens
● H264+, H264

● 3D DNR
● Up to 30 m IR range
● IP67, IK10






Specification

Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR Digital WDR
Angle Adjustment (Bracket) Pan: 0° to 355°, tilt: 0° to 70°
Lens
Focal length 2.8, 4 mm
Aperture F2.0
FOV
2.8 mm @F2.0, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV: 135.5°
4 mm @F2.0, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV: 102.5°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard
Video Compression
Main stream: H.264+, H264
Sub stream: H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
Video Bit Rate 32 Kbps to 8 Mbps
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement BLC, 3D DNR
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance
adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Scheduled
Network
Alarm Trigger Motion detection, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, IGMP, UDP,
QoS
General Function
One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filtering



Firmware Version 5.5.83
API ONVIF (PROFILE S), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator, and User
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0-11
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug;PoE(802.3af, class 3)
Power Consumption and Current 12 VDC,0.3 A, Max. 3.5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
Protection Level IP67, IK10
Material Bottom base: metal, front cover & bubble: plastic
Dimensions Φ 111 mm x 82.4 mm (4.4" x 3.2")
Weight
Camera: approx. 400 g (0.9 lb.)
With package: approx. 600 g (1.3 lb.)

Available Model
DS-2CD1121-I (E) (2.8/4 mm)
Dimension





Accessory




DS-1259ZJ
Inclined Ceiling Mount
DS-1271ZJ-110
Pendant Mount
DS-1272ZJ-110
Wall Mount
DS-1272ZJ_110B
Wall Mount



DS-1258ZJ
Wall Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-DM18
Junction Box
DS-1250ZJ
Rain Shade


DS-1253ZJ-M
Rain Shade
