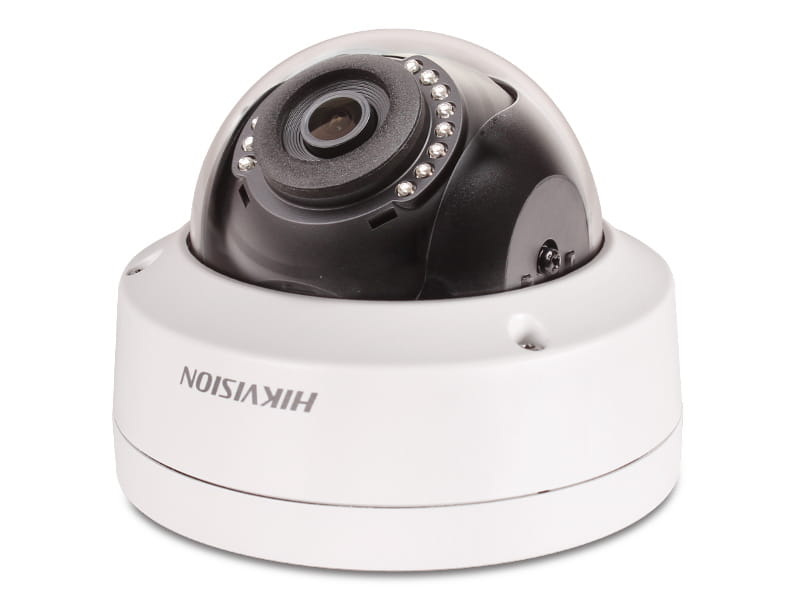

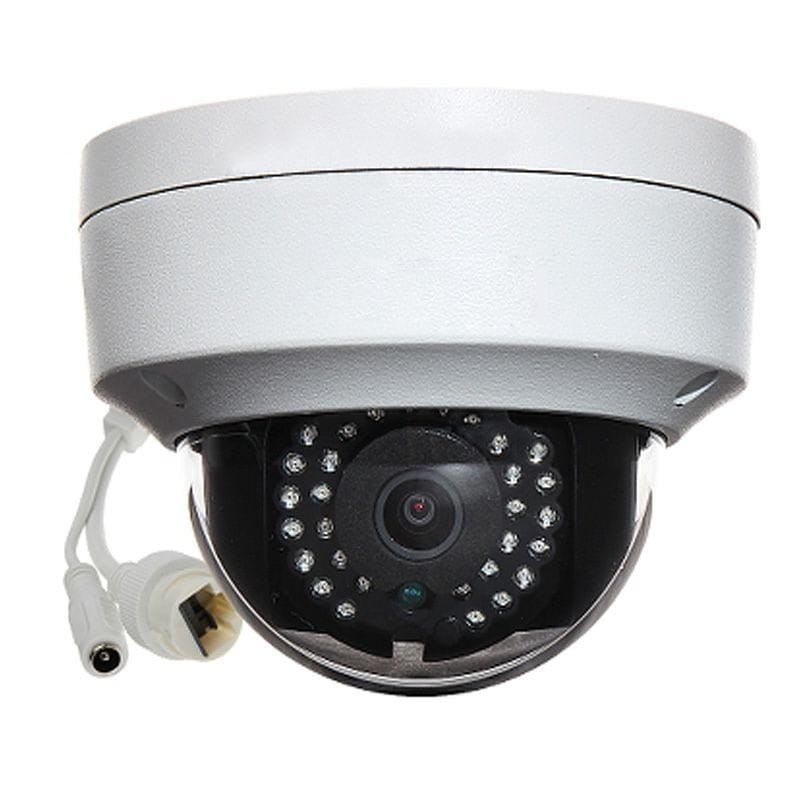

DS-2CD1121-I(4mm)(D)

Availability: 0
Price: €96.20 96.20
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311301707

Description

2.8 mm Fixed Focal Lens Non 2.8 mm Fixed Focal Lens        Key Features   1/2.8" progressive scan CMOS   Up to 2.0 megapixel   2.8 mm/4 mm/6 mm fixed focal lens   Up to 30 m IR range   Dual stream   Digital WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP67, IK10   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1121-I  2.0 MP CMOS Network Dome Camera        Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter  Lens  2.8 mm @F2.0, horizontal field of view 105°, 4 mm @F2.2, horizontal field of view 84°  6 mm @F2.0, horizontal field of view 55°  Lens Mount M12  Day &Night IR cut filter with auto switch  2-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 70°  DNR (Digital Noise Reduction) 3D DNR  WDR (Wide Dynamic Range) Digital WDR  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Baseline profile/Main profile  Video Bit Rate ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1121-I(4mm)(E)

Replacement product code: 311308674

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

2.8 mm Fixed Focal Lens Non 2.8 mm Fixed Focal Lens



Key Features
1/2.8" progressive scan CMOS
Up to 2.0 megapixel
2.8 mm/4 mm/6 mm fixed focal lens
Up to 30 m IR range
Dual stream
Digital WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
PoE (Power over Ethernet)
IP67, IK10
Mobile monitoring via Hik-Connect or iVMS-4500

DS-2CD1121-I
2.0 MP CMOS Network Dome Camera



Camera
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Lens
2.8 mm @F2.0, horizontal field of view 105°, 4 mm @F2.2, horizontal field of view 84°
6 mm @F2.0, horizontal field of view 55°
Lens Mount M12
Day &Night IR cut filter with auto switch
2-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 70°
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) Digital WDR
Compression Standard

Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Baseline profile/Main profile
Video Bit Rate 32 Kbps to 8 Mbps
Max. Resolution 1920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps @(1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps @(1920 x 1080, 1280 x 960, 1280 x 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps @(704 x 576, 640 x 480, 352 x 288, 320 x 240)
60Hz: 30fps @(704 x 480, 640 x 480, 352 x 240, 320 x 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage NAS (NFS, SMB/CIFS)
Detections Motion detection
Alarms Video tampering, network disconnected, IP address conflicted
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
802.1X, QoS, IPv6, Bonjour
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Reset Support
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply 12 V DC ± 25%, PoE (802.3af)
Power Consumption Max. 5 W
Protection Level IP67, IK10
IR Range Up to 30 m
Dimensions Φ 111 mm x 82 mm (4.4" x 3.2")
Weight 500 g (1.1 lb.)
Specification


Available Models
DS-2CD1121-I
Dimension
Φ 111 mm (4.4")
Φ 79 mm (3.1")
Φ 100.4 mm
(4 ")
Φ 79 mm (3.1")
82.4 mm (3.2")

Accessory


DS-1259ZJ
Inclined Base Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1272ZJ-110
Wall Mounting Bracket

DS-1272ZJ-110B
Wall Mounting Bracket

DS-1271ZJ-110
Pendant Mounting Bracket


DS-1276ZJ
Corner Mounting Bracket

DS-1280ZJ-DM18
Junction Box

DS-1250ZJ
Rain Shade
