HIKVISION

DS-6700HUHI-K SERIES TURBO HD ENCODER  Video Input and Transmission   Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input   5 MP/4 MP HDTVI video input and live view   Long distance transmission over UTP and coaxial cable  Compression and Recording   H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras   Full channel recording at up to 5 MP resolution  Storage and Playback   1 SATA interface for DS-6704HUHI-K, and 2 SATA interfaces for DS-6708/6716HUHI-K (up to 8 TB capacity per HDD)   Searching and playing back record files by camera number, recording type, start time, end time, etc.  Smart Function   Supports line crossing detection, intrusion detection, sudden scene change detection, and audio exception detection  Network & Ethernet Access   DDNS (Dynamic Domain Name System) for easy network management   1 RJ45 10M/100M/1000M self-adaptive Ethernet interface  Features and Functions                  Model DS-6704HUHI-K DS-6708HUHI-K DS-6716HUHI-K  Video/Audio  input/output  Video input  4-ch 8-ch 16-ch  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection  HDTVI input 5 MP, 4 MP...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

www.hikvision.com  210      DS-7104HGHI-F1, DS-7108HGHI-F1,  DS-7116HGHI-F1  Available Models  DS-7104/08/16HGHI-F1  Physical Interfaces  720P Mini 1U Turbo HD DVR  • 4/8/16-ch video & 1-ch audio input  • HD-TVI/AHD/analog camera triple hybrid  • H.264 / H.264+ video compression  • Full channel real-time recording at 720P resolution  • HDMI output at up to 1920x1080P resolution  • Long transmission distance over coax cable  • 1 SATA, 2 USB2.0  Key features    DS-7104HGHI-F1 DS-7108HGHI-F1 DS-7116HGHI-F1  Video/Audio input  Video input  4-ch 8-ch 16-ch  BNC interface (1.0Vp-p, 75 Ω)  Supported HDTVI input720p/25Hz, 720p/30Hz  Supported AHD input ...

Warning! Product withdrawn from production!

Replacement product: DS-7104HGHI-F1(S)

Replacement product code: 300225244

Warranty: 36 mon.

Datasheet

DS-7104HGHI-SH SERIES TURBO HD DVR  Video Input and Transmission   Connectable to HDTVI and analog cameras   Long distance transmission over UTP and coaxial cable  Compression and Recording   H.264+ compression improves encoding efficiency by up to 50% and reduces data storage costs   Full channel recording at up to 1080p resolution  Video Output   Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution  Storage and Playback   One SATA interface (up to 6 TB capacity per HDD)   4-ch synchronous playback at up to 1080p resolution   Smart search for efficient playback  Smart Function   VQD (Video Quality Diagnostics)  Network & Ethernet Access   Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management   One self-adaptive 10/100Mbps network interface  Features and Functions                  Model    DS-7104HGHI-SH  Video/Audio  input  Video compression H.264+/H.264  Analog and HDTVI  video input  4-ch  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection  Supported camera  types  720p/25Hz, 720p/30Hz, 720p/50Hz, 720p/60Hz, 1080p/25Hz,  1080p/30Hz, CVBS  Audio compression ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-7100HQHI-F1/N SERIES TURBO HD DVR    Video Input and Transmission   Connectable to HDTVI, AHD and analog cameras   Long distance transmission over UTP and coaxial cable with max. 1200m for the 720p and max. 800m for the 1080p HDTVI  signal  Compression and Recording   One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs   Up to 3 MP resolution for recording of the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N,  and the first 4 channels of DS-7116HQHI-F1/N   Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p  Video Output   Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution for DS-7104/7108HQHI-F1/N and 4K (3840 x 2160)  resolution for HDMI output of DS-7116HQHI-F1/N  Storage and Playback   One SATA interface (up to 6 TB capacity per HDD)   4/8/16-ch synchronous playback   Smart search for efficient playback  Smart Function   VQD (Video Quality Diagnostics)   Unlock pattern for device login for the admin and clear-text password available   GUID file can be exported for password resetting and imported for finding the forgotten password <...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

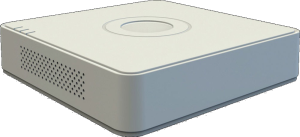

DS-7100HQHI-K1 SERIES TURBO HD DVR    Video Input and Transmission   Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input   Up to 2-ch 4 MP IP cameras input   Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal  Compression and Recording   H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras   Connectable to H.265+/H.265/H.264+/H.264 IP cameras   H.265+ can be enabled to improve encoding efficiency and reduce data storage costs   Up to 3 MP resolution for recording of channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4  of DS-7116HQHI-K1   Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p  Video Output   Simultaneous HDMI/VGA output  Storage and Playback   One SATA interface (up to 6 TB capacity per HDD)   4/8/16-ch synchronous playback   Smart search for efficient playback   Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)  Smart Function   VQD (Video Quality Diagnostics)   Supports PTZ control via Omnicast VMS of Genetec protocol  Network & Ethernet Access   Hik-Connect...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-7100HQHI-K1 SERIES TURBO HD DVR    Video Input and Transmission   Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input   Up to 6/12/24-ch 6 MP IP cameras input for DS-7104/7108/7116HQHI-K1   Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal  Compression and Recording   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog  cameras   Connectable to H.265+/H.265/H.264+/H.264 IP cameras   H.265+ can be enabled to improve encoding efficiency and reduce data storage costs   Full channel recording at up to 4 MP lite resolution   Supports real-time 1080p lite. When 1080p lite is on, the image effect is similar with 1080p  Video Output   Simultaneous HDMI/VGA output   HDMI output at up to 4K (3840 x 2160) resolution for DS-7116HQHI-K1  Storage and Playback   One SATA interface (up to 6 TB capacity per HDD)   4/8/16-ch synchronous playback   Smart search for efficient playback   Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)  Smart Function   VQD (Video Quality Diagnostics)  Network & Ethernet Access   Hik-Connect & DDNS (Dynamic Do...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

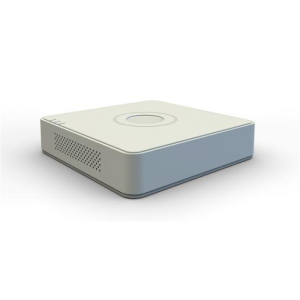

www.hikvision.com  226  DS-7104HQHI-SH  Mini Turbo HD DVR    Speed Dome  Dome Cameras  Box Cameras    INPUT  Remote ControlUSB Mouse  Door Contact  Alarm  MicrophoneUSB Device  VGA / HDMISpeaker  Cell Phone  Router  PC Client  OUTPUT  control  ACCESSIES    DS-7104HQHI-SH    • H.264 & Dual-stream video compression  • Support HD-TVI/analog camera triple hybrid  • Support both HD-TVI and analog cameras with adaptive  access  • Full channel@1080P resolution real-time recording  • HDMI and VGA output at up to 1920x1080Presolution  • Long transmission distance over coax cable  Key features  DS-7104HQHI-SH  Video/Audio input  Video compression H.264  Analog and HD-TVI video  input  4-ch  BNC interface (1.0Vp-p, 75 Ω)  Supported camera types 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS  Audio compression G.711u  Audio input / Two-way  audio in ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-7100HUHI-K1 SERIES TURBO HD DVR    Video Input and Transmission   Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input   Up to 8/16-ch 8 MP IP cameras input for DS-7104/7108HUHI-K1   8 MP/5 MP/4 MP HDTVI video input and live view for DS-7108HUHI-K1, and 5 MP/4 MP for DS-7104HUHI-K1   Defogging function enabled for the supported analog cameras   Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal  Compression and Recording   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of  analog cameras   Connectable to H.265+/H.265/H.264+/H.264 IP cameras   H.265+ can be enabled to improve encoding efficiency and reduce data storage costs   Recording at up to 8 MP resolution  Video Output   Simultaneous HDMI/VGA output   HDMI output at up to 4K (3840 x 2160) resolution for DS-7108HUHI-K1  Storage and Playback   1 SATA interface (up to 6 TB capacity per HDD)   4/8-ch synchronous playback   Smart search for efficient playback   Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)  Smart Function   VQD (Video Quality Diagnostics)  Netwo...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

wwwhikvisioncom HIKVISION HIKVISION HIKVISIDN” Distributed by  I_ HIK VISION `  Haadquansrs  N0555 Utanrno Road, Btnjiang District,  Hangzhou 310051, China T +86r571-8807~5998  Overseasbustness@hikvision,com  Hikvision USA T &7909-895-0400 sales.usa@htkvtstnn.com  Hlkvlslon Italy T +39043843902  inf0,tt@hikvis`t0n.c0m  Hlkvislon Slngapore T 6566844718 sg@hnkvlsuon.com  Hikvisiun Africa T +27 [10] 0351172 sate.atrica@htkvtsnon.com  Hlkvlslun Europe T +31‹23-55~H2~770 lnto.eu@htkvisnun.cum  Hlkvlslnn France T +33l0]l-85-330-450 intu.tr@htkviston.com  Hlkvlsion Oceania T +80285994233 satesau@hikvist0n.c0m  Hikvisiun HongKong T +85241514761  Hlkvislon Middle East T +971~ür8816085  satesme@htkvis10n.cum  Hlkvlslon Spaln T +34-91~737-16r55 II`ITO.eS@htk\/tStDH.C0m  Hikvislnn Canada T &7909-895-0400 sales.usa@htkvtston.cum  © HIKVISTDH Dtgital Technotogy Co., Ltd. 2017| Data subject to change without nottcet  Hlkvision Russla T +7-A95-669-B7-99 sateru@hikvis`ton.com  Hlkvlslon Poland T +48‹22-LI60-01-50 potand@hikvision,com  Hlkvlslun Korea T +83314316841 sales.korea@htkvtsmncom  Hikvislun Indla T +91-22-28lł69900  satescašpramanikvtsinncom  Hlkvlslon UK T +01828602140  supportumöhtkv...

Warning! Product withdrawn from production!

Replacement product: iDS-7104HUHI-M1/S(E)

Replacement product code: 300228934

Warranty: 36 mon.

Datasheet

DS-7600NI-E1 Series NVR      Introduction:  DS-7600NI-E1 series NVR (Network Video Recorder) is a new generation  recorder developed by Hikvision independently. Combined with multiple  advanced technologies, such as audio and video decoding technology,  embedded system technology, storage technology, network technology and  intelligent technology. It can both work alone as a recorder and cooperate with  other device to form a comprehensive surveillance system.  The DS-7600NI-E1 series NVR are widely applied in the areas of finance,  public security, military, communication, transportation, education, etc..    Available Models:  DS-7604NI-E1, DS-7608NI-E1 and DS-7616NI-E1.    Main Features:   Connectable to the third-party network cameras like like ACTI, Arecont,  AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA,  SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.   Up to 16 network cameras can be connected.   Support live view, storage, and playback of the connected camera with  up to the resolution of 5 megapixels.   Simultaneous HDMI and VGA outputs at up to 1920x1080 resolution.   New GUI and support starting record with one key;   Holiday recording;  ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-7100NI-E1/P SERIES NVR  Video Input and Transmission   Connectable to the third-party network cameras   Up to 8 network cameras can be connected  Compression and Recording   H.264+ compression effectively reduces the storage space and costs by up to 50%   Full channel recording at up to 4 MP resolution  HD Video Output   HDMI/VGA output at 1080p resolution  Storage and Playback   Up to 2-ch synchronous playback at 4 MP resolution or 4-ch at 1080p resolution   1 SATA hard disks can be connected with 6TB capacity   HDD quota and group modes; different capacity can be assigned to different channel  Smart Function   Supports multiple VCA(Video Content Analytics) events detection   Smart search for the selected area in the video; and smart playback to improve the playback efficiency   One-key operation: automatically search, modify and add IP cameras after device is activated  Network & Ethernet Access   Hik-Connect and DyDDNS for easy network management   100 Mbps Ethernet network interface   4/8 independent 100 Mbps built-in switch network interfaces    Features and Functions              Model DS-7104NI-E1/4P DS-7108NI-E1/8P  Video/Audio ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-7100NI-K1/W/M Series Wi-Fi NVR    Video Input and Transmission   Up to 4/8 IP cameras (max. incoming bandwidth: 50 Mbps)   Live view of the connected camera at up to 4 MP resolution  Compression and Recording   H.264, H.265, H.264+, and H.265+ compression.   Full channel recording at up to 4 MP resolution  Video Output   HDMI/VGA output with up to 1920 x 1080 resolution  Storage and Playback   1 SATA interface for HDD with up to 6 TB capacity   Up to 4/8-ch synchronous playback   Smart search for efficient playback  Smart Function   Supports line crossing and intrusion VCA (Video Content Analytics) events for IP cameras  Network & Ethernet Access   Hik-Connect for easy network management   One 100M Ethernet network interface  Wi-Fi Features   Provides Wi-Fi function.   Up to 16 terminals, including mobile phone and laptop, can access NVR via Wi-Fi   Dual external antenna design offers more powerful and stable signal.  Features and Functions              Model DS-7104NI-K1/W/M DS-7108NI-K1/W/M  Video/Audio  input  IP video input 4-ch 8-ch  Incoming/outgoing  bandwidth  50/40 Mbps  Video/Audio  output  HDMI/V...

Warning! Product withdrawn from production!

Replacement product: DS-7104NI-K1/W/M(C)

Replacement product code: 303611922

Warranty: 36 mon.

Datasheet

Video Input and Transmission   Connectable to the third-party network cameras   4/8 network cameras can be connected  Compression and Recording   H.265+/H.265 compression effectively reduces the storage space and costs   Full channel recording at up to 4 MP resolution  HD Video Output   HDMI/VGA output at 1080p resolution  Storage and Playback   1-ch playback at 4 MP resolution or 2-ch at 1080p resolution   1 SATA hard disk can be connected with 6TB capacity  Smart Function   Supports line crossing and intrusion detection   Smart search for the selected area in the video; and smart playback to improve the playback efficiency  Network & Ethernet Access   Hik-Connect for easy network management   100 Mbps Ethernet network interface  Features and Functions      DS-7100NI-Q1 SERIES NVR          Model DS-7104NI-Q1 DS-7108NI-Q1  Video input IP video input  4-ch 8-ch  Up to 4 MP resolution  Network  Incoming bandwidth 40 Mbps 60 Mbps  Outgoing bandwidth 60 Mbps  Video output  Recording resolution 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF  HDMI/VGA output  resolution  1920 x 1080p/60Hz, 1280 x 1024/60Hz...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Video Input and Transmission   Connectable to the third-party network cameras   Up to 8 network cameras can be connected  Compression and Recording   H.265+/H.265 compression effectively reduces the storage space and costs   Full channel recording at up to 4 MP resolution  HD Video Output   HDMI/VGA output at 1080p resolution  Storage and Playback   1-ch playback at 4 MP resolution or 2-ch at 1080p resolution   1 SATA hard disk can be connected with 6TB capacity  Smart Function   Supports line crossing and intrusion detection   Smart search for the selected area in the video; and smart playback to improve the playback efficiency  Network & Ethernet Access   Hik-Connect for easy network management   100 Mbps Ethernet network interface   4/8 independent 100 Mbps built-in switch network interfaces  DS-7100NI-Q1/P SERIES NVR  Features and Functions                Model DS-7104NI-Q1/4P DS-7108NI-Q1/8P  Video input IP video input  4-ch 8-ch  Up to 4 MP resolution  Network  Incoming bandwidth 40 Mbps 60 Mbps  Outgoing bandwidth 60 Mbps  Video output  Recording resolution 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Feature   H.265+/H.265/H.264+/H.264 video compression   Up to 40/60 Mbps incoming bandwidth, and 60 Mbps outgoing  bandwidth   Up to 4/8-ch network camera inputs   Up to 4-ch 1080p decoding capability   HDMI and VGA simultaneous output          Compression and Recording   H.265+ compression effectively reduces the storage space by up to 75%   Full channel recording at up to 6 MP resolution  Storage and Playback   1-ch@6 MP or 4-ch@1080p playback resolution   1 SATA interface (up to 6 TB capacity per HDD)  Smart Function   Supports line crossing and intrusion detection   Smart search for the selected area in the video; and smart playback to improve the playback efficiency   Automatically search and add network cameras after device is activated  Network & Ethernet Access   4/8 independent PoE network interfaces   1 self-adaptive 10/100 Mbps Ethernet interface   Hik-Connect for easy network management      DS-7100NI-Q1/P/M SERIES NVR            Specification      Model DS-7104NI-Q1/4P/M DS-7108NI-Q1/8P/M  Video and Audio  IP video input  4-ch 8-ch  Up to 6 MP resolution  Incoming bandwidth 40 Mbps 6...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

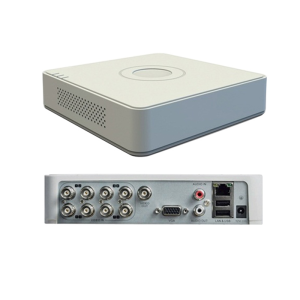

DS-7100HGHI-F1 TURBO HD DVR  Available Models  DS-7104HGHI-F1, DS-7108HGHI-F1, DS-7116HGHI-F1.    Key Features   Connectable to HD-TVI, AHD and analog cameras;   Connectable to the Coaxitron camera/dome with long transmission distance.   Simultaneous HDMI and VGA outputs at up to 1080p resolution.   New GUI and support starting record with one key;   Instant playback for assigned camera during multi-channel live view mode;   4/8/16-ch synchronous playback at 720p resolution; and reverse playback for  multi-camera;   Smart playback to go through less effective information;   Manual video quality diagnostics;   Customization of tags, searching and playing back by tags;   Locking and unlocking record files;   Support HDD quota management; different capacity can be assigned to  different cameras under quota mode;   Provide 1 SATA interface for HDD with up to 6TB capacity;   Up to 1 self-adaptive 10M/100M network interface.   Support Hikvision DDNS (Dynamic Domain Name System);   Network detection function.  Physical Interfaces    Index Name  1 VIDEO IN  2 HDMI Interface  3 VGA Interface  4 AUDIO OUT, RCA Connector  5 AUDIO IN, RCA Connector

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-7100HGHI-F1/N SERIES TURBO HD DVR    Video Input and Transmission   Connectable to Turbo HD/HDCVI/AHD/CVBS signal input   Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal  Compression and Recording   One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs   Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p  Video Output   Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution  Storage and Playback   One SATA interface (up to 6 TB capacity per HDD)   4/8/16-ch synchronous playback   Smart search for efficient playback  Smart Function   VQD (Video Quality Diagnostics)   Unlock pattern for device login for the admin and clear-text password available   GUID file can be exported for password resetting and imported for finding the forgotten password   Supports PTZ control via Omnicast VMS of Genetec protocol  Network & Ethernet Access   Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management   One self-adaptive 10/100 Mbps network interface   Output bandwidth limit configurable    Features and Functions   ...

Warranty: 36 mon.

Datasheet

DS-7100HGHI-SH Series DVR      Introduction:  DS-7100HGHI-SH series DVR (Digital Video Recorder) is a new generation  recorder developed by Hikvision independently which can connect HD analog  cameras and provide powerful surveillance. Combined with multiple  advanced technologies, such as audio and video encoding & decoding  technology, embedded system technology, storage technology, network  technology and intelligent technology. It can both work alone as a recorder  and cooperate with other devices to build a comprehensive surveillance  system.  The DS-7100HGHI-SH series DVR are widely applied in the areas of finance,  public security, military, communication, transportation, education, etc..  Available Model:  DS-7104HGHI-SH, DS-7108HGHI-SH.    Main Features:   Connectable to HD-TVI and analog cameras;   Connectable to the Coaxitron camera with long transmission distance.   Simultaneous HDMI and VGA outputs at up to 1920x1080P resolution.   New GUI and support starting record with one key;   Redundant recording and holiday recording;   Instant playback for assigned camera during multi-channel live view  mode;   Support up to 4/8-ch ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
