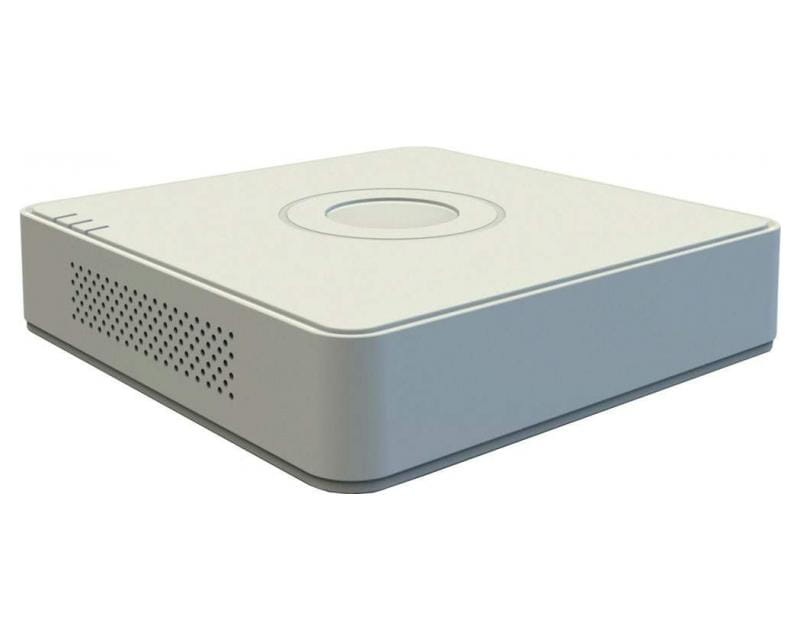

DS-7104NI-Q1/4P/M
Description
Key Feature H.265+/H.265/H.264+/H.264 video compression Up to 40/60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth Up to 4/8-ch network camera inputs Up to 4-ch 1080p decoding capability HDMI and VGA simultaneous output Compression and Recording H.265+ compression effectively reduces the storage space by up to 75% Full channel recording at up to 6 MP resolution Storage and Playback 1-ch@6 MP or 4-ch@1080p playback resolution 1 SATA interface (up to 6 TB capacity per HDD) Smart Function Supports line crossing and intrusion detection Smart search for the selected area in the video; and smart playback to improve the playback efficiency Automatically search and add network cameras after device is activated Network & Ethernet Access 4/8 independent PoE network interfaces 1 self-adaptive 10/100 Mbps Ethernet interface Hik-Connect for easy network management DS-7100NI-Q1/P/M SERIES NVR Specification Model DS-7104NI-Q1/4P/M DS-7108NI-Q1/8P/M Video and Audio IP video input 4-ch 8-ch Up to 6 MP resolution Incoming bandwidth 40 Mbps 6...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key Feature
H.265+/H.265/H.264+/H.264 video compression
Up to 40/60 Mbps incoming bandwidth, and 60 Mbps outgoing
bandwidth
Up to 4/8-ch network camera inputs
Up to 4-ch 1080p decoding capability
HDMI and VGA simultaneous output
Compression and Recording
H.265+ compression effectively reduces the storage space by up to 75%
Full channel recording at up to 6 MP resolution
Storage and Playback
1-ch@6 MP or 4-ch@1080p playback resolution
1 SATA interface (up to 6 TB capacity per HDD)
Smart Function
Supports line crossing and intrusion detection
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Automatically search and add network cameras after device is activated
Network & Ethernet Access
4/8 independent PoE network interfaces
1 self-adaptive 10/100 Mbps Ethernet interface
Hik-Connect for easy network management
DS-7100NI-Q1/P/M SERIES NVR
Specification
Model DS-7104NI-Q1/4P/M DS-7108NI-Q1/8P/M
Video and Audio
IP video input
4-ch 8-ch
Up to 6 MP resolution
Incoming bandwidth 40 Mbps 60 Mbps
Outgoing bandwidth 60 Mbps
HDMI output 1-ch, 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
VGA output
1-ch, 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz,
HDMI/VGA simultaneous output
Decoding
Decoding format H.265+/H.265/ H.264+/H.264
Recording resolution 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback 4-ch 8-ch
Capability 4-ch@1080p (25 fps), 1-ch@6 MP (25 fps)
Stream type Video, Video & Audio
Network
Remote connection 16
Network protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface
4, RJ-45 10/100 Mbps self-adaptive
Ethernet interface
8, RJ-45 10/100 Mbps self-adaptive
Ethernet interface
Power ≤ 36 W ≤ 75 W
Supported standard IEEE 802.3 af/at
Auxiliary interface
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
Alarm in/out N/A
USB interface Rear panel: 2 x USB 2.0
General
Power supply 48 VDC
Consumption (without
HDD and PoE off)
≤ 10 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W x D x H) 265 x 225 x 48 mm (10.4" x 8.9" x 1.9")
Weight (without HDD) ≤ 1 kg (2.2 lb)
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN50130-4, EN 61000-3-2,EN 61000-3-3
Dimension
Unit: mm
Physical Interface
*: The rear panel of DS-7104NI-Q1/4P/M provides 4 PoE interfaces.
No. Description No. Description
1 Power supply 5 LAN Network Interface
2 VGA interface 6 Ground
3 HDMI interface 7 Network Interfaces with PoE function
4 USB interface
Available Model
DS-7104NI-Q1/4P/M, DS-7108NI-Q1/8P/M
