DS-7100HGHI-F1 TURBO HD DVR
Available Models
DS-7104HGHI-F1, DS-7108HGHI-F1, DS-7116HGHI-F1.

Key Features
 Connectable to HD-TVI, AHD and analog cameras;
 Connectable to the Coaxitron camera/dome with long transmission distance.
 Simultaneous HDMI and VGA outputs at up to 1080p resolution.
 New GUI and support starting record with one key;
 Instant playback for assigned camera during multi-channel live view mode;
 4/8/16-ch synchronous playback at 720p resolution; and reverse playback for
multi-camera;
 Smart playback to go through less effective information;
 Manual video quality diagnostics;
 Customization of tags, searching and playing back by tags;
 Locking and unlocking record files;
 Support HDD quota management; different capacity can be assigned to
different cameras under quota mode;
 Provide 1 SATA interface for HDD with up to 6TB capacity;
 Up to 1 self-adaptive 10M/100M network interface.
 Support Hikvision DDNS (Dynamic Domain Name System);
 Network detection function.
Physical Interfaces

Index Name
1 VIDEO IN
2 HDMI Interface
3 VGA Interface
4 AUDIO OUT, RCA Connector

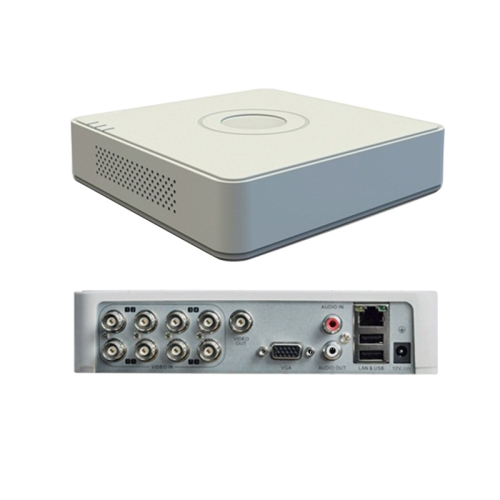

5 AUDIO IN, RCA Connector
6 LAN Network Interface
7 USB Ports
8 GND
9 12VDC Power Input


The rear panel of DS-7108HGHI-F1/DS-7116HGHI-F1 provides
8/16 video input interfaces.


REVISION No.: 030110150911







Model

DS-7104HGHI-F1 DS-7108HGHI-F1 DS-7116HGHI-F1
Video/Audio input
Video input
4-ch 8-ch 16-ch
BNC interface (1.0Vp-p, 75 Ω)
Supported HDTVI input 720p/25Hz, 720p/30Hz
Supported AHD input 720p/25Hz, 720p/30Hz, CVBS
Audio input/ Two-way audio input 1-ch , RCA (2.0 Vp-p, 1 KΩ)
Video/Audio
output
HDMI/VGA output 1-ch, 1920 x 1080/60Hz,1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Network
management
Remote connections 32 128 128
Network protocols
TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI,
UPnP™, HTTPS
Encoding
Video compression standard H.264
Encoding resolution 720p/WD1/4CIF/VGA/CIF
Frame rate 1/16 fps, real time frame rate
Video bitrate 32 Kbps to 4 Mbps
Stream type Video & Audio/Video
Dual-stream Support. Sub-stream resolution: CIF/QVGA/QCIF (real time)
Audio compression standard G.711u
Audio bitrate 64 Kbps
Synchronous playback 4-ch 8-ch 16-ch
Hard disk
Type 1
Capacity Up to 6 TB capacity for each disk
External interface
Network interface 1; RJ-45 10M/100M self-adaptive Ethernet interface
USB interface Rear panel: 2 x USB 2.0
General
Power supply 12 VDC
Consumption
(without hard disks)
≤ 8W ≤ 12W ≤ 20W
Working temperature -10ºC to +55ºC (14ºF to 131ºF)
Working humidity 10% to 90%
Dimensions
(W x D x H)
200 x 200 x 45mm (7.9 x 7.9 x 1.8 inch)
285 x 210 x 45 mm (11.2
x 8.3 x 1.8 inch)
Weight
(without hard disks)
≤ 0.8 kg (1.8 lb) ≤ 1.2 kg (2.6 lb)
DS-7100HGHI-F1 TURBO HD DVR
Specifications
