DAHUA

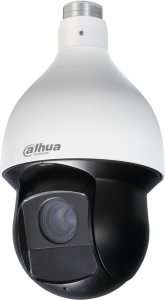

Pro Series | DH-SD59430U-HNI    www.dahuasecurity.com  · 1/3” 4Megapixel CMOS  · Powerful 30x optical zoom  · H.265 Encoding  · Max. 25/30fps@4M/3M, 25/30/50/60fps@1080P  · Auto-tracking and IVS  · Support PoE+  · IR distance up to 100m  · IP66  DH-SD59430U-HNI   4MP 30x IR PTZ Network Camera    ICR D/ N    H.265    PoE+     System Overview    Featuring powerful optical zoom and accurate pan/tilt/zoom  performance, the camera can provide large monitoring range and great  detail. It is equipped with quick and smooth control, high quality image  and good protection, which make it can meet most of the requirements  of video surveillance applications.   Functions    Wide Dynamic Range  The camera achieves vivid images, even in the most intense contrast  lighting conditions, using industry-leading wide dynamic range (WDR)  technology. For applications with both bright and low lighting conditions  that change quickly, True WDR (120 dB) optimizes both the bright and  dark areas of a scene at the same time to provide usable video.  Auto-tracking  This feature controls the pan/tilt/z...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

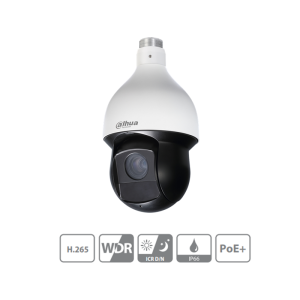

Pro AI Series | DH-SD59432XA-HNR    www.dahuasecurity.com  DH-SD59432XA-HNR  4MP 32x Starlight IR PTZ AI Network Camera    AI series products adopt the most advanced AI technologies, including  deep learning algorithms that primarily target people and vehicles,  which provides higher flexibility and accuracy for end-users. This enables  the Dahua AI series to offer various advanced applications such as Face  Recognition, ANPR, Metadata, People Counting, traffic data statistics,  etc. The complete lineup of Dahua AI includes network (PTZ) cameras,  network video recorders, servers, and more devices. Beyond seeing the  world, the power of AI allows devices to perceive the environment and  understand the world in a better way.  System Overview  Featuring powerful optical zoom and accurate pan/tilt/zoom perfor-  mance, this camera provides an all-in-one solution for capturing long  distance video surveillance for outdoor applications. Together with  infrared illumination and Starlight Technology, the camera is the perfect  solution for dark, lowlight applications. The series combines a day/night  mechanical IR cut filter for the highest image quality in variable lighting  conditions during the day, an...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Pro AI Series | DH-SD5A425XA-HNR    www.dahuasecurity.com  DH-SD5A425XA-HNR  4MP 25x Starlight + IR PTZ AI Network Camera    AI series products adopt the most advanced AI technologies, including  deep learning algorithms that primarily target people and vehicles,  which provides higher flexibility and accuracy for end-users. This enables  the Dahua AI series to offer various advanced applications such as Face  Recognition, ANPR, Metadata, People Counting, traffic data statistics,  etc. The complete lineup of Dahua AI includes network (PTZ) cameras,  network video recorders, servers, and more devices. Beyond seeing the  world, the power of AI allows devices to perceive the environment and  understand the world in a better way.  System Overview  Dahua PTZ AI network camera adopts advanced CNN deep learning algo-  rithms to support video structuralization and perimeter protection with  high accuracy. Together with infrared illumination and Starlight technol-  ogy, the camera is the perfect solution for dark, lowlight applications.  The series combines a day/night mechanical IR cut filter for the highest  image quality in variable lighting conditions during the day, and True  WDR for applications with di...

Warranty: 36 mon.

Datasheet

Pro AI Series | DH-SD5A445XA-HNR    www.dahuasecurity.com  DH-SD5A445XA-HNR  4MP 45x Starlight IR PTZ AI Network Camera     AI PTZ Introduces  AI series products adopt the most advanced AI technologies, includ-  ing deep learning algorithms that primarily target people and vehicles,  which provides higher flexibility and accuracy for end-users. This enables  the Dahua AI series to offer various advanced applications such as Face  Recognition, ANPR, Metadata, People Counting, traffic data statistics,  etc. The complete lineup of Dahua AI includes network (PTZ) cameras,  network video recorders, servers, and more devices. Beyond seeing the  world, the power of AI allows devices to perceive the environment and  understand the world in a better way.   System Overview  Featuring powerful optical zoom and accurate pan/tilt/zoom perfor-  mance, this camera can provide large monitoring range and great detail.  The camera has very excellent low light performance due to adopting the  latest starlight technology. The camera is equipped with smooth control,  high quality image and good protection, which make it can meet most of  the requirements of video surveillance applications.  Functions  Perimeter Protect...

Warranty: 36 mon.

Datasheet

Pro Series | DH-SD60225I-HC     System Overview    Featuring with powerful optical zoom and accurate pan/tilt/zoom  performance, the SD60 series PTZ camera can provide large monitoring  range and great detail. The camera delivers 1080P resolution at 25/30  fps, with 25x optical zoom, and has very excellent low light performance  due to adopting the latest starlight technology. SD60 series PTZ is  equipped with quick and smooth control, high quality image and good  protection, which make it can meet most of the requirements of video  surveillance applications.   Functions    Simplicity  HDCVI technology inherits the born feature of simplicity from traditional  analog surveillance system, making itself a best choice for investment  protection. HDCVI system can seamlessly upgrade the traditional  analog system without replacing existing coaxial cabling. The plug and  play approach enables full HD video surveillance without the hassle of  configuring a network.  Starlight Technology  For challenging low-light applications, Dahua’s Starlight Ultra-low Light  Technology offers best-in-class light sensitivity, capturing color details...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Pro Series | DH-SD60430I-HC     System Overview    Featuring with powerful optical zoom and accurate pan/tilt/zoom  performance, the SD60 series PTZ camera can provide large monitoring  range and great detail. The camera delivers 4MP resolution at 25/30  fps, with 30x optical zoom. SD60 series PTZ is equipped with quick and  smooth control, high quality image and good protection, which make it  can meet most of the requirements of video surveillance applications.   Functions    Simplicity  HDCVI technology inherits the born feature of simplicity from traditional  analog surveillance system, making itself a best choice for investment  protection. HDCVI system can seamlessly upgrade the traditional  analog system without replacing existing coaxial cabling. The plug and  play approach enables full HD video surveillance without the hassle of  configuring a network.  Wide Dynamic Range  Embedded with industry leading wide dynamic range (WDR) technology,  vivid pictures are achieved even in the most intense contrast lighting  conditions. For applications with both bright and low lighting conditions  that change quickly, true WDR (1...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Pro Series | DH-SD60430U-HNI     System Overview    Featuring powerful optical zoom and accurate pan/tilt/zoom  performance, the camera can provide large monitoring range and great  detail. It is equipped with quick and smooth control, high quality image  and good protection, which make it can meet most of the requirements  of video surveillance applications.   Functions  Wide Dynamic Range  The camera achieves vivid images, even in the most intense contrast  lighting conditions, using industry-leading wide dynamic range (WDR)  technology. For applications with both bright and low lighting conditions  that change quickly, True WDR (120 dB) optimizes both the bright and  dark areas of a scene at the same time to provide usable video.  Auto-tracking  This feature controls the pan/tilt/zoom actions of the camera to  automatically track an object in motion and to keep it in the scene. The  tracking action can be triggered manually or automatically by defined  rules. Once a rule is triggered, the camera can zoom in and track the  defined target automatically.  Smart H.265+  Smart H.265+ is the optimized implementation of the H.265 code...

Warranty: 36 mon.

Datasheet

Ultra Series | DH-SD65F230F-HNI     System Overview  Featuring with powerful optical zoom and accurate pan/tilt/zoom  performance, this series provides an all-in-one solution for capturing  long distance video surveillance for outdoor applications. with its  Starlight Technology, the camera is the perfect solution for lowlight  applications. The series combines a day/night mechanical IR cut filter  for the highest image quality for variable lighting conditions during the  day and True WDR for applications with direct sunlight or glare.  Functions  Starlight Technology  Featuring Dahua’s Starlight Technology, this camera is ideal for  applications with challenging lighting conditions. Its low-light  performance delivers usable video with minimal ambient light. Even  in extreme low-light conditions, Starlight Technology is capable of  delivering color images in near complete darkness (0.002 lux).  Wide Dynamic Range  Embeded with industry leading wide dynamic range (WDR) technology,  vivid pictures are achieved even in the most intense contrast lighting  conditions. For applications with both bright and low lighting conditions  t...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Pro AI Series | DH-SD65F233XA-HNR    www.dahuasecurity.com  DH-SD65F233XA-HNR   2MP 33x Starlight + PTZ AI Network Camera    AI series products adopt the most advanced AI technologies, including  deep learning algorithms that primarily target people and vehicles,  which provides higher flexibility and accuracy for end-users. This enables  the Dahua AI series to offer various advanced applications such as Face  Recognition, ANPR, Metadata, People Counting, traffic data statistics,  etc. The complete lineup of Dahua AI includes network (PTZ) cameras,  network video recorders, servers, and more devices. Beyond seeing the  world, the power of AI allows devices to perceive the environment and  understand the world in a better way.  System Overview  Featuring powerful optical zoom and accurate pan/tilt/zoom perfor-  mance, this camera provides an all-in-one solution for capturing long  distance video surveillance for outdoor applications. Together with  Starlight Technology, the camera is the perfect solution for dark, lowlight  applications. The series combines a day/night mechanical IR cut filter for  the highest image quality in variable lighting conditions during the day,  and True WDR for applications...

Warranty: 36 mon.

Datasheet

Ultra Series | DH-SD6AE230F-HNI     System Overview    Featuring powerful optical zoom and accurate pan/tilt/zoom  performance, this camera provides an all-in-one solution for capturing  long distance video surveillance for outdoor applications. Together with  infrared illumination and Starlight Technology, the camera is the perfect  solution for dark, lowlight applications. The series combines a day/night  mechanical IR cut filter for the highest image quality in variable lighting  conditions during the day, and True WDR for applications with direct  sunlight or glare.   Functions  Starlight Technology  For challenging low-light applications, Dahua’s Starlight Ultra-low Light  Technology offers best-in-class light sensitivity, capturing color details  in low light down to 0.002 lux. The camera uses a set of optical features  to balance light throughout the scene, resulting in clear images in dark  environments.  Wide Dynamic Range  The camera achieves vivid images, even in the most intense contrast  lighting conditions, using industry-leading wide dynamic range (WDR)  technology. For applications with both bright and low ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Ultra Series | DH-SD6AE240V-HNI     System Overview    Featuring powerful optical zoom and accurate pan/tilt/zoom  performance, this camera provides an all-in-one solution for capturing  long distance video surveillance for outdoor applications. Together with  infrared illumination and Starlight Technology, the camera is the perfect  solution for dark, lowlight applications. The series combines a day/night  mechanical IR cut filter for the highest image quality in variable lighting  conditions during the day, and True WDR for applications with direct  sunlight or glare.   Functions  Starlight Technology  For challenging low-light applications, Dahua’s Starlight Ultra-low Light  Technology offers best-in-class light sensitivity, capturing color details  in low light down to 0.005 lux. The camera uses a set of optical features  to balance light throughout the scene, resulting in clear images in dark  environments.  Ultra-Wide Dynamic Range  For applications with both bright and low lighting conditions that change  quickly, Ultra WDR (140 dB) optimizes both the bright and dark areas of a  scene at the same time to provide usa...

Warning! Product withdrawn from production!

Replacement product: SD6AE233XA-HNR

Replacement product code: SD6AE233XA-HNR

Warranty: 36 mon.

Datasheet

Pro Series | DH-SD6AE530U-HNI     System Overview    Featuring powerful optical zoom and accurate pan/tilt/zoom  performance, the camera can provide large monitoring range and great  detail. It is equipped with quick and smooth control, high quality image  and good protection, which make it can meet most of the requirements  of video surveillance applications.   Functions    Auto-tracking  This feature controls the pan/tilt/zoom actions of the camera to  automatically track an object in motion and to keep it in the scene. The  tracking action can be triggered manually or automatically by defined  rules. Once a rule is triggered, the camera can zoom in and track the  defined target automatically.  High Efficiency Video Coding (H.265)  The H.265 (ITU-T VCEG) video compression standard offers double  the data compression ratio at the same level of video quality, or  substantially improved video quality at the same bit rate, as compared  to older video compression technologies. H.265 offers such impressive  compression by expanding the pattern comparison and difference-  coding, improving motion vector prediction and motion region mer...

Warranty: 36 mon.

Datasheet
