SD5A445XA-HNR

Pro AI Series | DH-SD5A445XA-HNR    www.dahuasecurity.com  DH-SD5A445XA-HNR  4MP 45x Starlight IR PTZ AI Network Camera     AI PTZ Introduces  AI series products adopt the most advanced AI technologies, includ-  ing deep learning algorithms that primarily target people and vehicles,  which provides higher flexibility and accuracy for end-users. This enables  the Dahua AI series to offer various advanced applications such as Face  Recognition, ANPR, Metadata, People Counting, traffic data statistics,  etc. The complete lineup of Dahua AI includes network (PTZ) cameras,  network video recorders, servers, and more devices. Beyond seeing the  world, the power of AI allows devices to perceive the environment and  understand the world in a better way.   System Overview  Featuring powerful optical zoom and accurate pan/tilt/zoom perfor-  mance, this camera can provide large monitoring range and great detail.  The camera has very excellent low light performance due to adopting the  latest starlight technology. The camera is equipped with smooth control,  high quality image and good protection, which make it can meet most of  the requirements of video surveillance applications.  Functions  Perimeter Protect...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Pro AI Series | DH-SD5A445XA-HNR

www.dahuasecurity.com
DH-SD5A445XA-HNR

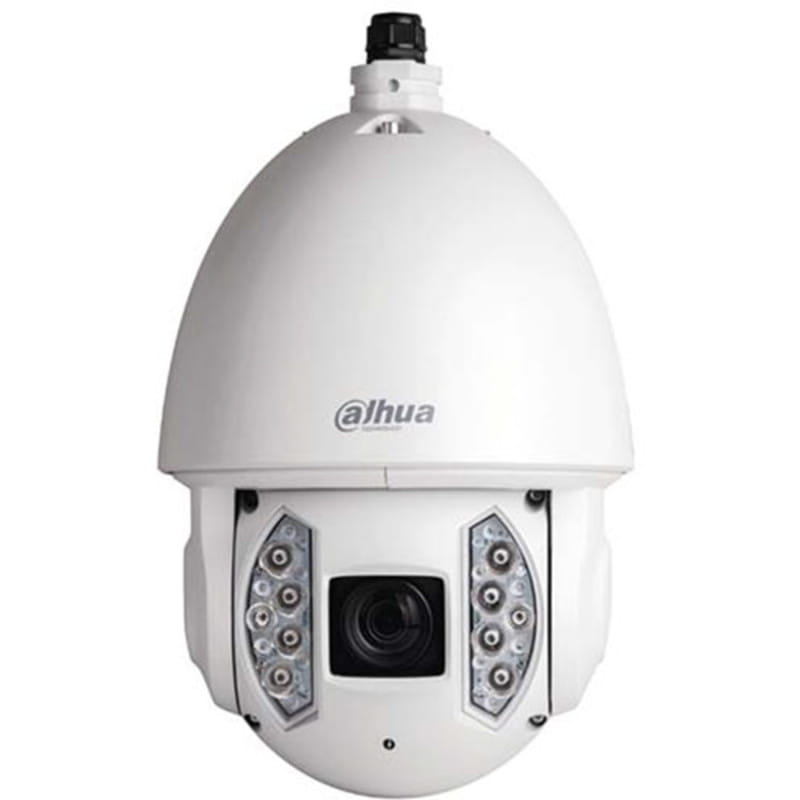

4MP 45x Starlight IR PTZ AI Network Camera

AI PTZ Introduces
AI series products adopt the most advanced AI technologies, includ-
ing deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This enables
the Dahua AI series to offer various advanced applications such as Face
Recognition, ANPR, Metadata, People Counting, traffic data statistics,
etc. The complete lineup of Dahua AI includes network (PTZ) cameras,
network video recorders, servers, and more devices. Beyond seeing the
world, the power of AI allows devices to perceive the environment and
understand the world in a better way.
System Overview
Featuring powerful optical zoom and accurate pan/tilt/zoom perfor-
mance, this camera can provide large monitoring range and great detail.
The camera has very excellent low light performance due to adopting the
latest starlight technology. The camera is equipped with smooth control,
high quality image and good protection, which make it can meet most of
the requirements of video surveillance applications.
Functions
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition
for the targets. Improving alarm accuracy.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject
distance adjustment. The result is a set of advanced focusing algo -
rithms.PFA ensures clarity of the image throughout the process of
zooming and shortens focus time. The realization of PFA technology
substantially improves user experience and increases product value.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. Subjected to rigorous dust and water immersion tests
and certified to the IP67 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to
automatically track an object in motion and to keep it in the scene. The
tracking action can be triggered manually or automatically by defined
rules. Once a rule is triggered, the camera can zoom in and track the
defined target automatically.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction
to deliver high-quality video without straining the network. Smart
H.265+ technology reduces bit rate and storage requirements by up to
70% when compared to standard H.265 video compression.
· 1/2.8”4Megapixel STARVIS™ CMOS
· Powerful 45x optical zoom
· Starlight technology
· Max. 25/30fps@4MP
· IR distance up to 150m
· Deep-learning-based auto tracking and perimeter protection
· Auto-tracking and IVS
· PoE+
· IP67 , IK10

H.265

0.005Lux
IP67

PoE+

Pro AI Series | DH-SD5A445XA-HNR

Technical Specification
Camera
Image Sensor
1/2.8" STARVIS™ CMOS
Max. Resolution
4MP
Effective Pixels
2560 (H)x1440 (V)
ROM
4GB
RAM
1GB
Electronic Shutter Speed
1/3–1/30000s
Scanning Mode
Progressive Scanning
Minimum Illumination
Color: 0.005Lux@F1.6
B/W: 0.0005Lux@F1.6
0Lux (IR light on)
IR Distance
150 m (492.13 ft)
IR On/Off Control
Zoom Prio/Manual/SmartIR
IR LED Number
4
Lens
Focal Length3.95 mm–177.7 mm
ApertureF1.6–F4.95
Field of ViewH: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2°
Optical Zoom45x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.01 m–3 m
Iris ControlAuto/Manual
DORI Distance
DetectObserveRecognizeIdentify
3176 m
(10419.95 ft)
1270 m
(4166.67 ft)
635 m
(2083.33 ft)
317 m
(1040.03 ft)
PTZ
Pan/Tilt RangePan: 0°–360°; Tilt: -15°–+90°
Manual Control SpeedPan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s
Preset SpeedPan: 400°/s; Tilt: 300°/s
Presets300
Tour8(up to 32 preset per tour)
Pattern Number5
Scanning Number5
Speed AdjustmentSupport
Power-off MemorySupport
Idle MotionPreset/Tour/Pattern/Scanning
Protocol
DH-SD
Pelco-P/D(Auto recognition)
Artifical Intelligence
Perimeter Protection
Tripwire and intrusion. Support alarm triggering by
target types (human and vehicle). Support filtering
false alarms caused by animals, rustling leaves, bright
lights, etc.

www.dahuasecurity.com

Auto TrackingSupport
Video Structuralization
Support human, motor vehicle and non-motor vehicle
image capture
General Intelligence
Event Trigger
Motion detection, video tampering, scene changing,
Network disconnection, IP address conflict, illegal
access, and storage anomaly.
General IVSObject Abandoned/Missing
Video
CompressionH.265/H.265+/H.264+/H.264/MJPEG(Sub Stream)
Streaming Capability3 Streams
Resolution
2560 x1440 (2560x1440); 3M (2048x1536); 1080P
(1920x1080); (1.3M)1280x960; 720P (1280x720); D1
(704x 576/704x480); CIF (352x288/352x240)
Frame Rate
Main stream: 4M/3M(1–25/30fps),
1080P/1.3M/720P(1–25/30fps)
Sub stream 1: D1/CIF(1–25/30fps)
Sub stream 2: 1080P/1.3M/720P(1–25/30fps), D1/
CIF(1–25/30fps)
Bit Rate ControlVariable Bit Rate/Constant Bit Rate
Bit Rate
H.264: 32 Kbps–8192 Kbps
H.265: 32 Kbps–8192 Kbps
Day/NightSupport
BLC Support
WDR120dB
HLCSupport
White Balance
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/
Natural/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
Motion DetectionSupport
Region of Interest (RoI)Support
Electronic Image
Stabilization (EIS)
Support
Optical DefogElectronic Defog
Digital Zoom16x
Flip0°/180°
Privacy MaskingUp to 24 areas
Certifications
Certification
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
Audio
Audio Compression
G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729;
PCM; MPEG2-Layer2
Port
Audio In1 (LINE IN; bare wire)
Audio Out1 (LINE OUT; bare wire)
Alarm Port2 alarm input port; 1 alarm output port

Pro AI Series | DH-SD5A445XA-HNR

www.dahuasecurity.com

Network
Ethernet Port1 RJ-45 Port 10/100Base-T
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP;
UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP;
RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability ONVIF Profile S&G; CGI
Streaming MethodUnicast/Multicast
Max. User Access20 (Total bandwidth 48M)
Edge StorageFTP; Micro SD card (256G); P2P
Browser
IE7 and newer versions
Chrome 42 and older versions
Firefox 52 and older versions
Safari
Management Software
Smart Player
Smart PSS
DSS
Easy4ip
Smart PhoneIOS/Android/Windows Phone
Electrical
Power Supply
AC24V/3A±25%
PoE+(802.3at)
Power Consumption
11W
20W (IR light on)
Environment
Operating Conditions–40°C to +70°C (–40°F to +158°F)
Operating Humidity≤95%RH
Ingress Protection
IP67; IK10; TVS 6000V lightning protection;
surge protection
Construction
DimensionsΦ190 mmx332 mm (7.48"x13.07")
Weight
Net Weight: 4.7 kg (10.36 lb);
Gross Weight: 8 kg (17.64 lb)
CasingMetal


Ordering Information
TypeModel Description
4M Camera
DH-SD5A445XA-HNR4MP 45x Starlight IR PTZ Network Camera, PAL
DH-SD5A445XAN-HNR4MP 45x Starlight IR PTZ Network Camera, NTSC
SD5A445XA-HNR4MP 45x Starlight IR PTZ Network Camera, PAL
SD5A445XAN-HNR4MP 45x Starlight IR PTZ Network Camera, NTSC
Accessories
PFB305WWall Mount
AC24V/3APower Adapter
PFA111Mount Adapter
PFA140Power Box
PFB300CCeiling Mount
PFA120Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303SParapet Mount

Pole Mount
Pole Mount

ang Mount

PA PBC

all Mount

PB5

PA5PB5
PA5 PA PBC

Accessories
Included:

PFB305W
Wall Mount
AC24V/3A
Power Adapter
Optional:

PFA111
Mount Adapter
PFA140
Power Box
PFB300C
Ceiling Mount

PFA120
Junction Box
PFA150
Pole Mount
PFA151
Corner Mount

PFB303S
Parapet Mount

Pro AI Series | DH-SD5A445XA-HNR

www.dahuasecurity.com
Dimensions (mm[inch])

Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
