www.dahuasecurity.com

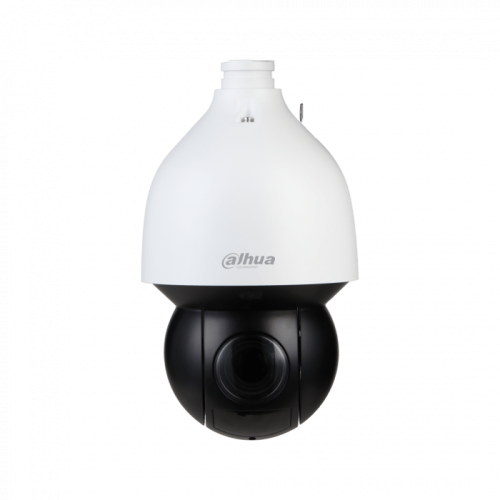

DH-SD5A225XA-HNR
2MP 25x Starlight IR WizSense Network PTZ Camera

Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua's advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.
System Overview
Dahua PTZ AI network camera adopts advanced CNN deep learning
algorithms to support smart capture and perimeter protection with high
accuracy. Together with infrared illumination and Starlight technology,
the camera is the perfect solution for dark, lowlight applications. The
series combines a day/night mechanical IR cut filter for the highest image
quality in variable lighting conditions during the day, and True WDR for
applications with direct sunlight or glare.
Functions
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition
for the targets. Improving alarm accuracy.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject
distance adjustment. The result is a set of advanced focusing algo-
rithms. PFA ensures clarity of the image throughout the process of
zooming and shortens focus time. The realization of PFA technology
substantially improves user experience and increases product value.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with
95% humidity. Subjected to rigorous dust and water immersion tests
and certified to the IP67 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to
automatically track an object in motion and to keep it in the scene. The
tracking action can be triggered manually or automatically by defined
rules. Once a rule is triggered, the camera can zoom in and track the
defined target automatically.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction
to deliver high-quality video without straining the network. Smart
H.265+ technology reduces bit rate and storage requirements by up to
70% when compared to standard H.265 video compression.
SMD PLUS
With Deep-Learning Algorithm, Dahua SMD PLUS filters the motion de-
tection alarm triggered by non-concerned target and recognizes human
and vehicle effectively, sending alarms when human and vehicle intrude.
· 1/2.8" 2Megapixel STARVIS™ CMOS
· Powerful 25x optical zoom
· Starlight Technology
· Max. 50/60fps@1080P
· IR distance up to 150 m
· SMD PLUS
· Deep-learning-based perimeter protection
· Auto-tracking and IVS
· PoE+
· IP67, IK10

IP67
H.265PoE+

0.005Lu x
| DH-SD5A225XA-HNR


Technical Specification
Camera
Image Sensor
1/2.8" CMOS
Max. Resolution
1920 (H) x 1080 (V)
Pixel
2MP
ROM
4GB
RAM
1GB
Electronic Shutter Speed
1/3–1/30000 s
Scanning System
Progressive
Min. Illumination
Color: 0.005Lux@F1.6
B/W: 0.0005Lux@F1.6
0Lux (IR light on)
Illumination Distance
150 m (492.13 ft)
Illuminator On/Off Control
Zoom Prio/Manual/SmartIR/Off
Illuminator Number
4
Lens
Focal Length 5.4 mm–135 mm
Max. ApertureF1.6-F3.5
Field of View H: 58.7°–3.1°; V: 33.2°–1.7°; D: 67.3°–3.9°
Optical Zoom25x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.1 m–1.5 m (0.32 ft–4.92 ft)
Iris ControlAuto/Manual
DORI Distance
DetectObserveRecognizeIdentify
1655 m
(5429.79 ft)
657 m
(2155.51 ft)
331 m
(1085.96 ft)
166 m
(544.62 ft)
PTZ
Pan/Tilt RangePan: 0°–360°; Tilt: -15°–+90°
Manual Control SpeedPan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s
Preset SpeedPan: 400°/s; Tilt: 300°/s
Presets300
Tour8 (up to 32 preset per tour)
Pattern5
Scan5
Speed AdjustmentSupport
Power-off MemorySupport
Idle MotionPreset/Tour/Pattern/Scanning
Protocol
DH-SD
Pelco-P/D(Auto recognition)
General Intelligence
Event Trigger
Motion detection, video tampering, scene changing,
Network disconnection, IP address conflict, illegal
access, and storage anomaly.
IVSObject Abandoned/Missing

www.dahuasecurity.com

Artificial Intelligence
Smart Capture
Support human, motor vehicle and non-motor vehicle
image capture.
Perimeter Protection
Tripwire and intrusion. Support alarm triggering by
target types (human and vehicle). Support filtering
false alarms caused by animals, rustling leaves, bright
lights, etc.
SMD PLUS Support
Auto TrackingSupport
Face Detection Support
Video
CompressionH.265/H.265+/H.264+/H.264/MJPEG (Sub Stream)
Streaming Capability3 streams
Resolution
1080P (1920 x 1080); 1.3 M (1280 x 960); 720P (1280
x 720); D1 (704 x 576/704 x 480); CIF (352 x 288/352
x 240)
Frame Rate
Main stream: 1080P/1.3 M/720P (1–50/60 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080P/1.3M/720P/D1/CIF (1–25/30 fps)
Bit Rate ControlVariable/Constant
Bit RateH.265/H.264: 3 kbps–20480 kbps
Day/NightAuto(ICR)/Color/B/W
BLC Support
WDR120dB
HLCSupport
White Balance
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/
Natural/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
Motion DetectionSupport
Region of Interest (RoI)Support
Image StabilizationElectronic
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas, and up to 8 areas in the same view
Audio
Compression
G.711A;G.711Mu;G.726;AAC;MPEG2-
Layer2;G.722.1;G.729;G.723
Network
Ethernet1 RJ-45 Port 10/100Base-T
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP;
UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP;
RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability ONVIF Profile S&G&T; CGI
Streaming MethodUnicast/Multicast
User/Host 20 (Total bandwidth 64M)
| DH-SD5A225XA-HNR


www.dahuasecurity.com
Accessories
Included:

PFB305W
Wall Mount Bracket
AC24V/3A
Power Adapter
Optional:

PFA111
Mount Adapter
PFA140
Power Box
PFB300C
Ceiling Mount Bracket

PFA120
Junction Box
PFA150
Pole Mount Bracket
PFA151
Corner Mount
Bracket

PFB303S
Parapet Mount
Bracket

Ordering Information
TypeModelDescription
2MP
WizSense
PTZ Camera
DH-SD5A225XA-HNR
2MP 25x Starlight IR WizSense Network PTZ
Camera, PAL
DH-SD5A225XAN-HNR
2MP 25x Starlight IR WizSense Network PTZ
Camera, NTSC
SD5A225XA-HNR
2MP 25x Starlight IR WizSense Network PTZ
Camera, PAL
SD5A225XAN-HNR
2MP 25x Starlight IR WizSense Network PTZ
Camera, NTSC
Accessories
PFB305WWall Mount Bracket
AC24V/3APower Adapter
PFA111Mount Adapter
PFA140Power Box
PFB300CCeiling Mount Bracket
PFA120Junction Box
PFA150Pole Mount Bracket
PFA151Corner Mount Bracket
PFB303SParapet Mount Bracket

StorageFTP; Micro SD card (256G); NAS
Browser
IE7 and newer versions
Chrome 42 and older versions
Firefox 52 and older versions
Safari
Management SoftwareSmart Player / Smart PSS / DSS / Easy4ip
Mobile PhoneIOS/Android
Certification
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL:UL60950-1+CAN/CSA C22.2,No.60950-1
Port
Audio Input1 (LINE IN; bare wire)
Audio Output1 (LINE OUT; bare wire)
Alarm I/O2/1
Power
Power Supply
AC24V/3A±25%
POE+
Power Consumption
8W
20W (IR light on)
Environment
Operating Temperature –40°C to +70°C (–40°F to +158°F)
Operating Humidity≤95%RH
Protection
IP67; IK10; TVS 6000V lightning protection; surge
protection
Structure
CasingMetal
DimensionsΦ190 mmx332 mm (7.48"x13.07“)
Net Weight4.7 kg (10.36 lb)
Gross Weight8 kg (17.64 lb)

| DH-SD5A225XA-HNR


www.dahuasecurity.com
Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Dimensions (mm[inch])

Pole Mount(Vertical)
P50+P05

Pole Mount(Horizontal )
P50+P+P00

Wall Mount
P05

el Mou
P+P00
