Lite Series | DH-IPC-HDW1230S     System Overview  The IR Megapixel Fixed camera delivers 2MP/4MP resolution with a  motorized 2.8mm/3.6mm fixed lens.The camera's elegant blend of  aesthetics combined with a range of easy mounting solutions provides  an excellent choice for a variety of small to mid-size applications at an  affordable price.    Functions  Smart H.265+  Smart H.265+ is the optimized implementation of the H.265 codec that  uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,  flexible multi-frame reference structure and intelligent noise reduction to  deliver high-quality video without straining the network. Smart H.265+  technology reduces bit rate and storage requirements by up to 70%  when compared to standard H.265 video compression.  Smart IR Technology  With IR illumination, detailed images can be captured in low light or  total darkness. The camera's Smart IR technology adjusts the intensity of  camera's infrared LEDs to compensate the distance of an object. Smart  IR technology prevents IR LEDs from whitening out images as they come  closer to the camera. The camera's integrated infrared illumination  provides high performance in extreme low-light environment...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Series | DH-IPC-HDW1230S     System Overview  The IR Megapixel Fixed camera delivers 2MP/4MP resolution with a  motorized 2.8mm/3.6mm fixed lens.The camera's elegant blend of  aesthetics combined with a range of easy mounting solutions provides  an excellent choice for a variety of small to mid-size applications at an  affordable price.    Functions  Smart H.265+  Smart H.265+ is the optimized implementation of the H.265 codec that  uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,  flexible multi-frame reference structure and intelligent noise reduction to  deliver high-quality video without straining the network. Smart H.265+  technology reduces bit rate and storage requirements by up to 70%  when compared to standard H.265 video compression.  Smart IR Technology  With IR illumination, detailed images can be captured in low light or  total darkness. The camera's Smart IR technology adjusts the intensity of  camera's infrared LEDs to compensate the distance of an object. Smart  IR technology prevents IR LEDs from whitening out images as they come  closer to the camera. The camera's integrated infrared illumination  provides high performance in extreme low-light environment...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

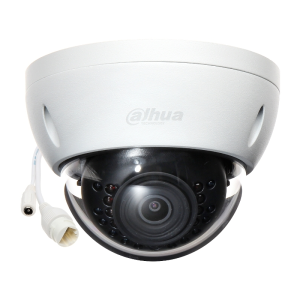

Lite Series | DH-IPC-HDBW1230E-S     System Overview  The IR Megapixel Fixed camera delivers 2MP/4MP resolution with a  motorized 2.8mm/3.6mm fixed lens.The camera's elegant blend of  aesthetics combined with a range of easy mounting solutions provides  an excellent choice for a variety of small to mid-size applications at an  affordable price.    Functions  Smart H.265+  Smart H.265+ is the optimized implementation of the H.265 codec that  uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,  flexible multi-frame reference structure and intelligent noise reduction to  deliver high-quality video without straining the network. Smart H.265+  technology reduces bit rate and storage requirements by up to 70%  when compared to standard H.265 video compression.  Intelligent Video analysis (IVS)  Dahua camera is equipped with a built-in intelligent analytic algorithm  based on video, which can realize intelligent functions like Tripwire  and Intrusion, to quickly and accurately respond to monitoring events  in specific area, It can enhance monitoring efficiency. In addition, the  camera supports intelligent tamper detection, which is to generate  warning message via detecting dramatic sc...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Series | DH-IPC-HFW1230S     System Overview  The IR Megapixel Fixed camera delivers 2MP/4MP resolution with a  motorized 2.8mm/3.6mm fixed lens.The camera's elegant blend of  aesthetics combined with a range of easy mounting solutions provides  an excellent choice for a variety of small to mid-size applications at an  affordable price.    Functions  Smart H.265+  Smart H.265+ is the optimized implementation of the H.265 codec that  uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,  flexible multi-frame reference structure and intelligent noise reduction to  deliver high-quality video without straining the network. Smart H.265+  technology reduces bit rate and storage requirements by up to 70%  when compared to standard H.265 video compression.  Intelligent Video analysis (IVS)  Dahua camera is equipped with a built-in intelligent analytic algorithm  based on video, which can realize intelligent functions like Tripwire  and Intrusion, to quickly and accurately respond to monitoring events  in specific area, It can enhance monitoring efficiency. In addition, the  camera supports intelligent tamper detection, which is to generate  warning message via detecting dramatic scene...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Series | DH-IPC-HFW1230S     System Overview  The IR Megapixel Fixed camera delivers 2MP/4MP resolution with a  motorized 2.8mm/3.6mm fixed lens.The camera's elegant blend of  aesthetics combined with a range of easy mounting solutions provides  an excellent choice for a variety of small to mid-size applications at an  affordable price.    Functions  Smart H.265+  Smart H.265+ is the optimized implementation of the H.265 codec that  uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,  flexible multi-frame reference structure and intelligent noise reduction to  deliver high-quality video without straining the network. Smart H.265+  technology reduces bit rate and storage requirements by up to 70%  when compared to standard H.265 video compression.  Intelligent Video analysis (IVS)  Dahua camera is equipped with a built-in intelligent analytic algorithm  based on video, which can realize intelligent functions like Tripwire  and Intrusion, to quickly and accurately respond to monitoring events  in specific area, It can enhance monitoring efficiency. In addition, the  camera supports intelligent tamper detection, which is to generate  warning message via detecting dramatic scene...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Series | DH-HAC-HDW1230T-Z-A     System Overview  Experience 1080P full HD video and the simplicity of using existing cabling  infrastructure with HDCVI. The 1080P starlight HDCVI camera presents  a high quality image with rich details even under extreme low-light  conditions. Also, the Lite series features compact design and friendly  price. It offers various motorized vari-focal/fixed lens models with a  multi-language OSD and HD/SD switchable output. Its structural flexibility  and high cost-performance makes the camera an ideal choice for SMB  solutions.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the XVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at long distance  without any loss. It supports up to 800m(1080P)/1200m(720P) trans-  mission via coaxial cable, ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

PFS3008-8GT-60     Product Overview  PFS3008-8GT-60 is a 8-port Gigabit Ethernet switch, which provides  4*10/100/1000Mbps PoE port, 4*10/100/100Mbps Ethernet ports and  supports Hi-PoE power supply.  www.dahuasecurity.com   Features  · Layer two commercial switch  · Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards  · MAC auto learning, aging, MAC address capacity is 8K  · Supports MDI/MDIX self-adaptation  · RJ45 port supports 10/100/1000 Mbps self-adaptation  · Supports IEEE802.3af and IEEE803.3at power supply  standards  · Adopts metal enclosure  · Supports Hi-PoE 60W  · Supports DC 48-57V power supply  PFS3008-8GT-60  8-Port Gigabit Ethernet PoE Switch with 4-Port PoE    Technical Specification  ModelPFS3008-8GT-60  Ethernet Port  4*10/100/1000Mbps PoE ports  4*10/100/1000Mbps ports  PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W  PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE  Switching Capacity20Gbps  Packet Forwarding Rate11.9Mpps  Packet Buffer Memory1.5Mb  MAC Table Size8K  Flow ControlEnable by default  Application Humidity10%~90%  PowerDC48~57V power adapter  Lightning Protection  Common Mode 2KV  Differential Mode 0.5KV  Work...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Wi-Fi Series | D H-I P C - H F W 1 3 2 0 S - W     S y s t em O v er vie w        T rue D a y /Nigh t    d ark ens  R egions of in t e r e s t    S m a rt I R    t o t al d arkness. T h e c a mer a's S m art IR techno l o gy a d j u s ts t o the int ensit y  o f c a mer a's i n f r a r e d LEDs t o compe nsate f o r the di s t ance o f an o bject .    p r o vides h igh per f o r m ance in e xt r eme l o w ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Wi-Fi Series | DH-IPC-HDBW1320E-W     System Overview  The IR Megapixel Fixed MiniDome camera delivers 3MP resolution with  a choice of 2.8mm or 3.6mm wide angle lens options. The camera's  elegant blend of aesthetics combined with a range of easy mounting  solutions provides an excellent choice for a variety of small to mid-size  applications at an affordable price.    Functions  True Day/Night  A day/night mechanical IR cut filter makes this camera ideal for  applications with fluctuating lighting conditions, delivering color images  during the day and automatically switching to monochrome as the scene  darkens  Regions of interest  Regions of Interest (ROI) is a user defined feature that allows the  operator to monitor specific areas of a scene while still maintaining  overall situational awareness of less important areas  Smart IR  With IR illumination, detailed images can be captured in low light or  total darkness. The camera's Smart IR technology adjusts to the intensity  of camera's infrared LEDs to compensate for the distance of an object.  Smart IR technology prevents IR LEDS from whiting out images as the...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Plus Series | DH-HAC-HFW1801D    www.dahuasecurity.com  DH-HAC-HFW1801D  4K HDCVI IR Bullet Camera     System Overview  Experience 4K video surveillance with the simplicity of reusing existing  coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua  ISP and advanced 1/2.7" CMOS sensor, which provides superior high  quality images. In addition, the camera features broadcastquality audio  to provide enhanced supplementary evidence collection. Ultra-high  definition and a complete set of features makes the 4K HDCVI camera  an ideal choice for mid to large-size businesses and projects where both  highly reliable surveillance and construction flexibility are demanded.    Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such  as sending control signal or triggering alarm. Moreover, HDCVI technol-  ogy supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at lo...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Cooper Series | DH-XVR1B04/08H    www.dahuasecurity.com    DH-XVR1B04/08H  4/8 Channel Penta-brid 4M-N/1080P Cooper 1U Digital Video Recorder     Series  Cooper     Plug&Play  P2P  1080p    HDMI / VGA     4/8CH  Smart H.264+    H.265   Long Distance    1200m  Long Distance Transmission  The HDCVI system supports long distance transmission over coaxial cable  and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.  Intelligent Video System (IVS)  With built-in intelligent video analytics, the XVR has the ability to detect  and analyze moving objects for improved video surveillance. The XVR  provides optional standard intelligence at the edge allowing detection of  multiple object behaviors such as abandoned or missing objects. IVS also  supports Tripwire analytics, allowing the camera to detect when a pre-  determined line has been crossed.  Face Detection  It is a typical technology being used in a variety of applications for  searching or identification of individuals.  Smart Search  This function helps you get more motion detect video during a short  time through drawing a region when playback. It is very useful when an  emergency ...

Warning! Product withdrawn from production!

Replacement product: XVR1B04-I

Warranty: 36 mon.

Datasheet

Lite Series | DH-HAC-HDBW1200R-VF     System Overview  Experience full HD 1080P/ HD 720P video with the simplicity of using  existing cabling infrastructure. The Lite series features compact design  and high quality image at friendly price. It offers various vari-focal/fixed  lens models with multi-language OSD and HD/SD switchable output. The  structure flexibility and best cost-performance makes lite series camera  an ideal choice for SMB solutions.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at long distance  without any loss. It supports up to 800m(1080P)/1200m(720P)  transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via  UTP cable.*  *Actual results verified by real-scene testing in Dahua's test laborato...

Warranty: 36 mon.

Datasheet
