Lite Series | DH-HAC-HFW1800TH-I8

www.dahuasecurity.com

System Overview
Experience 4K video surveillance with the simplicity of reusing existing
coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua
ISP and advanced 1/2.7" CMOS sensor, which provides superior high
quality images. In addition, the camera features broadcastquality audio
to provide enhanced supplementary evidence collection. Ultra-high defi-
nition and a complete set of features makes the 4K HDCVI camera
an ideal choice for mid to large-size businesses and projects where both
highly reliable surveillance and construction flexibility are demanded.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such
as sending control signal or triggering alarm. Moreover, HDCVI technol-
ogy supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 700m transmission for 4K and 4MP
HD video via coaxial cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional analog
system without replacing existing coaxial cabling. The plug and play
approach enables full HD video surveillance without the hassle of con-
figuring a network.
Multiple-formats
The camera supports multiple video formats including HDCVI, CVBS,
and other two common HD analog formats in the market. This feature
makes the camera compatible with not only XVRs, but also most existing
HD/ SD DVRs. *
*Use OSD menu to switch HDCVI to other video formats. Use PFM820 UTC Controller to switch CVBS to
HDCVI video format.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged de-
sign. The camera is protected against water and dust with IP67 ranking,
making it suitable for indoor or outdoor environments. Supporting ±30%
input voltage tolerance, this camera suits even the most unstable power
supply conditions. Its 4KV lightning rating provides protectionagainst the
camera and its structure from the effects of lightning.
Smart IR
The camera is designed with microcrystalline LED IR illumination for best
lowlight performance. Smart IR is a technology to ensure brightness uni-
formity in B/W image under low illumination. Dahua’s unique Smart IR
adjusts to the intensity of camera's infrared LEDs to compensate for the
distance of an object, and prevents IR LEDs from overexposing images as
the object come closer to the camera.
4K Real-time Image Display
Used together with 4K Real-time XVR, the camera can output 4K real-
time video stream with clear details and no lag or smear.
· Max. 4K resolution, real-time video transmission
· CVI/CVBS/AHD/TVI switchable
· Fixed lens (3.6mm;6mm optional)
· Max. IR length 80m, Smart IR
· IP67, 12V±30%DC

Series
Lite

80
m IR

DC 12V

IP67

REAL-TIME

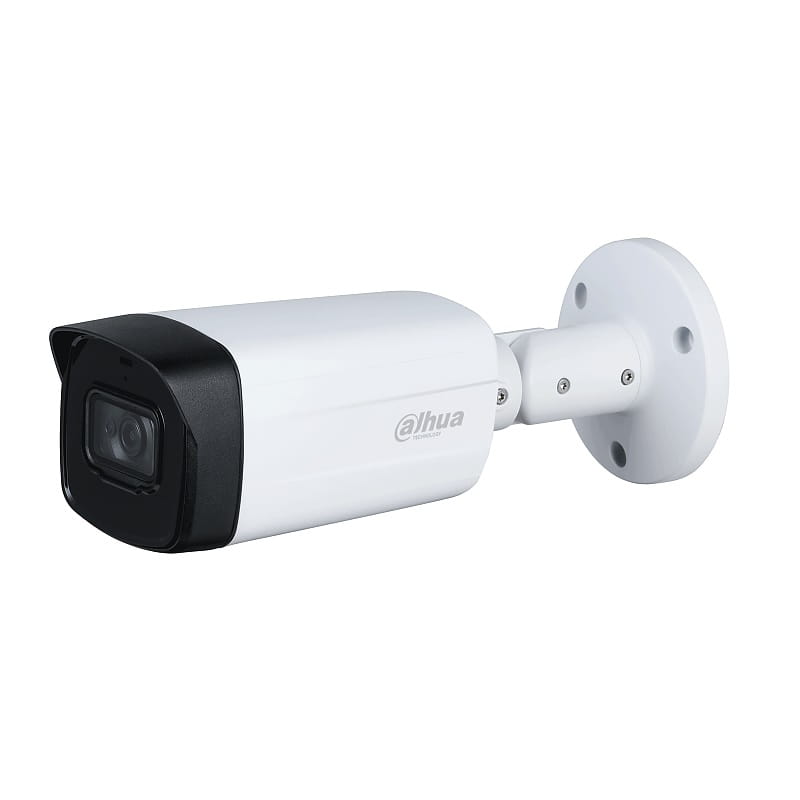

DH-HAC-HFW1800TH-I8
4K Real-time HDCVI IR Bullet Camera

Lite Series | DH-HAC-HFW1800TH-I8

Technical Specification
Camera
Image Sensor1/2.7 inch CMOS
Effective Pixels3840 (H)x 2160 (V), 4K
Scanning SystemProgressive
Electronic Shutter Speed
PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio>65dB
Minimum Illumination0.03Lux/F2.0, 30IRE, 0Lux IR on
Fill Light Working Distance80m(262.5ft)
IR On/Off ControlAuto; manual
IR LED Number2
Pan/Tilt/Rotation Range
"Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°"
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length3.6mm;6mm
Max. ApertureF2.0
Angle of View
3.6mm: 104° x 87° x 47° (diagonal x horizontal x
vertical)
6mm:62.4° x54.7° x31.3°(diagonal x horizontal x
vertical)
Iris TypeFixed iris
Close Focus Distance
3.6mm: 1.9 m (6.2 ft)
6mm:3.6m(11.8ft)
DORI
Distance
LensDetectObserveRecognizeIdentify
3.6mm
106.7 m
(350.1 ft)
42.7 m
(140.1 ft)
21.3 m
(69.9 ft)
10.7 m
(35.1 ft)
6mm
160m
(524.9 ft)
64 m
(210.0ft)
32 m
(105.0ft)
16 m
(52.5ft)
Video
Frame Rate
CVI: 4K@25/30fps; 4K@15fps; 5M@20fps;
4M@25fps/30fps;
AHD: 4K@15fps;
TVI: 4K@15fps;
CVBS: 960H
Resolution
4K (3840 x 2160); 5M (2592 x 1944); 4M (2560 x 1440);
960H (960 x 576/960 x 480)
Day/NightAuto switch by ICR
BLCBLC/HLC/WDR
WDRDWDR
White BalanceAuto; manual
Gain ControlAuto; manual
Noise Reduction2D NR
Smart IRYes

www.dahuasecurity.com

MirrorOff/On
Privacy MaskingOff/On (8 area, rectangle)
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Power
Power Supply12V ±30% DC
Power ConsumptionMax 6W (12V DC, IR on)
Environment
Operating Temperature
-40°C to +60°C (-40°F to 140°F);<95% (non-
condensation)
Storage Temperature
-40°C to +60°C (-40°F to 140°F);<95% (non-
condensation)
Protection GradeIP67
Structure
CasingMetal front cover+plastic main body+metal bracket
Camera Dimensions240.7mmx90.7mx90.4mm (9.48”x3.57”x3.56”)
Net Weight0.42Kg (0.93lb)
Gross Weight0.62Kg (1.37lb)


Lite Series | DH-HAC-HFW1800TH-I8
www.dahuasecurity.com

Rev 001.001 © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Dimensions (mm[inch])

Wall Mount

PFA10-E

Corner Mount

PFA10-EPFA151

Pole Mount

PFA10-EPFA152-E

Wall Mount

PFA12A

KvP/vuv
Type Part Number
Description
4K Camera
DH-HAC-HFW1800THP-
I8-0360B
4K HDCVI IR Bullet Camera
DH-HAC-HFW1800THP-
I8-0600B
DH-HAC-HFW1800THN-
I8-0360B
DH-HAC-HFW1800THN-
I8-0600B
Accessories
PFA12A
Plastic Junction Box
PFA130-E+PFA151
Water-proof Junction Box+Corner Mount
Bracket
PFA130-E+PFA152-E
Water-proof Junction Box+Pole Mount
Bracket
PFA130-E
Water-proof Junction Box
PFM800-4K
Passive Video Balun
PFM800B-4K
Passive Video Balun
PFM320D Series
12V 2A Power Adapter
PFM321D Series
12V 1A Power Adapter
PFM320D-015
DC12V1.5A Power Adapter

PFA130-E+PFA151
Water-proof Junction
Box+Corner Mount Bracket

PFA130-E+PFA152-E
Water-proof Junction
Box+Pole Mount Bracket
PFA130-E
Water-proof Junction Box

Accessories
Optional:
PFM800-4K
Passive Video Balun

PFA12A
Plastic Junction Box

PFM800B-4K
Passive Video Balun

PFM320D Series
12V 2A Power Adapter

PFM321D Series
12V 2A Power Adapter
PFM320D-015
DC12V1.5A Power Adapter
