DAHUA

Lite Series | DH-SD29204UE-GN    www.dahuasecurity.com  · 1/2.8” STARVIS™ CMOS  · Powerful 4x optical zoom  · Support Triple-streams encoding  · WDR, Day/Night(ICR), Ultra DNR  · Max. 25/30fps@1080P  · IVS  · Support PoE  · IR distance up to 30m  DH-SD29204UE-GN   2MP 4x Starlight IR PTZ Network Camera     System Overview    Featuring powerful optical zoom and accurate pan/tilt/zoom  performance, the camera provides a wide monitoring range and great  detail. The camera delivers 2MP resolution at 25/30fps. The camera is  equipped with smooth control, high quality image, and good protection,  meeting compact size demands of video surveillance applications.   Functions    Wide Dynamic Range  The camera achieves vivid images, even in the most intense contrast  lighting conditions, using industry-leading wide dynamic range (WDR)  technology. For applications with both bright and low lighting conditions  that change quickly, True WDR (120 dB) optimizes both the bright and  dark areas of a scene at the same time to provide usable video.  High Efficiency Video Coding (H.265)  The H.265 (ITU-T VCEG) video compression standard offers double  the data compression ratio at the sa...

Warranty: 36 mon.

Datasheet

Panoramic Series | DH-IPC-PDB4830-B360    HEVC (H.265)  H.265 ITU-T VCEG is a new video coding standard. H.265 Following  standard developed around the existing video coding standard H.264  , some retain the original technology , while some of the relevant  technology to improve the new technology uses advanced technology  to improve the relationship between the code stream , encoding quality  , and the delay between algorithm complexity , optimize settings  specific contents include : Improve compression efficiency , improve the  robustness and error recovery capabilities, real-time to reduce the delay,  reduce channel acquisition time and a random access delay , reduce  complexity , etc  www.dahuasecurity.com  · Four 1/2.8” 2Megapixel progressive scan STARVIS  TM   CMOS  · H.265&H.264 dual-stream encoding  · 25fps@2M(1920x1080)  · DWDR, Day/Night(Electronic), 3DNR, AWB, AGC, BLC  · Multiple network monitoring: Web viewer, CMS(DSS/PSS)  & DMSS  · 2.8 mm fixed lens (3.6mm optional)  · Micro SD memory, IP67, IK10, PoE  DH-IPC-PDB4830-B360   4x2MP Panoramic Dome Network Camera     System Overview  The multi-sensor camera provides added flexibility for capturing  wide area video...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lens Series | DH-PFL1575-A12D            www.dahuasecurity.com  DH-PFL1575-A12D  12MP 1/1.7” 15-75mm Vari-focal Lens                            Lens | DH-PFL1575-A12D    www.dahuasecurity.com  Technical Specifications  Model DH-PFL1575-A12D  Parameter  Image Format 1/1.7”  Focal Length 15-75mm  Lens Pixel 12MP  Aperture F1.5  Mount C  Field Angle  (D*H*V)  1/1.7”(4:3)  W: 33°(D)x26°(H)x19.2°(V)  T: 7.8°(D)x6.3°(H)x4.7°(V)  1/1.7”(17:9)  W: 30.6°(D)x26.8°(H)x13.8°(V)  T: 7.3°(D)x6.5°(H)x3.4°(V)  1/2’’  W: 28°(D)x22.2°(H)x16.5°(V)  T: 6.7°(D)x5.4°(H)x4°(V)  Lens Control  Focus Manual  Zoom Manual  Iris DC-Iris  IR Correction Yes  M.O.D. 1.5m (4.92ft)  Dimension ɸ58mmx116mm (ɸ2.28”x4.57”)  Weight 465g (1.03lb)  Operating Temperature -30℃~+70℃ (-22℉~+158℉)  Humidity <90% RH  Certifications  Certifications  CE (EN55032, EN55024, EN50130-4)  FCC (CFR 47 Part 15 Subpart B)    Order Information  Type Part Number Description  Lens  DH-PFL1575-A12D 12MP 1/1.7” 15-75mm vari-focal lens  PFL1575-A12D 12MP 1/1.7” 15-75mm vari-focal lens

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DH-IPC-HUM8101      1.3 Megapixel HD Ultra-smart Network Pinhole Camera                  DH-IPC-HUM8101      Features  * 1/3” 1.3Megapixel progressive scan CMOS  * Max 25/30fps@1.3MP（1280╳960）  * Day/Night(Electronic), 3DNR, AWB,AGC,BLC  * Smart detection:   Face detection   Tripwire detection   Intrusion detection   Scene change detection  * 3.6mm fixed lens  * Micro SD memory, PoE      DH-IPC-HUM8101      Technical Specifications  Model DH-IPC-HUM8101P DH-IPC-HUM8101N  Camera  Image Sensor 1/3” 1.3Megapixel progressive scan CMOS  Effective Pixels 1280(H)x960(V)  Scanning System Progressive  Electronic Shutter Speed Auto/Manual, 1/3~1/100000s Auto/Manual, 1/4~1/100000s  Min. Illumination 0. 01Lux/F2.8 (Color), 0.001Lux/F2.8(B/W)  S/N Ratio More than 50dB  Video Output N/A  Camera Features  Max. IR LEDs Length N/A  Day/Night Auto(Electronic)/Color/B/W  Backlight Compensation BLC / HLC/WDR(100dB)  White Balance Auto/Manual  Gain Control Auto/Manual  Noise Reduction 3D  Privacy Masking Up to 4 areas  Lens  Focal Length 3.6mm  Max Aperture F2.8  Focus Control Manual  An...

Warning! Product withdrawn from production!

Replacement product: IPC-HUM8231-E1+IPC-HUM8231-L1

Replacement product code: IPC-HUM8231-E1+IPC-HUM8231-L1

Warranty: 36 mon.

Datasheet

DH-PFS4218-16ET-240     Product Overview  DH-PFS4218-16ET-240 is a dedicated PoE switch for security industry,  which is different from general switch. PoE management function  realizes power control and real-time port consumption display. It's widely  used in surveillance project. DH-PFS4218-16ET-240 also provides 250  meters long distance PoE transmission and 'orange port' for Hi-PoE  powered device.  www.dahuasecurity.com   Features  · Layer 2 management PoE switch  · PoE budget: 240W  · Support PoE, PoE+, Hi-PoE  · 'Orange port' support Hi-PoE, can be used with the PoE  extender (PFT1300)  · 250 meters long distance PoE transmission  · PoE management, PoE Setting/Event Statistics/Green PoE  · Search and upgrade via ConfigTool  · Support Web management  · High lightning protection design  · Non-blocking video transmission  DH-PFS4218-16ET-240  16-Port PoE Switch    Technical Specification  ModelDH-PFS4218-16ET-240  Ethernet Port  2*10/100/1000 Base-T (Combo port)  2*1000 Base-X (Combo port)  16*10/100 Base-T (PoE power supply)  PoE Power Consumption  Port1/2 support Hi-PoE (60W), PoE+, PoE  Each power ≤30W  Total≤240W  PoE ProtocolIEEE802.3af, IEEE802.3at, Hi-PoE

Warning! Product withdrawn from production!

Replacement product: PFS4218-16ET-240-V2

Warranty: 36 mon.

Datasheet

100827599, Rev. C  Gen 2 - March 2018  Standard 512E model  ST14000VE0008  ST12000VE0008  ST10000VE0008  SATA Product Manual      © 2019 Seagate Technology LLC. All rights reserved.  Publication number: 100827599, Rev. C March 2018  Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. SkyHawk AI, PowerChoice and  SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. The FIPS logo is a cer-  tification mark of NIST, which does not imply product endorsement by NIST, the U.S., or Canadian governments. All other trademarks or registered trademarks are the property of their  respective owners.  No part of this publication may be reproduced in any form without written permission of Seagate Technology LLC.  Call 877-PUB-TEK1 (877-782-8351) to request permission.  When referring to drive capacity, one gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes. Your computer’s operating system may use a different  standard of measurement and report a lower capacity. In addition, some of the listed capac...

Warranty: 36 mon.

Datasheet

www.dahuasecurity.com    DH-XVR7104HE-4K-I2  4 Channel Penta-brid 4K Mini 1U WizSense Digital Video Recorder    · H.265+/H.265 dual-stream video compression  · Supports HDCVI/AHD/TVI/CVBS/IP video inputs  · Max 8 channels IP camera inputs, each channel up to 8MP; Max   128 Mbps incoming bandwidth  · Perimeter Protection and SMD Plus  · Up to 2 channels video stream (analog channel ) human face detection  · IoT & POS functionalities  System Overview  Dahua Technology, a world-leading video-centric smart IoT solution and  service provider, debuted its new XVR series, XVR7000-4K-I2 featuring  full-channel SMD Plus to benefit customers from AI upgrade. The series  are designated to reduce false-alarm rates and human surveillance  costs, thus bringing great value to customers in search of products with  accurate human/vehicle alarm to raise the security level of various  indoor and outdoor facilities.        SMD Plus    H.265  4K    HDMI   Long Distance    1200m    AI Coding   | DH-XVR7104HE-4K-I2    Functions  Real Time Face Recognition  Video stream real time face recognition. Facial attributes analysis  features including gender, age, expressi...

Warranty: 36 mon.

Datasheet

Pro AI Series | DH-IPC-HF5541E-E    www.dahuasecurity.com  DH-IPC-HF5541E-E  5MP Starlight Bullet AI Network Camera    Dahua AI series products adopt the most advanced AI technologies,  including deep learning algorithms that primarily target people and ve-  hicles, which provides higher flexibility and accuracy for end-users. This  enables the Dahua AI series to offer various advanced applications such  as Face Recognition, ANPR, Metadata, People Counting, traffic data  statistics, etc.The complete lineup of Dahua AI includes network (PTZ)  cameras, network video recorders, servers, and platform management  products. Beyond seeing the world, the power of AI allows devices to  perceive the environment and understand the world in a better way.  System Overview  Pro AI series contains Face Capture, Perimeter Protection and People  Counting functions.Powered by deep-learning Artificial Intelligence  algorithms, significantly improved accuracy. Active Deterrence and  Full Color camera are also in this series. Meanwhile, the series features  starlight and smart IR technology. This series fully protected from dust  and water.  Functions  Face Capture  Face capture is a software application that au...

Warranty: 36 mon.

Datasheet

Warning! Product withdrawn from production!

NKB1000/KBD1000/KB1000    www.dahuasecurity.com  Features：  Keyboard to Control  · Dahua High Speed Dome (all models)  · Dahua Standalone DVR (KBD1000 & NKB1000 only)  · Dahua Network High Speed Dome (NKB1000 only)  · Network Video Server (NKB1000 only)  Connection  · NKB1000: RS485, RS422, USB, RS232 & Network  · KBD1000: RS485, RS422, USB & RS232  · KB1000 : RS485, RS422 & USB  Functions  · Three Dimensional Joystick Control of PTZ Functions  · Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern  Auxiliary Functions  · On-Screen Menu & User Operation Procedure Tips  · Connect to SmartPSS via USB (NKB1000 only)  NKB1000/KBD1000/KB1000  Network Keyboard & Control Keyboard & Dome keyboard    Working Temperature-10℃~+55℃  Working Humidity10% ~ 90%  Atmosphere Pressure86kpa~106kpa  Dimension  330mmx160(140)mmx37.5(21)mm (WxDxH)(height:  100mm including joystick)  Weight2.5kg (Including package)    Technical Specification  Model  ModelNKB1000KBD1000KB1000  General  Keyboard Key panel Electromechanical  Joystick  3-axis, vector-solving, with twisting, return to-center head  Keyboard ConnectorRJ-45, RS232,  RS485, RS422, USB  RS232, RS485,  RS422  RS48...

Warranty: 36 mon.

Datasheet

Pro AI Series | DH-IPC-HDBW5241E-ZE    client reduces system requirements and resources resulting in greater  surveillance system efficiency.  People Counting  People Counting function uses advanced image processing technology  to capture depth information from within images. The camera pairs this  information with deep learning algorithms to analyze and detect human  bodies and track target objects in real time. The camera provides statis-  tics for separate individuals’ entrance and exit with up to 95% counting  accuracy.  Metadata  Metadata is feature attribute information extracted from a target object  which can be used for data retrieval. Dahua face detection camera can  extract six facial attributes and output the metadata for analysis.  ePoE technology  The ePoE technology of Dahua, designed internally, adopts advanced  2D-PAM3 coding modulation from physical layer, and realizes full duplex  transmission over 800 meters at the speed of 10Mbps, or 300 meters at  the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it sup-  ports PoE and PoC power supply technology which has greatly simplified  construction and wiring. Dahua ePoE technology offer a new way to  accomplish long distance t...

Warranty: 36 mon.

Datasheet

www.dahuasecurity.com    DH-XVR5108HE-4KL-I2  8 Channel Penta-brid 4K-N/5MP Mini 1U WizSense Digital Video Recorder    · H.265+/H.265 dual-stream video compression  · Supports HDCVI/AHD/TVI/CVBS/IP video inputs  · Max 16 channels IP camera inputs, each channel up to 8MP; Max   128 Mbps incoming bandwidth  · Perimeter Protection and SMD Plus  · Up to 2 channels video stream (analog channel ) human face recognition  · IoT & POS functionalities  System Overview  Dahua Technology, a world-leading video-centric smart IoT solution and  service provider, debuted its new XVR series, XVR5000-4KL-I2 featuring  full-channel SMD Plus to benefit customers from AI upgrade. The series  are designated to reduce false-alarm rates and human surveillance  costs, thus bringing great value to customers in search of products with  accurate human/vehicle alarm to raise the security level of various  indoor and outdoor facilities.    Launched by Dahua Technology, WizSense is a series of AI products and  solutions that adopt independent AI chip and deep learning algorithm.  It focuses on human and vehicle with high accuracy, enabling users to  fast act on defined targets. Based on Dahua's advanced technologies,  Wi...

Warranty: 36 mon.

Datasheet

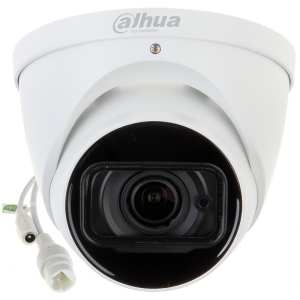

Eco Savvy 3.0 | DH-IPC-HDW5631R-ZE     System Overview  With upgraded H.265 encoding technology, Eco-savvy series brings  high efficient video compression capability. It can save bandwidth and  storage. Meanwhile, the series features starlight, smart IR technology  and intelligent image analysis techniques. This series supports reminder  function, meanwhile fully protected from dust and water, certified to  IP67 and vandal resistant to IK10 standard.   Functions  ePoE technology  The ePoE technology of Dahua, designed internally, adopts advanced  2D-PAM3 coding modulation from physical layer, and realizes full duplex  transmission over 800 meters at the speed of 10Mbps, or 300 meters  at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides,  it supports PoE and PoC power supply technology which has greatly  simplified construction and wiring. Dahua ePoE technology offer a new  way to accomplish long distance transmission between IP camera and  network switch. It allows more flexible surveillance system design,  improves reliability and saves construction and wiring cost.  Wide Dynamic Range  The camera ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
