IPC-PDB4830-B360-E4-0360B

Availability: 0

Price: €433.85 433.85

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: IPC-PDB4830-B360-E4-0360B

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Panoramic Series | DH-IPC-PDB4830-B360

HEVC (H.265)
H.265 ITU-T VCEG is a new video coding standard. H.265 Following
standard developed around the existing video coding standard H.264
, some retain the original technology , while some of the relevant
technology to improve the new technology uses advanced technology
to improve the relationship between the code stream , encoding quality
, and the delay between algorithm complexity , optimize settings
specific contents include : Improve compression efficiency , improve the
robustness and error recovery capabilities, real-time to reduce the delay,
reduce channel acquisition time and a random access delay , reduce
complexity , etc
www.dahuasecurity.com
· Four 1/2.8” 2Megapixel progressive scan STARVIS
TM
CMOS
· H.265&H.264 dual-stream encoding
· 25fps@2M(1920x1080)
· DWDR, Day/Night(Electronic), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS)
& DMSS
· 2.8 mm fixed lens (3.6mm optional)
· Micro SD memory, IP67, IK10, PoE

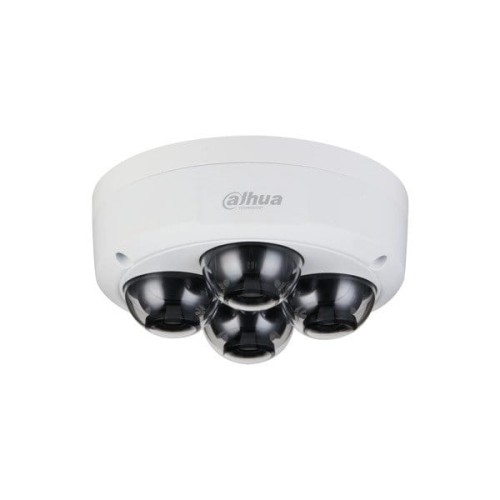

DH-IPC-PDB4830-B360
4x2MP Panoramic Dome Network Camera

System Overview
The multi-sensor camera provides added flexibility for capturing
wide area video surveillance. With four 2MP adjustable lenses can
provide a flexible choice of the angle, the camera can replace multiple
single-sensor cameras providing a higher return on investment. The
multi-sensor camera features contrast, backlight compensation, white
balance, and resolution control to create a crystal-clear image even in
the most challenging lighting conditions.
Functions
Starlight Technology
Featuring Dahua’s Starlight Technology, this camera is ideal for
applications with challenging lighting conditions. Its low-light
performance delivers usable video with minimal ambient light. Even
in extreme low-light conditions, Starlight Technology is capable of
delivering color images in near complete darkness (less than 0.01 lux).
Intelligent Video System (IVS)
With built-in intelligent video analytics, the camera has the ability to
detect and analyze moving objects for improved video surveillance. The
camera provides optional standard intelliegence at the edge allowing
detection of multiple object behaviors such as abandoned or missing
objects. IVS also supports Tripwire analytics, allowing the camera to
detect when a pre-determined line has been crossed, ideal for business
intelligence, and Facial Detection, for searching or identification of
individuals.
Environmental
With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the
camera is designed for extreme temperature environments. The camera
complies to an IK10 impact rating making it capable of withstanding the
equivalent of 55 kg (120 lbs) of force. Subjected and certified to rigorous
dust and water immersion tests, the IP67 rating makes it suitable for
demanding outdoor applications. For enviorments with rain, sleet, snow
and fog, an integrated wiper provides users with clear visibility at all
times.

2Mp
H.265

Starlight

TemperatureIP67

Vandal-proof

Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization
(EIS)
N/A
Smart IRN/A
DefogN/A
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionG.711a/ G.711Mu/ AAC/ G.726/ MP2L2/ G.722
Network
EthernetRJ-45 (100/1000Base-T)
Protocol
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;
DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS;
UPnP; NTP; Bonjour; HTTPS; 802.1x; NAS
InteroperabilityONVIF Profile S&G, API, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android
Certifications
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Interface
Video InterfaceN/A
Audio Interface1/1 channel In/Out
RS485N/A
Alarm
1 channel In: 500mA 5VDC
1 channel Out: 1A 30VDC
Electrical

Power SupplyDC12V, PoE(802.3af)(Class 0)
Power Consumption
DC 12V: 5.3W 6.2W(H.265+DWDR+Audio+Alarm)
PoE: 6.4W 7.4W(H.265+DWDR+Audio+Alarm)

Environmental
Operating Conditions-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Stroage Conditions-30° C ~ +70° C (-22° F ~ +158° F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceIK10

www.dahuasecurity.com
Panoramic Series| DH-IPC-PDB4830-B360

Technical Speciﬁcation
Camera
Image SensorFour 1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels
1920(H)x1080(V)
RAM/ROM
1024MB/128MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.006Lux/F1.85( Color,1/3s,30IRE)
0.05Lux/1.85( Color,1/30s,30IRE)
0Lux/F1.85(IR on)
IR Distance
N/A
IR On/Off Control
N/A
IR LEDs
N/A
Lens
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8mm;3.6mm
Max. ApertureF1.85
Angle of ViewH: 99° V:56°; V:87° ~47°
Aperture TypeFixed
Close Focus Distance0.5m(1.64ft)
DORI Distance
LensDetectObserveRecognizeIdentify
2.8mm37m(121ft)15m(49ft)8m(26ft)4m(13ft)
3.6mm53m(174ft)21m(69ft)11m(36ft)5m(16ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan:0˚~360˚; Tilt:0˚~80˚; Rotation:0˚~355˚
Intelligence
Event Trigger
Motion detection, Video tampering, Scene changing,
Network disconnection, Ip address conflict, Illegal
access, Storage anomaly
IVS Tripwire, Intrusion
Video
CompressionH.265/H.264/H.264B/H.264H/MJPEG(sub stream)
Smart CodecSupport H.265+/H.264+
Streaming Capability2 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/
720P(1280x720)/D1(704x576/704x480)/
CIF(352x288/352x240)
Frame Rate
Main Stream: 1080P(1~25fps)
Sub Stream: D1(1~25fps)
Bit Rate ControlCBR/VBR
Bit Rate
H.264: 32~8192Kbps
H.265: 19~4608Kbps
Day/NightElectronic
BLC ModeBLC / HLC / DWDR
White BalanceAuto/Manual
Gain ControlAuto/Manual

Construction

Panoramic Series | DH-IPC-PDB4830-B360

Ordering Information
TypePart NumberDescription
2MP
camera
DH-IPC-PDB4830P-B360-
E4-0280B
4x2MP Dome Network Camera, PAL
DH-IPC-PDB4830N-B360-
E4-0280B
4x2MP Dome Network Camera, NTSC
IPC-PDB4830N-B360-E4-
0280B
4x2MP Dome Network Camera, PAL
IPC-PDB4830P-B360-E4-
0280B
4x2MP Dome Network Camera, NTSC
DH-IPC-PDB4830P-B360-
E4-0360B
4x2MP Dome Network Camera, PAL
DH-IPC-PDB4830N-B360-
E4-0360B
4x2MP Dome Network Camera, NTSC
IPC-PDB4830N-B360-E4-
0360B
4x2MP Dome Network Camera, PAL
IPC-PDB4830P-B360-E4-
0360B
4x2MP Dome Network Camera, NTSC
Accessories
(optional)
PFA101Wall Mount
PFA138Junction Mount
PFB300S Wall Mount
PFB300C Ceiling Mount
PFA152-EPole Mount
PFB302S Pole Mount
www.dahuasecurity.com

CasingMetal
Dimensions71.5 mmxΦ159.1 mm
Net Weight0.85kg (1.87lb)
Gross Weight1.05kg (2.31lb)
Accessories
Optional:
Dimensions (mm/inch)
© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.Rev 001.001

7
1.5
[
2
.
81"]

4 7.7 [ 1 . 88" ]

∅1 59. 1 [∅6 . 2 6" ]

∅1 40. 0 [∅5 . 5 1" ]

4 - 4.7 [∅0 . 1 9" ]

PFB300S
PFA101
PFB302S PFA152-E

Wall MountPole Mount
PFA101 + PFA152-E + PFB302SPFA101+PFB300S

PFA101 + PFB300C

Junction Mount

Ceiling Mount

PFA138

PFB300C
