DH-IPC-HUM8101

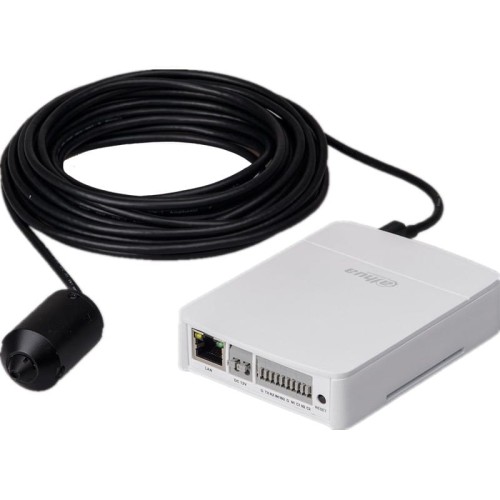

1.3 Megapixel HD Ultra-smart Network Pinhole Camera








DH-IPC-HUM8101


Features
* 1/3” 1.3Megapixel progressive scan CMOS
* Max 25/30fps@1.3MP（1280╳960）
* Day/Night(Electronic), 3DNR, AWB,AGC,BLC
* Smart detection:
Face detection
Tripwire detection
Intrusion detection
Scene change detection
* 3.6mm fixed lens
* Micro SD memory, PoE


DH-IPC-HUM8101


Technical Specifications
Model DH-IPC-HUM8101P DH-IPC-HUM8101N
Camera
Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s Auto/Manual, 1/4~1/100000s
Min. Illumination 0. 01Lux/F2.8 (Color), 0.001Lux/F2.8(B/W)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length N/A
Day/Night Auto(Electronic)/Color/B/W
Backlight Compensation BLC / HLC/WDR(100dB)
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm
Max Aperture F2.8
Focus Control Manual
Angle of View 77°
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264/MJPEG
Resolution 1.3M(1280x960)/720P(1280x720)/D1(704x576)/CIF(352x
288)

Frame Rate
Main Stream 1.3M/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Third Stream 720P/ D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 48K ~ 8192Kbps
Audio
Compression G.711a / G.711u/PCM
Interface 1/1 channel In/Out
Smart Function
Smart detection
Tripwire
Intrusion
Scene change
Missing/Abandoned
Audio detect
Face detect


DH-IPC-HUM8101


Network
Ethernet RJ-45 (10/100/1000Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,
RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,
Bonjour
Compatibility ONVIF, PSIA,CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 N/A
Alarm 1/1 channel In/Out
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 7W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection N/A
Dimensions 109.7mmx82.8mmx24.0mm
Weight 0.46Kg














DH-IPC-HUM8101


Dimensions (mm)












DH-IPC-HUM8101









Dahua Technology Co., Ltd.
1199 BinAn Road, Binjiang District, Hangzhou, China
Tel: +86-571-87688883
Fax: +86-571-87688815
Email:overseas@dahuatech.com
www.dahuatech.com
*Design and specifications are subject to change without notice.
© 2014 Dahua Technology Co., Ltd.
