DS-2CE5AU1T-AVPIT3ZF(2.7-13.5mm)
Key Features 8.29 MP high performance CMOS Auto focus 3840 x 2160 resolution 2.7 mm to 13.5 mm motorized vari-focal lens EXIR 2.0, smart IR, up to 60 m IR distance OSD menu, DNR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67 Up the coax (HIKVISION-C) DS-2CE5AU1T-(A)VPIT3ZF 8 MP Dome Camera Camera Image Sensor 8.29 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N Resolution 3840 (H) x 2160 (V) Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s Lens 2.7 mm to 13.5 mm motorized vari-focal lens Horizontal Field of View 108.1° to 45.6° Lens Mount Φ14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Synchronization Internal synchronization DWDR (Digital Wide Dynamic Range) 105 dB Menu AGC Yes D/N Mode Auto/Color/BW (Black and White) White Balance Auto/Manual ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE5AU1T-VPIT3ZF(2.7-13.5mm)
Key Features 8.29 MP high performance CMOS Auto focus 3840 x 2160 resolution 2.7 mm to 13.5 mm motorized vari-focal lens EXIR 2.0, smart IR, up to 60 m IR distance OSD menu, DNR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67 Up the coax (HIKVISION-C) DS-2CE5AU1T-(A)VPIT3ZF 8 MP Dome Camera Camera Image Sensor 8.29 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N Resolution 3840 (H) x 2160 (V) Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s Lens 2.7 mm to 13.5 mm motorized vari-focal lens Horizontal Field of View 108.1° to 45.6° Lens Mount Φ14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Synchronization Internal synchronization DWDR (Digital Wide Dynamic Range) 105 dB Menu AGC Yes D/N Mode Auto/Color/BW (Black and White) White Balance Auto/Manual ...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-2CE5AU7T-AVPIT3ZF(2.7-13.5mm)
Key Features 8.29 MP high performance CMOS Auto focus 3840 x 2160 resolution 2.7 mm to 13.5 mm motorized vari-focal lens EXIR 2.0, smart IR, up to 60 m IR distance OSD menu, 3D DNR, 130 dB true WDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 Up the coax (HIKVISION-C) DS-2CE5AU7T-AVPIT3ZF 8 MP Dome Camera Camera Image Sensor 8.29 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8MP@15fps CVBS: 960H P/N Resolution 3840 (H) x 2160 (V) Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s Lens 2.7 mm to 13.5 mm motorized vari-focal lens Horizontal Field of View 108.1° to 45.6° Lens Mount Φ14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Synchronization Internal synchronization WDR (Wide Dynamic Range) ≥ 130 dB Menu AGC Yes D/N Mode Auto/Color/BW (Black and White) ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE70DF3T-MFS(2.8mm)
DS-2CE70DF3T-MFS 2 MP ColorVu Audio Fixed Turret Camera High quality imaging with 2 MP, 1920 x 1080 resolution 24/7 color imaging with F1.0 aperture Clear imaging against strong back light due to 130 dB true WDR technology 3D DNR technology delivers clean and sharp images 2.8 mm, 3.6 mm fixed focal lens Up to 20 m white light distance for bright night imaging High quality audio with audio over coaxial cable, built-in mic One port for four switchable signals (TVI/AHD/CVI/CVBS) Water and dust resistant (IP67) Specification Specification Image Sensor 2 MP CMOS Signal System PAL/NTSC Resolution 1920 (H) x 1080 (V) Frame Rate TVI: 1080p @ 25 fps/30 fps CVI: 1080p @ 25 fps/30 fps AHD: 1080p @ 25 fps/30 fps CVBS: PAL/NTSC Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s Slow Shutter Max. 16 times Lens 2.8 mm, 3.6 mm fixed focal lens Field of View 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116° 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal...
Warranty: 36 mon.
Datasheet
Availability: >1000
DS-2CE70DF8T-MF(2.8mm)
DS-2CE70DF8T-MF 2 MP ColorVu Fixed Turret Camera High quality imaging with 2 MP, 1920 x 1080 resolution 24/7 color imaging Clear imaging against strong back light due to 130 dB true WDR technology 3D DNR technology delivers clean and sharp images 2.8 mm, 3.6 mm, 6 mm fixed focal lens Up to 20 m white light distance for bright night imaging One port for four switchable signals (TVI/AHD/CVI/CVBS) Water and dust resistant (IP68) Specification Camera Image Sensor 2 MP CMOS Signal System PAL/NTSC Resolution 1920 (H) x 1080 (V) Frame Rate TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC Min. Illumination 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light ON Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s Slow Shutter Max. 16 times Lens 2.8 mm, 3.6 mm, 6 mm Fixed Lens Field of View 2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129° 3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100° 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 64° ...
Warranty: 36 mon.
Datasheet
Availability: 11-50
DS-2CE72DF3T-FS(2.8mm)
DS-2CE72DF3T-FS 2 MP ColorVu Audio Fixed Turret Camera High quality imaging with 2 MP, 1920 x 1080 resolution 24/7 color imaging with F1.0 aperture Clear imaging against strong back light due to 130 dB true WDR technology 3D DNR technology delivers clean and sharp images 2.8 mm, 3.6 mm fixed focal lens Up to 40 m white light distance for bright night imaging High quality audio with audio over coaxial cable, built-in mic One port for four switchable signals (TVI/AHD/CVI/CVBS) Water and dust resistant (IP67) Specification Specification Image Sensor 2 MP CMOS Signal System PAL/NTSC Resolution 1920 (H) x 1080 (V) Frame Rate TVI: 1080p @ 25 fps/30 fps CVI: 1080p @ 25 fps/30 fps AHD: 1080p @ 25 fps/30 fps CVBS: PAL/NTSC Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s Slow Shutter Max. 16 times Lens 2.8 mm, 3.6 mm fixed focal lens Field of View 2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116° 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal ...
Warranty: 36 mon.
Datasheet
Availability: >1000
DS-2CE72DFT-F(6mm)
Key Features 2 MP high performance CMOS 1920 x 1080 resolution Full time color 3.6 mm, 6 mm fixed lens Up to 20 m white light distance OSD menu, 3D DNR, true WDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67 Up the coax (HIKVISION-C) DS-2CE72DFT-F 2 MP Full Time Color Turret Camera Specifications Camera Image Sensor 2 MP CMOS image sensor Resolution 1920 (H) x 1080 (V) Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Min. illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Slow Shutter Max. 16x Lens 3.6 mm, 6 mm fixed lens Horizontal Field of View 83.6° (3.6 mm), 52.8° (6 mm) Lens Mount M16 Day & Night Color Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° Synchronization Internal synchronization WDR (Wide Dynamic Range) 120 dB Menu AGC Yes White Balance Auto/Manual BLC (Backlight Compensation) Yes Privacy Mask 4 programmable privacy masks Motion Detection 4 programmable areas WDR Yes Functions Brightness, Sharpness, 3D...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE72DFT-F28(2.8mm)
2 MP, 1920 x 1080 resolution 24-hour color image 2.8 mm fixed lens Up to 20 m white light distance OSD menu, 3D DNR, true WDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67 DS-2CE72DFT-F28 2 MP Full Time Color Camera Specification Camera Image Sensor 2 MP CMOS Resolution 1920 (H) x 1080 (V) Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Min. illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Slow Shutter Max. 16 times Lens 2.8 mm fixed lens Field of View 2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126° Lens Mount M16 Day & Night Color WDR (Wide Dynamic Range) 130 dB Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° Menu Image Mode STD/HIGH SAT AGC Yes White Balance Auto/Manual HLC Yes BLC (Backlight Compensation) Yes Privacy Mask 4 programmable privacy masks Motion Detection 4 programmable areas WDR Yes Functions Brightness, Sharpness, 3D DNR, Mirror, Smart light Interface Video Output Switchable TVI/AHD/CVI/CVBS ...
Warranty: 36 mon.
Datasheet
Availability: 51-100
DS-2CE72HFT-F28(2.8mm)
DS-2CE72HFT-F 5 MP Full Time Color Camera • 5 MP, 2560 x 1944 resolution • 24-hour color image • 130 dB true WDR, 3D DNR • 2.8 mm, 3.6 mm, 6 mm fixed lens • Smart Light, up to 20 m white light distance • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • IP67 Specification akatos Camera Image Sensor 5 MP CMOS Signal System PAL/NTSC Resolution 2560 (H) x 1944 (V) Frame Rate TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC Min. illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Slow Shutter Max. 16 times Lens 2.8 mm, 3.6 mm, 6 mm fixed lens Horizontal Field of View 99.7° (2.8 mm), 80.1° (3.6 mm), 49.3° (6 mm) Lens Mount M16 Strobe Light Alarm Yes Day & Night Color WDR (Wide Dynamic Range) ≥130 dB Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° Menu White Light Auto/Off...
Warranty: 36 mon.
Datasheet
Availability: 501-1000

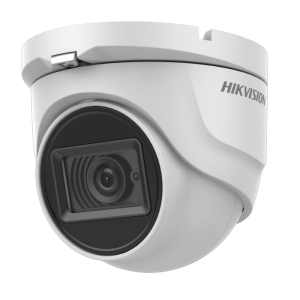

DS-2CE76D0T-ITMF(2.8mm)(C)
DS-2CE76D0T-ITMF 2 MP Camera • 2 MP, 1920 x 1080 resolution • 2.8 mm, 3.6 mm, 6 mm fixed focal lens • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • Smart IR, up to 30 m IR distance • IP67 Specification Camera Image Sensor2 MP CMOS Signal SystemPAL/NTSC Resolution1920 (H) x 1080 (V) Frame Rate TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° Menu Image ModeSTD/HIGH-SAT AGCYes Day/Night ModeAuto/Color/BW (Black and White) White BalanceAuto/Manual AE (Auto Exposure) ModeDWDR/BLC/HLC/Global Noise Re...
Warranty: 36 mon.
Datasheet
Availability: 501-1000
DS-2CE76D0T-ITMF(3.6mm)(C)
DS-2CE76D0T-ITMF 2 MP Camera • 2 MP, 1920 x 1080 resolution • 2.8 mm, 3.6 mm, 6 mm fixed focal lens • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • Smart IR, up to 30 m IR distance • IP67 Specification Camera Image Sensor2 MP CMOS Signal SystemPAL/NTSC Resolution1920 (H) x 1080 (V) Frame Rate TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° Menu Image ModeSTD/HIGH-SAT AGCYes Day/Night ModeAuto/Color/BW (Black and White) White BalanceAuto/Manual AE (Auto Exposure) ModeDWDR/BLC/HLC/Global Noise Re...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE76D0T-ITMFS(2.8mm)
DS-2CE76D0T-ITMFS 2 MP Audio Camera • 2 MP, 1920 x 1080 resolution • 2.8 mm, 3.6 mm, 6 mm fixed focal lens • Smart IR, up to 30 m IR distance • Audio over coaxial cable, built-in mic • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • IP67 Specification Camera Image Sensor2 MP CMOS Signal SystemPAL/NTSC Resolution1920 (H) x 1080 (V) Frame Rate TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR AudioBuilt-in mic Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° Menu Image ModeSTD/HIGH-SAT AGCYes Day/Night ModeAuto/Color/BW (Black and White) White Bala...
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-2CE76D0T-ITMFS(3.6mm)
DS-2CE76D0T-ITMFS 2 MP Audio Camera • 2 MP, 1920 x 1080 resolution • 2.8 mm, 3.6 mm, 6 mm fixed focal lens • Smart IR, up to 30 m IR distance • Audio over coaxial cable, built-in mic • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • IP67 Specification Camera Image Sensor2 MP CMOS Signal SystemPAL/NTSC Resolution1920 (H) x 1080 (V) Frame Rate TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR AudioBuilt-in mic Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° Menu Image ModeSTD/HIGH-SAT AGCYes Day/Night ModeAuto/Color/BW (Black and White) White Bala...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE76D0T-ITPF(2.8mm)(C)
DS-2CE76D0T-ITPF (C) 2 MP Camera • 2 MP, 1920 x 1080 resolution • 2.8 mm, 3.6 mm, 6 mm fixed focal lens • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • Smart IR, up to 20 m IR distance Specification Camera Image Sensor2 MP CMOS Signal SystemPAL/NTSC Resolution1920 (H) x 1080 (V) Frame Rate TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° Menu Image ModeSTD/HIGH-SAT AGCYes Day/Night ModeAuto/Color/BW (Black and White) White BalanceAuto/Manual AE (Auto Exposure) ModeDWDR/BLC/HLC/Global Noise Reductio...
Warranty: 36 mon.
Datasheet
Availability: >1000

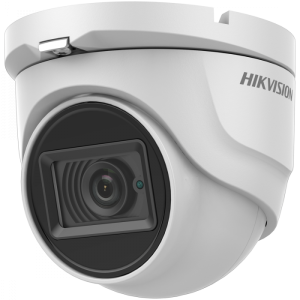

DS-2CE76H0T-ITMF(2.8mm)(C)
DS-2CE76H0T-ITMF(C) 5 MP Camera • 5 MP, 2560 x 1944 resolution • 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens • Smart IR, up to 30 m IR distance • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • IP67 Specification Camera Image Sensor5 MP CMOS Signal SystemPAL/NTSC Resolution2560 (H) x 1944 (V) Frame Rate TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137° 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105° 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° Menu Image ModeSTD/HIGH-SAT AGCYes Day/Night ModeAuto/Color/BW (Black ...
Warranty: 36 mon.
Datasheet
Availability: >1000
DS-2CE76H0T-ITMFS(2.8mm)
DS-2CE76H0T-ITMFS 5 MP Audio Camera • 5 MP, 2560 x 1944 resolution • Digital WDR • 2.8 mm, 3.6 mm, 6 mm fixed focal lens • Smart IR, up to 30 m IR distance • Audio over coaxial cable, built-in mic • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • IP67 Specification Camera Image Sensor5 MP CMOS Signal SystemPAL/NTSC Resolution2560 (H) x 1944 (V) Frame Rate TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9° 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR AudioBuilt-in mic Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° Menu Image ModeSTD/HIGH-SAT AGCYes Day/...
Warranty: 36 mon.
Datasheet
Availability: >1000
DS-2CE76H0T-ITMFS(3.6mm)
DS-2CE76H0T-ITMFS 5 MP Audio Camera • 5 MP, 2560 x 1944 resolution • Digital WDR • 2.8 mm, 3.6 mm, 6 mm fixed focal lens • Smart IR, up to 30 m IR distance • Audio over coaxial cable, built-in mic • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • IP67 Specification Camera Image Sensor5 MP CMOS Signal SystemPAL/NTSC Resolution2560 (H) x 1944 (V) Frame Rate TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9° 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR AudioBuilt-in mic Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° Menu Image ModeSTD/HIGH-SAT AGCYes Day/...
Warranty: 36 mon.
Datasheet
Availability: 0

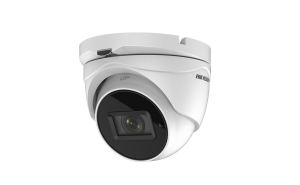

DS-2CE76H8T-ITM(6mm)
Key Features 5 MP high performance CMOS 2560 x 1944 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 30 m IR distance OSD menu, 3D DNR, 130 dB true WDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67 Up the coax (HIKVISION-C) DS-2CE76H8T-ITMF 5 MP Turret Camera Camera Image Sensor 5 megapixel progressive scan CMOS Signal System PAL/NTSC Resolution 2560 (H) x 1944 (V) Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Frame Rate TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm fixed lens Horizontal Field of View 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm) Lens Mount M12 Day & Night IR cut filter Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360° Synchronization Internal synchronization WDR (Wide Dynamic Range) ≥ 130 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Manual BLC (Backlight...
Warranty: 36 mon.
Datasheet
Availability: 0
