DS-2CE76U1T-ITMF(3.6mm)

Key Features   8.29 MP high performance CMOS   3840 x 2160 resolution   2.8 mm, 3.6 mm, 6 mm fixed lens   EXIR 2.0, smart IR, up to 30 m IR distance   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)    DS-2CE76U1T-ITMF  8 MP Turret Camera          Camera  Image Sensor 8.29 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,  2MP@30fps  CVI: 8MP@12.5fps, 8MP@15fps  AHD: 5MP@20fps  CVBS: 960H P/N  Resolution 3840 (H) x 2160 (V)  Min. Illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/50,000 s  NTSC: 1/15 s to 1/50,000 s  Lens 2.8 mm, 3.6 mm, 6 mm fixed lens  Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)  Lens Mount M16  Day & Night IR cut filter  Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  DWDR (Digital Wide Dynamic  Range)  105 dB  Menu  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  BLC (Backlight Compensat...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 8.29 MP high performance CMOS
 3840 x 2160 resolution
 2.8 mm, 3.6 mm, 6 mm fixed lens
 EXIR 2.0, smart IR, up to 30 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

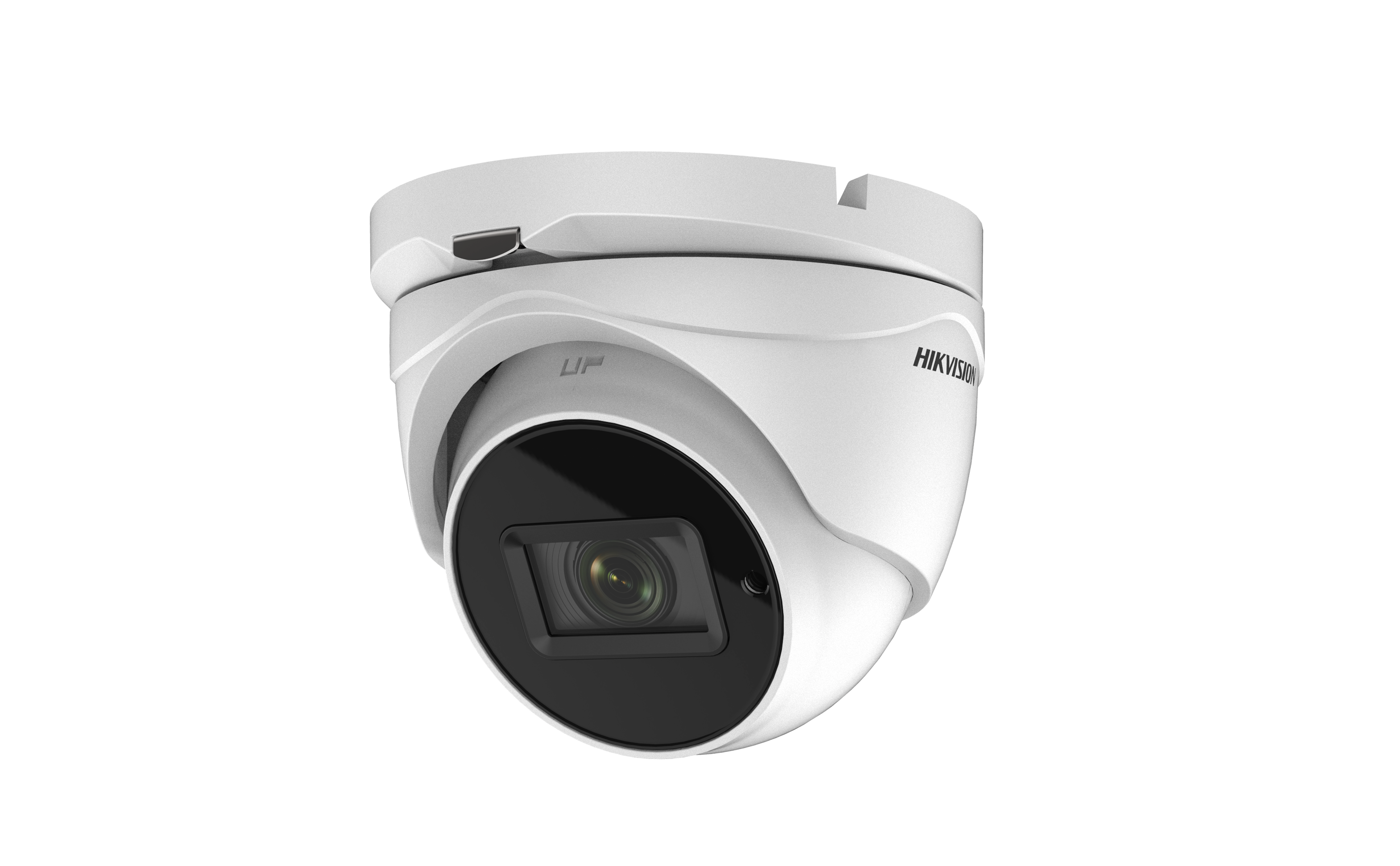

DS-2CE76U1T-ITMF
8 MP Turret Camera




Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,
2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 5MP@20fps
CVBS: 960H P/N
Resolution 3840 (H) x 2160 (V)
Min. Illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens Mount M16
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
DWDR (Digital Wide Dynamic
Range)
105 dB
Menu
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 5.3 W
Protection Level IP67
Material Metal
IR Range Up to 30 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 90 mm x 79.37 mm (3.54" x 3.12" )
Weight Approx. 310 g (0.68 lb.)
Specification


Order Models
DS-2CE76U1T-ITMF
Dimension
79
.37
mm
(3
.12
" )
90
mm
(3
.54
" )
Ø 60 mm (2.36" )
3-Ø 4.5 mm
(0.18" )
Ø 82.6 mm
(3.25" )
120°





Accessory









DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-XS
Junction Box
