DS-2CE57H0T-VPITE(3.6mm)(C)
DS-2CE57H0T-VPITE(C) 5 MP Vandal-proof PoC Fixed Dome Camera High quality imaging with 5 MP, 2560 x 1944 resolution 2.8 mm and 3.6 mm fixed focal lens Up to 20 m IR distance for bright night imaging Water and dust resistant (IP67) and vandal resistant (IK10) Specification Camera Image Sensor 5 MP CMOS Max. Resolution 2560 (H) x 1944 (V) Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Day & Night ICR Angle Adjustment Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355° Signal System PAL/NTSC Lens Lens Type 2.8 mm and 3.6 mm fixed focal lens Focal Length & FOV 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105° Lens Mount M12 Image Image Parameters Switch STD/HIGH-SAT Image Settings Brightness, Sharpness, Smart IR Frame Rate 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps Day/Night Mode Auto/Color/BW (Black and White) Wide Dynamic Range (WDR) Digi...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE57H0T-VPITF(2.8mm)(C)
DS-2CE57H0T-VPITF(C) 5 MP Camera • 5 MP, 2560 x 1944 resolution • 2.8 mm, 3.6 mm, 6 mm fixed focal lens • Smart IR, up to 20 m IR distance • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • IP67, IK10 Specification Camera Image Sensor5 MP CMOS Signal SystemPAL/NTSC Resolution2560 (H) x 1944 (V) Frame Rate TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105° 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR Angle AdjustmentPan: 0 to 355°, Tilt: 0 to 75°, Rotation: 0 to 355° Menu Image ModeSTD/HIGH-SAT AGCYes Day/Night ModeAuto/Color/BW (Black and White) White BalanceAuto/Manual AE (Auto Exposure) ModeDWDR/BLC/HLC/...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE57H0T-VPITF(3.6mm)(C)
DS-2CE57H0T-VPITF(C) 5 MP Camera • 5 MP, 2560 x 1944 resolution • 2.8 mm, 3.6 mm, 6 mm fixed focal lens • Smart IR, up to 20 m IR distance • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • IP67, IK10 Specification Camera Image Sensor5 MP CMOS Signal SystemPAL/NTSC Resolution2560 (H) x 1944 (V) Frame Rate TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105° 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR Angle AdjustmentPan: 0 to 355°, Tilt: 0 to 75°, Rotation: 0 to 355° Menu Image ModeSTD/HIGH-SAT AGCYes Day/Night ModeAuto/Color/BW (Black and White) White BalanceAuto/Manual AE (Auto Exposure) ModeDWDR/BLC/HLC/...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE57H8T-VPIT(6mm)
Key Features 5 MP high performance CMOS 2560 x 1944 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 30 m IR distance OSD menu, 3D DNR, 130 dB true WDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 Up the coax (HIKVISION-C) DS-2CE57H8T-VPITF 5 MP Dome Camera Camera Image Sensor 5 megapixel progressive scan CMOS Signal System PAL/NTSC Resolution 2560 (H) x 1944 (V) Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Frame Rate TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm fixed lens Horizontal Field of View 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm) Lens Mount M12 Day & Night IR cut filter Angle Adjustment (Bracket) Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Synchronization Internal synchronization WDR (Wide Dynamic Range) ≥ 130 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Man...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE57H8T-VPITF(2.8mm)
Key Features 5 MP high performance CMOS 2560 x 1944 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 30 m IR distance OSD menu, 3D DNR, 130 dB true WDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 Up the coax (HIKVISION-C) DS-2CE57H8T-VPITF 5 MP Dome Camera Camera Image Sensor 5 megapixel progressive scan CMOS Signal System PAL/NTSC Resolution 2560 (H) x 1944 (V) Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Frame Rate TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm fixed lens Horizontal Field of View 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm) Lens Mount M12 Day & Night IR cut filter Angle Adjustment (Bracket) Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Synchronization Internal synchronization WDR (Wide Dynamic Range) ≥ 130 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Man...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE57H8T-VPITF(3.6mm)
Key Features 5 MP high performance CMOS 2560 x 1944 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 30 m IR distance OSD menu, 3D DNR, 130 dB true WDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 Up the coax (HIKVISION-C) DS-2CE57H8T-VPITF 5 MP Dome Camera Camera Image Sensor 5 megapixel progressive scan CMOS Signal System PAL/NTSC Resolution 2560 (H) x 1944 (V) Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Frame Rate TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm fixed lens Horizontal Field of View 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm) Lens Mount M12 Day & Night IR cut filter Angle Adjustment (Bracket) Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Synchronization Internal synchronization WDR (Wide Dynamic Range) ≥ 130 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Man...
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-2CE57U1T-VPITF(2.8mm)
Key Features 8.29 MP high performance CMOS 3840 x 2160 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 30 m IR distance 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 Up the coax (HIKVISION-C) DS-2CE57U1T-VPITF 8 MP Dome Camera Camera Image Sensor 8.29 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N Resolution 3840 (H) x 2160 (V) Min. Illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm fixed lens Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm) Lens Mount M16 Day & Night IR cut filter Angle Adjustment (Bracket) Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Synchronization Internal synchronization DWDR (Digital Wide Dynamic Range) 105 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Manual BLC (Backlight...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE57U1T-VPITF(3.6mm)
Key Features 8.29 MP high performance CMOS 3840 x 2160 resolution 2.8 mm, 3.6 mm, 6 mm fixed lens EXIR 2.0, smart IR, up to 30 m IR distance 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 Up the coax (HIKVISION-C) DS-2CE57U1T-VPITF 8 MP Dome Camera Camera Image Sensor 8.29 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N Resolution 3840 (H) x 2160 (V) Min. Illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm fixed lens Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm) Lens Mount M16 Day & Night IR cut filter Angle Adjustment (Bracket) Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Synchronization Internal synchronization DWDR (Digital Wide Dynamic Range) 105 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Manual BLC (Backlight...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE57U7T-VPITF(2.8mm)
Key Feature 8.29 MP, 3840 x 2160 resolution Ultra-low light 130 dB true WDR, 3D DNR 2.8 mm, 3.6 mm, 6 mm fixed lens Smart IR, up to 30 m IR distance 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 DS-2CE57U7T-VPITF 8 MP Ultra-Low Light Camera Camera Image Sensor 8.29 MP CMOS Signal System PAL/NTSC Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 8MP@12.5fps, 8MP@15fps CVI: 8MP@12.5fps, 8MP@15fps CVBS: P/N Resolution 3840 (H) x 2160 (V) Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm fixed lens Horizontal Field of View 102° (2.8 mm), 79° (3.6 mm), 51° (6 mm) Lens Mount M16 Day & Night ICR WDR (Wide Dynamic Range) ≥130 dB Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Menu Image Mode STD/HIGH-SAT AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Manual AE (Auto Exposure) Mode Global/BLC/HLC/WDR Noise Reduction 3D DNR Language Engli...
Warranty: 36 mon.
Datasheet
Availability: 0

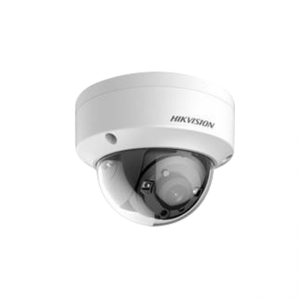

DS-2CE57U7T-VPITF(3.6mm)
Key Feature 8.29 MP, 3840 x 2160 resolution Ultra-low light 130 dB true WDR, 3D DNR 2.8 mm, 3.6 mm, 6 mm fixed lens Smart IR, up to 30 m IR distance 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 DS-2CE57U7T-VPITF 8 MP Ultra-Low Light Camera Camera Image Sensor 8.29 MP CMOS Signal System PAL/NTSC Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 8MP@12.5fps, 8MP@15fps CVI: 8MP@12.5fps, 8MP@15fps CVBS: P/N Resolution 3840 (H) x 2160 (V) Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm fixed lens Horizontal Field of View 102° (2.8 mm), 79° (3.6 mm), 51° (6 mm) Lens Mount M16 Day & Night ICR WDR (Wide Dynamic Range) ≥130 dB Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Menu Image Mode STD/HIGH-SAT AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Manual AE (Auto Exposure) Mode Global/BLC/HLC/WDR Noise Reduction 3D DNR Language Engli...
Warranty: 36 mon.
Datasheet
Availability: 0

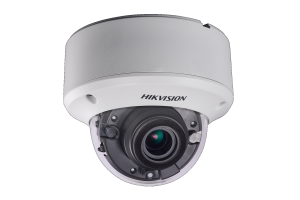

DS-2CE59H8T-AVPIT3ZF(2.7-13.5mm)
Key Features 5 MP high performance CMOS Auto focus 2560 x 1944 resolution 2.7 mm to 13.5 mm motorized vari-focal lens EXIR 2.0, smart IR, up to 60 m IR distance OSD menu, 3D DNR, 130 dB true WDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 Up the coax (HIKVISION-C) DS-2CE59H8T-(A)VPIT3ZF 5 MP Dome Camera Camera Image Sensor 5 megapixel progressive scan CMOS Signal System PAL/NTSC Resolution 2560 (H) x 1944 (V) Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Frame Rate TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s Lens 2.7 mm to 13.5 mm motorized vari-focal lens Horizontal Field of View 92.3° to 29.3° Lens Mount Φ 14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° Synchronization Internal synchronization WDR (Wide Dynamic Range) ≥ 130 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Bal...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-2CE59U1T-AVPIT3ZF(2.7-13.5mm)
Key Features 8.29 MP high performance CMOS Auto focus 3840 x 2160 resolution 2.7 mm to 13.5 mm motorized vari-focal lens EXIR 2.0, smart IR, up to 60 m IR distance OSD menu, DNR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67 Up the coax (HIKVISION-C) DS-2CE59U1T-(A)VPIT3ZF 8 MP Dome Camera Camera Image Sensor 8.29 megapixel progressive scan CMOS Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N Resolution 3840 (H) x 2160 (V) Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s Lens 2.7 mm to 13.5 mm motorized vari-focal lens Horizontal Field of View 108.1° to 45.6° Lens Mount Φ14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° Synchronization Internal synchronization DWDR (Digital Wide Dynamic Range) 105 dB Menu AGC Yes D/N Mode Auto/Color/BW (Black and White) White Balance Auto/Manual BLC Yes DWDR (Digital Wide Dy...
Warranty: 36 mon.
Datasheet
Availability: 0

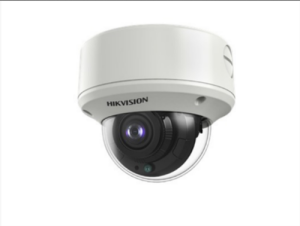

DS-2CE59U7T-AVPIT3ZF(2.7-13.5mm)
Key Feature 8.29 MP high performance CMOS Auto focus 3840 x 2160 resolution 2.7 mm to 13.5 mm motorized varifocal lens EXIR 2.0, smart IR, up to 60 m IR distance OSD menu, 3D DNR, 130 dB true WDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 Up the coax (HIKVISION-C) DS-2CE59U7T-AVPIT3ZF 8 MP Dome Camera Camera Image Sensor 8.29 megapixel progressive scan CMOS Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8MP@15fps CVBS: 960H P/N Resolution 3840 (H) x 2160 (V) Min. Illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s Lens 2.7 mm to 13.5 mm motorized varifocal lens Horizontal Field of View 108.1° to 45.6° Lens Mount Φ14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° Synchronization Internal synchronization WDR (Wide Dynamic Range) ≥ 130 dB Menu AGC Yes D/N Mode Auto/Color/BW (Black and White) White Balance Auto/Manual BLC Yes ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE5AD0T-VPIT3ZF(2.7-13.5mm)
Key Feature * 2 MP high-performance CMOS * Ultra low light * 1920 x 1080 resolution * 2.7 mm to 13.5 mm motorized varifocal lens, auto focus * EXIR 2.0, smart IR, up to 70 m IR distance * OSD menu, 3D DNR, day/night switch * 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) * IP67, IK10 * Up the coax (HIKVISION-C) DS-2CE5AD0T-VPIT3ZF 2 MP EXIR Dome Camera Specification Camera Image Sensor 2.0 megapixel progressive scan CMOS Signal System PAL/NTSC Video Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Resolution 1920 (H) x1080 (V) Min. Illumination 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Slow Shutter Max. 16 times Lens 2.7 mm to 13.5 mm Horizontal Field of View 102° to 31° Lens Mount Φ 14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355° Synchronization Internal synchronization Menu AGC High/Medium/Low D/N Mode Auto/Color/BW (Black and White) Image Mode STD/HIGH-SAT HLC (Highlight Compensation) Yes BLC (Backlight Compensation) Yes 3D DNR ...
Warranty: 36 mon.
Datasheet
Availability: 101-500

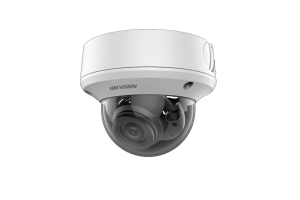

DS-2CE5AD8T-VPIT3ZE(2.7-13.5mm)
Key Features 2 MP high performance CMOS Ultra-Low Light 1920 x 1080 resolution Auto focus, 2.8 mm to 12 mm motorized vari-focal lens 120 dB true WDR, 3D DNR EXIR 2.0, Smart IR, up to 40 m IR distance IP67 Up the Coax (HIKVISION-C) DS-2CE5AD8T-IT3Z 2 MP Ultra-Low Light VF Turret Camera Camera Image Sensor 2.0 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Resolution 1920 (H) x 1080 (V) Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Slow Shutter Max. 16 times Lens 2.8 mm to 12 mm motorized vari-focal lens Horizontal Field of View 32.1° to 103° Lens Mount Φ14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360° Synchronization Internal synchronization WDR (Wide Dynamic Range) > 120 dB Menu AGC Support Day/Night Mode Auto/Color/BW (Black and White) White Balance ATW/MANUAL Privacy Mask ON/OFF, 4 programmable privacy masks Motion Detection 4 programmable motion areas Backlight Compensatio...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-2CE5AD8T-VPIT3ZF(2.7-13.5mm)
Key Features 2 MP high performance CMOS Ultra-low light 1920 x 1080 resolution 2.7 mm to 13.5 mm varifocal lens, auto focus 130 dB true WDR, 3D DNR Smart IR, up to 60 m IR distance 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IK10 Up the coax (HIKVISION-C) DS-2CE5AD8T-(A)VPIT3ZF 2 MP Ultra-Low Light Dome Camera Camera Image Sensor 2 MP CMOS Signal System PAL/NTSC Resolution 1920 (H) x 1080 (V) Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Slow Shutter MAX. 16 times Lens 2.7 mm to 13.5 mm motorized, auto focus Horizontal Field of View 103° to 32.1° Lens Mount Φ14 Day & Night ICR WDR (Wide Dynamic Range) ≥ 130 dB Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Menu Image Mode STD/HIGH-SAT AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Manual AE (Auto Exposure) Mode WDR/BLC/HLC/Global Privacy Mask 4 programmable privacy masks Motion Detection 4 programmable moti...
Warranty: 36 mon.
Datasheet
Availability: 0

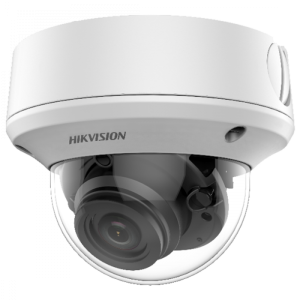

DS-2CE5AH0T-AVPIT3ZF(2.7-13.5mm)(C)
Key Features 5 MP high performance COMS 2560 x 1944 resolution 2.7 mm to 13.5 mm motorized varifocal lens EXIR 2.0, smart IR, up to 40 m IR distance OSD menu, 2D DNR, DWDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 Up the coax (HIKVISION-C) DS-2CE5AH0T-(A)VPIT3ZF 5 MP Dome Camera Camera Image Sensor 5 MP CMOS image sensor Resolution 2560 (H) x 1944 (V) Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens 2.7 mm to 13.5 mm motorized varifocal lens Horizontal Field of View 95.7° to 29.1° Lens Mount Φ Menu AGC Support D/N Mode Auto/Color/BW (Black and White) White Balance ATW/MWB BLC Support DWDR (Digital Wide Dynamic Range) Support Functions Brightness, Sharpness, DNR, Mirror, Smart IR Interface Video Output 1 HD analog output Switch Button TVI/AHD/CVI/CVBS General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Power Supply 12 VDC ±15%, 24 VAC ±15% Power Consumption DS-2C...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-2CE5AH8T-AVPIT3ZF(2.7-13.5mm)
Key Features 5 MP high performance CMOS Auto focus 2560 x 1944 resolution 2.7 mm to 13.5 mm motorized vari-focal lens EXIR 2.0, smart IR, up to 60 m IR distance OSD menu, 3D DNR, 130 dB true WDR 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) IP67, IK10 Up the coax (HIKVISION-C) DS-2CE5AH8T-(A)VPIT3ZF 5 MP Dome Camera Camera Image Sensor 5 megapixel progressive scan CMOS Signal System PAL/NTSC Resolution 2560 (H) x 1944 (V) Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR Frame Rate TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens 2.7 mm to 13.5 mm motorized vari-focal lens Horizontal Field of View 92.3° to 29.3° Lens Mount Φ 14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° Synchronization Internal synchronization WDR (Wide Dynamic Range) ≥ 130 dB Menu AGC Yes D/N Mode Auto/Color/BW (Black and White) White Balan...
Warranty: 36 mon.
Datasheet
Availability: 0
