HIKVISION

Overview   DS-D5021QD is a reliable surveillance display with LED backlit  technology, excellent color reduction and image processing,  truly display the video details. Multiply interfaces are able to  meet various surveillance environments, and build-in speaker is  convenient to audio play. DS-D5021QD is an ideal choice for  security and surveillance application.  key Features  •LED backlit technology with full HD 1920x1080  •Wide view angle: 170°(H)/160°(V)  •Image processing: 3D comb filter, 3D De-interlace,   3D noise reduction, Skin correction  •Multiply inputs: HDMI, VGA, audio in  •Build-in speaker  •High reliable components for 7x24 working  •VESA stand bracket  Model:  DS-D5021QD  Button Description    DS-D5021QD  21” LCD Monitor    NO. Description  1 Source button, show all signal input channel  2 Upward button, move cursor up  3 Downward button, move cursor down  4  Menu button, as a confirm button when  setting parameters in the menu  5 Power on/off      DS-D5021QD  21” LCD Monitor    Model DS-D5021QD  Display  Display Type LED-Backlit TFT LCD  Screen Size 20.7”  Pixel Pitch(HxV) 0.2385mm x0.2385...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CD2935FWD-I(S)  3 MP Network Fisheye Camera  Key Features   Up to 3 megapixel high resolution   2048 x 1536 @30fps   H.265, H.265+, H.264+, H.264   Support 14 display modes   FOV: horizontal field of view 180°, vertical  field of view 180°   Dual video streams   Digital Noise Reduction   Support on-board storage, up to 128 G   DC 12 V & PoE (802.3af)   Up to 8 m IR range   -S: Audio/Alarm IO   Mobile Monitoring via Hik-Connect or  iVMS-4500          Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.005Lux @ (F1.2, AGC ON), 0 Lux with IR on  Shutter Speed 1/3 s to 1/100,000 s, support slow shutter  Lens 1.16 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180°  Lens Mount M12  Day &Night IR cult filter with auto switch  DNR 3D DNR  Wide Dynamic Range 120 dB  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  H.264 Type Main Profile/High Profile  H.264+ Support  H.265 Type Main Profile  H.265+ Support  Video Bit Rate 32 Kbps to 16 Mbps  Audio Compression (-S) G.711/G.722.1/G.726/MP2L2  Audio Bit ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2935FWD-I(1.16mm)

Replacement product code: 300819079

Warranty: 36 mon.

Datasheet

DS-7200HQHI-K/P SERIES TURBO HD DVR    Video Input and Transmission   Self-adaptive normal camera and Hikvision PoC camera connection   Up to 1-ch 4 MP IP cameras input for DS-7204HQHI-K1/P, and 2-ch 4 MP IP cameras input for DS-7208/7216HQHI-K2/P   Long distance transmission over coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal, and 200m for  PoC camera   Automatic power supply management for PoC camera to guarantee safety  Compression and Recording   H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras   Connectable to H.265+/H.265/H.264+/H.264 IP cameras   H.265+ can be enabled to improve encoding efficiency and reduce data storage costs   Up to 3 MP resolution for recording   Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p  Video Output   Simultaneous HDMI/VGA output   HDMI output at up to 4K (3840 x 2160) resolution for DS-7216HQHI-K2/P   Separate CVBS output  Storage and Playback   One SATA interface for DS-7204HQHI-K1/P, and two SATA interfaces for DS-7208/7216HQHI-K2/P (up to 6 TB capacity per  HDD)   4/8/16-ch synchronous playback   Smart search for efficien...

Warning! Product withdrawn from production!

Replacement product: DS-7216HQHI-K1/A(S)

Replacement product code: 300224840

Warranty: 36 mon.

Datasheet

DS-2CD2H43G1-IZ(S)  4 MP IR Varifocal Turret Network Camera  * BLC/3D DNR/ROI/HLC  * IP67, IK10  * Built-in micro SD/SDHC/SDXC card slot,  up to 128 GB  * 3-Axis adjustment  * IR range: Up to 30 m  * Anti-IR reflection  Key Features    * 1/3" Progressive Scan CMOS  * 2688 x 1520@30fps  * 2.8 to 12 mm varifocal lens  * Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux  with IR  * H.265+, H.265, H.264+, H.264  * Three streams  * 120dB WDR  * 2 Behavior analyses, and face detection  *          Specifications  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  WDR 120dB  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Lens Type Varifocal lens, motorized lens , 2.8 to 12 mm  Auto-Iris No  Aperture F1.6  FOV Horizontal FOV: 104° to 29°, vertical FOV: 55° to 17°, diagonal FOV: 125° to 34°  Lens Mount Φ14  Illuminator  IR Range Up to 30 m  Wavelength 850nm  Video  Max. Resolution 2688 x 1520  Main Stream  50Hz: 25fps (2688 x 1520, 2560 x 1440,...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CD2386G2-I(U)  8 MP AcuSense Powered-by-Darkfighter Fixed Turret Network Camera                                    Empowered by deep learning algorithms, Hikvision AcuSense  technology brings human and vehicle targets classification  alarms to front- and back-end devices. The system focuses  on human and vehicle targets, vastly improving alarm  efficiency and effectiveness.     High quality imaging with 8 MP resolution   Excellent low-light performance with  powered-by-DarkFighter technology   Efficient H.265+ compression technology   Clear imaging against strong back light by 120 dB true WDR  technology   Focus on human and vehicle targets classification based on  deep learning   Built-in microphone for real-time audio security(-U)   Water and dust resistant (IP67)               Specification  Camera  Image Sensor 1/1.8" Progressive Scan CMOS  Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 120 dB  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°,...

Warranty: 36 mon.

Datasheet

Accessories  Key features  Dimensions  Available models  www.hikvision.com    DS-2CD2612F-I(S) (1.3MP)/DS-2CD2632F-I(S) (3MP)  VF IR Bullet Network Camera    WDR  DIGITAL    BLC  1/3  CMOS    H.264    PoE    Scan    t 1.3MP / 3MP high resolution  t HD real-time video  t Vari-focal lens  t IR range: up to 30m  t DWDR & 3D DNR & BLC  t IP66  t Onboard storage (up to 64zGB)  t (-S) Audio I/O, Alarm I/O    DS-2CD2612F-I, DS-2CD2612F-IS  DS-2CD2632F-I, DS-2CD2632F-IS  * -S: 1-ch audio I/O interface, 1-ch alarm I/O interface    DS-2CD2612F-I (S)DS-2CD2632F-I (S)  Camera  Image sensor1/3” progressive scan CMOS  Min. illumination0.01 lux @F1.2, AGC ON, 0 lux with IR0.07 lux @F1.2, AGC ON, 0 lux with IR  Shutter time1/3s ~ 1/100,000s  Lens2.8 ~ 12 mm @F1.4, angle of view: 98.4° ~ 30.2°2.8 - 12 mm @ F1.4,Angle of view: 91.2°-28.3°  Lens mount  Day & nightICR  Digital noise reduction3D DNR  Wide dynamic rangeDigital WDR  Backlight  compensation  Yes, zone congurable  Compression Standard  Video compression H.264 / MJPEG  H.264 codec proleMain prole  Bit rate32 Kbps ~ 12 Mbps  Audio compressionG.711 / G.722.1/ G.726 / MP2L2  Au...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-7200HQHI-K/P SERIES TURBO HD DVR    Video Input and Transmission   Self-adaptive normal camera and Hikvision PoC camera connection   Up to 1-ch 4 MP IP cameras input for DS-7204HQHI-K1/P, and 2-ch 4 MP IP cameras input for DS-7208/7216HQHI-K2/P   Long distance transmission over coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal, and 200m for  PoC camera   Automatic power supply management for PoC camera to guarantee safety  Compression and Recording   H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras   Connectable to H.265+/H.265/H.264+/H.264 IP cameras   H.265+ can be enabled to improve encoding efficiency and reduce data storage costs   Up to 3 MP resolution for recording   Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p  Video Output   Simultaneous HDMI/VGA output   HDMI output at up to 4K (3840 x 2160) resolution for DS-7216HQHI-K2/P   Separate CVBS output  Storage and Playback   One SATA interface for DS-7204HQHI-K1/P, and two SATA interfaces for DS-7208/7216HQHI-K2/P (up to 6 TB capacity per  HDD)   4/8/16-ch synchronous playback   Smart search for efficien...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

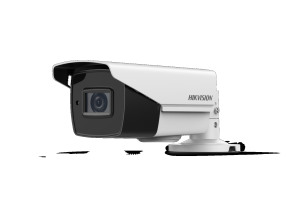

Key Features   8.29 MP high performance COMS   Ultra-low light   3840 x 2160 resolution   Auto focus, 2.8 mm to 12 mm motorized vari-focal lens   120 dB true WDR, 3D DNR   EXIR 2.0, smart IR, up to 80 m IR distance   Dual video output: TVI/CVBS   Dual voltage input: 12 VDC ±25%/24 VAC ±25%   IP67   Up the coax (HIKVISION-C)      DS-2CE19U8T-(A)IT3Z  4K Ultra-Low Light VF Bullet Camera          Camera  Image Sensor 8.29 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps  NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps  Resolution 3840 (H) x 2160 (V)  Min. illumination Color: 0.003 Lux@(F1.2 AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/10,000 s  NTSC: 1/15 s to 1/10,000 s  Slow Shutter Max. 16 times  Lens 2.8 mm to 12 mm motorized vari-focal lens  Horizontal Field of View 108.1° to 45.6°  Lens Mount Φ14  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt:0° to 90°, Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) 120 dB  Menu  AGC Support  Day/Night Mode Auto/Color/BW (Black ...

Warning! Product withdrawn from production!

Replacement product: DS-2CE19U7T-AIT3ZF(2.7-13.5mm)

Replacement product code: 300511049

Warranty: 36 mon.

Datasheet

DS-2CD2147G2(-SU)  4 MP ColorVu Fixed Dome Network Camera                                  Hikvision ColorVu technology provides 24/7 vivid colorful  images with F1.0 advanced lenses and high performance  sensors. F1.0 super-aperture collects more light to produce  brighter images. Advanced sensor technology can vastly  improve the utilization of available light.     High quality imaging with 4 MP resolution   Efficient H.265+ compression technology   Clear imaging against strong back light due to 130 dB WDR  technology   24/7 colorful imaging   Focus on human and vehicle targets classification based on  deep learning   -SU: Built-in microphone for real-time audio security, audio  and alarm interface available   Water and dust resistant (IP67) and vandal resistant (IK10)               Specification  Camera  Image Sensor 1/1.8" Progressive Scan CMOS  Min. Illumination 0.0005 Lux @ (F1.0, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 130 dB  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Lens...

Warranty: 36 mon.

Datasheet

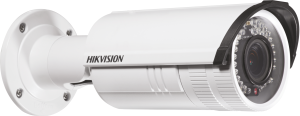

DS-2CD2642FWD-I(Z)(S)  4MP WDR Vari-focal Bullet Network Camera        Unit: mm              * 1/3” Progressive Scan CMOS  * Up to 4 megapixel resolution  * 120dB WDR  * 3D DNR  * Motorized lens 2.8-12mm (-Z)  * Up to 30 meters IR range  * Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB  * Audio/alarm I/O (-S)  * Mobile Monitoring via Hik-Connect  * 12V DC±25% & PoE(802.3af Class3)  * Support H.264+  * IP67        Accessories  DS-1275ZJ  Vertical pole mount  DS-1260ZJ  Junction box            Specification  Camera  Image Sensor 1/3’’ Progressive Scan CMOS  Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR  Shutter Speed 1/3 s ~ 1/100,000 s  Slow Shutter Support  Lens 2.8 - 12 mm @ F1.4, motorized lens (-Z), angle of view: 112°~33.8°  Lens Mount Φ14  Day & Night IR cut filter with auto switch  WDR 120dB  Compression Standard    Video Compression H.264/MJPEG/H.264+  H.264 Type Main Profile  Video Bit Rate 32 Kbps – 16 Mbps  Audio (-S)  G.711/G.722.1/G.726/MP2L2  64Kbps...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

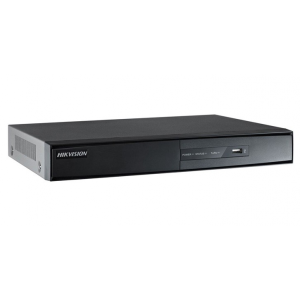

DS-7200HQHI-F1/N/A SERIES TURBO HD DVR    Video Input and Transmission   Connectable to HDTVI, AHD, HDCVI and analog cameras   Up to 2-ch 1080p IP cameras input for DS-7208/7216HQHI-F1/N/A   Long distance transmission over UTP and coaxial cable with max. 1200m for the 720p and max. 800m for the 1080p  HDTVI signal  Compression and Recording   One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs   Up to 3 MP resolution for recording of the first channel of DS-7204HQHI-F1/N/A, the first 2 channels of  DS-7208HQHI-F1/N/A, and the first 4 channels of DS-7216HQHI-F1/N/A   Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p  Video Output   Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution for DS-7204/7208HQHI-F1/N/A and 4K (3840 x 2160)  resolution for HDMI output of DS-7216HQHI-F1/N/A   Independent CVBS output improves compatibility at the most possibility and serves as the aux output or live view  output only  Storage and Playback   One SATA interface (up to 6 TB capacity per HDD)   4/8/16-ch synchronous playback   Smart search for efficient playback  Smart Function   Su...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

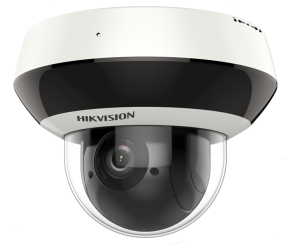

DS-2DE2A404IW-DE3/W(S6)  4 MP 4x IR PTZ Network Wi-Fi Camera                        Hikvision DS-2DE2A404IW-DE3/W(S6) 4 MP 4x IR PTZ  Network Wi-Fi Camera can be widely used in indoor scenes,  such as corridor, office, factory, convenience store, and  restaurant.     High quality imaging with 4 MP resolution   Excellent low-light performance via  powered-by-DarkFighter technology   Clear imaging against strong back lighting due to 120 dB  WDR technology   Pan and tilt ability enables camera to monitor zones of  interest   4x optical zoom allows for closer viewing of subjects in  expansive areas   Up to 20 m IR range ensures safety at night   Water and dust resistant (IP66) and vandal proof (IK10)   Supports Wi-Fi connection and easy installation             DORI  The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or  objects within its field of view.  It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.    DORI Detect Observe Recognize Identify  Definition 25 px/m 63 px/m 125 px/m...

Warning! Product withdrawn from production!

Replacement product: DS-2DE2A404IW-DE3/W(C0)(S6)(C)

Replacement product code: 327000403

Warranty: 36 mon.

Datasheet

DS-7224HWI-E2 Series DVR      Introduction  DS-7224HWI-E2 series Smart DVR (Digital Video Recorder) is a  new generation recorder developed by Hikvision independently  which can connect analog cameras and provide powerful  surveillance. Combined with multiple advanced technologies, such as  audio and video encoding & decoding technology, embedded system  technology, storage technology, VCA technology and network  technology. It can both work alone as a recorder and cooperate with  other devices to build a comprehensive surveillance system.  Available Models  DS-7224HWI-E2  Main Features   Main stream supports up to WD1 resolution in real time and  sub stream supports CIF/QCIF resolution.   Simultaneous HDMI/VGA and CVBS outputs.   HDMI/VGA output at up to 1920x1080P resolution.   Channel-zero encoding.   Support dual stream.   Video quality diagnostics.   VCA detection alarm (line crossing detection and intrusion  detection) is supported.   HDD quota management; different capacity can be assigned to  different channel.   Holiday recording schedule configuration.   Smart searching for the event triggered record files.   Digital zoom of video in ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CD2T85FWD-I5/I8  8 MP Network Bullet Camera  Key Features   Up to 8 megapixel high resolution   Max. 3840 x 2160 @20fps   2.8 mm/4mm/6mm/8 mm/12mm fixed lens,  optional   H.265, H.265+, H.264+, H.264   120dB Wide Dynamic Range   3D Digital Noise Reduction   12 VDC & PoE (802.3af)   IR range: 50m, 80m, optional   Support on-board storage, up to 128 GB   IP67            Specification  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Support  Lens  2.8 mm, horizontal field of view: 102°  4 mm, horizontal field of view: 79°  6 mm, horizontal field of view: 50°  8 mm, horizontal field of view: 40°  12 mm, horizontal field of view: 23°  Lens Mount M12  Iris F2.0  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment (bracket) Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  Third stream: H.265/H.264  H.264 Type Main Profile/High Profile  H.264+ Support

Warning! Product withdrawn from production!

Replacement product: DS-2CD2T86G2-4I(2.8mm)

Replacement product code: 311310082

Warranty: 36 mon.

Datasheet

DS-2CD2T85FWD-I5/I8  8 MP Network Bullet Camera  Key Features   Up to 8 megapixel high resolution   Max. 3840 x 2160 @20fps   2.8 mm/4mm/6mm/8 mm/12mm fixed lens,  optional   H.265, H.265+, H.264+, H.264   120dB Wide Dynamic Range   3D Digital Noise Reduction   12 VDC & PoE (802.3af)   IR range: 50m, 80m, optional   Support on-board storage, up to 128 GB   IP67          Specification  Camera  Image Sensor 1/2.5" Progressive Scan CMOS  Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Support  Lens  2.8 mm, horizontal field of view: 102°  4 mm, horizontal field of view: 79°  6 mm, horizontal field of view: 50°  8 mm, horizontal field of view: 40°  12 mm, horizontal field of view: 23°  Lens Mount M12  Iris F2.0  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment (bracket) Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  Third stream: H.265/H.264  H.264 Type Main Profile/High Profile  H.264+ Support  H.265...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2T86G2-4I(6mm)

Replacement product code: 311310824

Warranty: 36 mon.

Datasheet

DS-2CD2T85FWD-I5/I8 (B)  8 MP IR Fixed Bullet Network Camera  Key Features   Up to 8 megapixel high resolution   Max. 3840 x 2160 @20fps   2.8 mm/4 mm/6 mm fixed lens, optional   H.265, H.265+, H.264+, H.264   120dB WDR   Powered by Darkfighter     12 VDC & PoE (802.3af, class 3)   Support on-board storage, up to 128 GB   IP67   BLC/3D DNR/ROI   Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @  (F1.6, AGC ON)        Specification  Camera  Image Sensor 1/2" Progressive Scan CMOS  Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Focal length 2.8/4/6 mm  Focus Fixed  Lens  2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°  4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°  6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59°  Lens Mount M16  Aperture F1.6  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Compression Standard  Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2T86G2-4I(2.8mm)

Replacement product code: 311310082

Warranty: 36 mon.

Datasheet
