DS-3E0524-E(B)
DS-3E0524-E(B) 24-Port Gigabit Unmanaged Ethernet Switch DS-3E0524-E(B) switch is a layer 2 Gigabit Ethernet switch, providing 24 x Gigabit Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switching functions. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices. Feature and Function • 24 x Gigabit Ethernet ports. • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard. • 1000 Mbps network access. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Reliable fan-free design. Specification Model DS-3E0524-E(B) Network parameters Port number 24 x Gigabit Ethernet ports Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store-and-forward switching MAC address table 8 K Switching capacity 48 Gbps Packet forwarding rate 35.712 Mpps Internal...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-3E0524TF
DS-3E0524TF Switch * Gigabit network data-exchange * 12 Gigabit Ethernet electrical ports and 12 Gigabit Ethernet SFP fiber optical port * 10/100/1000M BaseT (X)(RJ45 ports) * IEEE802.3, IEEE802.3u and IEEE802.3x network standards available * Store-and-forward switch * Delay of data-exchange less than 5us * Wide temperature Range: -5 ~ 50 ˚C * Solid metal chassis of high strength * 19 Inches 1U standards rack installation Features and Functions Introduction The Hikvision DS-3E0524TF Series Unmanaged Switch is layer 2 network switches, providing 12 Gigabit Ethernet electrical ports and 12 Gigabit SFP fiber optical port. It is reliable, easy to install and maintain, and equipped with rapid switch function. It has multiple access ports, and is applicable for access or aggregation and upload of small-scale LAN devices. It applies to center area and can access to camera and NVR, in charge of small-scale core data exchange. Applicable Models * DS-3E0524TF Model DS-3E0524TF Network parameters Port number 12 Gigabit Ethernet electrical ports and 12 ...
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-3E0526P-E
DS-3E0526P-E 24-Port Gigabit Unmanaged PoE Switch DS-3E0526P-E switches are layer 2 gigabit PoE unmanaged switches, providing 24 gigabit PoE ports, one 10/100/1000 Mbps RJ45 port, and one 10/100/1000 Mbps SFP fiber optical port. The switches provide advanced PoE technology and connect other devices with high performance. Meanwhile, all gigabit ports guarantee stable transmission of data. Feature and Function • 24 x gigabit PoE ports, 1 x gigabit RJ45 port, and 1 x gigabit SFP fiber optical port. • IEEE 802.3at/af standard. • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard. • PoE port with 6 KV surge protection. • PoE output power management. • Gigabit network access. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. Specification Model DS-3E0526P-E Network parameters Port number 24 x gigabit PoE ports, 1 x gigabit RJ45 port, and 1 x gigabit SFP fiber optical port Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-3E0526P-E/M
DS-3E0526P-E/M 24-Port Gigabit Unmanaged PoE Switch DS-3E0526P-E/M switch is a layer 2 PoE network switch, providing 24 x Gigabit PoE ports and 2 x Gigabit SFP fiber optical ports. On top of high-performance access, the switch provides advanced PoE power technology to guarantee the stable network upload of the adaptive data. Feature and Function • 24 x Gigabit PoE ports, 2 x Gigabit SFP fiber optical ports. • IEEE 802.3at/af standard. • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard. • 6 KV surge protection for PoE ports. • PoE power management. • Gigabit network access. • Wire-speed forwarding. • Store-and-forward switching. • Solid high-strength metal shell. Specification Model DS-3E0526P-E/M Network parameters Port number 24 x Gigabit PoE ports, 2 x Gigabit SFP fiber optical ports Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z Forwarding mode Store-and-forward switching MAC address table 8 K Switching capacity 52 Gbps...
Warranty: 36 mon.
Datasheet
Availability: 6-10
DS-3E0528HP-E
DS-3E0528HP-E 28-Port Gigabit Unmanaged Hi-PoE Switch Key Feature • 20 x gigabit PoE ports, 4 x gigabit Hi-PoE ports, 2 x gigabit RJ45 ports, and 2 x gigabit fiber optical ports. • IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output). • IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output). • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard. • 6 KV surge protection for PoE ports. • Up to 300 m long-range transmission. • PoE watchdog to auto detect and restart the cameras that do not respond. • Port isolation to improve network security. • Gigabit network access design. • Wire-speed forwarding. • Store-and-forward switching. • Solid high-strength metal shell. DS-3E0528HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of high- performance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function. Specification Model DS-3E0528HP-E Network parameters Port number 20 x gigabit PoE ports...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-3E1105P-EI
DS-3E1105P-EI Smart Managed 4-Port 100 Mbps PoE Switch Key Feature • 4 x 100 Mbps PoE RJ45 ports, 1 x 100 Mbps network RJ45 port. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Visualized Topology Management Network Health Monitor Real-Time Alarm Push Video Control and Preview Specification Model DS-3E1105P-EI Network parameters Port number 4 x 100 Mbps PoE RJ45 ports, and 1 x 100 Mbps network RJ45 port. Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEE...
Warranty: 36 mon.
Datasheet
Availability: 501-1000
DS-3E1309P-EI
DS-3E1309P-EI Smart Managed 8-Port 100 Mbps PoE Switch Key Feature • 8 x 100 Mbps PoE RJ45 ports, 1 x gigabit network RJ45 port. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • Up to 300 m long-range transmission. • AF/AT camera can reach up to 300 m in extend mode. Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Visualized Topology Management Network Health Monitor Real-Time Alarm Push Video Control and Preview Specification Model DS-3E1309P-EI Network parameters Port number 8 x 100 Mbps PoE RJ45 ports, and 1 x gigabit network RJ45 port. Port type RJ45 port, full duplex, MDI/MDI-X adapt...
Warranty: 36 mon.
Datasheet
Availability: 501-1000

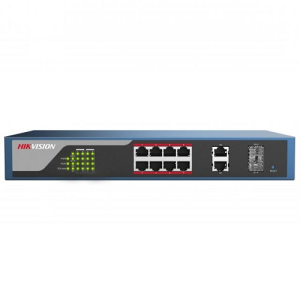

DS-3E1310P-E
DS -3E 131 0 P - E Web-Managed PoE Switch • 802.3af/at PoE Standard • VLAN configurable, • STP, multicast, port mirroring, QoS, and SNMP • Extend mode: cable transmission distance up to 820 ft (250 m) • Guaranteed video data transmission due to buffer optimization The DS-3E1310P-E is a 10/100 Mbps web-managed switch that is designed for IP surveillance applications. Easily configured via a Web interface, users can setup VLANs, port mirroring, SNMP, and more. Or, they can just as easily use default settings , while still taking advant age of unique hardware features, such as outdoor power surge protection, optimized VIP ports , and extended power mode for longer cable runs to IP cameras. Hikvision we b -managed switches provide the right mix of features to help reduce the cost of installation and maintenance. ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0

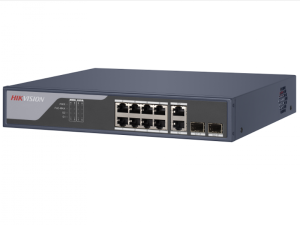

DS-3E1310P-SI
DS-3E1310P-SI Smart Managed 8-Port 100 Mbps PoE Switch Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Key Feature • 8 x 100 Mbps PoE RJ45 port, 2 x gigabit combo. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Specification Model DS-3E1310P-SI Network Parameters Port Number 8 x 100 Mbps PoE RJ45 port, and 2 x gigabit combo Port Type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z Forwarding Mode Store-and-forward switching Working Mode Standard mode (default) Extend mode MAC Address T...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-3E1318P-E
DS -3E 131 8 P - E Web-Managed PoE Switch • 802.3af/at PoE Standard • VLAN configurable, • STP, multicast, port mirroring, QoS, and SNMP • Extend mode: cable transmission distance up to 820 ft (250 m) • Guaranteed video data transmission due to buffer optimization The DS-3E1310P-E is a 10/100 Mbps web-managed switch that is designed for IP surveillance applications. Easily configured via a Web interface, users can setup VLANs, port mirroring, SNMP, and more. Or, they can just as easily use default settings, while still taking advantage of unique hardware features, such as outdoor power surge protection, optimized VIP ports, and extended power mode for longer cable runs to IP cameras. Hikvision we b -managed switches provide the right mix of features to help reduce the cost of installation and maintenance. Available Model: D S-3E 1 318 P-E (16 100M PoE electrical ports and 2 1000M COMBO ports) ...
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-3E1318P-EI
DS-3E1318P-EI Smart Managed 16-Port 100 Mbps PoE Switch Key Feature • 16 x 100 Mbps PoE RJ45 ports, 2 x gigabit combos. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Visualized Topology Management Network Health Monitor Real-Time Alarm Push Video Control and Preview Specification Model DS-3E1318P-EI Network parameters Port number 16 x 100 Mbps PoE RJ45 ports, and 2 x gigabit combos. Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IE...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-3E1318P-EI
DS-3E1318P-EI Smart Managed 16-Port 100 Mbps PoE Switch Key Feature • 16 x 100 Mbps PoE RJ45 ports, 2 x gigabit combos. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Visualized Topology Management Network Health Monitor Real-Time Alarm Push Video Control and Preview Specification Model DS-3E1318P-EI Network parameters Port number 16 x 100 Mbps PoE RJ45 ports, and 2 x gigabit combos. Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IE...
Warranty: 36 mon.
Datasheet
Availability: 501-1000
DS-3E1318P-SI
DS-3E1318P-SI Smart Managed 16-Port 100 Mbps PoE Switch Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Key Feature • 16 x 100 Mbps PoE RJ45 port, 2 x gigabit combo. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Specification Model DS-3E1318P-SI Network Parameters Port Number 16 x 100 Mbps PoE RJ45 port, and 2 x gigabit combo Port Type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z High Priority Ports Ports 1 to 8 Forwarding Mode Store-and-forward switching Working Mode Standard mode (def...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-3E1318P-SI
DS-3E1318P-SI Smart Managed 16-Port 100 Mbps PoE Switch Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Key Feature • 16 x 100 Mbps PoE RJ45 port, 2 x gigabit combo. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Specification Model DS-3E1318P-SI Network Parameters Port Number 16 x 100 Mbps PoE RJ45 port, and 2 x gigabit combo Port Type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z High Priority Ports Ports 1 to 8 Forwarding Mode Store-and-forward switching Working Mode Standard mode (def...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-3E1326P-E
DS -3E 1 326 P - E Web-Managed PoE Switch • 802.3af/at PoE Standard • VLAN configurable, • STP, multicast, port mirroring, QoS, and SNMP • Extend mode: cable transmission distance up to 820 ft (250 m) • Guaranteed video data transmission due to buffer optimization The DS-3E1326P-E is a 10/100 Mbps web-managed switch that is designed for IP surveillance applications. Easily configured via a Web interface, users can setup VLANs, port mirroring, SNMP, and more. Or, they can just as easily use default settings, while still taking advantage of unique hardware features, such as outdoor power surge protection, optimized VIP ports, and extended power mode for longer cable runs to IP cameras. Hikvision we b -managed switches provide the right mix of features to help reduce the cost of installation and maintenance. Available Model: D...
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-3E1326P-EI
DS-3E1326P-EI Smart Managed 24-Port 100 Mbps PoE Switch Key Feature • 24 x 100 Mbps PoE RJ45 ports, 2 x gigabit combos. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Visualized Topology Management Network Health Monitor Real-Time Alarm Push Video Control and Preview Specification Model DS-3E1326P-EI Network parameters Port number 24 x 100 Mbps PoE RJ45 ports, and 2 x gigabit combos. Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-3E1326P-EI
DS-3E1326P-EI Smart Managed 24-Port 100 Mbps PoE Switch Key Feature • 24 x 100 Mbps PoE RJ45 ports, 2 x gigabit combos. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Visualized Topology Management Network Health Monitor Real-Time Alarm Push Video Control and Preview Specification Model DS-3E1326P-EI Network parameters Port number 24 x 100 Mbps PoE RJ45 ports, and 2 x gigabit combos. Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab ...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-3E1326P-SI
DS-3E1326P-SI Smart Managed 24-Port 100 Mbps PoE Switch Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Key Feature • 24 x 100 Mbps PoE RJ45 port, 2 x gigabit combo. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Specification Model DS-3E1326P-SI Network Parameters Port Number 24 x 100 Mbps PoE RJ45 port, and 2 x gigabit combo Port Type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z High Priority Ports Ports 1 to 8 Forwarding Mode Store-and-forward switching Working Mode ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
