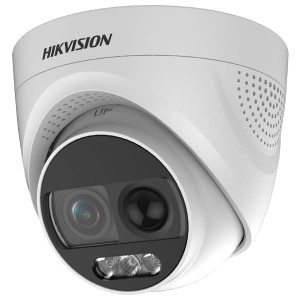

DS-2CE72DFT-PIRXOF28  2 MP PIR Siren Full Time Color Camera          • 2 MP, 1920 x 1080 resolution  • 24-hour color image  • 130 dB true WDR, 3D DNR  • 2.8 mm fixed focal lens  • Smart Light, up to 20 m white light distance  • PIR detection, strobe light alarm, alarm out/audible alarm  • Built-in siren  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • IP67        Specification    Camera  Image Sensor2 MP CMOS  Signal SystemPAL/NTSC  Resolution1920 (H) x 1080 (V)    Frame Rate  TVI: 1080p@30fps, 1080p@25fps  AHD: 1080p@30fps, 1080p@25fps  CVI: 1080p@30fps, 1080p@25fps  CVBS: PAL/NTSC    Min. illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Slow ShutterMax. 16 times  Lens2.8 mm fixed lens  Field of View2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°  Lens MountM16  Flashing Light Alarm (Red & Blue)Yes  Audible AlarmYes  Day & NightColor  WDR (Wide Dynamic Range)≥130 dB  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  White LightAuto/​Off  Image ModeSTD/HIGH-SAT  AGCYes  White BalanceAuto/M...

Warning! Product withdrawn from production!

Replacement product: DS-2CE72DF3T-PIRXOS(2.8mm)

Replacement product code: 300614586

Warranty: 36 mon.

Datasheet

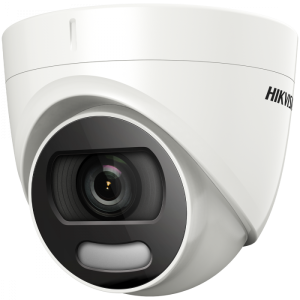

DS-2CE72HFT-E/GREY  5 MP ColorVu PoC Fixed Turret Camera                  n High quality imaging with 5 MP, 2560 x 1944 resoluon  n 24/7 color imaging  n Clear imaging against strong back light due to 130 dB true  WDR technology    n 3D DNR technology delivers clean and sharp images  n 2.8 mm, 3.6 mm fixed focal lens  n Smart Light, up to 20 m white light distance  n Water and dust resistant (IP67)            n Specificaon  Specificaon  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Resoluon 2560 (H) x 1944 (V)  Frame Rate 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps  Min. Illuminaon 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light  Shuer Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s  Lens 2.8 mm, 3.6 mm fixed focal lens  Field of View  2.8 mm, horizontal FOV: 99.7°, vercal FOV: 72°, diagonal FOV: 139.8°  3.6 mm, horizontal FOV: 80.1°, vercal FOV: 58.6°, diagonal FOV: 106.2°  Lens Mount M16  Light Alarm Solid Light Alarm (White Light)  WDR (Wide Dynamic Range) ≥130 dB  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotaon: 0° to 360°  Menu  White Light Auto/Off  Im...

Warning! Product withdrawn from production!

Replacement product: DS-2CE72KF3T-LE(2.8mm)

Replacement product code: 327800617

Warranty: 36 mon.

Datasheet

DS-2CE72HFT-E/GREY  5 MP ColorVu PoC Fixed Turret Camera                  n High quality imaging with 5 MP, 2560 x 1944 resoluon  n 24/7 color imaging  n Clear imaging against strong back light due to 130 dB true  WDR technology    n 3D DNR technology delivers clean and sharp images  n 2.8 mm, 3.6 mm fixed focal lens  n Smart Light, up to 20 m white light distance  n Water and dust resistant (IP67)            n Specificaon  Specificaon  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Resoluon 2560 (H) x 1944 (V)  Frame Rate 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps  Min. Illuminaon 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light  Shuer Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s  Lens 2.8 mm, 3.6 mm fixed focal lens  Field of View  2.8 mm, horizontal FOV: 99.7°, vercal FOV: 72°, diagonal FOV: 139.8°  3.6 mm, horizontal FOV: 80.1°, vercal FOV: 58.6°, diagonal FOV: 106.2°  Lens Mount M16  Light Alarm Solid Light Alarm (White Light)  WDR (Wide Dynamic Range) ≥130 dB  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotaon: 0° to 360°  Menu  White Light Auto/Off  Im...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CE72HFT-F  5 MP Full Time Color Camera          • 5 MP, 2560 x 1944 resolution  • 24-hour color image  • 130 dB true WDR, 3D DNR  • 3.6 mm, 6 mm fixed focal lens  • Smart Light, up to 20 m white light distance  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • IP67        Specification    Camera  Image Sensor5 MP CMOS  Signal SystemPAL/NTSC  Resolution2560 (H) x 1944 (V)    Frame Rate  TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps  CVI: 4MP@30fps, 4MP@25fps  AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps  CVBS: PAL/NTSC    Min. illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Slow ShutterMax. 16 times  Lens3.6 mm, 6 mm fixed lens  Horizontal Field of View80.1° (3.6 mm), 49.3° (6 mm)  Lens MountM16  Strobe Light AlarmYes  Day & NightColor  WDR (Wide Dynamic Range)≥130 dB  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  White LightAuto/​Off  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeColor  White BalanceAuto/Manual  AE (Auto Exposure) ModeWDR/​BLC/​HLC/​Global/​HLS/​Anti-banding  Privacy Mask4 pro...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

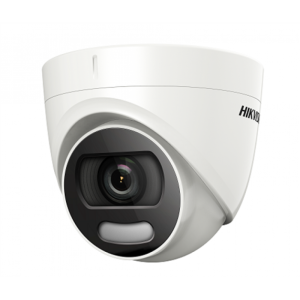

DS-2CE72HFT-F  5 MP Full Time Color Camera                                                    • 5 MP, 2560 x 1944 resolution  • 24-hour color image  • 130 dB true WDR, 3D DNR  • 2.8 mm, 3.6 mm, 6 mm fixed lens  • Smart Light, up to 20 m white light distance  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • IP67      Specification akatos  Camera  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Resolution 2560 (H) x 1944 (V)    Frame Rate  TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps  CVI: 4MP@30fps, 4MP@25fps  AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps  CVBS: PAL/NTSC  Min. illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm, 6 mm fixed lens  Horizontal Field of View 99.7° (2.8 mm), 80.1° (3.6 mm), 49.3° (6 mm)  Lens Mount M16  Strobe Light Alarm Yes  Day & Night Color  WDR (Wide Dynamic Range) ≥130 dB  Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  White Light Auto/Off...

Warning! Product withdrawn from production!

Replacement product: DS-2CE72KF0T-LFS(2.8mm)

Replacement product code: 327800905

Warranty: 36 mon.

Datasheet

DS-2CE76D0T-ITMF  2 MP Camera          • 2 MP, 1920 x 1080 resolution  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • Smart IR, up to 30 m IR distance  • IP67        Specification    Camera  Image Sensor2 MP CMOS  Signal SystemPAL/NTSC  Resolution1920 (H) x 1080 (V)    Frame Rate  TVI: 1080P@30fps, 1080P@25fps  CVI: 1080P@30fps, 1080P@25fps  AHD: 1080P@30fps, 1080P@25fps  CVBS: PAL/NTSC    Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Lens2.8 mm, 3.6 mm, 6 mm fixed lens    Field of View  2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°  3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°  6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°    Lens MountM12  Day & NightICR  WDR (Wide Dynamic Range)Digital WDR  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeAuto/Color/BW (Black and White)  White BalanceAuto/Manual  AE (Auto Exposure) ModeDWDR/BLC/HLC/Global  Noise Re...

Warranty: 36 mon.

Datasheet

DS-2CE76D0T-ITMFS  2 MP Audio Camera          • 2 MP, 1920 x 1080 resolution  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens  • Smart IR, up to 30 m IR distance  • Audio over coaxial cable, built-in mic  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • IP67        Specification    Camera  Image Sensor2 MP CMOS  Signal SystemPAL/NTSC  Resolution1920 (H) x 1080 (V)    Frame Rate  TVI: 1080P@30fps, 1080P@25fps  AHD: 1080P@30fps, 1080P@25fps  CVI: 1080P@30fps, 1080P@25fps  CVBS: PAL/NTSC    Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Lens2.8 mm, 3.6 mm, 6 mm fixed lens    Field of View  2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°  3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°  6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°    Lens MountM12  Day & NightICR  WDR (Wide Dynamic Range)Digital WDR  AudioBuilt-in mic  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeAuto/Color/BW (Black and White)  White Bala...

Warranty: 36 mon.

Datasheet

DS-2CE76D0T-ITPF (C)  2 MP Camera          • 2 MP, 1920 x 1080 resolution  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • Smart IR, up to 20 m IR distance        Specification    Camera  Image Sensor2 MP CMOS  Signal SystemPAL/NTSC  Resolution1920 (H) x 1080 (V)    Frame Rate  TVI: 1080P@30fps, 1080P@25fps  CVI: 1080P@30fps, 1080P@25fps  AHD: 1080P@30fps, 1080P@25fps  CVBS: PAL/NTSC    Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Lens2.8 mm, 3.6 mm, 6 mm fixed lens    Field of View  2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°  3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°  6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°    Lens MountM12  Day & NightICR  WDR (Wide Dynamic Range)Digital WDR  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeAuto/Color/BW (Black and White)  White BalanceAuto/Manual  AE (Auto Exposure) ModeDWDR/BLC/HLC/Global  Noise Reductio...

Warranty: 36 mon.

Datasheet

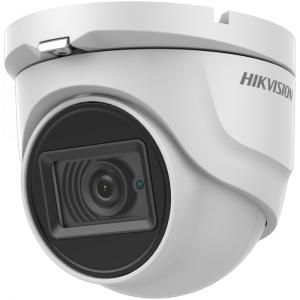

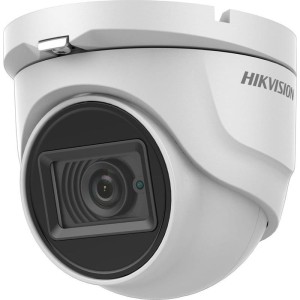

DS-2CE76H0T-ITMF(C)  5 MP Camera          • 5 MP, 2560 x 1944 resolution  • 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens  • Smart IR, up to 30 m IR distance  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • IP67        Specification    Camera  Image Sensor5 MP CMOS  Signal SystemPAL/NTSC  Resolution2560 (H) x 1944 (V)    Frame Rate  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps  AHD: 5M@20fps, 4M@30fps, 4M@25fps  CVI: 4M@30fps, 4M@25fps  CVBS: PAL/NTSC    Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Lens2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens    Field of View  2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°  2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°  3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°  6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°    Lens MountM12  Day & NightICR  WDR (Wide Dynamic Range)Digital WDR  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeAuto/Color/BW (Black ...

Warning! Product withdrawn from production!

Replacement product: DS-2CE76H0T-ITMFS(2.8mm)

Replacement product code: 300613330

Warranty: 36 mon.

Datasheet

DS-2CE76H0T-ITMF(C)  5 MP Camera          • 5 MP, 2560 x 1944 resolution  • 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens  • Smart IR, up to 30 m IR distance  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • IP67        Specification    Camera  Image Sensor5 MP CMOS  Signal SystemPAL/NTSC  Resolution2560 (H) x 1944 (V)    Frame Rate  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps  AHD: 5M@20fps, 4M@30fps, 4M@25fps  CVI: 4M@30fps, 4M@25fps  CVBS: PAL/NTSC    Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Lens2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens    Field of View  2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°  2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°  3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°  6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°    Lens MountM12  Day & NightICR  WDR (Wide Dynamic Range)Digital WDR  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeAuto/Color/BW (Black ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CE76H0T-ITMFS  5 MP Audio Camera          • 5 MP, 2560 x 1944 resolution  • Digital WDR  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens  • Smart IR, up to 30 m IR distance  • Audio over coaxial cable, built-in mic  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • IP67        Specification    Camera  Image Sensor5 MP CMOS  Signal SystemPAL/NTSC  Resolution2560 (H) x 1944 (V)    Frame Rate  TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps  CVI: 4MP@30fps, 4MP@25fps  AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps  CVBS: PAL/NTSC    Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Lens2.8 mm, 3.6 mm, 6 mm fixed lens    Field of View  2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7°  3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°  6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°    Lens MountM12  Day & NightICR  WDR (Wide Dynamic Range)Digital WDR  AudioBuilt-in mic  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  Image ModeSTD/HIGH-SAT  AGCYes  Day/...

Warranty: 36 mon.

Datasheet

DS-2CE76H0T-ITPF(C)  5 MP Camera          • 5 MP, 2560 x 1944 resolution  • 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens  • Smart IR, up to 20 m IR distance  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)        Specification    Camera  Image Sensor5 MP CMOS  Signal SystemPAL/NTSC  Resolution2560 (H) x 1944 (V)    Frame Rate  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps  AHD: 5M@20fps, 4M@30fps, 4M@25fps  CVI: 4M@30fps, 4M@25fps  CVBS: PAL/NTSC    Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Lens2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens    Field of View  2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°  2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°  3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°  6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°    Lens MountM12  Day & NightICR  WDR (Wide Dynamic Range)Digital WDR  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeAuto/Color/BW (Black and White) ...

Warning! Product withdrawn from production!

Replacement product: DS-2CE76H0T-ITPFS(2.8mm)

Replacement product code: 300613327

Warranty: 36 mon.

Datasheet

DS-2CE76H0T-ITPF(C)  5 MP Camera          • 5 MP, 2560 x 1944 resolution  • 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens  • Smart IR, up to 20 m IR distance  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)        Specification    Camera  Image Sensor5 MP CMOS  Signal SystemPAL/NTSC  Resolution2560 (H) x 1944 (V)    Frame Rate  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps  AHD: 5M@20fps, 4M@30fps, 4M@25fps  CVI: 4M@30fps, 4M@25fps  CVBS: PAL/NTSC    Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Lens2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens    Field of View  2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°  2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°  3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°  6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°    Lens MountM12  Day & NightICR  WDR (Wide Dynamic Range)Digital WDR  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeAuto/Color/BW (Black and White) ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
