HIKVISION

Key Features   2 MP high performance CMOS   Ultra-low light   1920 x 1080 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, visual alarm   120 dB true WDR, 3D DNR   EXIR 2.0, smart IR, up to 20 m IR distance   IP67   Up the coax (HIKVISION-C)    DS-2CE71D8T-PIRL  2 MP Ultra-Low Light PIR Turret Camera        Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm fixed focal lens  Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm)  Lens Mount M12  Visual Alarm Yes  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) > 120 dB  Menu  White Light Alarm/Off  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance ATW/MANUAL  Privacy Mask ON/OFF, 4 programmable privacy masks  Mot...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Features   2 MP high performance CMOS   Ultra-low light   1920 x 1080 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, visual alarm   120 dB true WDR, 3D DNR   EXIR 2.0, smart IR, up to 20 m IR distance   IP67   Up the coax (HIKVISION-C)    DS-2CE71D8T-PIRL  2 MP Ultra-Low Light PIR Turret Camera        Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm fixed focal lens  Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm)  Lens Mount M12  Visual Alarm Yes  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) > 120 dB  Menu  White Light Alarm/Off  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance ATW/MANUAL  Privacy Mask ON/OFF, 4 programmable privacy masks  Mot...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Feature   2 MP CMOS   Ultra-low light   1920 x 1080 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, strobe light alarm, alarm out   130 dB true WDR, 3D DNR   Smart IR, up to 20 m IR distance   IP67   HIKVISION-C    DS-2CE71D8T-PIRLO  2 MP Ultra-Low Light PIR Turret Camera        Camera  Image Sensor 2MP CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination 0.003Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm fixed focal lens  Horizontal Field of View 103.5° (2.8 mm), 79.1° (3.6 mm)  Lens Mount M12  Strobe Light Alarm Yes  Day & Night ICR  WDR (Wide Dynamic Range) ≥130 dB  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Menu  White Light Alarm/Off  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode WDR/BLC/HLC/Global  Privacy Mask 4 programmable privacy masks  Motion Detection 4 programmable motion area...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Feature   2 MP CMOS   Ultra-low light   1920 x 1080 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, strobe light alarm, alarm out   130 dB true WDR, 3D DNR   Smart IR, up to 20 m IR distance   IP67   HIKVISION-C    DS-2CE71D8T-PIRLO  2 MP Ultra-Low Light PIR Turret Camera        Camera  Image Sensor 2MP CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Resolution 1920 (H) x 1080 (V)  Min. illumination 0.003Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm fixed focal lens  Horizontal Field of View 103.5° (2.8 mm), 79.1° (3.6 mm)  Lens Mount M12  Strobe Light Alarm Yes  Day & Night ICR  WDR (Wide Dynamic Range) ≥130 dB  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Menu  White Light Alarm/Off  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode WDR/BLC/HLC/Global  Privacy Mask 4 programmable privacy masks  Motion Detection 4 programmable motion area...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Features   5 MP high performance CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, visual alarm   EXIR 2.0, smart IR, up to 20 m IR distance   IP67   Up the coax (HIKVISION-C)    DS-2CE71H0T-PIRL  5 MP PIR Turret Camera        Camera  Image Sensor 5.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps  NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps  Resolution 2560 (H) x 1944 (V)  Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm fixed focal lens  Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm)  Lens Mount M12  Visual Alarm Yes  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  Menu  White Light Alarm/Off  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  Backlight Compensation Yes  Language English  Functions Brightness, Contrast, Sharpness, Saturation, DNR, Mirror  Interface  Video Output...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Features   5 MP high performance CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, visual alarm   EXIR 2.0, smart IR, up to 20 m IR distance   IP67   Up the coax (HIKVISION-C)    DS-2CE71H0T-PIRL  5 MP PIR Turret Camera        Camera  Image Sensor 5.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps  NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps  Resolution 2560 (H) x 1944 (V)  Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm fixed focal lens  Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm)  Lens Mount M12  Visual Alarm Yes  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  Menu  White Light Alarm/Off  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  Backlight Compensation Yes  Language English  Functions Brightness, Contrast, Sharpness, Saturation, DNR, Mirror  Interface  Video Output...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Feature   5 MP CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, strobe light alarm, alarm out   Smart IR, up to 20 m IR distance   IP67   HIKVISION-C    DS-2CE71H0T-PIRLO  5 MP PIR Turret Camera        Camera  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 5MP@20fps, 4MP@25fps, 4MP@12.5fps, 1080p@25fps  NTSC: 5MP@20fps, 4MP@30fps, 4MP@15fps, 1080p@30fps  Resolution 2560 (H) x 1944 (V)  Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/50, 000 s  NTSC: 1/15 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm fixed lens  Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm)  Lens Mount M12  Strobe Light Alarm Yes  Day & Night ICR  WDR Digital WDR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Menu  White Light Alarm/Off  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode DWDR/BLC/HLC/Global  Noise Reduction 2D DNR  Language English  Functions Brightness, Sharpness, Mirror, Smart IR  Interface  Video Output 1 HD analog ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Feature   5 MP CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, strobe light alarm, alarm out   Smart IR, up to 20 m IR distance   IP67   HIKVISION-C    DS-2CE71H0T-PIRLO  5 MP PIR Turret Camera        Camera  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 5MP@20fps, 4MP@25fps, 4MP@12.5fps, 1080p@25fps  NTSC: 5MP@20fps, 4MP@30fps, 4MP@15fps, 1080p@30fps  Resolution 2560 (H) x 1944 (V)  Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/50, 000 s  NTSC: 1/15 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm fixed lens  Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm)  Lens Mount M12  Strobe Light Alarm Yes  Day & Night ICR  WDR Digital WDR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Menu  White Light Alarm/Off  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode DWDR/BLC/HLC/Global  Noise Reduction 2D DNR  Language English  Functions Brightness, Sharpness, Mirror, Smart IR  Interface  Video Output 1 HD analog ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Feature   5 MP CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, strobe light alarm, alarm out   Smart IR, up to 20 m IR distance   IP67   HIKVISION-C    DS-2CE71H0T-PIRLO  5 MP PIR Turret Camera        Camera  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 5MP@20fps, 4MP@25fps, 4MP@12.5fps, 1080p@25fps  NTSC: 5MP@20fps, 4MP@30fps, 4MP@15fps, 1080p@30fps  Resolution 2560 (H) x 1944 (V)  Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/50, 000 s  NTSC: 1/15 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm fixed lens  Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm)  Lens Mount M12  Strobe Light Alarm Yes  Day & Night ICR  WDR Digital WDR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Menu  White Light Alarm/Off  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode DWDR/BLC/HLC/Global  Noise Reduction 2D DNR  Language English  Functions Brightness, Sharpness, Mirror, Smart IR  Interface  Video Output 1 HD analog ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Feature   5 MP CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, strobe light alarm, alarm out   Smart IR, up to 20 m IR distance   IP67   HIKVISION-C    DS-2CE71H0T-PIRLO  5 MP PIR Turret Camera        Camera  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 5MP@20fps, 4MP@25fps, 4MP@12.5fps, 1080p@25fps  NTSC: 5MP@20fps, 4MP@30fps, 4MP@15fps, 1080p@30fps  Resolution 2560 (H) x 1944 (V)  Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/50, 000 s  NTSC: 1/15 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm fixed lens  Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm)  Lens Mount M12  Strobe Light Alarm Yes  Day & Night ICR  WDR Digital WDR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Menu  White Light Alarm/Off  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode DWDR/BLC/HLC/Global  Noise Reduction 2D DNR  Language English  Functions Brightness, Sharpness, Mirror, Smart IR  Interface  Video Output 1 HD analog ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Feature   5 MP CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, strobe light alarm, alarm out   Smart IR, up to 20 m IR distance   IP67   HIKVISION-C    DS-2CE71H0T-PIRLPO  5 MP PIR Turret Camera        Camera  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 5 MP@20fps, 4 MP@25fps, 4 MP@12.5fps, 1080p@25fps  NTSC: 5 MP@20fps, 4 MP@30fps, 4 MP@15fps, 1080p@30fps  Resolution 2560 (H) x 1944 (V)  Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/50, 000 s  NTSC: 1/15 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm fixed lens  Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm)  Lens Mount M12  Strobe Light Alarm Yes  Day & Night ICR  WDR Digital WDR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  Menu  White Light Alarm/Off  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode DWDR/BLC/HLC/Global  Noise Reduction 2D DNR  Language English  Functions Brightness, Sharpness, Mirror, S...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Feature   5 MP CMOS   2560 x 1944 resolution   2.8 mm, 3.6 mm fixed focal lens   PIR detection, strobe light alarm, alarm out   Smart IR, up to 20 m IR distance   IP67   HIKVISION-C    DS-2CE71H0T-PIRLPO  5 MP PIR Turret Camera        Camera  Image Sensor 5 MP CMOS  Signal System PAL/NTSC  Frame Rate  PAL: 5 MP@20fps, 4 MP@25fps, 4 MP@12.5fps, 1080p@25fps  NTSC: 5 MP@20fps, 4 MP@30fps, 4 MP@15fps, 1080p@30fps  Resolution 2560 (H) x 1944 (V)  Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/12.5 s to 1/50, 000 s  NTSC: 1/15 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm fixed lens  Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm)  Lens Mount M12  Strobe Light Alarm Yes  Day & Night ICR  WDR Digital WDR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°  Synchronization Internal synchronization  Menu  White Light Alarm/Off  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode DWDR/BLC/HLC/Global  Noise Reduction 2D DNR  Language English  Functions Brightness, Sharpness, Mirror, S...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CE72DF8T-F  2 MP ColorVu Fixed Turret Camera                     High quality imaging with 2 MP, 1920 x 1080 resolution   24/7 color imaging   Clear imaging against strong back light due to 130 dB true  WDR technology     3D DNR technology delivers clean and sharp images   2.8 mm, 3.6 mm, 6 mm fixed focal lens   Up to 40 m white light distance for bright night imaging   One port for four switchable signals (TVI/AHD/CVI/CVBS)   Water and dust resistant (IP68)               Specification  Camera  Image Sensor 2 MP CMOS  Signal System PAL/NTSC  Resolution 1920 (H) x 1080 (V)  Frame Rate  TVI: 1080p@25fps/30fps  CVI: 1080p@25fps/30fps  AHD: 1080p@25fps/30fps  CVBS: PAL/NTSC  Min. Illumination 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light ON  Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s  Slow Shutter Max. 16 times  Lens 2.8 mm, 3.6 mm, 6 mm Fixed Lens  Field of View  2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129°  3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100°  6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 64° <...

Warning! Product withdrawn from production!

Replacement product: DS-2CE72DF0T-LFS(2.8mm)

Replacement product code: 327800638

Warranty: 36 mon.

Datasheet

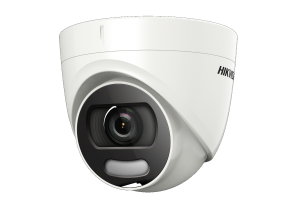

Key Features   2 MP high performance CMOS   1920 x 1080 resolution   Full time color   3.6 mm, 6 mm fixed lens   Up to 20 m white light distance   OSD menu, 3D DNR, true WDR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)    DS-2CE72DFT-F  2 MP Full Time Color Turret Camera          Specifications      Camera  Image Sensor 2 MP CMOS image sensor  Resolution 1920 (H) x 1080 (V)  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Min. illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16x  Lens 3.6 mm, 6 mm fixed lens  Horizontal Field of View 83.6° (3.6 mm), 52.8° (6 mm)  Lens Mount M16  Day & Night Color  Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) 120 dB  Menu  AGC Yes  White Balance Auto/Manual  BLC (Backlight Compensation) Yes  Privacy Mask 4 programmable privacy masks  Motion Detection 4 programmable areas  WDR Yes  Functions Brightness, Sharpness, 3D...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Key Features   2 MP high performance CMOS   1920 x 1080 resolution   Full time color   3.6 mm, 6 mm fixed lens   Up to 20 m white light distance   OSD menu, 3D DNR, true WDR   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)    DS-2CE72DFT-F  2 MP Full Time Color Turret Camera          Specifications      Camera  Image Sensor 2 MP CMOS image sensor  Resolution 1920 (H) x 1080 (V)  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Min. illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter Max. 16x  Lens 3.6 mm, 6 mm fixed lens  Horizontal Field of View 83.6° (3.6 mm), 52.8° (6 mm)  Lens Mount M16  Day & Night Color  Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°  Synchronization Internal synchronization  WDR (Wide Dynamic Range) 120 dB  Menu  AGC Yes  White Balance Auto/Manual  BLC (Backlight Compensation) Yes  Privacy Mask 4 programmable privacy masks  Motion Detection 4 programmable areas  WDR Yes  Functions Brightness, Sharpness, 3D...

Warranty: 36 mon.

Datasheet

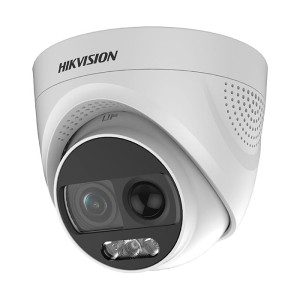

DS-2CE72DFT-PIRXOF  2 MP PIR Siren Full Time Color Camera          • 2 MP, 1920 x 1080 resolution  • 24-hour color image  • 130 dB true WDR, 3D DNR  • 3.6 mm, 6 mm fixed focal lens  • Smart Light, up to 20 m white light distance  • PIR detection, strobe light alarm, alarm out/audible alarm  • Built-in siren  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • IP67        Specification    Camera  Image Sensor2 MP CMOS  Signal SystemPAL/NTSC  Resolution1920 (H) x 1080 (V)    Frame Rate  TVI: 1080p@30fps, 1080p@25fps  AHD: 1080p@30fps, 1080p@25fps  CVI: 1080p@30fps, 1080p@25fps  CVBS: PAL/NTSC    Min. illuminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Slow ShutterMax. 16 times  Lens3.6 mm, 6 mm fixed lens  Horizontal Field of View83.6° (3.6 mm), 52.8° (6 mm)  Lens MountM16  Flashing Light Alarm (Red & Blue)Yes  Audible AlarmYes  Day & NightColor  WDR (Wide Dynamic Range)≥130 dB  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°  Menu  White LightAUTO/OFF  Image ModeSTD/HIGH-SAT  AGCYes  White BalanceAuto/Manual  AE...

Warning! Product withdrawn from production!

Replacement product: DS-2CE72DF3T-PIRXOS(3.6mm)

Replacement product code: 300614587

Warranty: 36 mon.

Datasheet
