HIKVISION

©2006 – 2014 by HIKVISION. All rights reserved.  1    DS-2AE5230T  E Series 5 Inch turbo HD1080p PTZ Dome Camera    Key features  System function:   1/3’’ high performance CMOS, up to 1920x1080 resolution   ±0.1° Preset Accuracy   Self-adaptive to HIKVISION, Pelco-P/D protocol   3D intelligent positioning function   Power-off memory function: restore PTZ & Lens status after reboot   Built-in temperature sensor, with display of internal temperature   Lightning protection, surge protection and voltage transient protection   IP66 standard (outdoor dome)   Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10   RS-485 communication diagnosis   Scheduled PTZ movement   UTC(Up the Coax) function  Camera function:   Auto focus, auto white balance, backlight compensation and auto/manual day & night switch   Privacy masks programmable   3D DNR, digital WDR  PTZ function:   360° endless pan range and -5°-90° tilt range   300°/s Pan Preset Speed and 200°/s Tilt Preset Speed   0.1°-250°/s Manual Pan Speed and 0.1°-150°/s Manual Tilt Speed   256 presets programmable; preset image freezing capability   8 patrols, up to 32 pres...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Hikvision DS-2DE4A425IW-DE 4 MP 25x Network IR PTZ  Camera adopts 1/2.5" progressive scan CMOS chip. With  the 25x optical zoom lens, the camera offers more details  over expansive areas.  This series of cameras can be widely used for wide  ranges of high-definition, such as the rivers, forests,  roads, railways, airports, ports, squares, parks, scenic  spots, stations and large venues, etc.    Key Features  * 1/2.5" progressive scan CMOS  * Up to 2560 x 1440 resolution  * Min. illumination:  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  * 25x optical zoom, 16x digital zoom  * 120 dB WDR, 3D DNR, HLC, BLC  * Up to 50 m IR distance  * 12 VDC & PoE+ (802.3 at, class4)  * Support H.265+/H.265 video compression      DS-2DE4A425IW-DE  4 MP 25x Network IR PTZ Camera      Specification  Camera Module  Image Sensor 1/2.5" progressive scan CMOS  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  White Balance  Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent  Lamp/Sodium Lamp  AGC Auto/Manual  Shutter Time 1/1 s ...

Warning! Product withdrawn from production!

Replacement product: DS-2DE4A425IW-DE(B)

Replacement product code: 301315756

Warranty: 36 mon.

Datasheet

DS-7300HQHI-F4/N SERIES TURBO HD DVR    Appearance Design   Typical chassis design to guarantee the low noise and environmental protection of the device   Front slot of DVD-R/W for more convenient installation and maintenance  Video Input and Transmission   Connectable to HDTVI, AHD and analog cameras   Up to 6/10/18-ch 4 MP IP cameras input for DS-7304/7308/7316HQHI-F4/N   Long distance transmission over UTP and coaxial cable with max. 1200m for the 720p and max. 800m for the 1080p HDTVI  signal  Compression and Recording   One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs   Up to 3 MP resolution for recording of the first channel of DS-7304HQHI-F4/N, the first 2 channels of DS-7308HQHI-F4/N, and  the first 4 channels of DS-7316HQHI-F4/N   Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p   Supports POS triggered recording and POS information overlay  Video Output   HDMI and VGA output can be configured simultaneous or independent. If simultaneous, up to 4K (3840 x 2160) resolution is  supported; if independent, up to 1920 x 1080 resolution for VGA output and up to 4K (3840 x 2160) resolution for HDMI out...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS -7600N I-E2/Gx Series NVR    Introduction:  DS -7600 NI-E2/Gx series NVR (Network Video Recorder) is a new  generation recorder developed by Hikvision independently. Combined with  multiple advanced technologies, such as audio and video decoding  technology, embedded system technology, storage technology, network  technology and intelligent technology. It can both work alone as a recorder  and cooperate with other device to form a comprehensive surveillance system.  The DS-7600NI-E2/Gx series NVR are widely applied in the areas of finance,  public security, military, communication, transportation, education, etc..  Available Models:  DS -7608NI-E2/GLF, DS-7616NI-E2/GLF, DS-7632NI-E2/GLF.  DS -7608NI-E2/GW, DS-7616NI-E2/GW, DS-7632NI-E2/GW.  Main Features:   Connectable to the third -party network cameras like like ACTI,  Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC,  Pelco, PSIA, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.   Up to 16 network cameras can be connected.   Support live view, storage, and playback of the connected camera with  up to the resolution of 5 megapixels.   Simultaneous HDMI and VGA outputs at up to 1920x1080 resolution...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-D5055UC-C  55-inch LCD Monitor                 Designed for surveillance, high reliability and stability       55" LED backlight with wide display equipment       4K resolution is 4 times the resolution of 1080p, providing a wider view and more fine detail       Multiple inputs: HDMI, VGA, RJ45, USB       Narrow front bezel       Wide view angle: Horizontal 178°, Vertical 178°       24/7 operation                     Specification  Model DS-D5055UC-C  Display  Screen Size 55”  Active Display Area 1209.6 (H) mm x 680.4 (V) mm  Resolution 3840 x 2160@60 Hz  Backlight LED  Pixel Pitch 0.315 (H) mm x 0.315 (V) mm  Brightness 350 cd/m²  Viewing Angle 178° (H) / 178° (V)  Color Depth 8 bit  Contrast Ratio 1200:1  Response Time 8 ms  Refresh Rate 60 Hz  Haze 1%  Reliability 7 x 24 H  Color Gamut 72% NTSC  Interface  Video & Audio Input HDMI 1.4 x 1, HDMI2.0 x 1, VGA x 1, Audio in x 1  Video & Audio Output Speaker (6Ω 11W) x 2  Data Transmission  Interface  USB x 1  Control Interface RS232 x 1  Power  Power Supply 100~240 V...

Warranty: 36 mon.

Datasheet

Overview  Hikvision DS-2PT3326IZ-DE3 (2.8-12mm) 2MP Network  PTZ Camera, with the integration design, is able to  capture 360° images with the panoramic cameras as well  as close-up images with the PTZ camera.    System Functions  * 3-ch panoramic images in different directions and  1-ch close-up image  * Support PTZ linkage  * 1-ch audio input and 1-ch audio output  * Support H.265 video compression  * Built-in memory card slot, support Micro  SD/SDHC/SDXC, up to 256 GB  * Open-ended API, support ONVIF, ISAPI, and CGI,  support HIKVISION SDK and Third-Party  Management Platform  * Up to 10 m IR (radius)  Panoramic Camera  * Three 1/2.8" progressive scan CMOS  * 3-ch 1920 x 1080@30fps resolution  * Min. illumination:  Color: 0.05 Lux @(F2.0, AGC ON)  B/W: 0.01 Lux @(F2.0, AGC ON)  0 Lux with IR  * Support H.265 video compression  * Horizontal FOV: 128.5° x 3    PTZ Camera  * 1/2.8" progressive scan CMOS  * Up to 1920 x 1080@30fps resolution  * Min. illumination:  Color: 0.05 Lux @(F2.0, AGC ON)  B/W: 0.01 Lux @(F2.0, AGC ON)  0 Lux with IR  * Support H.265 video compression      DS-2PT3326IZ-DE3 (2.8-12mm)  P...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

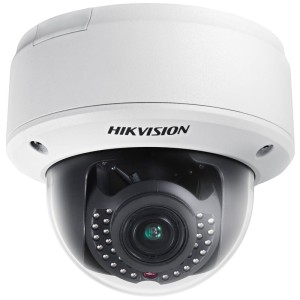

www.hikvision.com    Key features  Dimensions  Accessories  Specifi cations    WDR    Low Ligh t    1/3”  CMOS  CMOS    • 1/3” progressive scan CMOS  • H.264 / MPEG4 / MJPEG video compression  • Up to 2 megapixel (1920 x 1080) resolution  • Full HD1080P real time video  • 120 dB wide dynamic range  • True day / night  • PoE  • 3-axis adjustment  DS-2CD754FWD-E(I) 2 MP WDR Network Dome Camera   DS-1227ZJ  (Indoor in-ceiling mount)  DS-1229ZJ   (Vandal-proof wall mount)    Unit: mm    DS-2CD754FWD-E(I)  Camera  Image sensor 1/3” progressive scan CMOS  Min. illumination  0.1 lux@F1.6, AGC on  -I: 0.1 lux@F1.6, AGC on, 0 lux with IR  Shutter time ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2DE5225IW-AE (S5)  2 MP 25 x IR Network Speed Dome                        Hikvision DS-2DE5225IW-AE (S5) 2 MP 25 x IR Network Speed  Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 x  optical zoom lens, the camera offers more details over  expansive areas.  This series of cameras can be widely used for wide ranges of  high-definition, such as the rivers, roads, railways, airports,  squares, parks, scenic spots, and venues, etc.   Accurate human and vehicle target classification and alarm  based on deep learning algorithm   Support face capture. Up to 5 faces captured at the same time   1/2.8" Progressive Scan CMOS   Up to 1920 x 1080 @30fps resolution   Excellent low-light performance with powered-by-DarkFighter  technology   25 x optical zoom, 16 x digital zoom   WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional  Focus   Up to 150 m IR distance   24 VAC & Hi-PoE   Support H.265+/H.265 video compression               Specification  Camera Module  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux wi...

Warning! Product withdrawn from production!

Replacement product: DS-2DE5425IW-AE(T5)

Replacement product code: 327000458

Warranty: 36 mon.

Datasheet

DS-2DE4425IW-DE (S5)  4 MP 25 x IR Network Speed Dome                          Hikvision DS-2DE4425IW-DE (S5) 4 MP 25 x IR Network Speed  Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 x  optical zoom lens, the camera offers more details over  expansive areas.  This series of cameras can be widely used for wide ranges of  high-definition, such as the rivers, roads, railways, airports,  squares, parks, scenic spots, and venues, etc.   Accurate human and vehicle target classification and  alarm based on deep learning algorithm   Support face capture. Up to 5 faces captured at the same  time   1/2.8" Progressive Scan CMOS   Up to 2560 x 1440 @30fps resolution   Excellent low-light performance with  powered-by-DarkFighter technology   25 x optical zoom, 16 x digital zoom   WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure,  Regional Focus   Up to 100 m IR distance   12 VDC & POE (802.3at)   Support H.265+/H.265 video compression               Specification  Camera Module  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, ...

Warning! Product withdrawn from production!

Replacement product: DS-2DE4425IW-DE(T5)

Replacement product code: 327000240

Warranty: 36 mon.

Datasheet

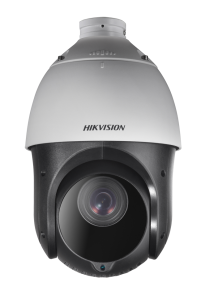

Hikvision DS-2DE4425IW-DE 4MP 25x Network IR Speed  Dome adopts 1/2.5" progressive scan CMOS chip. With  the 25x optical zoom lens, the camera offers more details  over expansive areas.  This series of cameras can be widely used for wide  ranges of high-definition, such as the rivers, roads,  railways, airports, squares, parks, scenic spots, and  venues, etc.    Key Features  * 1/2.5" progressive scan CMOS  * Up to 2560 x 1440@30fps resolution  * Min. illumination:  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 Lux with IR  * 25x optical zoom, 16x digital zoom  * WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional  Exposure, Regional Focus  * Up to 100 m IR distance  * 12 VDC & PoE+ (802.3 at, class 4)  * Support H.265+/H.265 video compression        DS-2DE4425IW-DE (C)  4MP 25x Network IR Speed Dome        Specification  Camera Module  Image Sensor 1/2.5" progressive scan CMOS  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001Lux @(F1.6, AGC ON)  0 Lux with IR  White Balance  Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent  Lamp/Sodium Lamp  Gain Auto...

Warning! Product withdrawn from production!

Replacement product: DS-2DE4425IW-DE(S6)

Replacement product code: 327000150

Warranty: 36 mon.

Datasheet

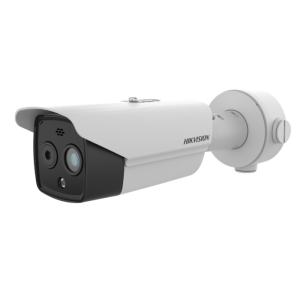

DS-2TD2628-3/QA  Thermal & Optical Bi-spectrum Network Bullet Camera                  Hikvision DS-2TD2628-3/QA Thermal & Optical Bi-spectrum Network Bullet Camera supports video analysis for perimeter  protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can  realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas,  communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.     Key Feature  ● 256 x 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)  ● Video content analysis: vehicle/human classification  ● Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)  ● Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR  ● High quality detector with 10 years guarantee           Specification  Thermal Module  Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays  Resolution 256 x 192  Pixel Pitch 12 μm  Spectral Range 8 μm to 14 μm  NETD < 40 mK (25°C, F1.0)  Focal Length 3.6 mm  IFOV ...

Warranty: 36 mon.

Datasheet

DS-2TD2628-7/QA  Thermal & Optical Bi-spectrum Network Bullet Camera                    Hikvision DS-2TD2628-7/QA Thermal & Optical Bi-spectrum Network Bullet Camera supports video analysis for perimeter  protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can realize  high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities, parking  lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc     Key Feature   256 x 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)   Video content analysis: vehicle/human classification   Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)   Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR   High quality detector with 10 years guarantee             Specification  Thermal Module  Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays  Resolution 256 x 192  Pixel Pitch 12 μm  Spectral Range 8 μm to 14 μm  NETD < 40 mK (25°C, F1.0)  Focal Length 6.9mm ...

Warranty: 36 mon.

Datasheet

DS-2TD2628-10/QA  Thermal & Optical Bi-spectrum Network Bullet Camera                  Hikvision DS-2TD2628-10/QA Thermal & Optical Bi-spectrum Network Bullet Camera supports video analysis for perimeter  protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can realize  high precision VCA detection and real-time alarm. These camera series can be widely applied to villas, communities,  parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.     Key Feature  ● 256 x 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)  ● Video content analysis: vehicle/human classification  ● Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)  ● Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR  ● High quality detector with 10 years guarantee               Specification  Thermal Module  Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays  Resolution 256 x 192  Pixel Pitch 12 μm  Spectral Range 8 μm to 14 μm  NETD < 40 mK (25°C, F1.0)  Focal Length 9.7...

Warranty: 36 mon.

Datasheet

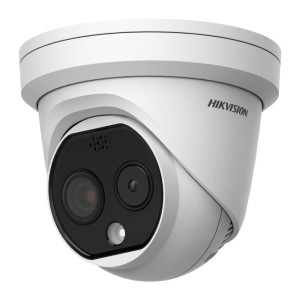

DS-2TD1228-3/QA  Thermal & Optical Bi-spectrum Network Turret Camera                    Hikvision DS-2TD1228-3/QA Thermal & Optical Bi-spectrum Network Turret Camera supports video analysis for perimeter  protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can  realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas,  communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.     Key Feature   256 x 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)   Video content analysis: vehicle/human classification   Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)   Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR   High quality detector with 10 years guarantee           Specification  Thermal Module  Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays  Resolution 256 x 192  Pixel Pitch 12 μm  Spectral Range 8 μm to 14 μm  NETD < 40 mK (25°C, F1.1)  Focal Length 3.6 mm

Warranty: 36 mon.

Datasheet

 DS-3E23XXP Series supports the telecom-level Ethernet-ring protection protocol with a protection shift time  of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to  the requirements of high reliability of carriers;   DS-3E23XXP Series has powerful ACL functions to access and control L2-L7 data, providing carriers flexible  and various policy control methods;   DS-3E23XXP Series supports In-Service Software Upgrade (ISSU) to ensure the unremitting data  forwarding during system upgrade;   DS-3E23XXP Series supports various L2 multicast functions such as IGMP-snooping, user fast-leave  mechanism and trans-vlan multicast copy;   DS-3E23XXP Series supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external  power supply, that is, 24-port AF full-load power supply.   DS DS-3E23XXP Series supports the configuration of Base-T port priority when the power is inadequate.   DS-3E23XXP Series supports POE port and up to 4KV power thunder-proof.   DS-3E23XXP Series supports priority retagging and complicated flow classification based on VLAN, MAC,  source address, destination address, IP or priority to better streamline carrier’s s...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Hikvision DS-2DE5220W-AE(3) Network Speed Domes  adopt 1/2.8" progressive scan CMOS chip. With the 20x  optical zoom lens, the camera offers more details over  expansive areas.  This series of cameras can be widely used for wide  ranges of high-definition, such as the rivers, forests,  roads, railways, airports, ports, squares, parks, scenic  spots, stations and large venues, etc.    Key Features  * 1/2.8" Progressive Scan CMOS  * Up to 1920 x 1080 resolution  * 20x Optical Zoom, 16x Digital Zoom  * Digital WDR  * 3D intelligent positioning function  * 24 VAC & PoE+ (802.3at, class4)  * Support H.265 video compression          DS-2DE5220W-AE(3)  2MP 20x Network Speed Dome        Specification  Camera Module  DS-2DE5220W-AE(3)  2MP 20x Network Speed Dome  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.05 Lux @(F1.6, AGC ON)  B/W: 0.01Lux @(F1.6, AGC ON)  White Balance  Auto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium  Lamp  AGC Auto/Manual  Shutter Time 1/1 s to 1/30,000 s  Day & Night IR Cut Filter  Digital Zoom 16x  Privacy Mask 8 programmable...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
