DS-2AE5230T-A
Description

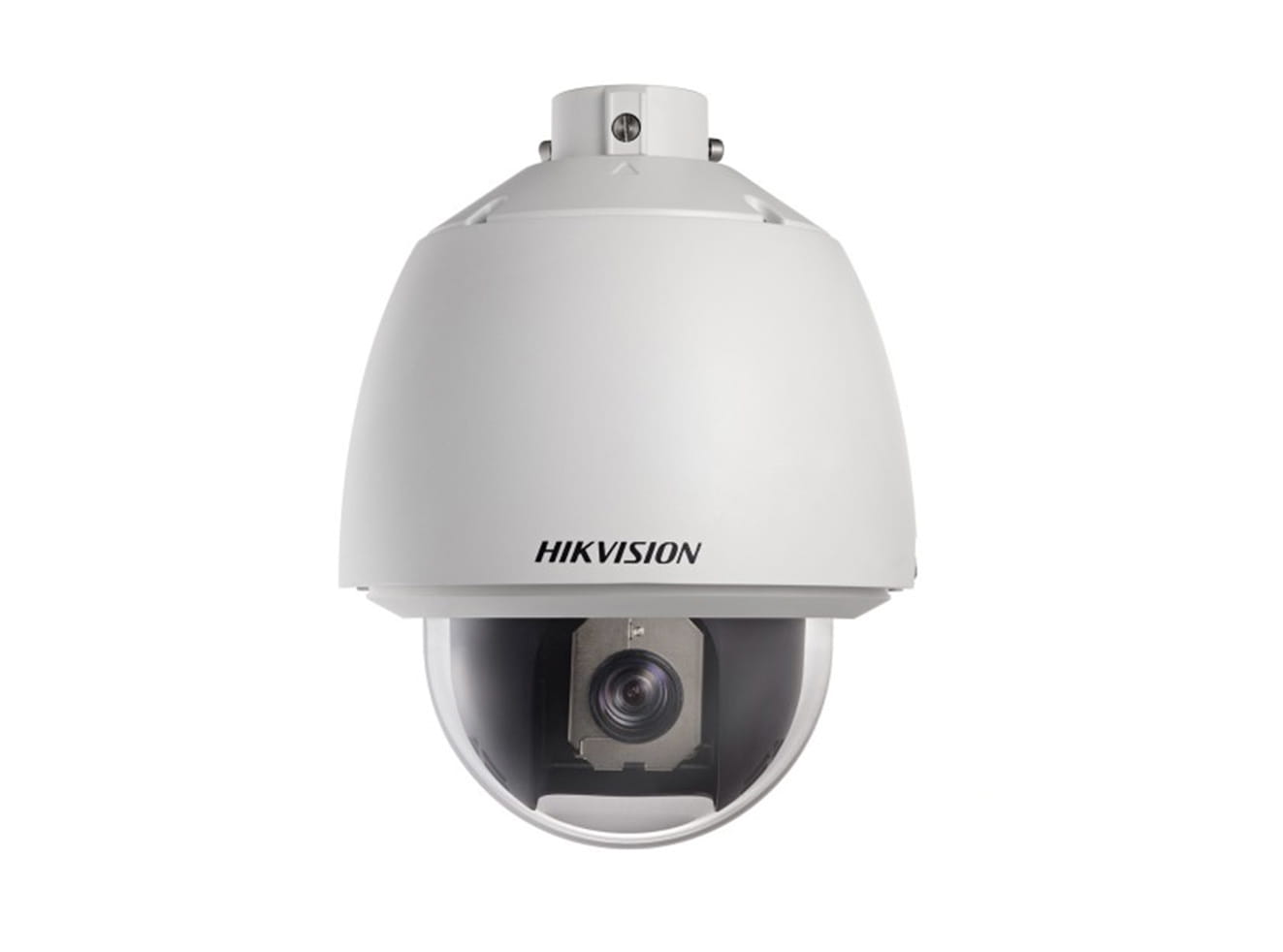

©2006 – 2014 by HIKVISION. All rights reserved. 1 DS-2AE5230T E Series 5 Inch turbo HD1080p PTZ Dome Camera Key features System function: 1/3’’ high performance CMOS, up to 1920x1080 resolution ±0.1° Preset Accuracy Self-adaptive to HIKVISION, Pelco-P/D protocol 3D intelligent positioning function Power-off memory function: restore PTZ & Lens status after reboot Built-in temperature sensor, with display of internal temperature Lightning protection, surge protection and voltage transient protection IP66 standard (outdoor dome) Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10 RS-485 communication diagnosis Scheduled PTZ movement UTC(Up the Coax) function Camera function: Auto focus, auto white balance, backlight compensation and auto/manual day & night switch Privacy masks programmable 3D DNR, digital WDR PTZ function: 360° endless pan range and -5°-90° tilt range 300°/s Pan Preset Speed and 200°/s Tilt Preset Speed 0.1°-250°/s Manual Pan Speed and 0.1°-150°/s Manual Tilt Speed 256 presets programmable; preset image freezing capability 8 patrols, up to 32 pres...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2AE5230T
E Series 5 Inch turbo HD1080p PTZ Dome Camera
Key features
System function:
1/3’’ high performance CMOS, up to 1920x1080 resolution
±0.1° Preset Accuracy
Self-adaptive to HIKVISION, Pelco-P/D protocol
3D intelligent positioning function
Power-off memory function: restore PTZ & Lens status after reboot
Built-in temperature sensor, with display of internal temperature
Lightning protection, surge protection and voltage transient protection
IP66 standard (outdoor dome)
Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10
RS-485 communication diagnosis
Scheduled PTZ movement
UTC(Up the Coax) function
Camera function:
Auto focus, auto white balance, backlight compensation and auto/manual day & night switch
Privacy masks programmable
3D DNR, digital WDR
PTZ function:
360° endless pan range and -5°-90° tilt range
300°/s Pan Preset Speed and 200°/s Tilt Preset Speed
0.1°-250°/s Manual Pan Speed and 0.1°-150°/s Manual Tilt Speed
256 presets programmable; preset image freezing capability
8 patrols, up to 32 presets per patrol
4 patterns, with the total recording time not less than 10 minutes
Proportional zoom function
Park action: auto call up of PTZ movement, after a defined time of inactivity
©2006 – 2014 by HIKVISION. All rights reserved.
2
Application Scenarios
It can be widely applied to places requiring wide-area monitoring display, such as rivers, forests, highways, railways,
airports, ports, sentries, squares, parks, scenic sites, streets, stations, large venues, outside of residential areas, etc., and
the auto tracking function can be applied to the perimeter protection scenes, e.g., the perimeter of airport, harbor, and
residential community.
Specifications
Model
Parameter
DS-2AE5230T-A: 24VAC, Outdoor
DS-2AE5230T-A3: 24VAC, Indoor
E Series 5 Inch turbo HD1080p PTZ Dome Camera
Camera
Image Sensor 1/3’’ CMOS
Max. Image Resolution 1920x1080
Frame Rate
50Hz:25fps(1280x1080)
60Hz:30fps(1280x1080)
Min. Illumination
Color: 0.02Lux@(F1.6,AGC ON)
B/W: 0.002Lux@(F1.6,AGC ON)
White Balance Auto / Manual / ATW / Indoor / Outdoor
AGC Auto / Manual
S / N Ratio ≥ 50dB
3D DNR Support
Backlight Compensation Support
WDR Digital WDR
Shutter Time
PAL: 1-1/10,000s
NTSC: 1-1/10,000s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the
same video screen
Focus Model Auto / Semiautomatic / Manual
Lens
Focal Length 4-120mm, 30X
Zoom Speed Approx.3.0s(Optical Wide-Tele)
Angle of View 58-1.7 degree(Wide-Tele)
Min. Working Distance 10-1500mm (Wide-Tele)
Aperture F1.6-F4.4
Pan and
Tilt
Pan Range 360° endless
Pan Speed
Pan Manual Speed: 0.1°-250°/s,
Pan Preset Speed: 300°/s
Tilt Range -5°-90° (Auto Flip )
Tilt Speed Tilt Manual Speed: 0.1°-150°/s,
©2006 – 2014 by HIKVISION. All rights reserved.
3
Tilt Preset Speed: 200°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Power-off Memory Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display On / Off
Preset Freezing Support
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication
diagnosis
Support
Input/
Output
Monitor Output
1 turbo HD1080p output
1 CVBS output: 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
TT
TOM
O
*Need UTC controller if DVR don’t support UTC function
General
Menu Language English, Chinese
Power
24VAC
Outdoor dome: Max. 20W (Heater On), Max. 12W(Heater Off)
Indoor dome: Max.12W
Working Temperature /
Humidity
-30 °C-65°C(-22°F-149°F)(outdoor dome) / -10°C-50°C(14°F-122°F)(indoor dome )
90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Impact Protection
Outdoor: IEC60068-275Eh, 20J; EN50102, up to IK10
Indoor: IEC60068-275Eh, 10J; EN50102, up to IK09
Mounting Various mounting modes optional
Dimensions
Φ220x35mm (Φ8.66”x12.”)(Outdoor)
Φ183.4x243mm(Φ7.22”x9.56”) (Indoor)
Φ245x236mm(Φ9.65”x9.29”) (In
PUOV
V T
T
MRMR
MR Power box mount:DS-1602ZJ-box
©2006 – 2014 by HIKVISION. All rights reserved.
4
Dimensions
Order models
DS-2AE5230T-A, 24VAC, outdoor
DS-2AE5230T-A3, 24VAC, indoor
Accessories
DS-1602ZJ Long-arm Wall Mount Bracket
Unit: mm
