DAHUA

DH-PFS3005-4ET-60     Product Overview  DH-PFS3005-4ET-60 is a layer two fast ethernet switch, which supports  250 meters long distance PoE transmission. It provides 4*10/100Mbps  PoE ports and 1*100 Mbps uplink ports. In order to acquire smooth  monitoring, it’s recommended to connect max 4 IP cameras at a bit rate  of less than 4Mbps respectively.  www.dahuasecurity.com   Features  · Layer two commercial switch  · Supports PoE power management  · Supports wall-mount installation  · Supports anti-theft lock hole  · MAC auto learning and aging, MAC address capacity is 1K  · Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards  · RJ45 port supports 10/100Mbps self-adaptation  · Supports 250 meters long distance PoE transmission  · Conforms to IEEE802.3af and IEEE802.3at power supply  standard. Port 1 supports Hi-PoE 60W power supply  DH-PFS3005-4ET-60  4-Port PoE Switch (Unmanaged)    Technical Specification  ModelDH-PFS3005-4ET-60  Ethernet Port  1*10/100 Base-T  4*10/100 Base-T (PoE power supply)  PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W  PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)  PoE Power ManagementSupport  PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE...

Warning! Product withdrawn from production!

Replacement product: PFS3005-4ET-60-V2

Warranty: 36 mon.

Datasheet

www.dahuasecurity.com    Lens Series | PLZ1040-D  PLZ1040-D   4 MP 1/2.7” 2.7-12mm Vari-focal Lens      Lens Series | PLZ1040-D    www.dahuasecurity.com    Technical Specification  ModelPLZ1040-D  Prameter  Image Format1/2.7”  Focal Length2.7-12mm  Lens Pixel4MP  ApertureF1.6  MountCS  Field Angle  (D*H*V)  1/2.7” W: 137.8°(D)x102.6°(H)x74.3°(V)~T: 37.2°(D)x29.9°(H)x22.6°(V)  1/3” W: 120.1°(D)x91.3°(H)x66.3°(V)~T: 33.9°(D)x27.1°(H)x20.3°(V)  Lens Control  FocusManual  ZoomManual  IrisDC-Iris  IR CorrectionYes  TV Distortion -69.58%(w) ~ -3.3%  M.O.D.0.3m (0.98ft)  Dimension ɸ33.7mmx57.6mm (ɸ1.32”x2.27”)  Weight73.5g (0.16lb)  Operating Temperature-30℃~+70℃ (-22℉~+158℉)  Humidity<90% RH  Certifications  Certifications  CE (EN55022, EN55024, EN50130-4)  FCC (ANSI C63.4, FCC Part 15 Subpart B)      Ordering Information  TypePart NumberDescription  Lens  DH-PLZ1040-D 4MP 1/2.7” 2.7-12mm vari-focal lens  PLZ1040-D 4MP 1/2.7” 2.7-12mm vari-focal lens    Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.    Lens Series | PLZ1040-D    www.dahuasecurity.com    Dimensions (m...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Series | DH-HAC-HDBW1200E     System Overview  Experience full HD 1080P/ HD 720P video with the simplicity of using  existing cabling infrastructure. The Lite series features compact design  and high quality image at friendly price. It offers various vari-focal/fixed  lens models with multi-language OSD and HD/SD switchable output. The  structure flexibility and best cost-performance makes lite series camera  an ideal choice for SMB solutions.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at long distance  without any loss. It supports up to 800m(1080P)/1200m(720P)  transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via  UTP cable.*  *Actual results verified by real-scene testing in Dahua's test laboratory....

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DC 12V    1080p    IP67  Audio  Series   Lite  Lite Plus Series | DH-HAC-HDW1239TL(-A)-LED    www.dahuasecurity.com  DH-HAC-HDW1239TL(-A)-LED  2M Full-color Starlight HDCVI Eyeball Camera     System Overview  Experience 1080P full HD color video and the simplicity of reusing  existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI  camera presents a high quality color image with rich details even in total  darkness conditions. It offers various fixed lens models with a multi-lan-  guage OSD and HD/SD switchable output. It adopts two powerful warm  white LED illuminators, covering an effective range up to 20m(65.61ft).  The LEDs switch on automatically in darkness to capture detail-packed  full-color images 24/7, ensuring anthentic identificaiton of objects. It is  an ideal choice for applications such as schools, retail centers and park-  ing lots.    Functions  Full-color Starlight  The camera adopts F1.6 large aperture lens and 1/2.8" high perfor-  mance sensor. With higher amount of absorbed light and advanced  image processing algorithm, the camera presents an impressive lowlight  performance with an exceptional balance between noise reduction and  th...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

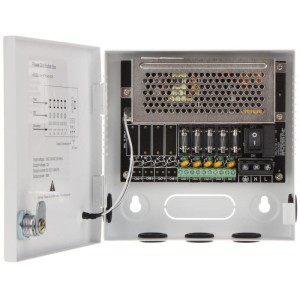

Power Series | DH-PFM340-5CH            www.dahuasecurity.com     DH-PFM340-5CH   CCTV Distributed Power Supply                    Features  * 5 Channel security camera power supply distribution box with individual LED output indicator and  metal case by lock key to prevent unauthorized access.  * Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network  fluctuation.  * High quality and reliability: pass 100% quality examination and 3 months high temperature aging  test.  * With overload protection, over-current protection, over-voltage protection, anti-static and  anti-interference ability.  * Professional wall-mounted installation with reserved outlet holes, convenient and flexible.      Power Series | DH-PFM340-5CH    www.dahuasecurity.com  Technical Specifications  Model DH-PFM340-5CH  General  Input voltage range AC90~264V  Outputs 5 x 12VDC (-3%~+7%) Outputs  Max. output 4 A  Output protection 5 replacement fuses, max. per output 2.5A  Efficiency 84%  No load power consumption <0.5W  Surge protected  Line to ground: 4000V  Line to line: 200...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DC 12V    1080p    IP67  Audio  Series   Lite  Lite Plus Series | DH-HAC-HDW1239TL(-A)-LED    www.dahuasecurity.com  DH-HAC-HDW1239TL(-A)-LED  2M Full-color Starlight HDCVI Eyeball Camera     System Overview  Experience 1080P full HD color video and the simplicity of reusing  existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI  camera presents a high quality color image with rich details even in total  darkness conditions. It offers various fixed lens models with a multi-lan-  guage OSD and HD/SD switchable output. It adopts two powerful warm  white LED illuminators, covering an effective range up to 20m(65.61ft).  The LEDs switch on automatically in darkness to capture detail-packed  full-color images 24/7, ensuring anthentic identificaiton of objects. It is  an ideal choice for applications such as schools, retail centers and park-  ing lots.    Functions  Full-color Starlight  The camera adopts F1.6 large aperture lens and 1/2.8" high perfor-  mance sensor. With higher amount of absorbed light and advanced  image processing algorithm, the camera presents an impressive lowlight  performance with an exceptional balance between noise reduction and  th...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

PFT1200  www.dahuasecurity.com   Features·   S PE H PE W  dome·   I P PE   ·   C PE E PFT   PE E IPC  AMA W ·   I P  PFT1200  H PE M  T S  MPFT1200  Ethernet Port   B T   B T PE  PE P SPoE/PoE+/Hi-PoE  IP PE  E M S  A H10%~90%  W T C C  Weight390g  D WADAH A A...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Series | DH-HAC-HFW1200T     System Overview  Experience 1080P full HD video and the simplicity of using existing cabling  infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a  compact design and offers a high quality image at a friendly price. It offers  various motorized/fixed lens models with a multi-language OSD and HD/  SD switchable output. Its structural flexibility and high cost-performance  makes the camera an ideal choice for SMB solutions.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the XVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at long distance  without any loss. It supports up to 800m(1080P)/1200m(720P) trans-  mission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP  cable.*  *Actual results verified by real-scene testing in Dah...

Warranty: 36 mon.

Datasheet

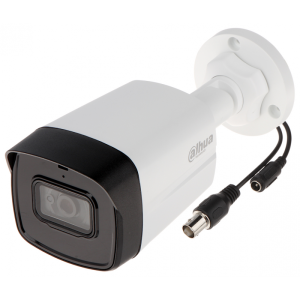

Lite Series | DH-HAC-HFW1400TL-A     System Overview  Experience superior 4MP video and the simplicity of reusing existing  coaxial infrastructure with HDCVI. The Lite series 4MP HDCVI camera  features a compact design and offers a high quality image with rich details  at a friendly price. It offers various vari-focal/fixed lens models with a  multi-language OSD and HD/SD switchable output. Its structural flexibility  and high cost-performance makes the camera an ideal choice for SMB  solutions.   Functions  Broadcast-quality Audio  Audio information is used as supplementary evidence in video surveillance  applications. The HDCVI camera supports audio signal transmission over  coaxial cable. In addition, it adopts unique audio processing and  transmission technology that best restores source audio and eliminates  noise, guaranteeing the quality and effectiveness of collected audio  information.  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Mo...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

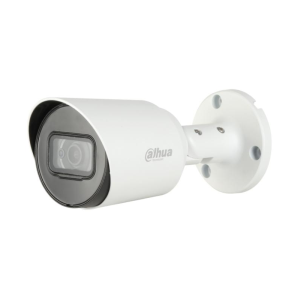

Lite Series | DH-HAC-HFW1500T     System Overview  Experience superior 5MP video and the simplicity of reusing existing  coaxial infrastructure with HDCVI. The Lite series 5MP HDCVI camera  features a compact design and offers a high quality image with rich details  at a friendly price. It offers various vari-focal/fixed lens models with a  multi-language OSD and HD/SD switchable output. Its structural flexibility  and high cost-performance makes the camera an ideal choice for SMB  solutions.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees long-distance and real-time transmission  without any loss. It supports up to 700m for 5MP HD video via coaxial  cable, and up to 300m via UTP cable.*  *Actual results verified by real-scene testing in Dahua's test...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Series | DH-HAC-HFW1400T-A     System Overview  Experience superior 4MP video and the simplicity of reusing existing  coaxial infrastructure with HDCVI. The Lite series 4MP HDCVI camera  features a compact design and offers a high quality image with rich details  at a friendly price. It offers various vari-focal/fixed lens models with a  multi-language OSD and HD/SD switchable output. Its structural flexibility  and high cost-performance makes the camera an ideal choice for SMB  solutions.   Functions  Broadcast-quality Audio  Audio information is used as supplementary evidence in video surveillance  applications. The HDCVI camera supports audio signal transmission over  coaxial cable. In addition, it adopts unique audio processing and  transmission technology that best restores source audio and eliminates  noise, guaranteeing  the quality and effectiveness of collected audio information.  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the HCVR, such as  sending control signal or triggering alarm. Moreover, HD...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Series | DH-HAC-HFW1230T     System Overview  Experience 1080P full HD video and the simplicity of using existing cabling  infrastructure with HDCVI. The 1080P starlight HDCVI camera presents  a high quality image with rich details even under extreme low-light  conditions. Also, the Lite series features compact design and friendly  price. It offers various motorized vari-focal/fixed lens models with a  multi-language OSD and HD/SD switchable output. Its structural flexibility  and high cost-performance makes the camera an ideal choice for SMB  solutions.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the XVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at long distance  without any loss. It supports up to 800m(1080P)/1200m(720P) trans-  mission via coaxial cable, and ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Lite Series | DH-HAC-HFW1230T     System Overview  Experience 1080P full HD video and the simplicity of using existing cabling  infrastructure with HDCVI. The 1080P starlight HDCVI camera presents  a high quality image with rich details even under extreme low-light  conditions. Also, the Lite series features compact design and friendly  price. It offers various motorized vari-focal/fixed lens models with a  multi-language OSD and HD/SD switchable output. Its structural flexibility  and high cost-performance makes the camera an ideal choice for SMB  solutions.   Functions  4 Signals over 1 Coaxial Cable  HDCVI technology supports 4 signals to be transmitted over 1 coaxial  cable simultaneously, i.e. video, audio*, data and power. Dual-way data  transmission allows the HDCVI camera to interact with the XVR, such as  sending control signal or triggering alarm. Moreover, HDCVI technology  supports PoC for construction flexibility.  * Audio input is available for some models of HDCVI cameras.  Long Distance Transmission  HDCVI technology guarantees real-time transmission at long distance  without any loss. It supports up to 800m(1080P)/1200m(720P) trans-  mission via coaxial cable, and ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet
