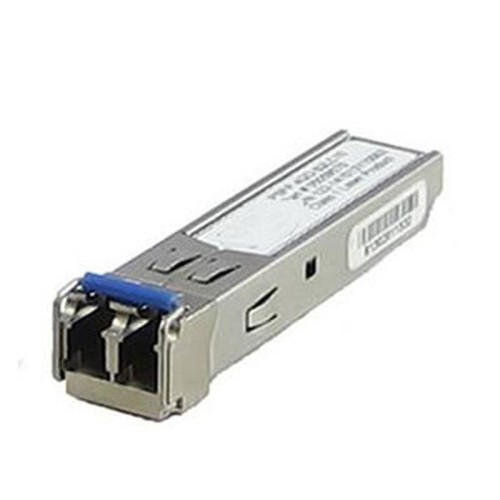

PFT3950

MULTI-MODE MODULE  Optical modules complying with SFP (Small Form-factor  Pluggable) standard are devices converting electrical signal  to the optical form and optical signal to the electrical form.  Usage media converters with the ability to exchange SFP  modules is particularly preferred because of its versatility,  for example if you change the network confguration rather  than replace the entire unit or add new media converters  simply select the appropriate SFP module. Modules  complying with most of switches and routers with SFP  socket.    SPECIFICATION    Transmission protocols :  IEEE 802.3u 100Base-FX    Fiber type :  Multi-mode fber    Maximal transmission range :  0.5 km    Transfer rate :  max. 1.25 Gb/s    Number of used fbers :  2    Optical connectors :  2 x LC    Light source / optica...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

MULTI-MODE MODULE
Optical modules complying with SFP (Small Form-factor
Pluggable) standard are devices converting electrical signal
to the optical form and optical signal to the electrical form.
Usage media converters with the ability to exchange SFP
modules is particularly preferred because of its versatility,
for example if you change the network confguration rather
than replace the entire unit or add new media converters
simply select the appropriate SFP module. Modules
complying with most of switches and routers with SFP
socket.

SPECIFICATION

Transmission protocols :
IEEE 802.3u 100Base-FX

Fiber type :
Multi-mode fber

Maximal transmission range :
0.5 km

Transfer rate :
max. 1.25 Gb/s

Number of used fbers :
2

Optical connectors :
2 x LC

Light source / optical wavelength :
Laser FP - 850 nm (Tx / Rx)

Power supply :
3.3 V DC

Operation temp :
40- °C ... 85 °C

Weight :
0.02 kg

Manufacturer / Brand :
DAHUA


PFT3950





Connection diagram:

1. switch with SFP socket
2. SFP module
3. Fiber optic transmission (max. 0.5 km)
PACKAGE

Dimensions (L x W x H): 60x15x10 mm
Gross Weight: 0.02 kg
