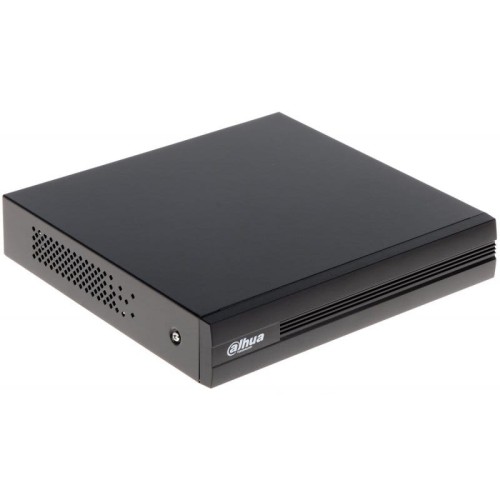

NVR1104HC-P-S3

Cooper IP Series | NVR1104HC-S3product overviewfeatures  functions    www.dahuasecurity.com  •H.265+/H.264+ codec decoding  •Max 40 Mbps/20 Mbps incoming/outgoing bandwidth  •Max 4 channel IP camera inputs  •Up to 6 MP resolution preview & playback  •Up to 1 ch @ 6 MP/4 ch @ 1080P 25 fps decoding  •HDMI/VGA simultaneous video output  Cooper IP is perfect for small to medium size applications like home /  residential security, small retail shops, and other typical SMB  applications. It offers a perfect alternative to migrate from analog  to an IP system with its easy to use nature and cost effectiveness.  Cooper IP is fully in line with Dahua’s quality. Stable and reliable  components are utilized and Various tests such as anti-vibration,  water resistance, and aging tests are performed to ensure Dahua  quality standards.  4 Channel Cooper 1U H.265 Network Video Recorder    NVR1104HC-S3    Smart H.265+  Smart H.265+ is the optimized implementation of the H.265 codec that  uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,  flexible mul...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Cooper IP Series | NVR1104HC-S3product overviewfeatures
functions

www.dahuasecurity.com
•H.265+/H.264+ codec decoding
•Max 40 Mbps/20 Mbps incoming/outgoing bandwidth
•Max 4 channel IP camera inputs
•Up to 6 MP resolution preview & playback
•Up to 1 ch @ 6 MP/4 ch @ 1080P 25 fps decoding
•HDMI/VGA simultaneous video output
Cooper IP is perfect for small to medium size applications like home /
residential security, small retail shops, and other typical SMB
applications. It offers a perfect alternative to migrate from analog
to an IP system with its easy to use nature and cost effectiveness.
Cooper IP is fully in line with Dahua’s quality. Stable and reliable
components are utilized and Various tests such as anti-vibration,
water resistance, and aging tests are performed to ensure Dahua
quality standards.
4 Channel Cooper 1U H.265 Network Video Recorder

NVR1104HC-S3

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that
uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduc -
tion to deliver high-quality video without straining the network. Smart
H.265+ technology reduces bit rate and storage requirements by up to
70% when compared to standard H.265 video compression.
Automatic Network Replenishment (ANR) Technology
Network Video Recorders with the ANR function automatically store
video data on an IP camera SD card when the network is disconnected.
After recovery of the network, the NVR automatically retrieves the
video data stored on the camera.
DMSS
The DMSS app is available on the iOS App Store and Google Play. It
makes surveillance easy and simple, allowing you to remotely access
NVR devices,view live video, receive event push notifications, and
search for recorded videos from an iPhone, iPad, or Android phone at
anytime from virtually anywhere.

Cooper IP Series | NVR1104HC-S3

www.dahuasecurity.com
technical specification



Main ProcessorDual-core embedded processor
Operating SystemEmbedded LINUX

Audio and Video
IP Camera Input 4 Channel
Two-way TalkN/A

Display
Interface1 HDMI, 1 VGA
Resolution1920x1080, 1280x1024, 1280x720
Decoding Capacity 1 ch @ 6 MP 30 fps, 4 ch @ 1080P 25 fps
Multi-screen Display1/4
OSD
Camera title, Time, Camera lock, Motion detection,
Recording

Recording
Compression H.265+/H.264+
Resolution6 MP/5 MP/4 MP/3 MP/1080P/720P/D1 etc.
Record Rate40 Mbps
Bit Rate16 Kbps~20 Mbps Per Channel
Record ModeManual, Schedule (Regular(Continuous), MD, Stop
Record Interval
1~120 min (default: 60 min)
Pre-record: 1~30 sec
Post-record: 10~300 sec

Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Snapshot,
and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18),
and Tampering
Alarm inputN/A
Relay OutputN/A

Playback and Backup
Sync Playback 1/4
Search ModeTime/Date, MD and Exact Search (accurate to 1 s)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Next Camera, Previous Camera,
Full Screen, Backup Selection, Digital Zoom
Backup Mode USB Device/Network

Third-party Support
Third-party Support
Arecont Vision, AXIS, Bosch, Brickcom, Canon,
CP Plus, Dynacolor, Honeywell, Panasonic, Pelco,
Samsung, Sanyo, Sony, Videotec, and more

Network
Interface1 RJ-45 port (10/100 Mbps)
Network Function
HTTP/HTTPS, TCP/IP, IPv4/IPv6, RT SP, UDP, NTP,
DHCP, DNS, IP Filter, IP Search (Support Dahua IP
camera, DVR, NVS and etc.), P2P
Optical Fiber InterfaceN/A
Max. User Access 128 users
SmartphoneiPhone, iPad, Android
Interoperability ONVIF, SDK, CGI Conformant

Storage
Internal HDD1 SATA III Port, up to 4 TB capacity for each HDD
HDD Mode Single
eSATAN/A

Auxiliary Interface
USB 2 ports2 ports (rear USB 2.0)
RS232N/A
RS485N/A

Electrical
Power Supply Single, DC 12 V/1.5 A
Power Consumption <2.57 W (without HDD)

Environmental
Operating Conditions -10°C~+45°C (+14°F~+113°F), 86~106 kPa
Storage Conditions -20°C~+70°C (-4°F~+158°F), 0~90% RH

Construction
Dimensions
197 mm x 196.6 mm x 41.5 mm
(7.76" x 7.74" x 1.63")
Net Weight1.15 kg (2.54 lb) (without HDD)
Gross Weight1.65 kg (3.64 lb) (without HDD)

Certifications
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014

Cooper IP Series | NVR1104HC-S3

www.dahuasecurity.com


© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
dimensions (mm)
