HIKVISION

DS-2CD2183G2-I(S)  8 MP AcuSense Fixed Dome Network Camera                              Empowered by deep learning algorithms, Hikvision AcuSense  technology brings human and vehicle targets classification  alarms to front- and back-end devices. The system focuses  on human and vehicle targets, vastly improving alarm  efficiency and effectiveness.     High quality imaging with 8 MP resolution   Clear imaging against strong backlight due to 120 dB true  WDR technology   Efficient H.265+ compression technology   Focus on human and vehicle targets classification based on  deep learning   -S: Audio and alarm interface available   Water and dust resistant (IP67) and vandal-resistant (IK10)               Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 120 dB  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°  Lens  Lens Type Fixed focal length, 2.8 and 4 mm optional

Warning! Product withdrawn from production!

Replacement product: DS-2CD2183G2-IU(4mm)

Replacement product code: 311315968

Warranty: 36 mon.

Datasheet

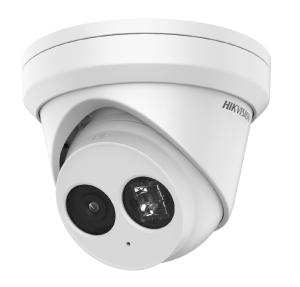

DS-2CD2383G2-I(U)  8 MP AcuSense Fixed Turret Network Camera                                Empowered by deep learning algorithms, Hikvision AcuSense  technology brings human and vehicle targets classification  alarms to front- and back-end devices. The system focuses  on human and vehicle targets, vastly improving alarm  efficiency and effectiveness.     High quality imaging with 8 MP resolution   Efficient H.265+ compression technology   Clear imaging against strong backlight due to 120 dB WDR  technology   Focusing on human and vehicle classification based on  deep learning   -U: Built-in microphone for real-time audio security   Water and dust resistant (IP67)               Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 120 dB  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Lens Type Fixed focal length, 2.8 and 4 mm optional  Focal Length ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2383G2-IU(2.8mm)

Replacement product code: 311316076

Warranty: 36 mon.

Datasheet

DS-2CD2383G2-I(U)  8 MP AcuSense Fixed Turret Network Camera                                Empowered by deep learning algorithms, Hikvision AcuSense  technology brings human and vehicle targets classification  alarms to front- and back-end devices. The system focuses  on human and vehicle targets, vastly improving alarm  efficiency and effectiveness.     High quality imaging with 8 MP resolution   Efficient H.265+ compression technology   Clear imaging against strong backlight due to 120 dB WDR  technology   Focusing on human and vehicle classification based on  deep learning   -U: Built-in microphone for real-time audio security   Water and dust resistant (IP67)               Specification  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 120 dB  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Lens Type Fixed focal length, 2.8 and 4 mm optional  Focal Length ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2383G2-IU(4mm)

Replacement product code: 311316077

Warranty: 36 mon.

Datasheet

DS-2CD2T46G2-2I/4I  4 MP AcuSense Powered-by-DarkFighter Fixed Bullet Network Camera                                    Empowered by deep learning algorithms, Hikvision AcuSense  technology brings human and vehicle targets classification  alarms to front- and back-end devices. The system focuses  on human and vehicle targets, vastly improving alarm  efficiency and effectiveness.     High quality imaging with 4 MP resolution   Excellent low-light performance with  powered-by-DarkFighter technology   Clear imaging against strong backlight due to 120 dB true  WDR technology   Efficient H.265+ compression technology   Focus on human and vehicle targets classification based on  deep learning   Water and dust resistant (IP67)               Specification  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Day & Night IR cut filter  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 120 dB  Lens  Lens T...

Warranty: 36 mon.

Datasheet

DS-7200HGHI-E2 SERIES TURBO HD DVR  Video Input and Transmission   Connectable to HDTVI and analog cameras   Up to 2-ch 1080p IP cameras input   Long distance transmission over UTP and coaxial cable  Compression and Recording   H.264+ compression improves encoding efficiency by up to 50% and reduces data storage costs   Full channel recording at up to 720p resolution  Video Output   Simultaneous HDMI/VGA output at up to 1920 x 1080 resolution  Storage and Playback   Two SATA interfaces (up to 6 TB capacity per HDD)   8/16-ch synchronous playback at up to 720p resolution   Smart search for efficient playback  Smart Function   Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras   VQD (Video Quality Diagnostics)  Network & Ethernet Access   Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management   One self-adaptive 10/100Mbps network interface  Features and Functions                  Model    DS-7208HGHI-E2 DS-7216HGHI- E2  Video/Audio  input  Video compression H.264+/H.264  Analog and HDTVI video  input  8-ch 16-ch  BNC interface (1.0 Vp-p, 75 Ω), suppor...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CD2555FWD-I(W)(S)  5 MP EXIR Fixed Mini Dome Network Camera  * 2944 x 1656@20fps  * IR: Up to 10 m  * H.265+. H.265  * 120dB WDR  * Built-in Micro SD/SDHC/SDXC slot, up to 128G  * PoE  * EXIR  * Wi-Fi (Optional)      Key Features        Specifications  Camera  Image Sensor 1/2.9" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Focal length 2.8, 4, 6 mm  Aperture F2.0  FOV  2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113°  4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 92°  6 mm: Horizontal field of view: 60°, Vertical field of view: 33°, Diagonal field of view: 71°  Lens Mount M12  IR  IR Range Up to 10 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  Third strea...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CD2555FWD-I(W)(S)  5 MP EXIR Fixed Mini Dome Network Camera  * 2560 x 1920@20fps  * IR: Up to 10 m  * H.265+. H.265  * 120dB WDR  * Built-in Micro SD/SDHC/SDXC slot, up to 128G  * PoE  * EXIR  * Wi-Fi (Optional)      Key Features          Specifications  Camera  Image Sensor 1/2.9" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  WDR 120dB  3-Axis Adjustment Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Focal length 2.8, 4, 6 mm  Aperture F2.0  FOV  2.8 mm: Horizontal field of view: 93°, Vertical field of view: 51°, Diagonal field of view: 108°  4 mm: Horizontal field of view: 74°, Vertical field of view: 40°, Diagonal field of view: 88°  6 mm: Horizontal field of view: 58°, Vertical field of view: 32°, Diagonal field of view: 69°  Lens Mount M12  IR  IR Range Up to 10 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  Third...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2555FWD-I(2.8mm)

Replacement product code: 311301753

Warranty: 36 mon.

Datasheet

DS-2CD2T46G1-2I/4I  4 MP IR Fixed Bullet Network Camera  Key Features   Max. 2688 x 1520 @ 25fps   2.8 mm/4 mm/6 mm/8 mm fixed lens   H.265, H.264   120dB WDR   False alarm filter by target classification       12 VDC & PoE (802.3at, class 4)   IR range: Up to 50 m, 80 m, optional   Support on-board storage, up to 128 GB   IP67   BLC/3D DNR/ROI   Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @  (F1.6, AGC ON)          Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Focal length 2.8/4/6/8 mm  Focus Fixed  Aperture F1.6  FOV  2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°  4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°  6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°  8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°  Lens Mount M12  Auto-Iris No  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Compression Sta...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2T46G2-4I(2.8mm)(????)

Replacement product code: 311311202

Warranty: 36 mon.

Datasheet

DS-2CD2T46G1-2I/4I  4 MP IR Fixed Bullet Network Camera  Key Features   Max. 2688 x 1520 @ 25fps   2.8 mm/4 mm/6 mm/8 mm fixed lens   H.265, H.264   120dB WDR   False alarm filter by target classification       12 VDC & PoE (802.3at, class 4)   IR range: Up to 50 m, 80 m, optional   Support on-board storage, up to 128 GB   IP67   BLC/3D DNR/ROI   Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @  (F1.6, AGC ON)          Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Focal length 2.8/4/6/8 mm  Focus Fixed  Aperture F1.6  FOV  2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°  4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°  6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°  8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°  Lens Mount M12  Auto-Iris No  Day &Night IR cut filter  DNR 3D DNR  Wide Dynamic Range 120dB  3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Compression Sta...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2T46G2-4I(4mm)(????)

Replacement product code: 311311204

Warranty: 36 mon.

Datasheet

DS-2CD2086G2-I(U)  8 MP IR Fixed Bullet Network Camera                      ● 1/2" Progressive Scan CMOS  ● 3840 x 2160 @ 20fps  ● 2.8/4/6 mm fixed lens  ● 120dB WDR  ● Powered by Darkfighter    ● H.265+, H.265, H.264+, H.264  ● Built-in micro SD/SDHC/SDXC card slot, up to 256 GB  ● –I model: IP67, -IU model: IP66  ● Built-in microphone (Optional)  ● Human and vehicle classification alarm based on deep  learning.    AcuSense  Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification  alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than  humans or vehicles, vastly improving alarm efficiency and effectiveness.            Specifications    Camera  Image Sensor 1/2" Progressive Scan CMOS  Min. Illumination Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3s to 1/100,000s  Slow Shutter Yes  Wide Dynamic Range 120dB  Day & Night IR Cut Filter  Angle Adjustment Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°  Power-off Memory Yes  Lens  Lens Type & FOV  2...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

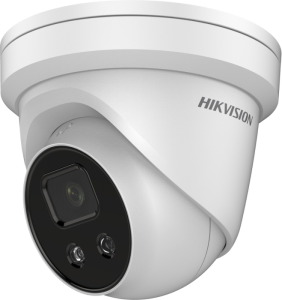

DS-2CD2386G2-I(U)  8 MP IR Fixed Turret Network Camera                    ● 1/2" Progressive Scan CMOS  ● 3840 x 2160 @ 20fps  ● 2.8/4/6 mm fixed lens  ● 120dB WDR  ● Powered by Darkfighter    ● H.265+, H.265, H.264+, H.264  ● Built-in micro SD/SDHC/SDXC card slot, up to 256 GB  ● Built-in microphone (optional)  ● -I models: IP67, -IU models: IP66  ● Human and vehicle classification alarm based on deep  learning.    AcuSense  Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification  alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than  humans or vehicles, vastly improving alarm efficiency and effectiveness.            Specifications    Camera  Image Sensor 1/2" Progressive Scan CMOS  Min. Illumination Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day & Night IR Cut Filter  WDR 120 dB  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°  Lens  Lens Type Fixed lens, 2.8/4/6 mm  Aperture F1.6  FO...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

DS-2CD2047G2-L(U)  4 MP ColorVu Fixed Bullet Network Camera                                  Hikvision ColorVu technology provides 24/7 vivid colorful  images with F1.0 advanced lenses, high performance sensors  and friendly lighting. F1.0 super-aperture collects more light  to produce brighter images. Advanced sensor technology can  vastly improve the utilization of available light. In zero-light  scenarios, built-in, warm supplemental lighting works to  guarantee colorful images.   High quality imaging with 4 MP resolution   Efficient H.265+ compression technology   Clear imaging against strong back light due to 130 dB WDR  technology   Built-in microphone for real-time audio security(-U)   Focusing on human and vehicle classification based on  deep learning   24/7 colorful imaging             Specification  Camera  Image Sensor 1/1.8″ Progressive Scan CMOS  Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  P/N P/N  Wide Dynamic Range 130 dB  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Lens ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2047G2H-LI(4mm)(eF)

Replacement product code: 311323630

Warranty: 36 mon.

Datasheet
