DS-7204HQHI-K1/P(B)
DS-7200HQHI-K/P SERIES TURBO HD DVR Video Input and Transmission Self-adaptive normal camera and Hikvision PoC camera connection Up to 6/12/24-ch 6 MP IP cameras input for DS-7204/7208/7216HQHI-K2/P Long distance transmission over coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal, and 200m for PoC camera Automatic power supply management for PoC camera to guarantee safety Compression and Recording H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Full channel recording at up to 4 MP lite resolution Supports real-time 1080p lite. When 1080p lite is on, the image effect is similar with 1080p Video Output Simultaneous HDMI/VGA output HDMI output at up to 4K (3840 x 2160) resolution for DS-7216HQHI-K2/P Separate CVBS output Storage and Playback One SATA interface for DS-7204HQHI-K1/P, and two SATA interfaces for DS-7208/7216HQHI-K2/P (up to 10 TB capacity per HDD) 4/8/16-ch synchronous playback Smart search ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HQHI-K1/P/A
DS-7200HQHI-K/P SERIES TURBO HD DVR Video Input and Transmission Self-adaptive normal camera and Hikvision PoC camera connection Up to 1-ch 4 MP IP cameras input for DS-7204HQHI-K1/P, and 2-ch 4 MP IP cameras input for DS-7208/7216HQHI-K2/P Long distance transmission over coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal, and 200m for PoC camera Automatic power supply management for PoC camera to guarantee safety Compression and Recording H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Up to 3 MP resolution for recording Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p Video Output Simultaneous HDMI/VGA output HDMI output at up to 4K (3840 x 2160) resolution for DS-7216HQHI-K2/P Separate CVBS output Storage and Playback One SATA interface for DS-7204HQHI-K1/P, and two SATA interfaces for DS-7208/7216HQHI-K2/P (up to 6 TB capacity per HDD) 4/8/16-ch synchronous playback Smart search for efficien...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HQHI-SH/A
www.hikvision.com DS-7204/08HQHI-SH Turbo HD DVR • H.264 & Dual-stream video compression • Support HD-TVI/analog/IP camera triple hybrid • Support both HD-TVI and analog cameras with adaptive access • Full channel@1080P resolution real-time recording • HDMI and VGA output at up to 1920x1080P resolution • Long transmission distance over coax cable • Support up to 8-ch synchronous playback DS-7204HQHI-SH DS-7208HQHI-SH Video/Audio input Video compression H.264 Analog and HD-TVI video input 4-ch 8-ch BNC interface (1.0Vp-p, 75 Ω) Supported camera types 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS Audio compression G.711u Audio input ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HTHI-K1
DS-7204HTHI-K1 SERIES TURBO HD DVR Video Input and Transmission Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input Up to 2-ch 8 MP IP cameras input 8 MP HDTVI video input and live view Defogging function enabled for the supported analog cameras Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal Compression and Recording H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Full channel recording at up to 8 MP resolution Video Output HDMI and VGA interfaces can be configured to be simultaneous or independent HDMI output at up to 4K (3840 x 2160) resolution Separate CVBS output Storage and Playback 1 SATA interface (up to 8 TB capacity per HDD) 4-ch synchronous playback Smart search for efficient playback Supports the 3 rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Smart Function Supports multiple VCA (Video Content Analytics) events for both analog and smart IP c...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HTHI-K1(S)
DS-7204HTHI-K1 SERIES TURBO HD DVR Video Input and Transmission Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input Up to 2-ch 8 MP IP cameras input 8 MP HDTVI video input and live view Defogging function enabled for the supported analog cameras Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal Compression and Recording H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Full channel recording at up to 8 MP resolution Video Output HDMI and VGA interfaces can be configured to be simultaneous or independent HDMI output at up to 4K (3840 x 2160) resolution Separate CVBS output Storage and Playback 1 SATA interface (up to 8 TB capacity per HDD) 4-ch synchronous playback Smart search for efficient playback Supports the 3 rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Smart Function Supports multiple VCA (Video Content Analytics) events for both analog and smart IP c...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HTHI-K2
DS-7200HTHI-K2 SERIES TURBO HD DVR Video Input and Transmission Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input Up to 2/4-ch 8 MP IP cameras input 8 MP HDTVI video input and live view Defogging function enabled for the supported analog cameras Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal Compression and Recording H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Full channel recording at up to 8 MP resolution Video Output HDMI and VGA interfaces can be configured to be simultaneous or independent HDMI output at up to 4K (3840 x 2160) resolution Separate CVBS output Storage and Playback 2 SATA interface (up to 8 TB capacity per HDD) 4/8-ch synchronous playback Smart search for efficient playback Supports the 3 rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Smart Function Supports multiple VCA (Video Content Analytics) events for both analog and smart ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HTHI-K2(S)
Key Feature H.265 Pro+/H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video input Up to 8/16-ch IP camera inputs (up to 8 MP) Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission Up to 10 TB capacity per HDD Compression and Recording H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs Full channel recording at up to 8 MP lite resolution Storage and Playback Two SATA interfaces Smart search for efficient playback Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Smart Function Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras Support line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection Network & Ethernet Access Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management Output bandwidth limit configurable DS-7200HTHI-K2 SERIES TURBO HD DVR Specification Model DS-7204HTHI-K2 DS-7208HTHI-K2 Recording Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding resolution 8 MP/5 MP/4 ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HUHI-F1/N
HIKVISIONHIKVISION HIKVISIONmsumuteubyl_LHandquartnrswasssUwanmuRaad,BTmTangDwstvmt,Hangzhou310051,:mnaT«257571-2307-5992uvevsaasbusmess@mkvxsxunnumHikvisinnusaT«Lane-sasunarusalesusacorukwsmncumHikvisinnEumpeTLsyzs-sauznusalessuru@h\kv\s\nnnumHikvisinnItalyT«serum-saazwfu\t@h\kv\s\nnnumTnrurvmTwTsTuncumHikvisinnSingapureHikvisinnOceaniaT«Bateman-unsTtBl-Z-ESBS-AŻISEsgc-vrukwuncumsalesau@mkvxsxuncumHikvisinnMiddl-EastTxwl-u-BBIEDEEsalesmeąlšhikvxsmncumHikvisinnSpainT;34791-737-15-55wfuES@M‹V\S\DH:umHikvisinnHungKungT;252-2151-1751©HikvišHnnDTgüalTBDhnnlngyCEI.,Ltd.201E1DataSUUJECĹ(uchangewxthuu(nnüce!Hikvisinnumi.TJJGEEBB-EPHBsalevuqlšmkvxswnnnumHikvisinnPnlandnusyzz-usu-m-snpulandCulmkvxsxuncumHikvisinnCanadaTdłüłñüš-DAUDsalas.usa@hxkvxsxuncumHikvisinnIndi:TQLZZŻEHBBQDUsalas@pvamahxkvxsmncumHikvisinnlIKmuuąszs-auzyusupportuk@mkwsmncum...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HUHI-F1/S
HIKVISIONHIKVISION HIKVISIONmsumuteubyl_LHandquartnrswasssUwanmuRaad,BTmTangDwstvmt,Hangzhou310051,:mnaT«257571-2307-5992uvevsaasbusmess@mkvxsxunnumHikvisinnusaT«Lane-sasunarusalesusacorukwsmncumHikvisinnEumpeTLsyzs-sauznusalessuru@h\kv\s\nnnumHikvisinnItalyT«serum-saazwfu\t@h\kv\s\nnnumTnrurvmTwTsTuncumHikvisinnSingapureHikvisinnOceaniaT«Bateman-unsTtBl-Z-ESBS-AŻISEsgc-vrukwuncumsalesau@mkvxsxuncumHikvisinnMiddl-EastTxwl-u-BBIEDEEsalesmeąlšhikvxsmncumHikvisinnSpainT;34791-737-15-55wfuES@M‹V\S\DH:umHikvisinnHungKungT;252-2151-1751©HikvišHnnDTgüalTBDhnnlngyCEI.,Ltd.201E1DataSUUJECĹ(uchangewxthuu(nnüce!Hikvisinnumi.TJJGEEBB-EPHBsalevuqlšmkvxswnnnumHikvisinnPnlandnusyzz-usu-m-snpulandCulmkvxsxuncumHikvisinnCanadaTdłüłñüš-DAUDsalas.usa@hxkvxsxuncumHikvisinnIndi:TQLZZŻEHBBQDUsalas@pvamahxkvxsmncumHikvisinnlIKmuuąszs-auzyusupportuk@mkwsmncum...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HUHI-F2/N
DS-7200HUHI-Fx/N Series TurboHD DVR H.264+ (Over 50 Percent More Efficient than H.264) TurboHD 3.0 Video at 3 MP (1920 x 1536) Supports Third-Party Cloud Storage Smart Search for Motion Event Playback HDMI at 4K (3840x2160)*, VGA at 1920x1080 Supports Two Channels of IP Video, at 4 MP Resolution (2688 x 1520) Multiple VCA Events Extended Cable Distance *8 and 16 channel units only The Hikvision DS-72xxHUHI-Fx/N TurboHD DVR Series offers high HD-TVI resolution over existing coaxial and twisted pair (CAT5) cables. With Hikvision’s proprietary H.264+ video compression technology, enjoy up to 50 percent smaller video streams and storage requirements. Supports extended cable distances of 2,625 feet (800 meters) at 1080p over RG-6 cable. Available in 4-, 8-, and 16-channel models to fit any requirement. Internal SATA interface(s) (1 for DS-7204HUHI-F1/N, 2 for DS-7208HUHI-Fx/N and DS-7216HUHI-Fx/N) support 6 TB drives. VCA (Video Content Analysis) features include line cross, intrusion, and motion detection. Smart Search makes it quick and easy to find the action you are looking for, without having to sort throug...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HUHI-F2/S
DS-7200HUHI-Fx/N Series TurboHD DVR H.264+ (Over 50 Percent More Efficient than H.264) TurboHD 3.0 Video at 3 MP (1920 x 1536) Supports Third-Party Cloud Storage Smart Search for Motion Event Playback HDMI at 4K (3840x2160)*, VGA at 1920x1080 Supports Two Channels of IP Video, at 4 MP Resolution (2688 x 1520) Multiple VCA Events Extended Cable Distance *8 and 16 channel units only The Hikvision DS-72xxHUHI-Fx/N TurboHD DVR Series offers high HD-TVI resolution over existing coaxial and twisted pair (CAT5) cables. With Hikvision’s proprietary H.264+ video compression technology, enjoy up to 50 percent smaller video streams and storage requirements. Supports extended cable distances of 2,625 feet (800 meters) at 1080p over RG-6 cable. Available in 4-, 8-, and 16-channel models to fit any requirement. Internal SATA interface(s) (1 for DS-7204HUHI-F1/N, 2 for DS-7208HUHI-Fx/N and DS-7216HUHI-Fx/N) support 6 TB drives. VCA (Video Content Analysis) features include line cross, intrusion, and motion detection. Smart Search makes it quick and easy to find the action you are looking for, without having to sort throug...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0

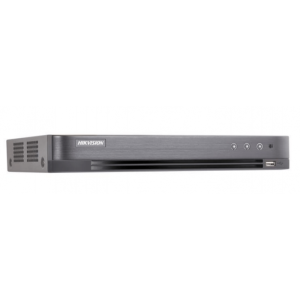

DS-7204HUHI-K1
DS-7200HQHI-K/P SERIES TURBO HD DVR Video Input and Transmission Self-adaptive normal camera and Hikvision PoC camera connection Up to 1-ch 4 MP IP cameras input for DS-7204HQHI-K1/P, and 2-ch 4 MP IP cameras input for DS-7208/7216HQHI-K2/P Long distance transmission over coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal, and 200m for PoC camera Automatic power supply management for PoC camera to guarantee safety Compression and Recording H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Up to 3 MP resolution for recording Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p Video Output Simultaneous HDMI/VGA output HDMI output at up to 4K (3840 x 2160) resolution for DS-7216HQHI-K2/P Separate CVBS output Storage and Playback One SATA interface for DS-7204HQHI-K1/P, and two SATA interfaces for DS-7208/7216HQHI-K2/P (up to 6 TB capacity per HDD) 4/8/16-ch synchronous playback Smart search for efficien...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HUHI-K1(S)
Key Features Support H.265 Pro+/H.265 Pro/H.265 video compression Support HDTVI/AHD/CVI/CVBS/IP video input Max. 8/16 IP cameras input (up to 8 MP) Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission Up to 10 TB capacity per HDD Compression and Recording H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs Recording at up to 8 MP resolution Storage and Playback Smart search for efficient playback Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Smart Function Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras Support line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection Network & Ethernet Access Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management Max. 32/64 Mbps incoming bandwidth and output bandwidth limit configurable DS-7200HUHI-K1 SERIES TURBO HD DVR Specifications Model DS-7204HUHI-K1 DS-7208HUHI-K1 Recording Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding re...
Warning! Product withdrawn from production!
Replacement product: iDS-7204HUHI-M1/S/A
Replacement product code: 300224953
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HUHI-K1/E
DS-7200HUHI-K1 SERIES TURBO HD DVR Video Input and Transmission Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input Up to 2-ch 6 MP IP cameras input 5 MP/4 MP HDTVI video input and live view Defogging function enabled for the supported analog cameras Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal Compression and Recording H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Full channel recording at up to 5 MP resolution Video Output Simultaneous HDMI/VGA output HDMI output at up to 4K (3840 x 2160) resolution for DS-7208HUHI-K1 Separate CVBS output Storage and Playback 1 SATA interface (up to 8 TB capacity per HDD) 4/8-ch synchronous playback Smart search for efficient playback Supports the 3 rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Smart Function Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras Suppor...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HUHI-K1/E(STD)(C)(S)
Key Feature H.265 Pro+/H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video input Audio via coaxial cable Up to 8/16-ch IP camera inputs (up to 8 MP) Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission Up to 10 TB capacity per HDD Compression and Recording H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs Recording at up to 8 MP resolution Storage and Playback Smart search for efficient playback Support the third party cloud storage Smart Function Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras Support line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection Network & Ethernet Access Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management Max. 32/64 Mbps incoming bandwidth and output bandwidth limit configurable DS-7200HUHI-K1/E SERIES TURBO HD DVR Specification Model DS-7204HUHI-K1/E DS-7208HUHI-K1/E Perimeter Protection¹ Line Crossing Detection/ Intrusion Detection 2-ch Enhan...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HUHI-K1/P
DS-7200HQHI-K/P SERIES TURBO HD DVR Video Input and Transmission Self-adaptive normal camera and Hikvision PoC camera connection Up to 1-ch 4 MP IP cameras input for DS-7204HQHI-K1/P, and 2-ch 4 MP IP cameras input for DS-7208/7216HQHI-K2/P Long distance transmission over coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal, and 200m for PoC camera Automatic power supply management for PoC camera to guarantee safety Compression and Recording H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Up to 3 MP resolution for recording Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p Video Output Simultaneous HDMI/VGA output HDMI output at up to 4K (3840 x 2160) resolution for DS-7216HQHI-K2/P Separate CVBS output Storage and Playback One SATA interface for DS-7204HQHI-K1/P, and two SATA interfaces for DS-7208/7216HQHI-K2/P (up to 6 TB capacity per HDD) 4/8/16-ch synchronous playback Smart search for efficien...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-7204HUHI-K2
DS-7200HQHI-K/P SERIES TURBO HD DVR Video Input and Transmission Self-adaptive normal camera and Hikvision PoC camera connection Up to 1-ch 4 MP IP cameras input for DS-7204HQHI-K1/P, and 2-ch 4 MP IP cameras input for DS-7208/7216HQHI-K2/P Long distance transmission over coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal, and 200m for PoC camera Automatic power supply management for PoC camera to guarantee safety Compression and Recording H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras Connectable to H.265+/H.265/H.264+/H.264 IP cameras H.265+ can be enabled to improve encoding efficiency and reduce data storage costs Up to 3 MP resolution for recording Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p Video Output Simultaneous HDMI/VGA output HDMI output at up to 4K (3840 x 2160) resolution for DS-7216HQHI-K2/P Separate CVBS output Storage and Playback One SATA interface for DS-7204HQHI-K1/P, and two SATA interfaces for DS-7208/7216HQHI-K2/P (up to 6 TB capacity per HDD) 4/8/16-ch synchronous playback Smart search for efficien...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
DS-7204HWI-E1
www.hikvision.com DS-7200HWI-E1/C(-E2/C) 960H Standalone VCA&UTC supported DVR • H.264 & Dual-stream video compression • Full channel@WD1(PAL:960x576,NTSC:960x480) resolution real-time recording • Support VCA detection alarm (line crossing detection and intrusion detection) • Support HIKVISION-C and PELCO-C Coaxitron protocols for Up to Coax function • HDMI and VGA output at up to 1920x1080P resolution • Support alarm push notification on mobile devices when alarm event occurs. • Up to 16-ch synchronous playback DS-7204HWI-E1/C DS-7208HWI-E2/C DS-7216HWI-E2/C Video/Audio input Video compression H.264 Analog video input 4-ch 8-ch 16-ch IP video input 1-ch ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Availability: 0
