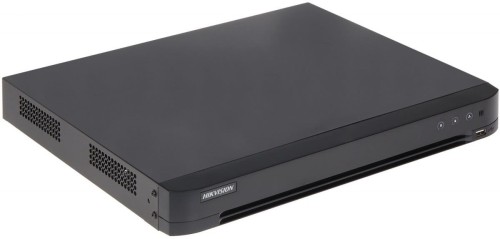

iDS-7232HQHI-M2/S(E)

Key Feature   Deep learning-based motion detection 2.0 for all analog  channels   Deep learning-based perimeter protection   H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression   HDTVI/AHD/CVI/CVBS/IP video inputs   Audio via coaxial cable   Up to 12/24/40-ch IP camera inputs (up to 6 MP)   Up to 10 TB capacity per HDD            Compression and Recording   H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs   Full channel recording at up to 1080p resolution  Storage and Playback   Two SATA interfaces   Smart search for efficient playback   Support the third party cloud storage  Smart Function   Deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection)   Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras  Network & Ethernet Access   Compatible with major Wi-Fi dongle products in the market   Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management   Output bandwidth limit configurable    iDS-7200HQHI-M2/S SERIES  TURBO ACUSENSE DVR          Specification  Model iDS-7208...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Feature
 Deep learning-based motion detection 2.0 for all analog
channels
 Deep learning-based perimeter protection
 H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
 HDTVI/AHD/CVI/CVBS/IP video inputs
 Audio via coaxial cable
 Up to 12/24/40-ch IP camera inputs (up to 6 MP)
 Up to 10 TB capacity per HDD





Compression and Recording
 H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
 Full channel recording at up to 1080p resolution
Storage and Playback
 Two SATA interfaces
 Smart search for efficient playback
 Support the third party cloud storage
Smart Function
 Deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection)
 Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Network & Ethernet Access
 Compatible with major Wi-Fi dongle products in the market
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 Output bandwidth limit configurable

iDS-7200HQHI-M2/S SERIES
TURBO ACUSENSE DVR




Specification
Model iDS-7208HQHI-M2/S iDS-7216HQHI-M2/S iDS-7232HQHI-M2/S
Motion Detection 2.0¹
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog
channels, it can classify human and vehicle, and extremely reduce false alarms
caused by objects like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection¹
Human/Vehicle Analysis Up to 4-ch
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps
(N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video bitrate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bitrate 64 Kbps
Video and Audio
IP video input
2
2-ch (up to 10-ch)

Enhanced IP mode on:
4-ch (up to 12-ch), each
up to 4 Mbps
2-ch (up to 18-ch)

Enhanced IP mode on:
8-ch (up to 24-ch), each
up to 4 Mbps
2-ch (up to 34-ch)

Enhanced IP mode on:
8-ch (up to 40-ch), each up
to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
8-ch 16-ch 32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input
4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps,
720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
*: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S,
and for channel 1/2/3/4 of iDS-7216HQHI-M2/S and iDS-7232HQHI-M2/S.
AHD input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS input PAL/NTSC












CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI output
1-ch, 1920 x 1080/60 Hz,
1280 x 1024/60 Hz, 1280
x 720/60 Hz, 1024 x
768/60 Hz
1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz,
1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x
720/60Hz, 1024 x 768/60Hz
VGA output 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
Video output mode HDMI/VGA simultaneous output
Audio input
3
1-ch (up to 8-ch is
optional), RCA (2.0 Vp-p,
1 KΩ)
1-ch (up to 16-ch is
optional), RCA (2.0 Vp-p,
1 KΩ)
1-ch, RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable 16-ch via coaxial cable 32-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 8-ch 16-ch
Network
Remote connection 64 128
Network protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF
Network interface
1, RJ45 10/100 Mbps
self-adaptive Ethernet
interface
1,RJ45 10/100/1000 Mbps self-adaptive
Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary interface
SATA 2 SATA interfaces, up to 10 TB capacity for each disk
Serial interface RS-485 (half-duplex)
USB interface
Front panel: 1 x USB 2.0;
Rear panel: 1 x USB 2.0
Front panel: 1 x USB 2.0;
Rear panel: 1 x USB 3.0
Alarm in/out
3 N/A (optional to support ) N/A
General
Power supply 12 VDC, 2.5 A 12 VDC, 3.3 A 12 VDC, 5 A
Consumption
(without HDD)
≤ 30 W ≤ 40 W ≤ 40 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (W x D x H) 380 x 320 x 48 mm (15.0” x 12.6” x 1.9”)
Weight (without HDD) ≤ 1.78 kg (3.9 lb.) ≤ 2 kg (4.4 lb.) ≤ 2.1 kg (4.6 lb.)
Note:
1: Motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will
make the other one unavailable.
2: Enhanced IP mode might be conflicted with smart events (face picture comparison, motion detection 2.0 and
perimeter protection) or other functions, please refer to the user manual for details.
3: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input
and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and
4 alarm outputs. If your device only has 1 audio input, the tag may not describe it.



Physical Interface

No. Description No. Description
1 VIDEO IN 7 AUDIO IN, RCA connector
2 USB interface 8 LAN network interface
3 VIDEO OUT 9 RS-485 serial interface
4 HDMI interface 10 12 VDC power input
5 VGA interface 11 GND
6 AUDIO OUT, RCA connector

Available Model
iDS-7208HQHI-M2/S, iDS-7216HQHI-M2/S, iDS-7232HQHI-M2/S
*: The rear panel of iDS-7208HQHI-M2/S and iDS-7232HQHI-M2/S provide 8 and 32 video input interfaces.
