Lite Series | DH-XVR5104H-X

www.dahuasecurity.com

DH-XVR5104H-X

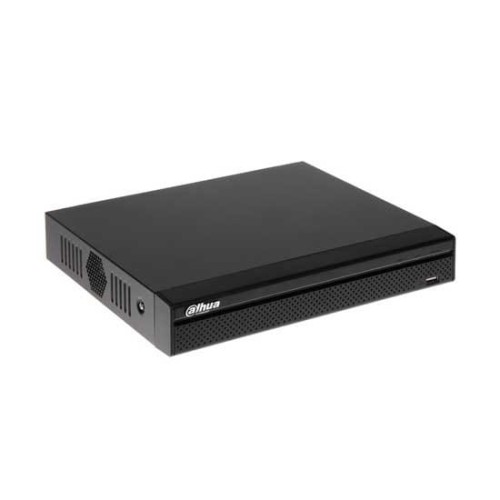

4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

Series
Lite

Plug&Play
P2P
1080p

HDMI / VGA

4CH
Smart H.264+

H.265

System Overview
With the surveillance operators pursuing to HD/UHD which further adds the
storage and transmission cost, HDCVI H.265+/H.265 has been released to
incredibly decrease the required bitrate while ensuring the video quality in
realizing high resolution surveillance such as 4MP/4K.
The Lite Series is designed for high cost performance and quality. The range
offers a great solution for users facing budget constraints who both require
quality and performance. And with the adoption of Smart H.265+/H.265,
the series improves encoding efficiency, saving on bandwidth/storage costs,
and significantly reducing the Total Cost of Ownership (TCO).
Functions
Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage
requirements compared with H.264 without having to invest in new
cameras.
HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any setting.
It makes operation more friendly and convenient.

High Definition Camera Input
The XVR supports up to 4MP HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more
cost-effective and convenient for installation.
POS Functionality
This funcion includes POS ticket information overlay and search which
can be widely used in retail programs.
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable
and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.
Smart Fan Design
The smart fan can automatically turn on or turn off according to the
CPU temperature. This function can effectively reduce the fan noise to
provide a better user experience.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the XVR has the ability to detect
and analyze moving objects for improved video surveillance. The XVR
provides optional standard intelligence at the edge allowing detection of
multiple object behaviors such as abandoned or missing objects. IVS also
supports Tripwire analytics, allowing the camera to detect when a pre-
determined line has been crossed.
Face Detection
It is a typical technology being used in a variety of applications for
searching or identification of individuals.
Smart Search
This function helps you get more motion detect video during a short
time through drawing a region when playback. It is very useful when an
emergency occurs.
· H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 6 channels IP camera inputs, each channel up to 6MP;
Max 24Mbps Incoming Bandwidth
· Smart Search and Intelligent Video System

www.dahuasecurity.com
Lite Series | DH-XVR5104H-X

Technical Specification
System
Main ProcessorEmbedded Processor
Operating System
Embedded LINUX
Video and Audio
Analog Camera Input4 Channel, BNC
HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input4+2 Channel, each channel up to 6MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
CompressionH.265+/H.265/H.264+/H.264
Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate
Main stream:the 1st channel 5M-N(1~10fps), other channels
4M-N/1080P(1~15fps); 1080N/720P/960H/
D1/CIF (1~25/30fps)
Sub stream: D1/CIF(1~15fps)
Bit Rate32Kbps ~ 6144Kbps Per Channel
Record Mode
Manual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-
record: 10 ~ 300 sec
Audio CompressionAAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate8KHz, 16 bit Per Channel
Audio Bit Rate64Kbps Per Channel
Display
Interface1 HDMI ,1 VGA
Resolution1920x1080, 1280x1024, 1280x720
Multi-screen Display
When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
OSD
Camera title, Time, Video loss, Camera lock, Motion detection,
Recording
Network
Interface 1 RJ-45 Port (100M)
Network Function
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP,
RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,
Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR,
NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant


Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss,
Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Playback1/4
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to
second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD1 SATA Port, up to 10TB capacity
eSATAN/A
Auxiliary Interface
USB2 USB 2.0
RS232N/A
RS4851 Port, for PTZ Control
Electrical
Power SupplyDC12V/2A
Power Consumption
(Without HDD)
<10W
Construction
DimensionsMini 1U, 325mmx255mmx55mm (12.8" x 10" x 2.2")
Device with PFH101
Rack Mount Tray
483mmx281mmx56mm (19.0"x11.1"x2.2")
Net Weight
(without HDD)
1.0kg (2.2lb)
Gross Weight1.9kg (4.2lb)
InstallationDesktop installation
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
50130, EN 55024
UL: UL 60950-1

Lite Series | DH-XVR5104H-X
Rev 001.001© 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice.

Ordering Information
TypePart NumberDescription
4 Channel XVRDH-XVR5104H-X
4 Channel Penta-brid 1080P Mini 1U
Digital Video Recorder
Accessory, optionalDH-PFH101 Rack Mount Tray
Dimensions (mm)

255.1mm
243mm
325mm

55mm
www.dahuasecurity.com

Rear Panel
DH-XVR5104H-X

1
2
3
4 5 6 7
8
9
10

1
VIDEO IN
6
RS485 Interface
2
AUDIO IN, RCA Connector
7
USB Interface
3
AUDIO OUT, RCA Connector
8
DC 12V Power Input
4
HDMI Interface
9
VGA Interface
5
Network Interface
10
Power Switch

Installation on Rack Mount Tray

Rack Mount Tray

Standard Cabinet

1U Device
