WM4700-O
Description
www.dahuasecurity.com DH-WM4700 -O 4G Router · 4G transmission: High speed 4G LTE connection, 100 Mbps downlink and 50 Mbps uplink. · Wi-Fi transmission: Connect your smartphone, laptop and all other wireless devices to the 4G router through Wi-Fi for Internet access. · Security tunnel: VPN tunnel ensures the security of sensitive data, such as monitoring data and business data. · Industrial Design: Ensure long-term reliable operation in outdoor harsh environments. DH-WM4700-O System Overview The 4G Router is a type of IoT wireless router. It provides wireless and long-distance big data transmission for users by using public GPRS/ CDMA/WCDMA/EVDO/LTE network. Application The 4G Router is applicable to M2M industry in the IoT industrial chain, such as self-service terminal, smart grid, intelligent transportation, smart home, finance, industrial automation, intelligent building, firefighting, and public security. Technical Specification Software WAN Connection ModesStatic IP, DHCP, PPPOE and 4G VPN VPN client (PPTP, L2TP, IPSEC) VPN server (PPTP, L2TP, IPSEC) Wi-Fi 802.11b/g: Up to 54 Mbps 802.11n: Up to 150 Mbps
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
www.dahuasecurity.com

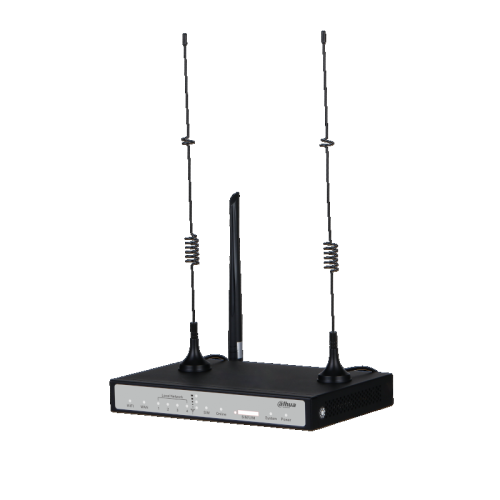

DH-WM4700 -O
4G Router
· 4G transmission: High speed 4G LTE connection, 100 Mbps downlink
and 50 Mbps uplink.
· Wi-Fi transmission: Connect your smartphone, laptop and all other
wireless devices to the 4G router through Wi-Fi for Internet access.
· Security tunnel: VPN tunnel ensures the security of sensitive data,
such as monitoring data and business data.
· Industrial Design: Ensure long-term reliable operation in outdoor
harsh environments.
DH-WM4700-O
System Overview
The 4G Router is a type of IoT wireless router. It provides wireless and
long-distance big data transmission for users by using public GPRS/
CDMA/WCDMA/EVDO/LTE network.
Application
The 4G Router is applicable to M2M industry in the IoT industrial chain,
such as self-service terminal, smart grid, intelligent transportation,
smart home, finance, industrial automation, intelligent building,
firefighting, and public security.
Technical Specification
Software
WAN Connection ModesStatic IP, DHCP, PPPOE and 4G
VPN
VPN client (PPTP, L2TP, IPSEC)
VPN server (PPTP, L2TP, IPSEC)
Wi-Fi
802.11b/g: Up to 54 Mbps
802.11n: Up to 150 Mbps
EncryptionWEP, WPA and WPA2
NATSupport port mapping
Network Mode
Southeast Asia version: B1/B3/B5/B8/B38/B39/
B40/B41
Oceania and North American version: B1/B2/B3/B4/
B5/B7/B8/B28/B40
European version: B1/B3/B5/B7/B8/B20/B38/B40/
B41
System Management
Support import and export of configuration file
Support local upgrade
Support system log
Hardware
Memory128 M
WAN PortOne 10/100 M RJ-45 port
LAN PortFour 10/100 M RJ-45 ports
Serial Port1 RS232 serial port, port rate: 115200 b/s
Antenna
Cellular: 2 standard SMA female ports with
impedance of 50Ω
Wi-Fi: 1 standard SMA male port with impedance
of 50Ω
Indicators
Power, System, Online, SIM, Local Network, WAN,
Wi-Fi and Signal Strength indicators
SIM/UIM Card Port1.8V/3V SIM/UIM card
ResetRestore factory defaults
Operating Temperature-35°C to +75°C (-31°F to +167°F)
Operating Humidity5%–95%
Power Consumption6.6W
Power SupplyDC 12V/1.5A
Dimensions (L x W x H)207 mm x 135 mm x 28 mm (8.15" x 5.31" x 1.10" )
Weight0.8 kg (1.76 lb)
www.dahuasecurity.com
Dimensions (mm[inch])
Rev 001.001
© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
DH-WM4700-O
