TV0550D-IRA
Description
Specification Vari-focal DC Auto Iris IR Mount CS-Mount CCTV LENS SPEC Model NO. TV0550D-IRA Focallength 5-50mm Flange Back Length 12.5mm M.O.D 0.5m Iris Dimension Φ42*64.65 Focus Weight 118g Max. Image format Φ6.0mm(1/3") Control DC Drive Manual F number F1.4-C Zoom Operating Temperature -10~50℃ D 61.3°~6.8° 45.9°~5° H 49°~5.4° 36.8°~4° V 36.8°~4° 27.6°~3° Manual Field of View 1/3" 1/4" Dimension Lens Picture...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Specification
Vari-focal DC Auto Iris
IR
Mount CS-Mount
CCTV LENS SPEC
Model NO. TV0550D-IRA
Focallength 5-50mm
Flange Back Length 12.5mm
M.O.D 0.5m
Iris Dimension Φ42*64.65
Focus Weight 118g
Max. Image format Φ6.0mm(1/3")
Control
DC Drive
Manual
F number F1.4-C
Zoom
Operating
Temperature
-10~50℃
D 61.3°~6.8° 45.9°~5°
H 49°~5.4° 36.8°~4°
V 36.8°~4° 27.6°~3°
Manual
Field of
View
1/3" 1/4"
Dimension

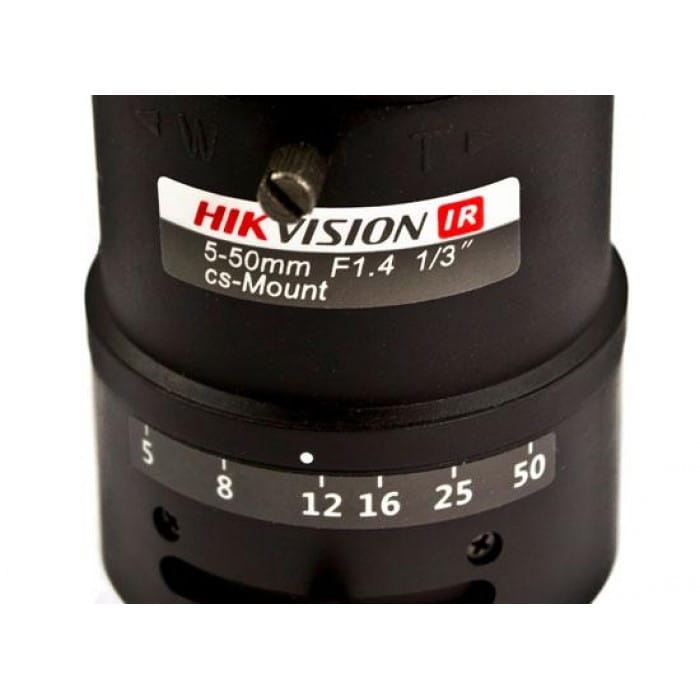

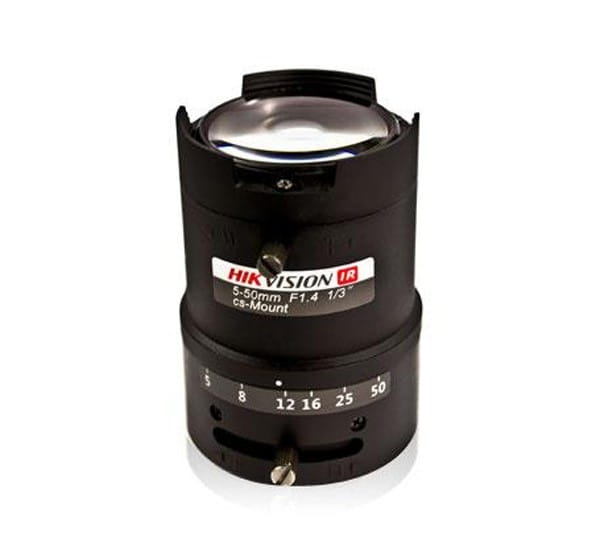

Lens Picture
