TV0309D-MPIR

T V0309 D -M PIR                          Features  DC -iris vari -focal three megapixel IR lens    Specification    Lens Parameters  Focal Length: 3~9mm  Aperture Range: F1.4 - C  Lens Mount: CS  Format: Φ6.5mm(1/2.7")  Horizontal Angle of View:  1/3" 87.2°~31°  1/4" 66.2°~23.5°  Min.Working Distance: 0. 2 m  Iris Control: DC  Weight: 5 4 g  Dimension: Φ34.5x 54mm(Φ1.36 "x 2 . 13 ")      2002 -2014©Hikvision Digital Technology Co., Ltd. All Rights Reserved....

Warning! Product withdrawn from production!

Replacement product: TV2710D-MPIR

Replacement product code: 102200990

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

T V0309 D -M PIR












Features

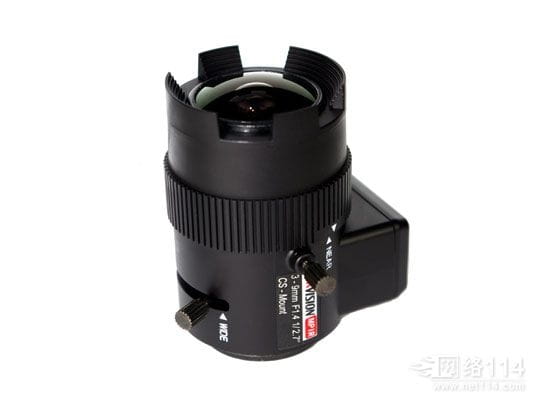

DC -iris vari -focal three megapixel IR lens

Specification

Lens Parameters
Focal Length: 3~9mm
Aperture Range: F1.4 - C
Lens Mount: CS
Format: Φ6.5mm(1/2.7")
Horizontal Angle of View:
1/3" 87.2°~31°
1/4" 66.2°~23.5°
Min.Working Distance: 0. 2 m
Iris Control: DC
Weight: 5 4 g
Dimension: Φ34.5x 54mm(Φ1.36 "x 2 . 13 ")


2002 -2014©Hikvision Digital Technology Co., Ltd. All Rights Reserved.
