Pro Series| DH-TPC-BF5400-B

System Overview
Featuring a fixed lens bullet camera, this series provides an all-in-one
solution that is especially beneficial for long distance video surveillance
in outdoor applications. Together with Thermal technology, the camera’s
long range capabilities are able to be utilized even at night.
Functions

Uncooled Vox Technology
Dahua thermal cameras use uncooled Vox sensor technology. Their small
size and better performance make them a cost-effective solution for
thermal security.
High Sensitivity
High thermal sensitivity (<40mK) allows cameras to capture more image
details and temperature difference information.
Fire Detection & Alarm
With built-in fire detection functionality, the camera has the ability to
detect fires from long range. Because thermal cameras are sensitive to
temperature, they provide higher fire detection accuracy than standard
cameras, making them particularly fit for applications such as forest fire
prevention.
Intelligent Video System (IVS)
IVS is a built-in video analytics algorithm that delivers intelligent
functions to monitor a scene for tripwire violations, intrusion detection,
and abandoned or missing objects. A camera with IVS quickly and
accurately responds to monitoring events in a specific area.
Environmental
With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the
camera is designed for extreme temperature environments. Subjected
and certified to rigorous dust and water immersion tests, the IP67 rating
makes it suitable for demanding outdoor applications.
Protection
The camera allows for ±15% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning.
www.dahuasecurity.com

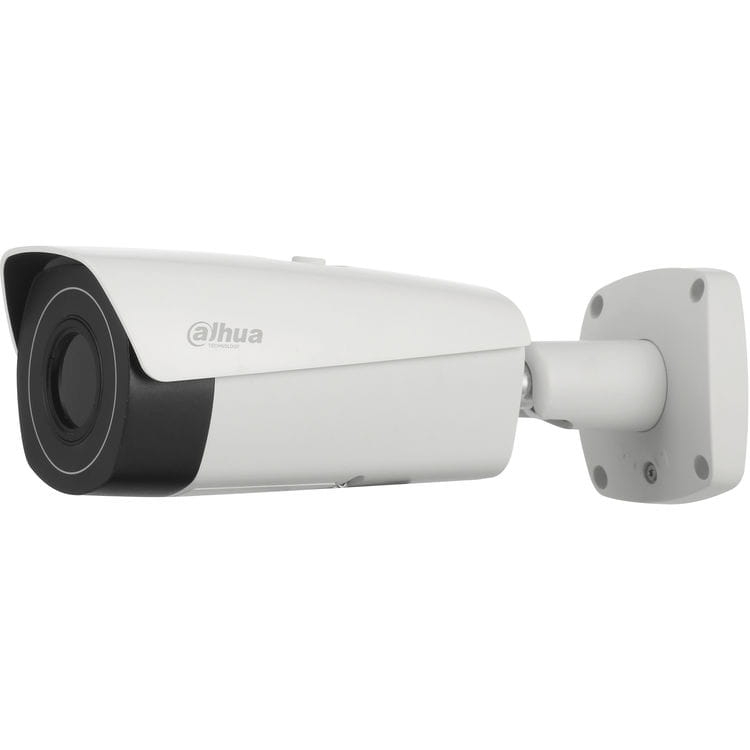

DH-TPC-BF5400-B
Thermal Network Bullet Camera

· 400*300 VOx uncooled thermal sensor technology
· Athermalized Lens (thermal), Focus-free
· Support Fire detection & alarm
· Various lens optional (7.5/13/19/25/35mm)
· 2/1 alarm in/out
· Micro SD memory, IP67, PoE

N,

*1
"OBMZTJT

4FSJFT
Pro
1P&

N,'JSF%FUFDU
'JSF%FUFDUJPO"OBMZTJT

www.dahuasecurity.com
Pro Series| DH-TPC-BF5400-B

Technical Specification
Thermal Camera
Image SensorUncooled VOx Microbolometer
Effective Pixels
400(H)x300(V)
Pixel Size
17um
Thermal Sensitivity(NETD)
40mK@f/1.0
Spectral Range
7~14um
Image Setting
Brightness/Sharpness/ROI/AGC/FFC/3D DNR
Color Palettes
14(Whitehot/Blackhot/Ironrow/Icefire/
Fusion/Rainbow/Globow/Iconbow1/
Iconbow2 .etc)
Thermal Lens
Lens TypeFixed
Focus ControlAthermalized, Focus-free
Focal Length7.5mm13mm19mm25mm35mm
Angle of View
H: 52°
V: 40°
H: 29.7°
V: 22.3°
H: 20.4°
V: 15.3°
H: 15.5°
V: 11.6°
H: 11.1°
V: 8.3°
Effective Distance①
Man(1.8m*0.5m)
D②: 240m
R③: 60m
I ④: 30m
D: 450m
R: 110m
I: 60m
D: 640m
R: 160m
I: 80m
D: 1000m
R: 250m
I: 125m
D: 1300m
R: 320m
I: 160m
Effective Distance
Vehicle(2.3m*2.3m)
D: 720m
R: 180m
I: 90m
D: 1300m
R: 350m
I: 180m
D: 2000m
R: 500m
I: 250m
D: 3000m
R: 720m
I: 360m
D: 4000m
R: 1000m
I: 500m
Video

CompressionH.264/MJPEG
Frame Rate
Main Stream:
1280*1024 (default)/720P @1 ~ 25/30fps
Sub Stream:
640*512 (default)/320*256 @1 ~ 25/30fps
Bit Rate ControlCBR/VBR
Bit RateH.264: 640 ~ 8192Kbps
Motion DetectionOff/On (4 zone, Rectangle)
Region of InterestOff/On (4 zone)
Electronic Image Stabilization
(EIS)
NA
Digital Zoom19x
Flip180°
MirrorOff/On
Privacy MaskingOff/On (4 area, Rectangle)

Audio
CompressionG.711a/G.711Mu/AAC

Intelligence
IVSTripwire, Intrusion, Object Abandon/Missing
Advanced Intelligent FunctionsFire detection & alarm

Network
EthernetRJ-45 (10/100Base-T)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,
802.1x
InteroperabilityONVIF Profile S & G, PSIA, CGI
Streaming MethodUnicast/Multicast
Max. User Access10 Users/20 Users
Edge Storage
Micro SD (256GB)
Memory status display (Normal / Error / Active /
Formatting / Lock),
NAS (Network Attached Storage), Local PC for
instant recording
Web ViewerManagement SoftwareSmartPSS, DSS
Smart PhoneAndroid, Ios

Certifications
CertificationCE (EN 60950: 2000) FCC (FCC Part 15 SubpartB )
Interface
Video Interface1.0Vp-p/75Ω, PAL / NTSC (HDCVI Optional)
Audio Interface1/1 In/Out
RS485Support
Alarm2/1 In/Out
Electrical
Power SupplyAC 24V/DC 12V/PoE
Power ConsumptionMax. 11W
Environmental
Operating Condition
-40°C ~ +60°C (-40°F ~ +140°F)/Less than 95% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH
Ingress Protection
IP67

Construction
CasingMetal
Dimensions291mmx 103mmx 97mm (11.46" x 4.06" x 3.82")
Net Weight1.5Kg (3.31 lb)
Gross Weight1.9Kg (4.19 lb)
Note:
①Effective distance values shown are nominal values and should be used as estimates
only. Exact value calculations depend on a wide variety of conditions.
②D: Detection Distance
③R: Recognition Distance
④I: Identification Distance

Pro Series | DH-TPC-BF5400-B
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
DH-TPC-
BF5400-B
DH-TPC-BF5400P-B7
DH-TPC-BF5400N-B7
Thermal:400*300 7.5mm lens
DH-TPC-BF5400P-B13
DH-TPC-BF5400N-B13
Thermal:400*300 13mm lens
DH-TPC-BF5400P-B19
DH-TPC-BF5400N-B19
Thermal:400*300 19mm lens
DH-TPC-BF5400P-B25
DH-TPC-BF5400N-B25
Thermal:400*300 25mm lens
DH-TPC-BF5400P-B35
DH-TPC-BF5400N-B35
Thermal:400*300 35mm lens
Accessories
Optional：
Mounting Type
PFA121
Junction box

2 9 1 .0 [ 1 1 .4 6 " ]

1 9 2 .5 [ 7 .5 8 " ]

9
7
.
2[
3
.
83
"
]

1 0 3 .8 [ 4 .0 9 " ]

W&íñîr
W}oD}µvš
Dimensions(mm)

:ƵŶĐƟŽŶDŽƵŶƚ
WŽůĞDŽƵŶƚ

PF PF5
PF

PFA121PFA121+PFA152-E
