TP2105

DH-TP2105    www.dahuasecurity.com   Features  · Self-adaptive output HDCVI, HDMI, VGA, CVBS signal  · Lossless real time non-compression transmission  · Support 2 dial switches and indicate 4 Baud rate: 2400b/s,  4800b/s, 9600b/s and 115200b/s  · Fully enclosed dustproof design  DH-TP2105  HDCVI Video Converter    Technical Specification  Model DH-TP2105  Physical Port  Interface  1*RS485  Input: 1*HDCVI (BNC)  Output: 1*HDCVI (BNC), 1*CVBS (BNC), 1*HDMI,  1*VGA  Dial Switch  2 dial switch indicate 4 Baud rates: 2400b/s,  4800b/s, 9600b/s, 115200b/s  Other  Input Transmission Distance1080p/720p: 75-5 coaxial support 100m  HDCVI Output Transmission  Distance  1080p/720p: 75-5 coaxial support 100m  IndicatorVideo , power , data indicator  PowerDC12V 1A  Power Consumption≤8W  Working Temperature-10ºC ~55ºC  Humidity10%~90%  Weight200g  Dimension162mmx136.4mmx30mm  InstallationWall mount      Dimensions (mm)    Application...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DH-TP2105

www.dahuasecurity.com
Features
· Self-adaptive output HDCVI, HDMI, VGA, CVBS signal
· Lossless real time non-compression transmission
· Support 2 dial switches and indicate 4 Baud rate: 2400b/s,
4800b/s, 9600b/s and 115200b/s
· Fully enclosed dustproof design

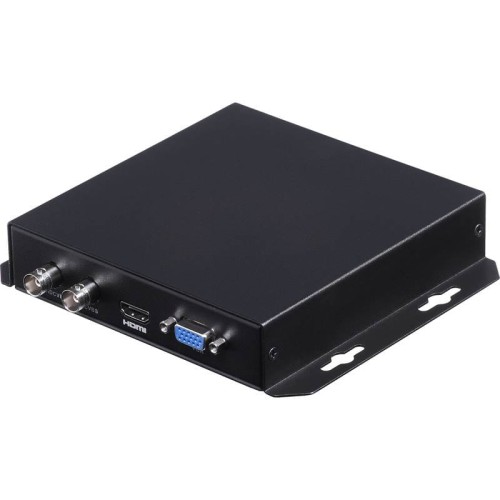

DH-TP2105
HDCVI Video Converter

Technical Specification
Model DH-TP2105
Physical Port
Interface
1*RS485
Input: 1*HDCVI (BNC)
Output: 1*HDCVI (BNC), 1*CVBS (BNC), 1*HDMI,
1*VGA
Dial Switch
2 dial switch indicate 4 Baud rates: 2400b/s,
4800b/s, 9600b/s, 115200b/s
Other
Input Transmission Distance1080p/720p: 75-5 coaxial support 100m
HDCVI Output Transmission
Distance
1080p/720p: 75-5 coaxial support 100m
IndicatorVideo , power , data indicator
PowerDC12V 1A
Power Consumption≤8W
Working Temperature-10ºC ~55ºC
Humidity10%~90%
Weight200g
Dimension162mmx136.4mmx30mm
InstallationWall mount


Dimensions (mm)

Application
