www.dahuasecurity.com
DH-SDT5X225-2F-WA- 0600

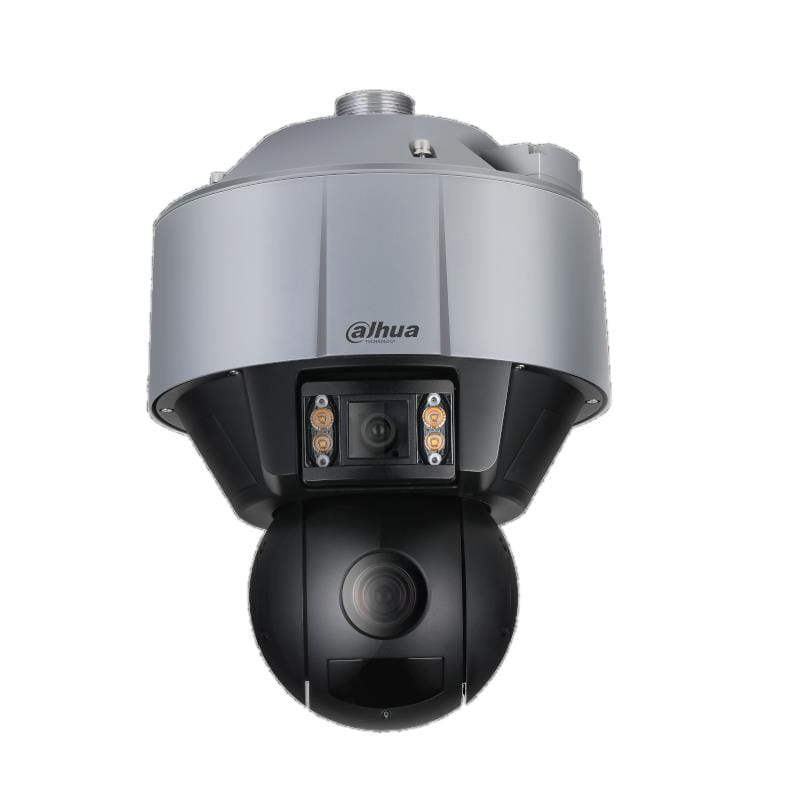

2MP Starlight IR WizMind Network Dual-PTZ Camera

Launched by Dahua Technology, Dahua WizMind is a full portfolio of so-
lutions composed of project-oriented products including IPC, NVR, PTZ,
XVR, Thermal and software platform which adopts industry-leading deep
learning algorithms. Focusing on customer’s requirements, WizMind
provides precise, reliable and comprehensive AI solutions for verticals.
System Overview
The Dual 2M Starlight Hunter Camera consists of panoramic camera and
PTZ camera. Panoramic camera captures panoramas, and then detail
camera takes detailed snapshots of objects and keeps tracking objects
after rule violations occur. This camera possess wide monitor range
and PFA algorithm that can always present a clear, focused image while
zooming.
Functions
Dual-PTZ System
Panoramic camera and detail camera of the Dual-PTZ system can be
adjusted horizontally and vertically.
Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
PFA Technology
PFA technology has innovatively introduced new methods of judgment
to ensure the accuracy and predictability of the direction of subject dis-
tance adjustment. The result is a set of advanced focusing algorithms.
PFA ensures clarity of the image throughout the process of zooming
and shortens focus time. The realization of PFA technology substantially
improves user experience and increases product value.
Smart Tracking
Human, motor vehicle, and non-motor vehicle, or their combinations
can be set as objects. Once the objects selected trigger detection rules
(like tripwire and intrusion), the detail camera will track them automati-
cally.
Perimeter Protection
Automatically filtering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognition for
the targets. Improving alarm accuracy.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
· Dual-PTZ system
· 1/2.8" 2Megapixel CMOS
· Powerful 25x optical zoom
· Starlight technology
· Max. 50/60 fps@1080P
· Deep-learning-based auto tracking and perimeter protection
· Support Hi-PoE
· H.265 Encoding
· IP67

IP67
H.265
0.005Lux

| DH-SDT5X225-2F-WA-0600


Technical Specification
Camera
Image Sensor
Panoramic: 1/2.8" CMOS
Detail: 1/2.8" CMOS
Pixel
Panoramic: 2MP
Detail: 2MP
Max. Resolution
Panoramic: 1920 (H) x 1080 (V)
Detail: 1920 (H) x 1080 (V)
ROM
8 GB
RAM
2 GB
Electronic Shutter Speed
Panoramic: 1/3 s–1/100000 s
Detail: 1/1 s–1/100000 s
Scanning System
Progressive
Min. Illumination
Panoramic:
Color: 0.005lux@F1.6
B/W: 0.0005lux@F1.6
Detail:
Color: 0.005lux@F1.6
B/W: 0.0005lux@F1.6
0Lux (IR light on)
Illumination Distance
Panoramic (white light): 30 m (98.43 ft)
Detail (IR light): 100 m (328.08 ft)
Illuminator On/Off Control
Panoramic: SmartIR/Manual/Off
Detail: Zoom Prio/Manual/SmartIR/Off
Illuminator Number
Panoramic: 4 white lights
Detail: 4 IR lights
Lens
Focal Length
Panoramic: 6 mm (0.24")
Detail: 4.8 mm–120 mm (0.19"–4.72")
Max. Aperture
Panoramic: F1.6
Detail: F1.6–F3.5
Field of View
Panoramic: H: 53.7; V: 28.7; D: 61.8
Detail: H: 59.6°–4.8°; V: 35.4°–2.7°; D: 66.5°–5.5°
Optical Zoom25x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance
Panoramic: 0.2 m (0.66 ft)
Detail: 0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control
Panoramic: Fixed
Detail: Auto
DORI Distance
DetectObserveRecognizeIdentify
Panoramic:
88.3 m
(289.70 ft)
Detail:
1613.8 m
(5294.62 ft)
Panoramic:
35.3 m
(115.81 ft)
Detail:
645.5 m
(2117.78 ft)
Panoramic:
17.7 m
(58.07 ft)
Detail:
322.8 m
(1059.06 ft)
Panoramic:
8.8 m
(28.87 ft)
Detail:
161.4 m
(529.53 ft)
PTZ
Pan/Tilt Range
Panoramic:
Pan: 0°–360° endless; Tilt: 0°–30°
Detail:
Pan: 0°–250°; Tilt: -10°–90°
Manual Control Speed
Panoramic:
Pan: 7°/s–117°/s; Tilt: 3°/s–25°/s
Detail:
Pan: 1.8°/s–131°/s; Tilt: 0.5°/s–65°/s
Preset Speed
Panoramic:
Pan: 242°/s; Tilt: 58°/s
Detail:
Pan: 430°/s; Tilt: 243°/s
Presets300

www.dahuasecurity.com

Tour8 (up to 32 presets per tour)
Pattern5
Scan5
Power-off MemorySupport
Idle MotionPreset/Tour/Pattern/Scanning
Protocol
DH-SD
Pelco-P/D (auto recognition)
Artificial Intelligence
Perimeter Protection
Tripwire, intrusion, abandoned object, and missing
object . Support alarm triggering by target types
(human and vehicle). Support filtering false alarms
caused by animals, rustling leaves, bright lights, etc.
Smart TrackingSupport
Video
Compression
H.265; H.264BaselineProfile; H.264MainProfile;
H.264HighProfile; M-JPEG; smart H.265; smart H.264
Streaming Capability3 streams
Resolution
Panoramic:
1080P (1920 x 1080); 960P (1280 x 960);
720P (1280 x 720); D1 (704 x 576/704 x 480);
CIF (352 x 288/352 x 240)
Detail:
1080P (1920 x 1080); 960P (1280 x 960);
720P (1280 x 720); D1 (704 x 576/704 x 480);
CIF (352 x 288/352 x 240)
Frame Rate
Main stream: 1080P/1.3M/720P (1–50/60 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080P/1.3M/720P/CIF (1–25/30 fps)
Bit Rate ControlVariable/Constant
Bit Rate
H.264: 1792 Kbps–9216 Kbps
H.265: 512 Kbps–5632 Kbps
Day/Night
Panoramic: Auto (ICR)
Detail: Auto (ICR)
BLCSupport
WDR
Panoramic: 120dB
Detail: 120dB
HLCSupport
White Balance
Panoramic: Auto/Indoor/Outdoor/Tracking/Manual/
Sodium lamp/Natural light/Street lamp
Detail: Auto/Indoor/Outdoor/Tracking/Manual/Sodium
lamp/Natural light/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
Motion DetectionSupport
Region of Interest (RoI)Support
Image StabilizationElectronic
DefogDigital
Digital Zoom16x
Flip0°/180°
Audio
Compression
G.711a; G.711mu; G.726; AAC; MPEG2-Layer2; G.722.1;
G.729
| DH-SDT5X225-2F-WA-0600


Accessories
Included:

PFA150
Pole Mount Bracket

PFB300C-S
Ceiling Mount Bracket
Optional:

DC36V/2.23A
Power Adapter
PFB306W-S
Wall Mount Bracket

Dimensions (mm[inch])

Wall MountPole MountCeiling Mount
PFB306W-SPFB300C-S
PFA150PFB306W-S

www.dahuasecurity.com

Network
EthernetRJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP;
UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP;
IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB-
2); RTCP
Interoperability ONVIF Profile S&G&T; CGI
Streaming MethodUnicast/Multicast
User/Host 20 (Total bandwidth 64M)
StorageP2P; FTP; Micro SD (256G)
Browser
IE7 and later versions
Chrome 45 and earlier versions
Firefox 52 and earlier versions
Safari 12 and earlier versions
Management SoftwareSmartPSS; DSS; NVR
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4-2014
Port
Audio Input1 (LINE IN bare wire)
Audio Output1 (LINE OUT bare wire)
Alarm I/O
2/1
Digital input: 0–5V DC
Power
Power Supply
DC36V/2.23A±25%
Hi-PoE
Power Consumption
Basic: 21W
Max.: 40W (PTZ, zoom, focus, IR light, white light, and
smart plan enabled)
Environment
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Operating Humidity≤95%
ProtectionIP67; TVS 8000V lightning protection; surge protection
Structure
Dimensions385 mm x Φ277 mm (15.16" x Φ10.91")
Net Weight9 kg (19.84 lb)
Gross Weight13.8 kg (30.42 lb)


Ordering Information
TypeModelDescription
2MP
WizMind
PTZ camera
DH-SDT5X225-2F-
WA-0600
2MP Starlight IR WizMind Network Dual-PTZ
Camera, PAL
DH-SDT5X225N-
2FWA-0600
2MP Starlight IR WizMind Network Dual-PTZ
Camera
SDT5X225-2F-
WA-0600
2MP Starlight IR WizMind Network Dual-PTZ
Camera, PAL
SDT5X225N-2F-
WA-0600
2MP Starlight IR WizMind Network Dual-PTZ
Camera, NTSC
Rev 001.001 © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.

Accessories
DC36V/2.23APower Adapter
PFB306W-SWall Mount Bracket
PFA150Pole Mount Bracket
PFB300C-SCeiling Mount Bracket
