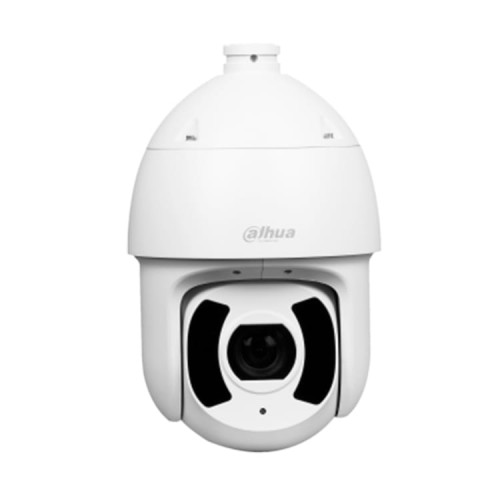

SD6CE445XA-HNR

Pro AI Series | DH-SD6CE445XA-HNR    AI series products adopt the most advanced AI technologies, including  deep learning algorithms that primarily target people and vehicles,  which provides higher flexibility and accuracy for end-users. This  enables the Dahua AI series to offer various advanced applications  such as Face Recognition, ANPR, Metadata, People Counting, traffic  data statistics, etc. The complete lineup of Dahua AI includes network  (PTZ) cameras, network video recorders, servers, and more devices.  Beyond seeing the world, the power of AI allows devices to perceive the  environment and understand the world in a better way.   System Overview    Featuring powerful optical zoom and accurate pan/tilt/zoom  performance, this camera can provide large monitoring range and great  detail. The camera has very excellent low light performance due to  adopting the latest starlight technology. The camera is equipped with  smooth control, high quality image and good protection, which make it  can meet most of the requirements of video surveillance applications.   Functions  Starlight Technology  For challenging low-light applications, Dahua’s Starlight Ultra-low Light  Technology offers best-in-...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Pro AI Series | DH-SD6CE445XA-HNR

AI series products adopt the most advanced AI technologies, including
deep learning algorithms that primarily target people and vehicles,
which provides higher flexibility and accuracy for end-users. This
enables the Dahua AI series to offer various advanced applications
such as Face Recognition, ANPR, Metadata, People Counting, traffic
data statistics, etc. The complete lineup of Dahua AI includes network
(PTZ) cameras, network video recorders, servers, and more devices.
Beyond seeing the world, the power of AI allows devices to perceive the
environment and understand the world in a better way.
System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom
performance, this camera can provide large monitoring range and great
detail. The camera has very excellent low light performance due to
adopting the latest starlight technology. The camera is equipped with
smooth control, high quality image and good protection, which make it
can meet most of the requirements of video surveillance applications.
Functions
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005lux. The camera uses a set of optical features
to balance light throughout the scene, resulting in clear images in dark
environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to
automatically track an object in motion and to keep it in the scene. The
tracking action can be triggered manually or automatically by defined
rules. Once a rule is triggered, the camera can zoom in and track the
defined target automatically.
Perimeter Protecton
Automatcally fltering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recogniton
for the targets. Improving alarm accuracy.
Environmental
Dahua cameras operate in extreme temperature environments, rated
for use in temperatures from -40°C ~ 70°C (-40°F ~ +158°F) with
95% humidity. The camera complies with the IK10 Vandal Resistance
impact rating. Subjected to rigorous dust and water immersion tests
and certified to the IP67 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the
unstable conditions for outdoor applications. Its 8KV lightning rating
provides effective protection for both the camera and its structure
against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.
www.dahuasecurity.com
· 1/2.8” 4Megapixel STARVIS™ CMOS
· Powerful 45x optical zoom
· Starlight technology
· Max. 25/30fps@4MP
· Deep-learning-based auto tracking and
perimeter protection
· IR distance up to 250m
· IP67 , IK10

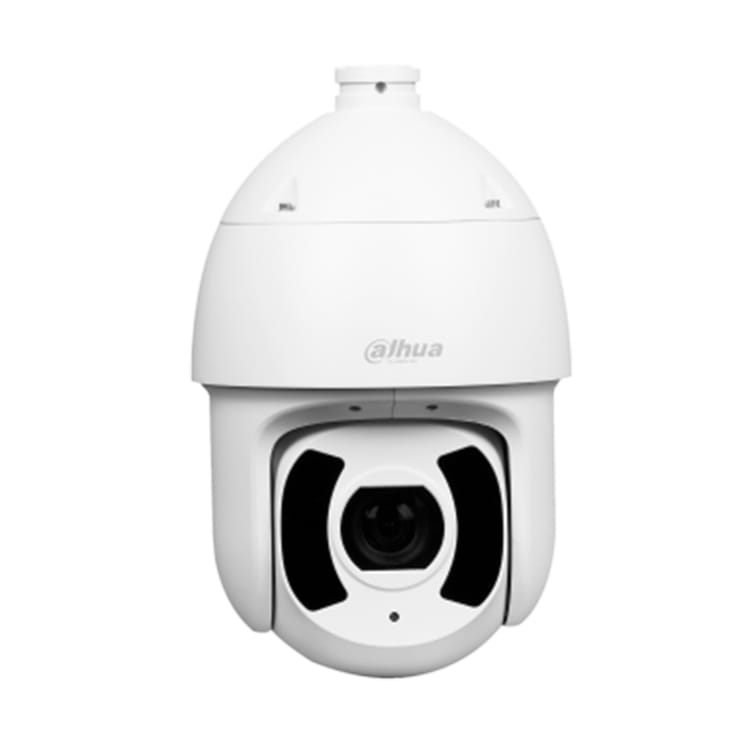

DH-SD6CE445XA-HNR
4MP 45x Starlight IR PTZ AI Network Camera

0.005Lux


Hi-PoE

0.001Lux

Hi-PoE

0.001Lux

0.005Lux

www.dahuasecurity.com
Pro AI Series | DH-SD6CE445XA-HNR

Technical Specification
Camera
Image Sensor1/2.8” STARVIS™ CMOS
Effective Pixels
2560(H) x 1440(V), 4 Megapixels
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum Illumination
Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6;
0Lux@F1.6 (IR on)
IR DistanceDistance up to 250m (820ft)
IR On/Off ControlAuto/Manual
IR LEDs6
Lens
Focal Length3.95mm~177.75mm
Max. ApertureF1.6~ F4.95
Angle of ViewH: 70.3° ~ 1.8°; V: 37° ~ 1°; D: 69.3° ~ 2°
Optical Zoom45x
Focus ControlAuto/Manual
Iris ControlAuto/Manual
Close Focus Distance10mm~ 3000mm
DORI Distance
*Note: The DORI distance is a “general proximity” of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
3176m(10420ft) 1271m(4170ft)635m(2083f)318m(1043f)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~260° /s; Tilt: 0.1° ~120° /s
Preset SpeedPan: 300° /s; Tilt: 200° /s
Presets300
PTZ Mode
5 Patern, 8 Tour(up to 32 preset per tour), Auto
Pan, 5 Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after
power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no
command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Artificial Intelligence
Perimeter Protection
Tripwire, Intrusion.
Support alarm triggering by target types(human
and vehicle)
Filtering out false alarms caused by animals,
rustling leaves, bright lights, etc
Auto TrackingSupport
Video Structuralization
Support human, motor vehicle and non-motor
vehicle image capture


General Intelligence
Event Trigger
Motion detection, Video tampering , Scene
changing, Network disconnection, IP address
conflict, Illegal Access, Storage anomaly
General IntelligenceObject Abandoned/Missing
Video
CompressionH.265+/H.265/H.264+/H.264/MJPEG(Sub Stream)
Streaming Capability3 Streams
Resolution
4M(2560x1440)/3M(2048x1536)/1080P(1920x
1080)/720P(1280x720)/D1(704x576/704x480)/
CIF(352x288/352x240)
Frame Rate
Main stream: 4M/3M(1~25/30fps), 1080P/1.3M/
720P(1~25/30fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P(1 ~ 25/30fps), 720P(1 ~
25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 3Kbps ~ 20480Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization
(EIS)
Support
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Audio
Compression
G.711a/G.711Mu/AAC/G.722 / G.726/G.729/
MPEG2-L2
Network
EthernetRJ-45 (10Base-T/100Base-TX)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP,
RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP,
IP Filter,QoS,Bonjour,802.1x
InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge Storage
NAS (Network Attached Storage),Local PC for
instant recording, Micro SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart Phone IOS, Android

Pro AI Series | DH-SD6CE445XA-HNR
www.dahuasecurity.com

Ordering Information
TypePart NumberDescription
4MP PTZ
Camera
DH-SD6CE445XA-HNR
4MP 45x Starlight IR PTZ
Network Camera, WDR, PAL
DH-SD6CE445XAN-HNR
4MP 45x Starlight IR PTZ
Network Camera, WDR, NTSC
SD6CE445XA-HNR
4MP 45x Starlight IR PTZ
Network Camera, WDR, PAL
SD6CE445XAN-HNR
4MP 45x Starlight IR PTZ
Network Camera, WDR, NTSC
Accessories
PFB305W Wall Mount
AC24V/3APower Adapter
PFA111Mount Adapter
PFA140Power Box
PFB300C Ceiling Mount
PFA120Junction Box
PFA150Pole Mount
PFA151Corner Mount
PFB303S Parapet Mount
Accessories
Included:
PFA140
Power Box
PFA150
Pole Mount
PFA120
Junction Box
PFB300C
Ceiling Mount
PFB303S
Parapet Mount
PFA151
Corner Mount

Optional：
PFA111
Mount Adapter

PFB305W
Wall Mount

AC24V/3A
Power Adapter

Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
Interface
RS4851
Audio I/O1/1
Alarm I/O7/2
Electrical
Power SupplyAC24V/3A(±25%), PoE+(802.3at)
Power Consumption13W, 26W(IR On, Heater On)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensionsφ209x337.4mm
Net Weight5.9kg(13lb)
Gross Weight9.6kg(21.16lb)

t

t

Po

PFB305W + PF A140

PFB305W + PF A151

PFB305W
PF A111 + PFB300C

PFB305W + PF A150

t

Po

Pa ra t

PF A111+ PFB303S


Pro AI Series | DH-SD6CE445XA-HNR
Rev 001.001© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice.
www.dahuasecurity.com

Dimensions (mm)
